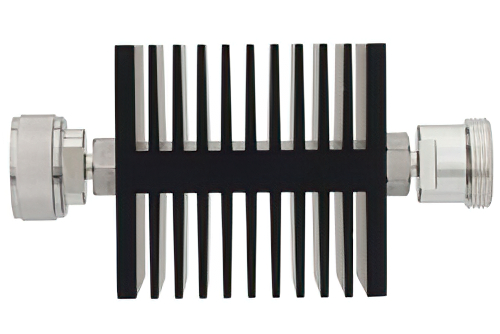

10 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Black Anodized Aluminum Heatsink Body Rated To 50 Watts Up To 7.5 GHz

Name: 10 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Black Anodized Aluminum Heatsink Body Rated To 50 Watts Up To 7.5 GHz
Brand: Pasternack
SKU: PE7312-10
Availability: InStock

Product ID: PE7312-10

Pricing

Quantity	Price
1-4	$570.00
5-9	$541.50
10-24	$513.00
25+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 7

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Design	Fixed
Maximum Frequency	7.5 GHz
Impedance	50 Ohm
Power Maximum	50 Watt
VSWR Maximum	1.45:1
Attenuation	10 dB
Connector Series 1	7/16 DIN
Connector Gender 1	Male
Connector Series 2	7/16 DIN
Connector Gender 2	Female
Body Material	Black Anodized Aluminum Heatsink

Description

10 dB Fixed Attenuator, 7/16 DIN Male To 7/16 DIN Female Directional Black Anodized Aluminum Heatsink Body Rated To 50 Watts Up To 7.5 GHz

PE7312-10 is a fixed 10 dB attenuator from Pasternack. This 10dB attenuator is an in-line, resistive PI attenuator pad design. Our coaxial 50 Ohm attenuator is manufactured to precise RF / microwave industry specifications.

This 7/16 DIN attenuator has a male gender on side 1 and a 7/16 DIN female connector on side 2. The Pasternack PE7312-10 10 dB attenuator is rated for up to 7.5 GHz. Our microwave attenuator is rated to 50 Watts at the stated attenuation value.

Our fixed RF attenuator PE7312-10 is shipped same-day as purchased from Pasternack's production facility certified to ISO 9001:2015. This 10dB attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
