Waveguide Antennas for High Performance RF Applications

High-Performance Waveguide Antennas
  • Complete line of high-performance waveguide antennas, with operating frequencies from 1.7 to 220 GHz
  • Ideal for applications such as:
    • Antenna Measurements
    • Laboratory Use
    • Wireless Communications
    • Microwave Radio Systems
  • In Stock and Shipped Same Day!
Available for Same-Day Shipping!

Pasternack is a leading manufacturer and supplier of RF, microwave and millimeter-wave products. Able to withstand extreme conditions, on earth or in space, several key industries around the world continue to rely on our products, including avionics, military electronics, IFF, SATCOM, ECM, industrial/manufacturing and oil/gas.

To meet the demands of tech engineers and designers for higher frequency antennas that support a host of RF/microwave and millimeter wave (mmWave) applications, we have a wide selection of ultra-high frequency, high-performance waveguide antennas, with operating frequencies from 1.7 to 220 GHz. These high-reliability, high-power, RF, microwave and mmWave, waveguide antennas address point-to-point and point-to-multi-point wireless application needs. Pasternack waveguide antennas are well suited for military/aerospace, R&D, experimental radar, test and measurement, wireless communications, microwave radio systems applications.

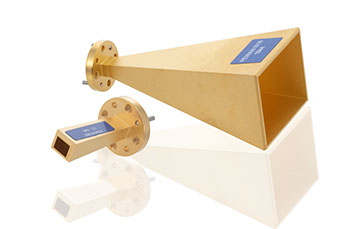

Pasternack's selection of waveguide antennas include standard gain horn, conical gain horn, wide-angle scalar feed horn, horn lens, Omni-directional, dual-polarized, probe, sector and corner reflector antennas. Our high-performance waveguide antennas, including waveguide standard horn antenna models like the PEWAN1005 and PEWAN1030, can be used in several applications thanks to their high power handling capability, low loss, high directivity and near-constant electrical performance across a broad bandwidth.

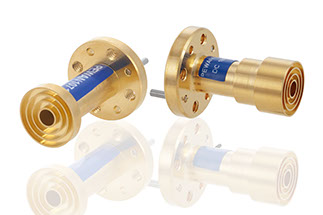

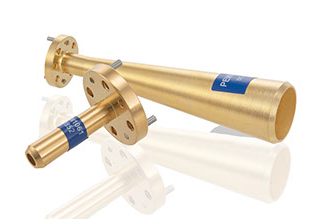

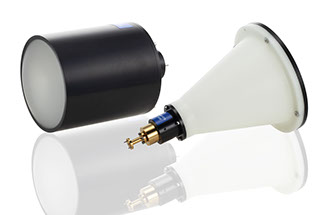

Many of our high-performance, RF waveguide antennas, like the conical gain horn waveguide antenna PEWAN1034 and PEWAN1046 models, feature gold plated brass body and a precision tolerance UG-383/U-Mod round cover flange. Pasternack waveguide antennas, including wide-angle scalar feed horn waveguide antenna models like PEWAN1073 and PEWAN1110 models, feature rectangular or circular interface and offer operating frequencies from 24-112 GHz with 10-17 dBi of gain. Our horn lens waveguide antenna PEWAN1075 and PEWAN1086 versions offer low gain variation across different frequency ranges.

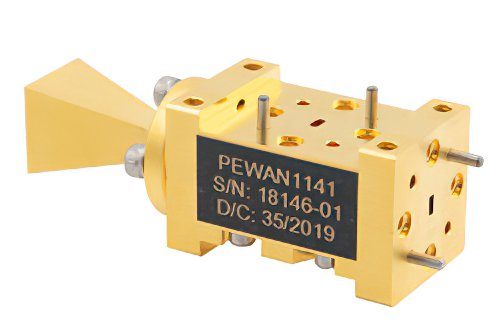

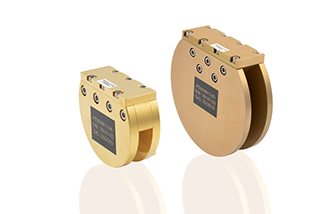

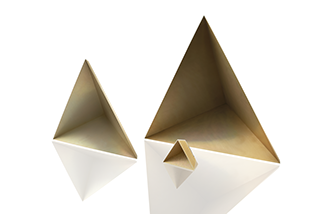

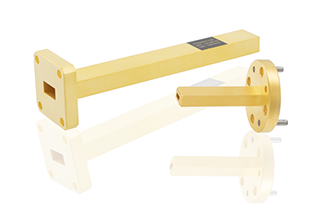

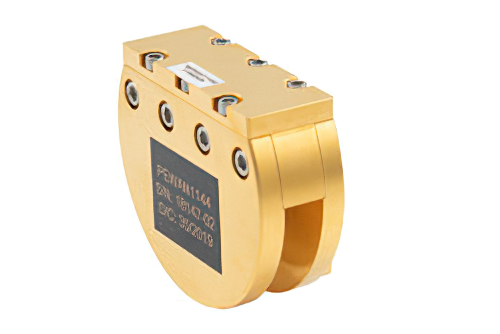

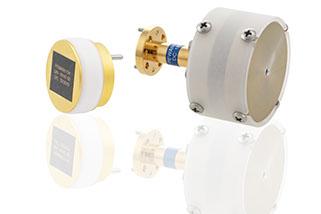

Pasternack corner reflector antenna versions such as PEWRL0000 and PEWRL0003 are constructed of aluminum with a gold chemical film finish. They have a ¼-20 threaded hole for a built-in mounting bracket and can be mounted onto a tripod for rapid system setups. All our high-performance waveguide RF antennas, including the Omni-directional waveguide antennas featuring PEWAN1133 and PEWAN1136 models, probe waveguide antennas like the PEWAN1128 and PEWAN1131, sector waveguide antennas including the PEWAN1143 and PEWAN1144 models, dual-polarized waveguide antenna PEWAN1139 and PEWAN1142 models, are constructed with the highest quality material and workmanship, all our antennas are RoHS and REACH compliant too.

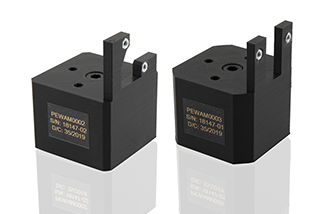

We also stock a variety of waveguide antenna mounting fixtures that are designed to work with UG383/U, UG385/U, UG387/U, UG595/U, UG599/U and UG1530/U flanges.

Our large in-stock inventory of low, medium and high frequency waveguide antennas are housed at our ultramodern ISO 9001:2008 certified production facilities. Recognized for our unmatched quality, quick turnaround, great customer service, and technical support, all our RF, microwave and millimeter-wave products are competitively priced, available for same-day shipping worldwide, with no minimum purchase requirement

Need further assistance with any of our products? Reach out to us. We are there to assist.

Toll Free - 1-866-PASTERNACK (1-866-727-8376) US and Canada only • +1-949-261-1920 International • Email sales@pasternack.com

...View More

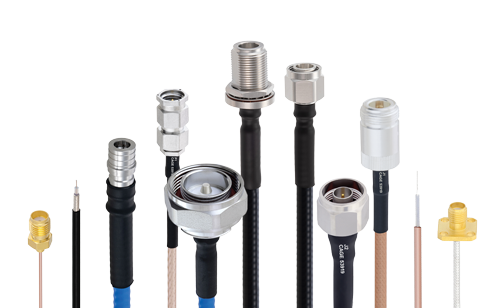

The Cable Creator™
