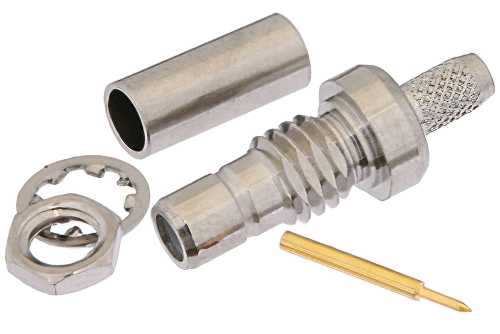

SMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

Name: SMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
Brand: Pasternack
SKU: PE45159
Availability: InStock

Product ID: PE45159

Pricing

Quantity	Price
1-24	$17.19
25-49	$16.33
50-99	$15.47
100-249	$14.78
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 366

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SMB
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	Bulkhead
Minimum Frequency	DC
Maximum Frequency	4 GHz
Interface Type 1	RG188-DS
Interface Type 2	RG316-DS

Description

SMB Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG188-DS, RG316-DS

PE45159 SMB jack bulkhead coaxial connector has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. Pasternack SMB jack bulkhead connector uses shield/contact crimp/solder as an attachment method. Our jack SMB coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.

The Pasternack SMB jack bulkhead coaxial connector has a teflon dielectric type. The Pasternack SMB coaxial connector has a brass body with nickel plating. Our PE45159 SMB connector uses brass contact. This SMB jack bulkhead coaxial RF connector is REACH compliant.

This Pasternack jack SMB bulkhead connector will ship the same day as purchased. Our bulkhead SMB jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SMB connector cable assemblies that will ship the same day as well.
