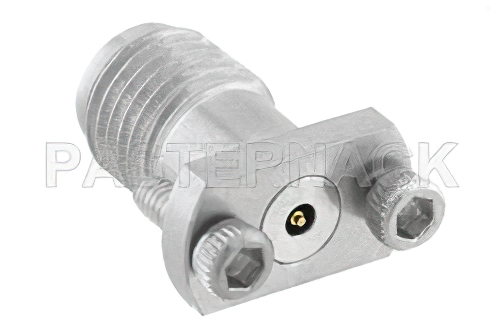

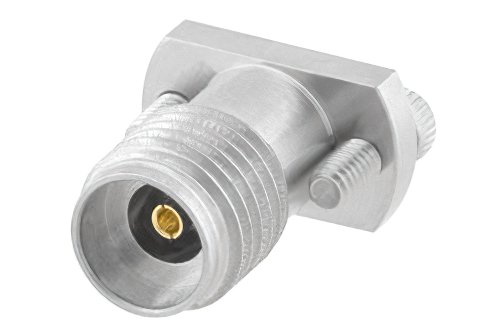

2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch

Product ID: PE45450
2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch


Image Views:  2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch high resolution
Zoomalternate image
View 2


Click for:PE45450 Datasheet
Available Quantity: 39
Pricing Table
QUANTITYPRICE
1-24$41.46
25-49$39.39
50-99$37.31
100-249$35.66
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series2.92mm
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency40 GHz


2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch

PE45450 2.92mm female pcb connector has an interface type of vertical launch and a 50 Ohm impedance. Pasternack 2.92mm female connector uses shield/contact clamp as an attachment method. Our female 2.92mm pcb connector provides a minimum frequency of DC and a maximum frequency of 40 GHz.

The Pasternack 2.92mm female pcb connector has a ultem1000 dielectric type and a VSWR of 1.3. The Pasternack 2.92mm pcb connector has a passivated stainless steel body. Our PE45450 2.92mm connector uses beryllium copper contact. This 2.92mm female pcb RF connector is RoHS and REACH compliant.

This Pasternack female 2.92mm connector will ship the same day as purchased. Our 2.92mm female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 2.92mm connector cable assemblies that will ship the same day as well.
