3/4"-20 Twinax Male to 3/4"-20 Twinax Male Cable Assemblies

Check out our new RF calculators & conversion tools...

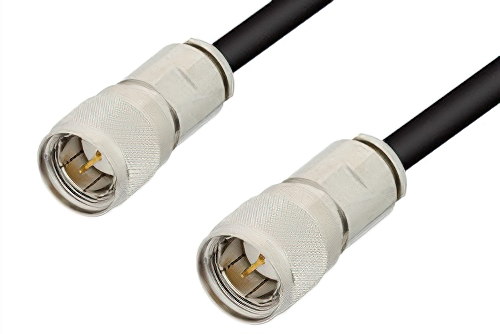

3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax Male Cable Using 100 Ohm PE-S330 Coax, RoHS

Product ID: PE3930LF
3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax Male Cable Using 100 Ohm PE-S330 Coax, RoHS

Image Views:  3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax Male Cable Using 100 Ohm PE-S330 Coax, RoHS high resolution
Zoom


Click for:PE3930LF Datasheet
Click for:PE3930LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
18 in.36 in.60 in.90 in.120 in.180 in.300 in.600 in.900 in.1200 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 13/4"-20 Twinax
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 195
Connector Series 23/4"-20 Twinax
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 295
RF Cable Part NumberPE-S330
RF Cable TypePE-S330
RF Cable Impedance100


3/4 inch-20 Twinax Male to 3/4 inch-20 Twinax Male Cable Using 100 Ohm PE-S330 Coax, RoHS

PE3930LF is a 3/4"-20 Twinax male to 3/4"-20 Twinax male cable using PE-S330 coax. This Pasternack 3/4"-20 Twinax male to 3/4"-20 Twinax male cable assembly uses a 95 Ohm 3/4"-20 Twinax for connector 1 and a 95 Ohm 3/4"-20 Twinax for connector 2.

Our male 3/4"-20 Twinax to male 3/4"-20 Twinax cable assembly uses a flexible cable type that is 100 Ohm. Pasternack PE3930LF 3/4"-20 Twinax male to 3/4"-20 Twinax male cable assembly is constructed with PE-S330 coax.
