Absorptive SPST PIN Diode Switch Operating From 1 GHz to 2 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

Product ID: PE71S6231
Absorptive SPST PIN Diode Switch Operating From 1 GHz to 2 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA

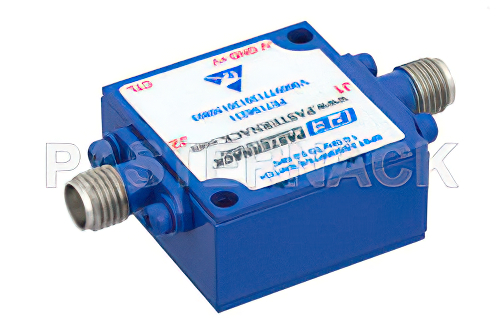

Image Views:  Absorptive SPST PIN Diode Switch Operating From 1 GHz to 2 GHz Up to 0.1 Watts (+20 dBm) and Field Replaceable SMA high resolution
Zoomalternate image

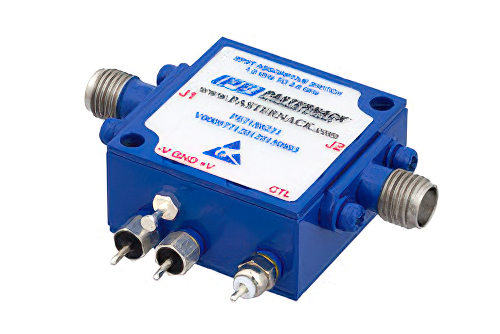

View 2


Click for:PE71S6231 Datasheet
Click for:PE71S6231 RoHS Cert
Click for:PE71S6231 REACH Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-1$1,736.67
2-4$1,632.47
5-9$1,545.64
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesSMA
Connector GenderFemale
Switch DesignAbsorptive
Minimum Frequency1,000 MHz
Maximum Frequency2 GHz
Impedance50 Ohm
Maximum Input Power0.1 Watts
Minimum Isolation80 dB


Absorptive SPST PIN Diode Switch Operating From 1 GHz to 2 GHz Up to +20 dBm and Field Replaceable SMA

PE71S6231 PIN diode switch from Pasternack is a Absorptive design. Our RF Absorptive PIN diode switch uses SMA connectors at 50 Ohm. This SMA PIN diode Absorptive switch has a minimum frequency of 1,000 MHz and a maximum frequency of 2 GHz. The Pasternack PIN diode Absorptive RF switch is rated at a switching speed of 50 ns and a maximum input power of 0.1 Watts (+20 dBm ).

Insertion loss maximum of this SMA Absorptive switch is dB with an isolation minimum of 80 dB. Absorptive PIN diode radio frequency switch PE71S6231 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Absorptive SMA coaxial PIN diode switch can ship worldwide the same day that it is bought as with our other available RF parts.
