Pasternack Introduces New Line of

1 Watt and 2 Watt Medium Power Broadband Amplifiers Up to 18 GHz

Product Features

SMA connectors
1 Watt & 2 Watt amplifier models
18 GHz max. frequency
Hermetically-sealed modules
GaAs pHEMT technology
Unconditionally stable
High P1dB Power Output: 30 to 33 dBm
Small Signal Gain: 32 dB min
High Output IP3 (Linearity): 39 to 42dBm
Gain Flatness: ±1.0 to ±2.0 dB
EAR99 (No Export License Required)

2 GHz to 6 GHz

1 Watt

Click to buy: PE15A4005

1 Watt, 2 GHz to 6 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 39 dBm IP3, 5 dB NF, SMA

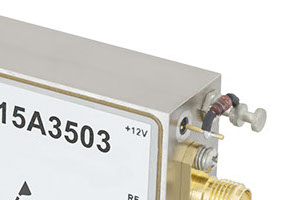

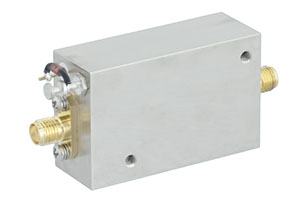

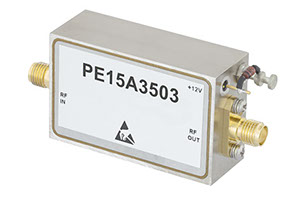

Click to buy: PE15A3503

44 dB Gain, 1 Watt, 2 GHz to 6 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA

2 Watt

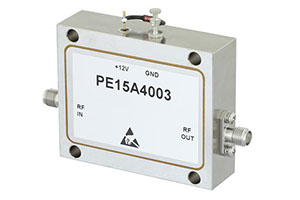

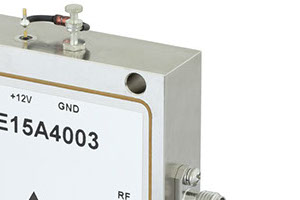

Click to buy: PE15A4003

2 Watt, 2 GHz to 6 GHz, Medium Power Broadband Amplifier, 32 dB Gain, 42 dBm IP3, 5 dB NF, SMA

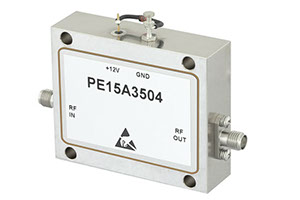

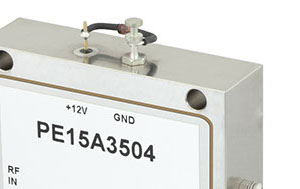

Click to buy: PE15A3504

44 dB Gain, 2 Watt, 2 GHz to 6 GHz, Broadband High Gain Amplifier, 42 dBm IP3, 5 dB NF, SMA

6 GHz to 12 GHz

1 Watt

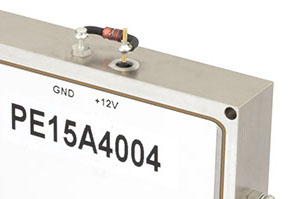

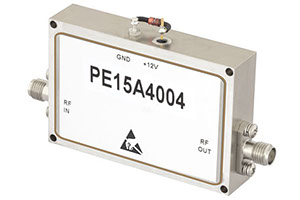

Click to buy: PE15A4004

1 Watt, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 38 dB Gain, 39 dBm IP3, 5 dB NF, SMA

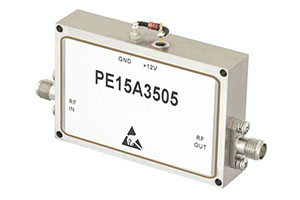

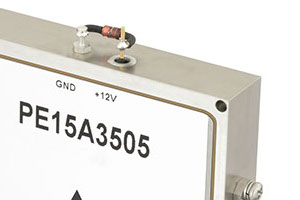

Click to buy: PE15A3505

48 dB Gain, 1 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 5 dB NF, SMA

2 Watt

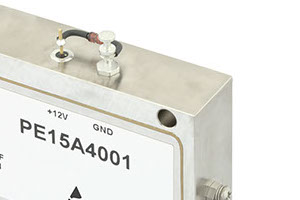

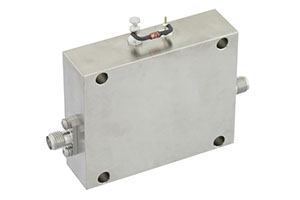

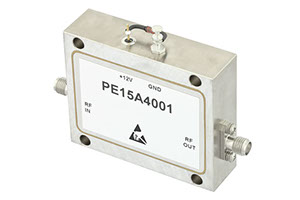

Click to buy: PE15A4001

2 Watt, 6 GHz to 12 GHz, Medium Power Broadband Amplifier, 37 dB Gain, 42 dBm IP3, 6 dB NF, SMA

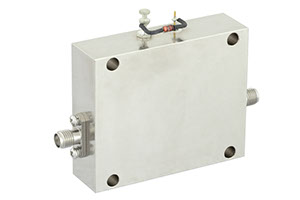

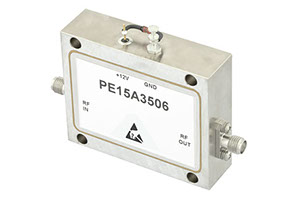

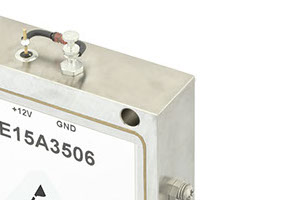

Click to buy: PE15A3506

47 dB Gain, 2 Watt, 6 GHz to 12 GHz, Broadband High Gain Amplifier, 42 dBm IP3, 6 dB NF, SMA

12 GHz to 18 GHz

1 Watt

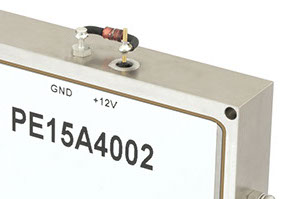

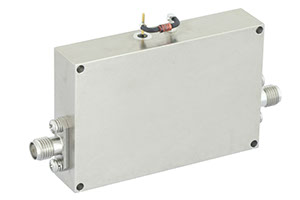

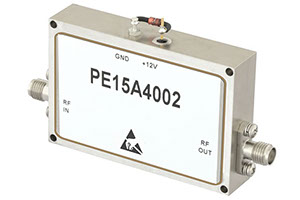

Click to buy: PE15A4002

1 Watt, 12 GHz to 18 GHz, Medium Power Broadband Amplifier, 33 dB Gain, 39 dBm IP3, 6 dB NF, SMA

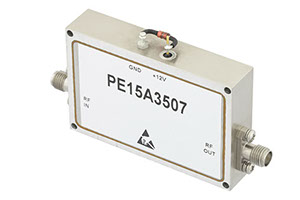

Click to buy: PE15A3507

43 dB Gain, 1 Watt, 12 GHz to 18 GHz, Broadband High Gain Amplifier, 39 dBm IP3, 6 dB NF, SMA

1 Watt and 2 Watt Medium Power Broadband Amplifiers Up to 18 GHz

These medium power broadband amplifiers are in-stock and available to ship today!

Our 1 Watt and 2 Watt medium power broadband amplifiers are ideal for defense, EW/ECM, radar, test instrumentation, telecom, satcom, microwave radio and industrial applications from 2 GHz to 18 GHz. These broadband amplifiers are offered in 1 Watt and 2 Watt models and range in frequency from 2 to 18 GHz depending on the RF amplifier configuration. The broadband power amplifiers are designed with a hybrid microwave integrated circuit design and utilize advanced GaAs pHEMT technology.

Medium power broadband amplifiers from Pasternack are housed in hermetically sealed modules and will operate from -55°C to +85°C. This comprehensive product offering of RF power amplifier provides our customers a choice of gain levels, frequency ranges and power outputs for their specific requirements. Pasternack’s 1 Watt and 2 Watt broadband RF power amplifiers have outstanding performance in gain ranging from 32 dB to 48 dB, gain flatness from ±1 dB to ±2 dB at the higher frequency range of 12 GHz to 18 GHz, and high linearity levels (IP3) of 39 dBm to 42 dBm.
