Rack Mount Variable Gain Amplifier
  • Heat Sinks with and without Cooling Fans
  •  Model Specific and General Configurations
  •  AC and DC Power Supply Options and Control Cable Interfaces
  •  Amplifier Mating Control Connector Interfaces
  •  Thermal Gaskets Included




In stock and ready for same-day shipping!

RF, Microwave and Millimeter Wave Amplifier Accessories from Pasternack


Part No.

& Additional

Views

Description

Requried
Models

Material

Features

ECCN

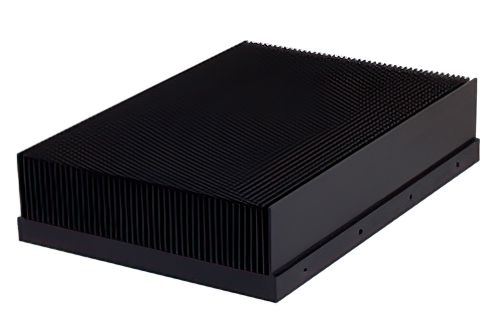

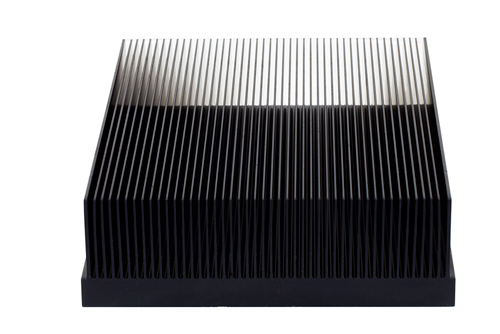

Heat Sink for Most RF Power Amplifier PE15A5000 Series   PE15C5013

Heat Sink for all Pasternack
Power Amplifier Models with
Output Power > 1 Watt Typical

General Usage
All Power Amps
> 1 Watt Ouput

6061 Aluminum Alloy
Black Anodize Finish

Thermal Gasket Included

EAR99

  • descrHeat Sink for Most RF Power Amplifier PE15A5000 Series
  • descrHeat Sink for Most RF Power Amplifier PE15A5000 Series

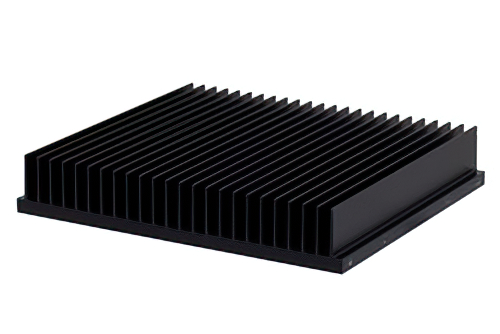

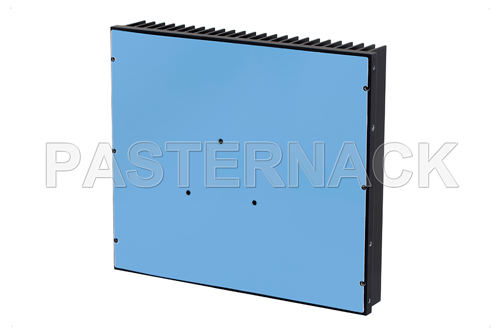

Heat Sink for Rf Power Amplifier PE15A5022   PE15C5022

Heat Sink for RF Power Amplifier PE15A5022

PE15C5022

6061 Aluminum Alloy
Black Anodize Finish

Thermal Gasket Included

EAR99

  • descrHeat Sink for Rf Power Amplifier PE15A5022
  • descrHeat Sink for Rf Power Amplifier PE15A5022




Part No.

& Additional

Views

Description

Requried
Models

Air Flow

Material

Input
Voltage Supply

Features

ECCN

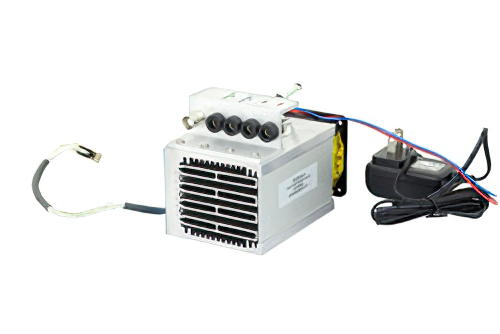

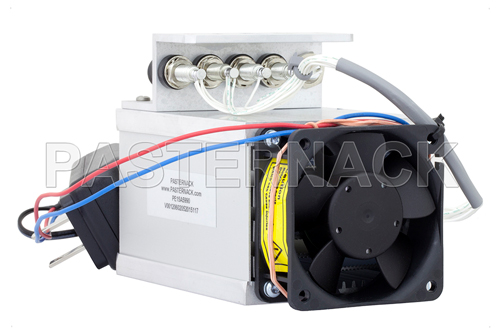

Heat Sink with Fan for RF Power Amplifier PE15A5024, PE15A5025 and PE15A5027   PE15A5990

Heat Sink with Fan for RF Power Amplifier PE15A5024, PE15A5025 and PE15A5027

PE15A5024
PE15A5025
PE15A5027

58 M3/H

- - -

115 VAC
@ 2.9 Watts

15 PIN Micro D-SUB Female Connector Interface

EAR99

  • descrHeat Sink with Fan for RF Power Amplifier PE15A5024, PE15A5025 and PE15A5027
  • descrHeat Sink with Fan for RF Power Amplifier PE15A5024, PE15A5025 and PE15A5027

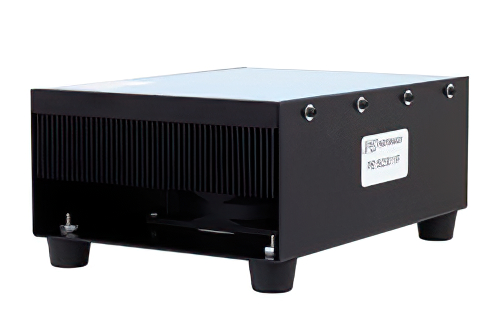

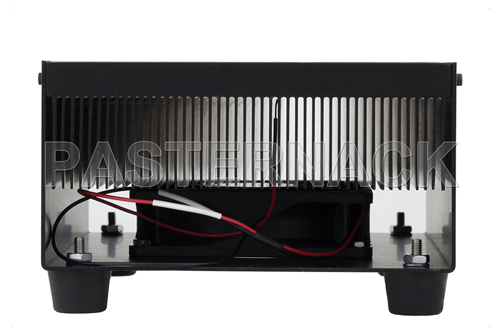

Heat Sink with 24V Fan and Power and Control Cable for RF Amplifier PE15A5011, PE15A5016, PE15A5017, PE15A5019   PE15C5011F

Heat Sink with 24V Fan and Power and Control Cable for RF Amplifier PE15A5011, PE15A5016, PE15A5017, PE15A5019

PE15A5011
PE15A5016
PE15A5017
PE15A5019

51.5 CFM

6061 Aluminum Alloy
Black Anodize Finish

24 VDC
@ 87mA

Thermal Gasket Included

EAR99

  • descrHeat Sink with 24V Fan and Power and Control Cable for RF Amplifier PE15A5011, PE15A5016, PE15A5017, PE15A5019
  • descrHeat Sink with 24V Fan and Power and Control Cable for RF Amplifier PE15A5011, PE15A5016, PE15A5017, PE15A5019

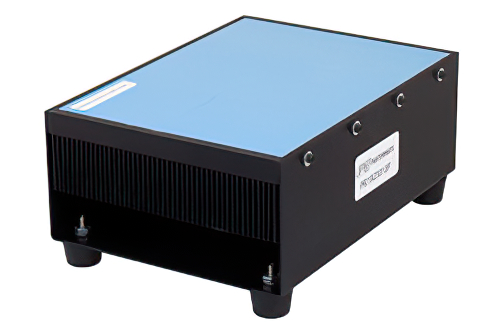

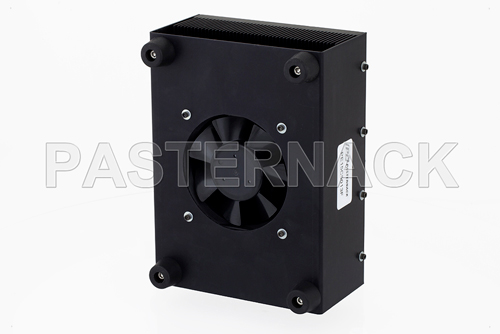

Heat Sink with 12V Fan for Most RF Power Amplifier PE15A5000 Series   PE15C5013F

Heat Sink with 12V Fan for all
Pasternack Power Amplifier Models
with Ouput Power > 1 Watt

General Usage
All Power Amplifier
Models > 1 Watt Ouput

51.5 CFM

6061 Aluminum Alloy
Black Anodize Finish

12 VDC
@ 87mA

Thermal Gasket Included

EAR99

  • descrHeat Sink with 12V Fan for Most RF Power Amplifier PE15A5000 Series
  • descrHeat Sink with 12V Fan for Most RF Power Amplifier PE15A5000 Series

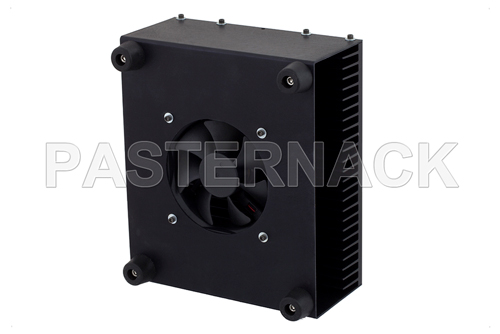

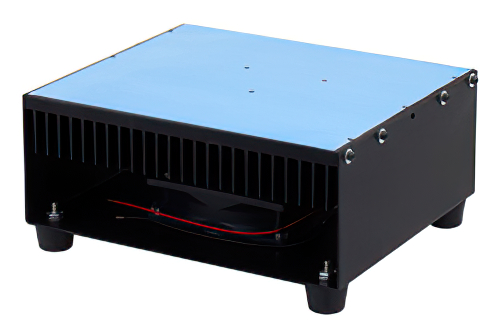

Heat Sink with 24V Fan for RF Power Amplifier PE15A5022   PE15C5022F

Heat Sink with 24V Fan for RF Power Amplifier PE15A5022

PE15C5022

51.5 CFM

6061 Aluminum Alloy
Black Anodize Finish

24 VDC
@ 87mA

Thermal Gasket Included

EAR99

  • descrHeat Sink with 24V Fan for RF Power Amplifier PE15A5022
  • descrHeat Sink with 24V Fan for RF Power Amplifier PE15A5022




Part No.

Description

Requried
Models

Connector

Power and Control Cable for RF Amplifier PE15A5011, PE15A5014, PE15A5016, PE15A5017, PE15A5018, PE15A5019, PE15A5020 and PE15A5022 PE15J5011 Power and Control Cable for RF Amplifier PE15A5011, PE15A5014, PE15A5016, PE15A5017, PE15A5018, PE15A5019, PE15A5020 and PE15A5022

PE15A5011
PE15A5014
PE15A5016
PE15A5017
PE15A5018
PE15A5019
PE15A5020
PE15A5022

7W2 DC Voltage and Control Interface


Power and Control Cable for RF Amplifier PE15A5015,PE15A5023 PE15J5015 Power and Control Cable for RF Amplifier PE15A5015,PE15A5023

PE15A5015
PE15A5023

9 Pin Micro DSUB DC Voltage and Control Interface


Power and Control Cable for RF Amplifier PE15B5000 and PE15B5001 PE15K5000 Power and Control Cable for RF Amplifier PE15B5000 and PE15B5001

PE15B5000
PE15B5001

3 Contact DC Connector Interface


Power and Control Cable for RF Amplifier PE15B5002 PE15K5002 Power and Control Cable for RF Amplifier PE15B5002

PE15B5002

6 Contact DC Voltage and Control Connector Interface


RF, Microwave and Millimeter Wave Amplifier Accessories from Pasternack

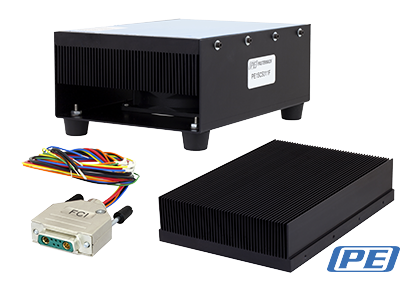

Pasternack’s line of RF and microwave power amplifier accessories include heat sinks, heat sinks with cooling fans and power control cable assemblies.

Pasternack offers eight different heat sink models, some of which are designated for general purpose usage and others are configured for select power amplifier models. These heatsinks feature finned extrusion profiles with large baseplate mounting surfaces and AC or DC power supply options for models that support integrated cooling fans.  Most models include thermal mounting gaskets for optimal thermal flow.

Additionally, to support test and measurement applications, Pasternack offers four styles power control cable assemblies that are configured for select power amplifier models with D-Sub connector interfaces.
