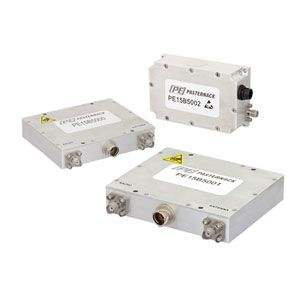

Coaxial Packaged Bi-Directional Amplifiers
Pasternack's New Line of

Coaxial Packaged Bi-Directional Amplifiers

  • L Band, S Band, and Broadband models
  • High quality Tx Signals while amplifying Rx Signal with advanced LNA to produce highest possible data rates
  • Half-Duplex Designs offer efficient power transmission across 802.11g and 802.11b wireless networks
  • Fast switching times of 1 μs (microsecond) typical
  • Designs offer sensitive receiver performance with 2.5 dB noise figure
  • Designs are in compact environmentally sealed packages
  • Feature single quick connect circular locking connector for DC and Control functions
All in stock and ready for same-day shipping!
▼ Click on the links below for more details
Part No. & Additional Views Frequency Band (GHz) Tx Gain (dB) Tx Gain Flatness +(dB) Tx P1dB (dBm) Rx P1dB Gain Rx Gain Flatness +(dB) Rx NF (dB) Rx P1dB (dBm) DC Power (V/mA)

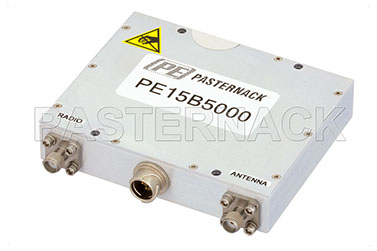

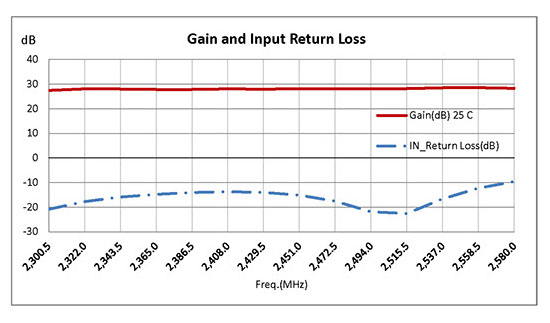

High Power Bi-Directional Amplifier, 5/20 Watts, 2.4 GHz to 2.5 GHz, 1 us switching, 20 dB Gain, SMA PE15B5000 2.4 to 2.5 20 0.5 20 11 0.5 2.5 0 28/2400

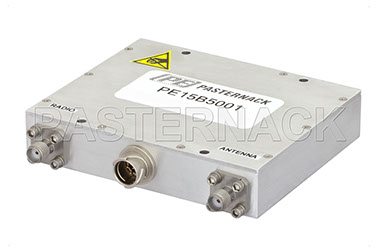

High Power Bi-Directional Amplifier, 5/20 Watts, 1.35 GHz to 1.39 GHz, 1 us switching, 22 dB Gain, SMA PE15B5001 1.35 to 1.39 22 0.5 20 10 0.5 2.5 0 28/2400

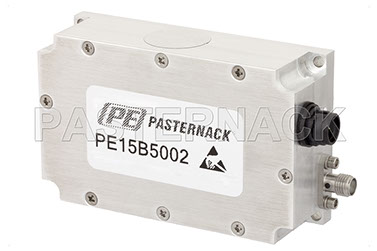

High Power Bi-Directional Amplifier, 0/0 Watts, 30 MHz to 3 GHz, 1 us switching, 23 dB Gain, SMA PE15B5002 30 MHz to 3 23 1.5 22 20 1.5 4 22 28/2400

High Power Bi-Directional Coaxial Amplifiers

Pasternack’s line of bi-directional amplifiers are commonly used for sending and receiving radio signals in key applications such as unmanned aerial vehicles (UAV), unmanned ground vehicles, L and S band radar, military radio, commercial air traffic control, weather and earth observation, satellites and high gain driver power amplifiers.

The new bi-directional RF amplifiers from Pasternack consist of 2 narrow band models that operate in L-Band (1.35 to 1.39 GHz) and S-Band (2.4 to 2.5 GHz). These designs utilize highly linear Class AB LDMOS semiconductor technology. A general purpose broadband model is also featured which covers 30 MHz to 3 GHz and uses Class A GaAs semiconductors. Typical gain levels for these amplifiers range from 20 to 23 dB with ±0.5 dB gain flatness. The key advantage of these designs is fast switching capability (1 μs typical) between Transmit (Tx) and Receive (Rx) states where high output power is generated, while at the same time, the sensitive receiver section has a 2.5 dB noise figure and sufficient RF gain levels to maintain a high data rate link.

These models are designed for use in both military and commercial applications and are capable of supporting any signal type and modulation format, including but not limited to 3-4G telecom, WLAN, OFDM, DVB and CW/AM/FM. The company’s bi-directional amplifiers utilize the latest technologies and design methods that offer high power density, efficiency and linearity in small lightweight environmentally sealed packages with SMA connectors. These modules also feature a quick-connect circular locking connector for DC and control functions. All designs use a single voltage supply with voltage regulation.
