GaN Solid State Power Amplifiers Offer Greater Efficiency in Compact Packages and are In-Stock for Immediate Delivery

USA & Canada (866) 727-8376  International +1 (949) 261-1920

▼ Click on the links below for more details

GaN Solid State Power Amplifiers Offer Greater Efficiency in Compact
Packages and are In-Stock for Immediate Delivery

  • Broadband frequencies ranging from 30 MHz to 7.5 GHz
  • Compact SMA connectorized GaN amplifier packages
  • High Psat levels ranging from 10 watts to 100 watts
  • High output load impedance offers easier impedance matching using lower
    loss matching components
  • Single Voltage supplies are internally regulated
  • Operating temperature ranges from -40°C to +85°C
  • Some GaN solid state power amplifier models have integrated heat sinks
    and cooling fans
  • Most models are classified as EAR99

All solid state power amplifiers in stock
and ready for same-day shipping!

Part No.

Frequency
Band

(GHz)

Gain

Gain

Variation

+/-(dB)

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Part No.

Frequency
Band

(GHz)

Gain

Gain

Variation

+/-(dB)

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

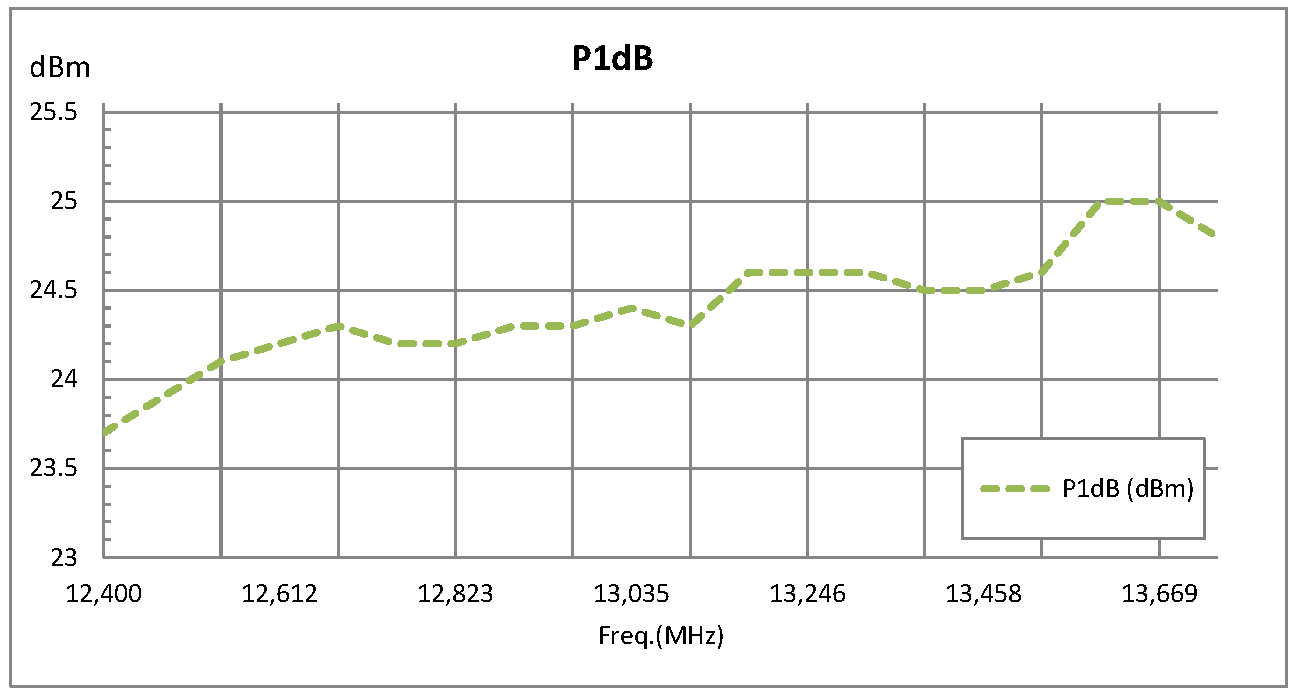

43 dB Gain, 10 Watt Psat, 30 MHz to 2.5 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5011

.03 to 2.5

43

1.5

-20

10

35

Yes

28/1.2

3.75 x 1.75 x 0.52

SMA

EAR99

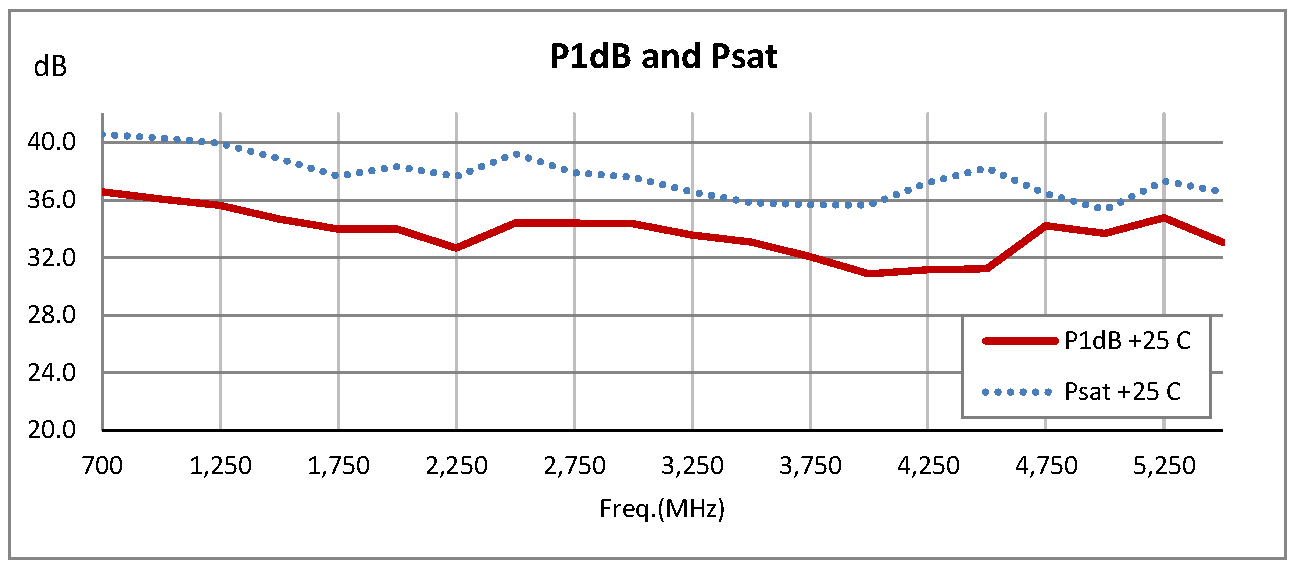

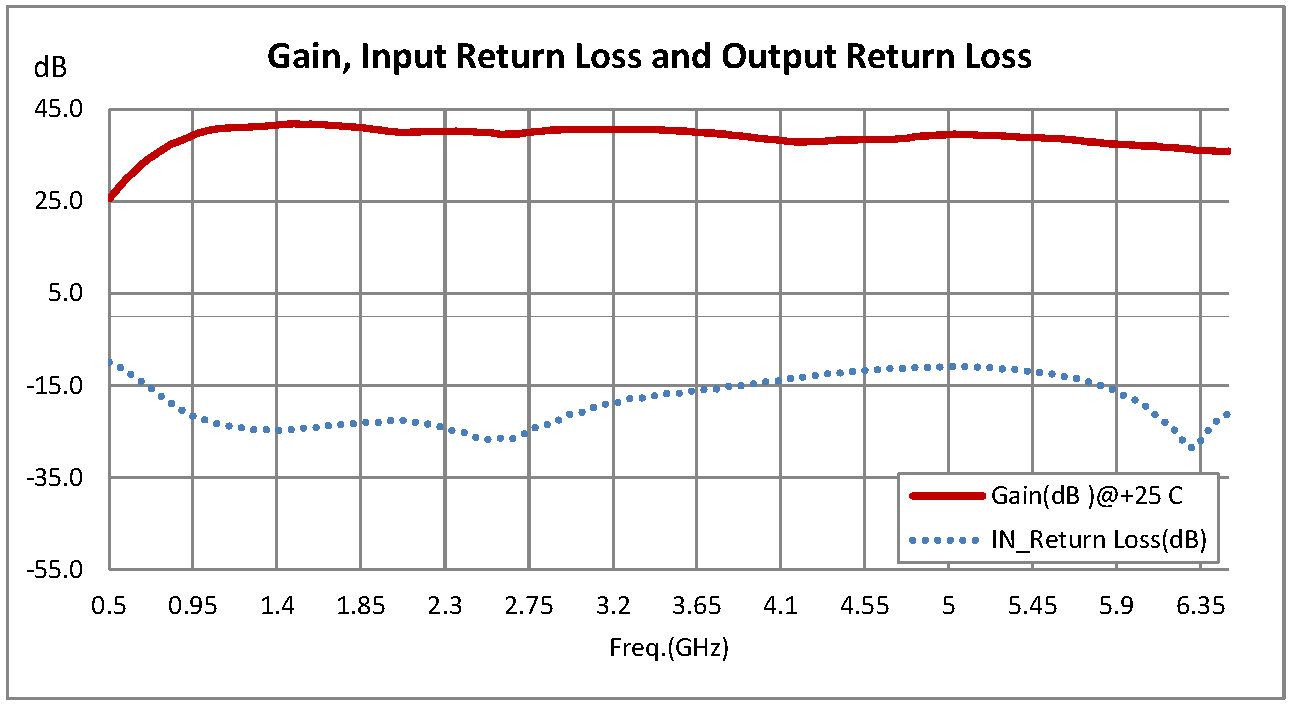

43 dB Gain, 10 Watt Psat, 700 MHz to 6 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5017

0.7 to 6

43

1.5

-20

10

20

Yes

32/2

3.75 x 1.75 x 1.06

SMA

EAR99

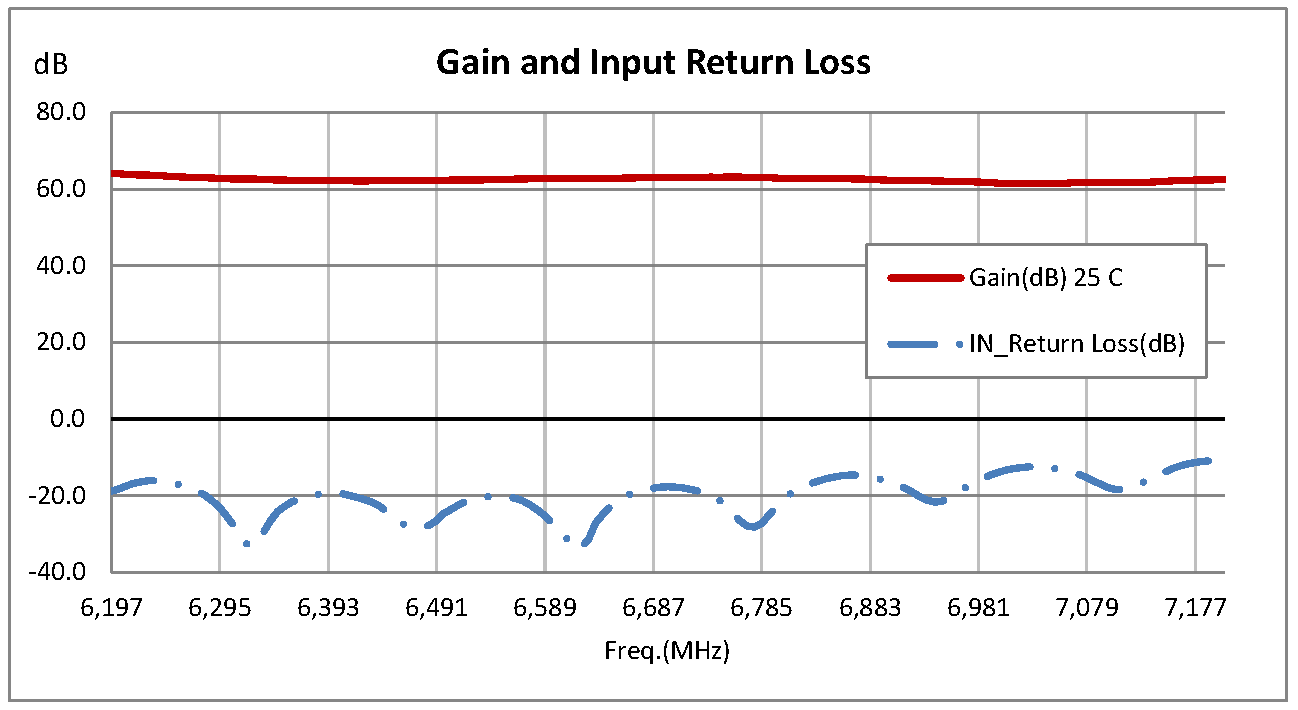

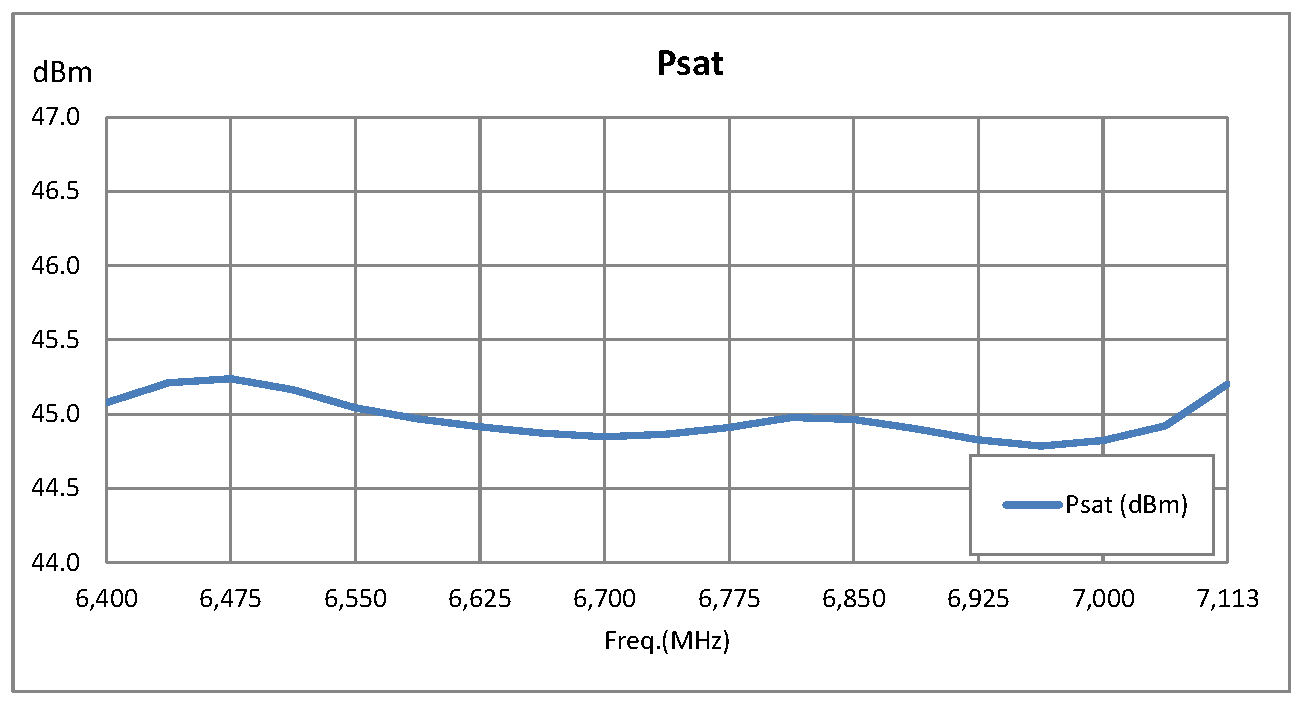

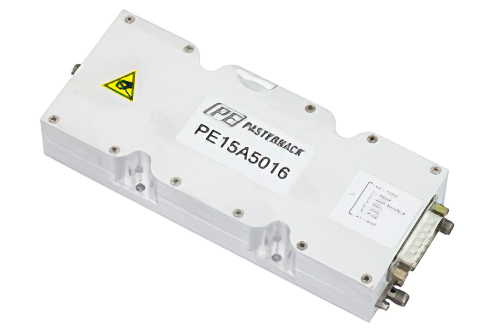

58 dB Gain, 20 Watt Psat, 6.4 GHz to 7.1 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5016

6.4 to 7.1

58

2

-20

20

35

Yes

33/2.3

6 x 2.5 x 1.06

SMA

3A001.b.4.f.1

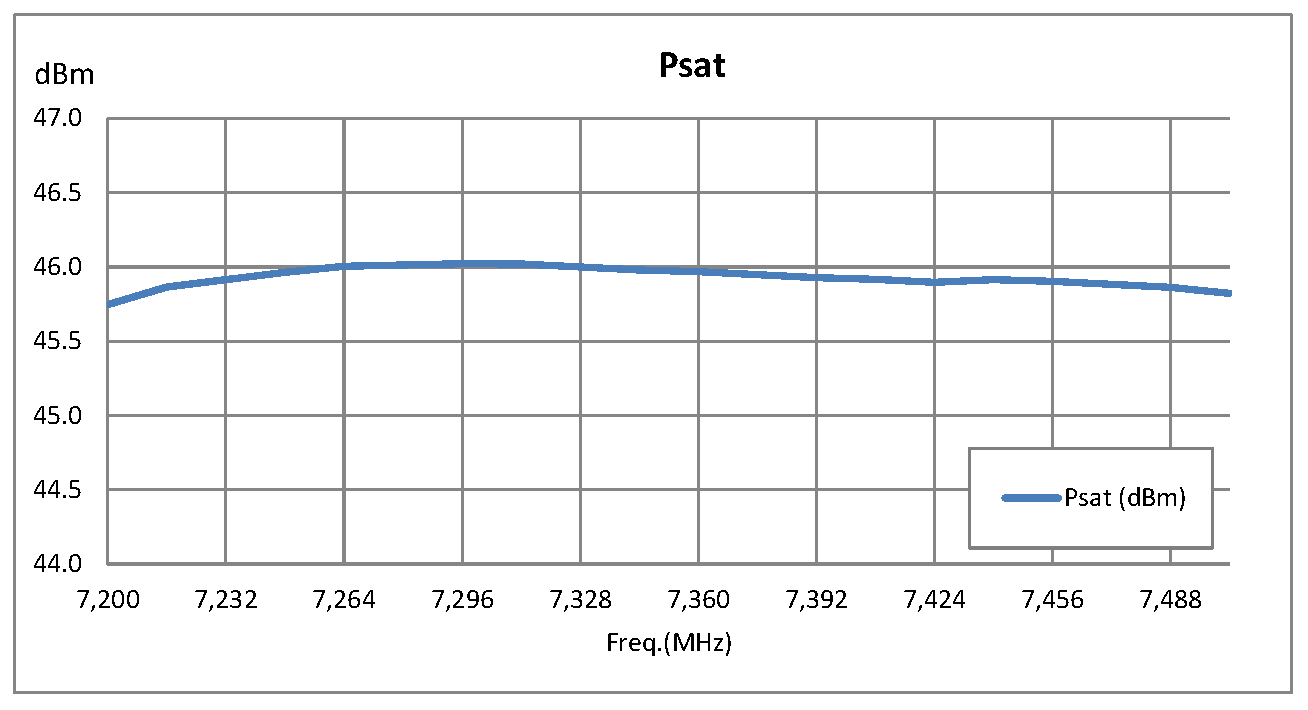

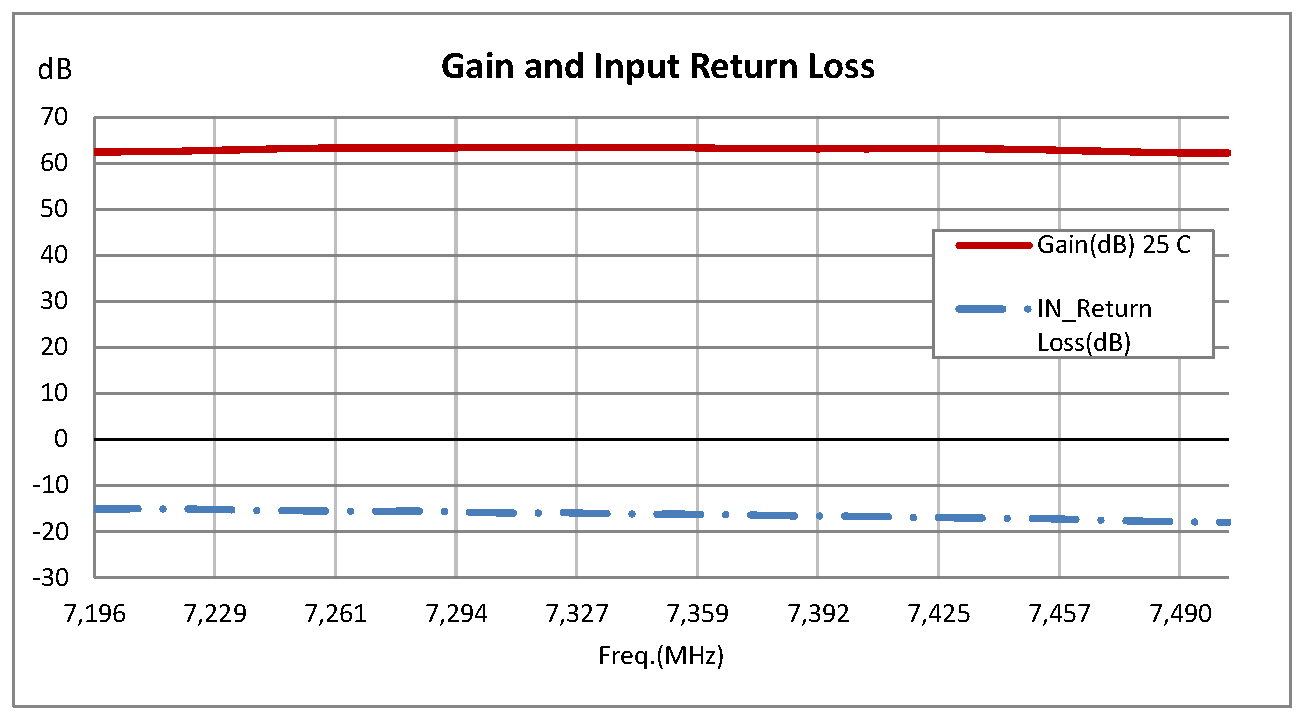

58 dB Gain, 15 Watt Psat, 7.2 GHz to 7.5 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5019

7.2 to 7.5

58

2

-20

15

35

Yes

33/2.3

6 x 2.5 x 1.06

SMA

3A001.b.4.f.1

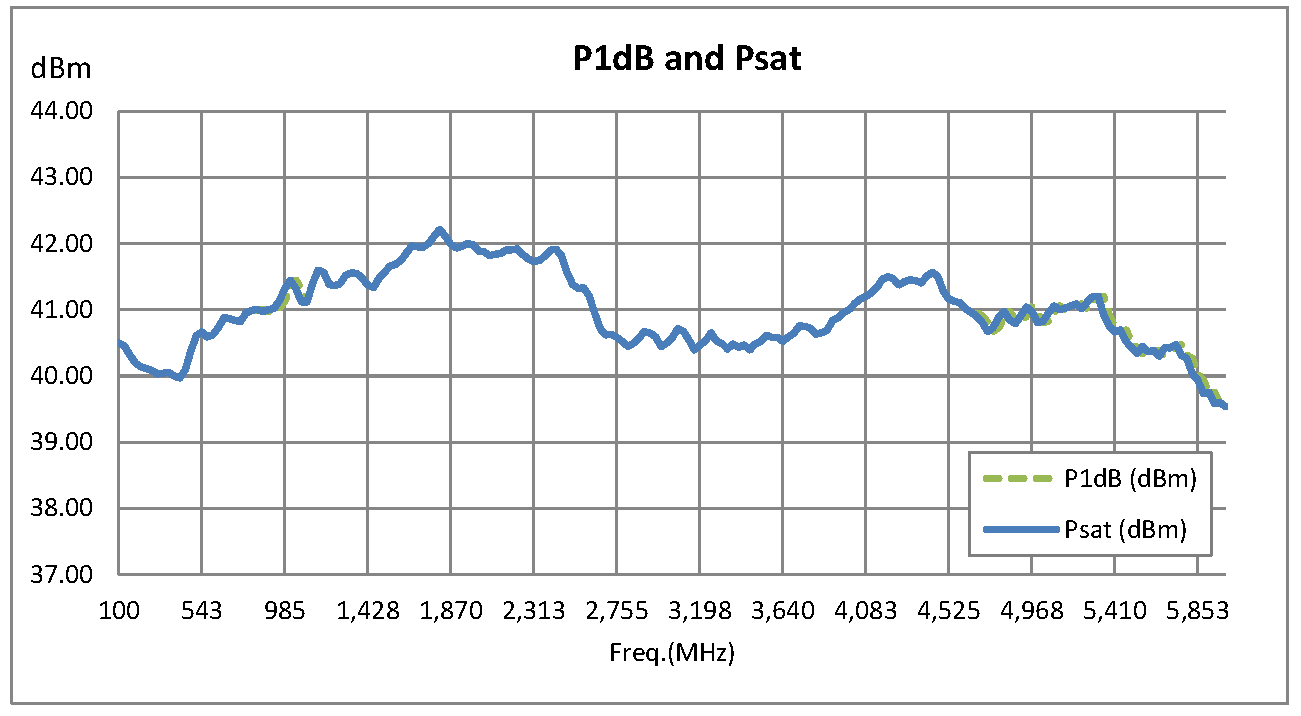

50 dB Gain, 25 Watt Psat, 2 GHz to 6 GHz, High Power High Gain Amplifier, GaN, 7 dB NF, SMA PE15A5024

2 to 6

50

1.25

-15

25

30

Yes

28/3

2.5 x 2.75 x 0.45

SMA

EAR99

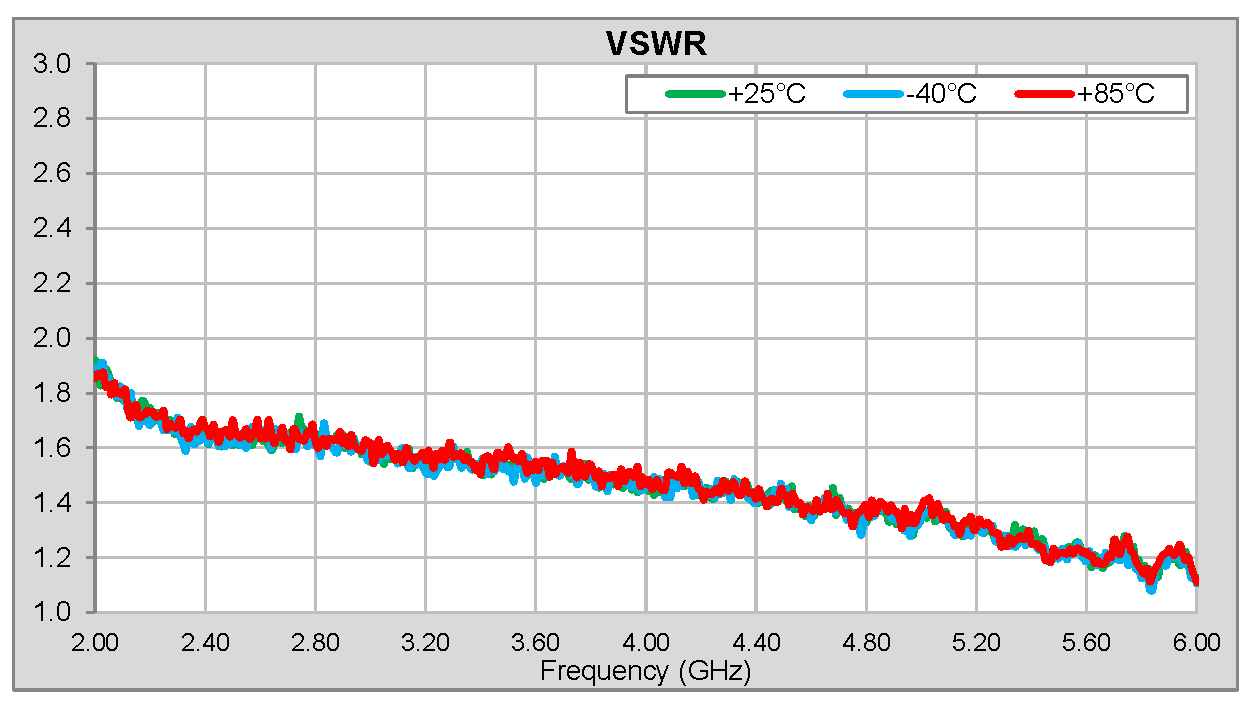

50 dB Gain, 50 Watt Psat, 2 GHz to 6 GHz, High Power High Gain Amplifier, GaN, 7 dB NF, SMA PE15A5025

2 to 6

50

1.25

-15

50

30

Yes

28/6

2.5 x 2.75 x 0.45

SMA

EAR99

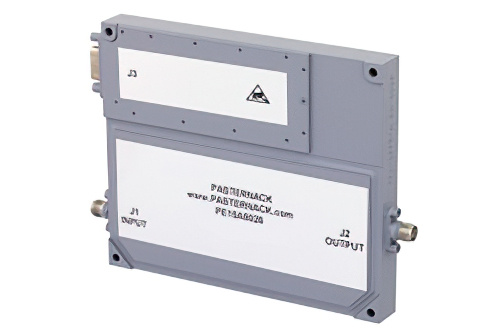

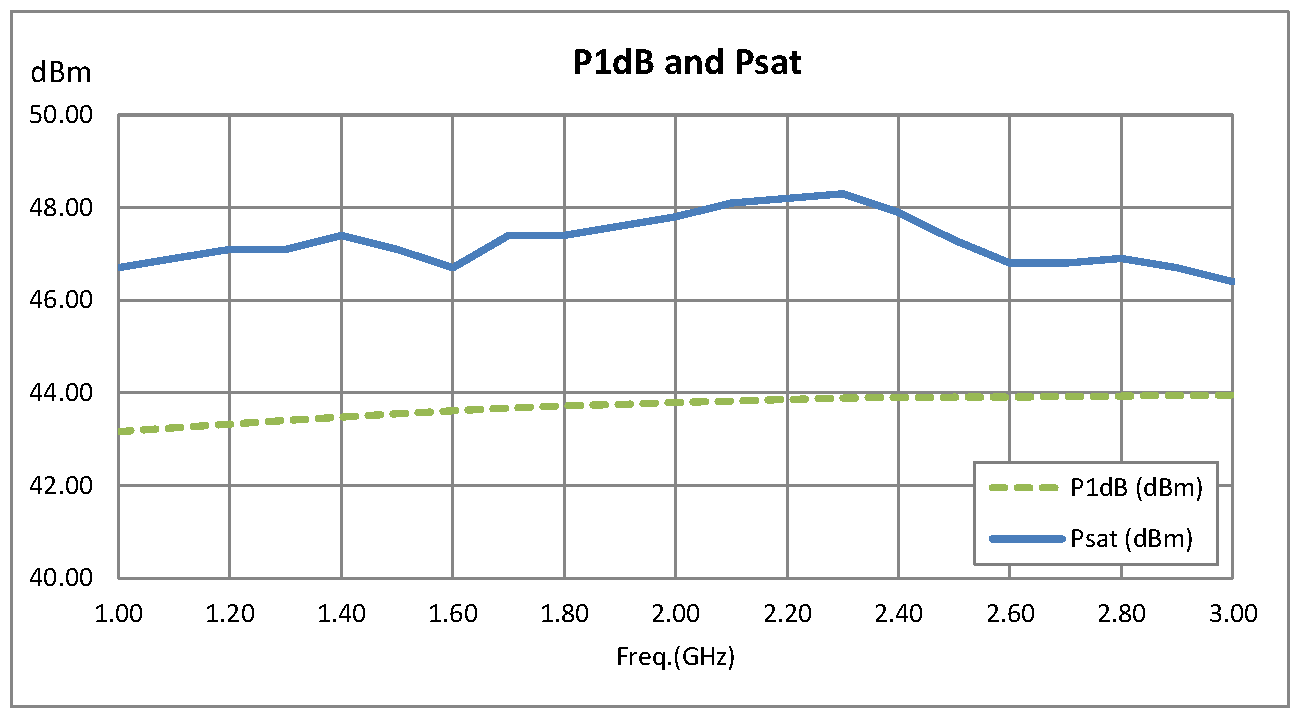

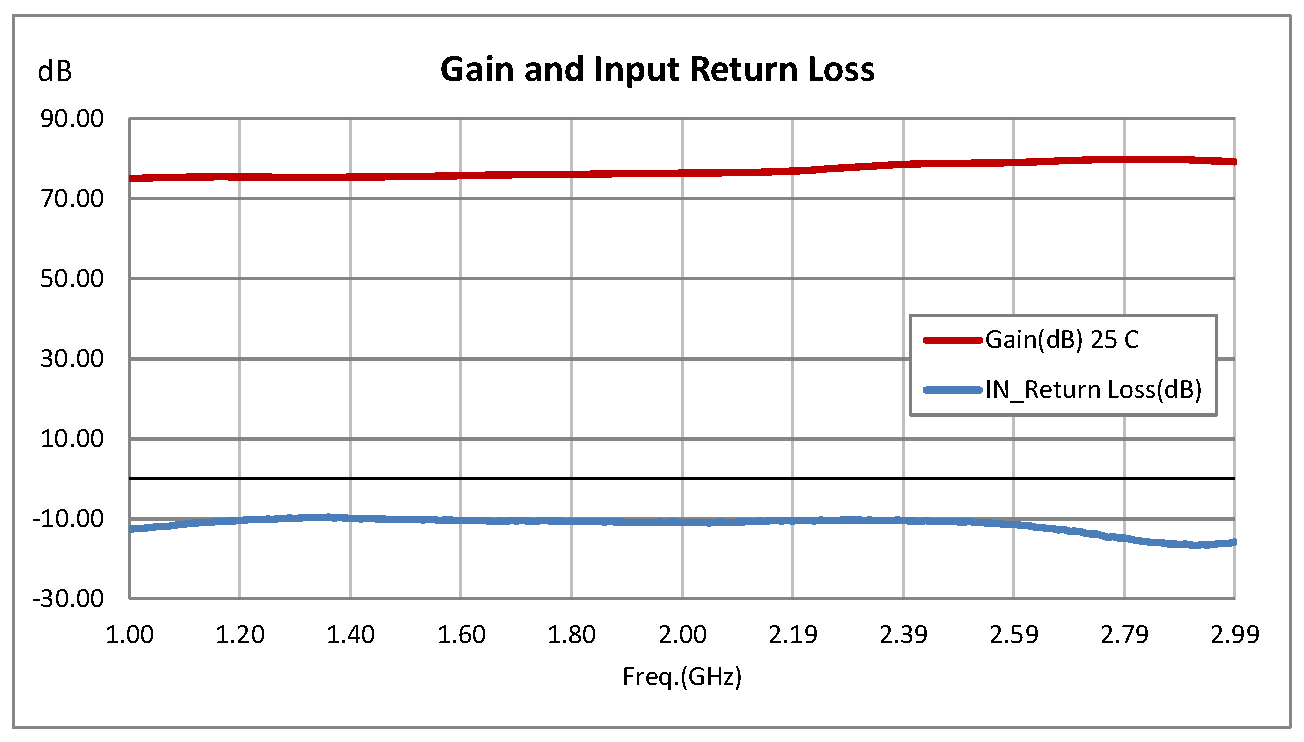

50 dB Gain, 50 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, GaN, 10 dB NF, SMA PE15A5026

1 to 3

50

1.25

-15

50

25

Yes

28/7

2.5 x 2.75 x 0.45

SMA

EAR99

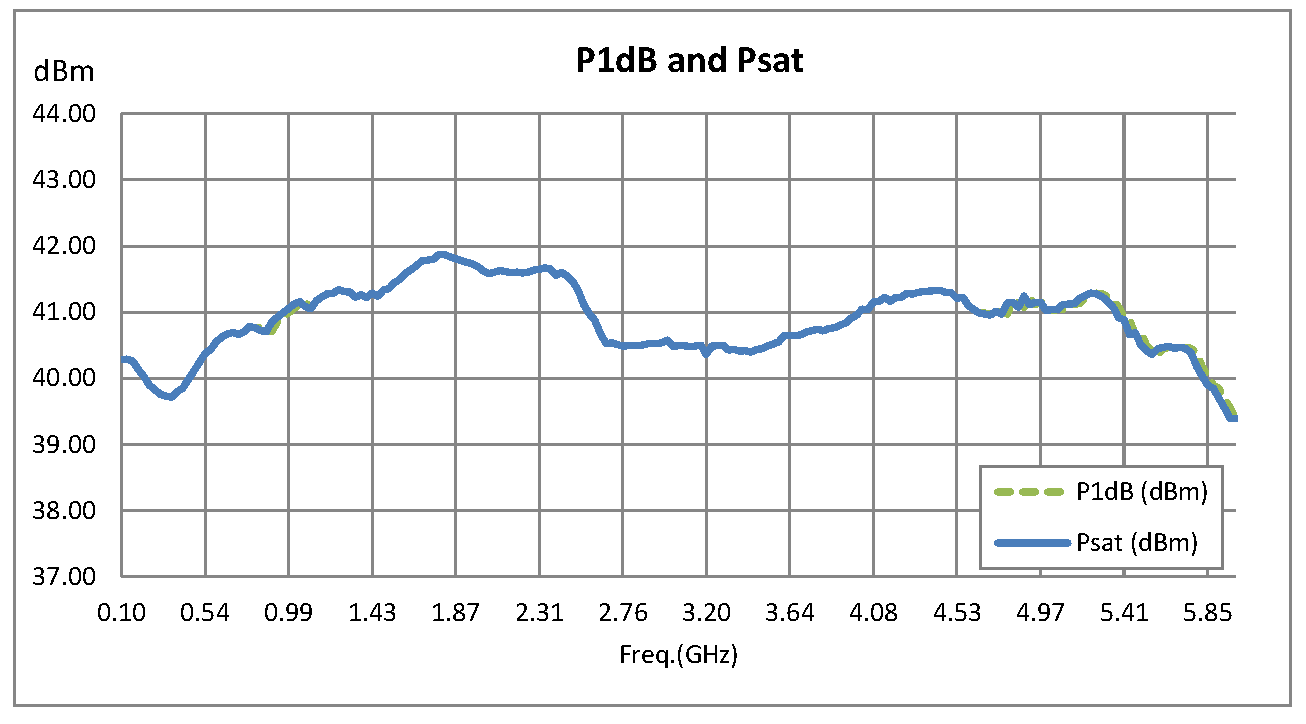

60 dB Gain, 10 Watt Psat, 100 MHz to 6 GHz, High Power High Gain Amplifier, GaN, 10 dB NF, SMA PE15A5027

0.1 to 6

60

1.25

-15

10

20

Yes

28/2.2

2.5 x 2.75 x 0.45

SMA

EAR99

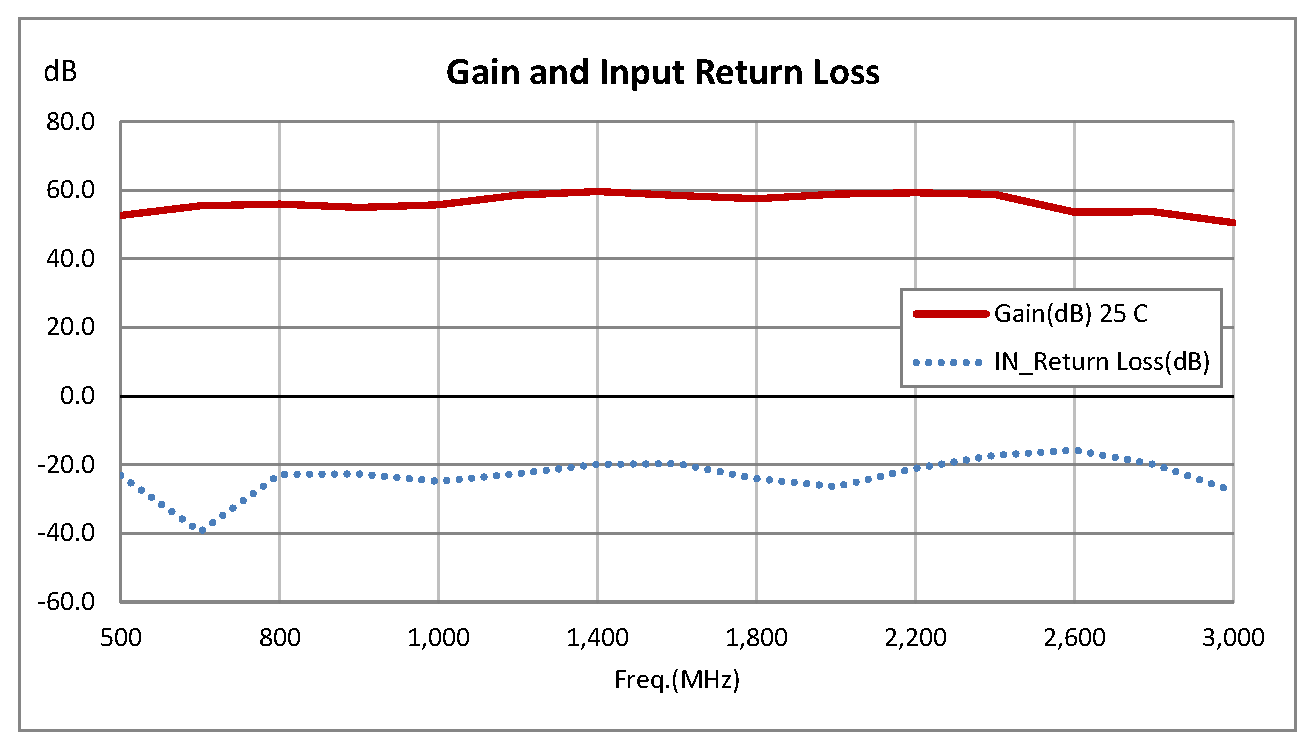

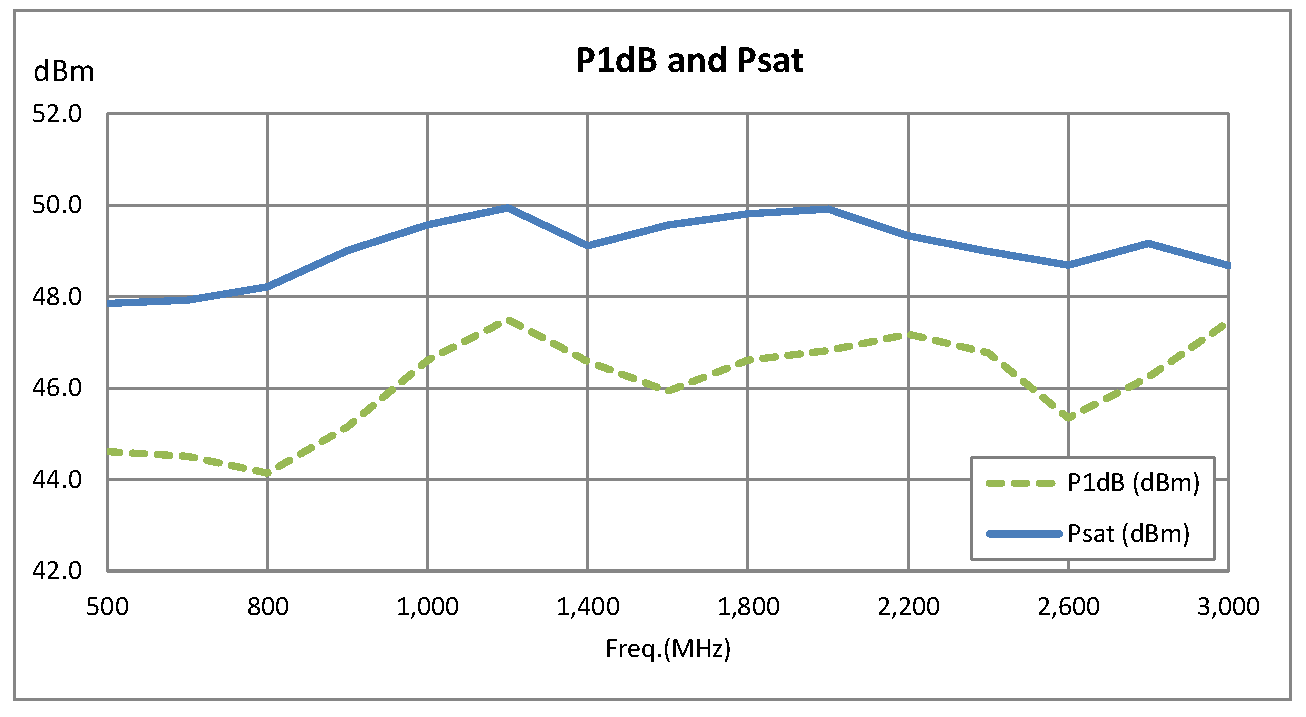

48 dB Gain, 50 Watt Psat, 500 MHz to 3 GHz, High Power High Gain Amplifier, GaN, 52 dBm IP3, SMA PE15A5032

0.5 to 3

48

2

-20

50

25

Yes

36/8.3

6 x 5 x 1.1

SMA

EAR99

48 dB Gain, 50 Watt Psat, 500 MHz to 3 GHz, High Power High Gain Amplifier, GaN, 52 dBm IP3, SMA PE15A5032F

0.5 to 3

48

2

-20

50

25

Yes

36/8.3

9.8 x 9.74 x 4.1

SMA

EAR99

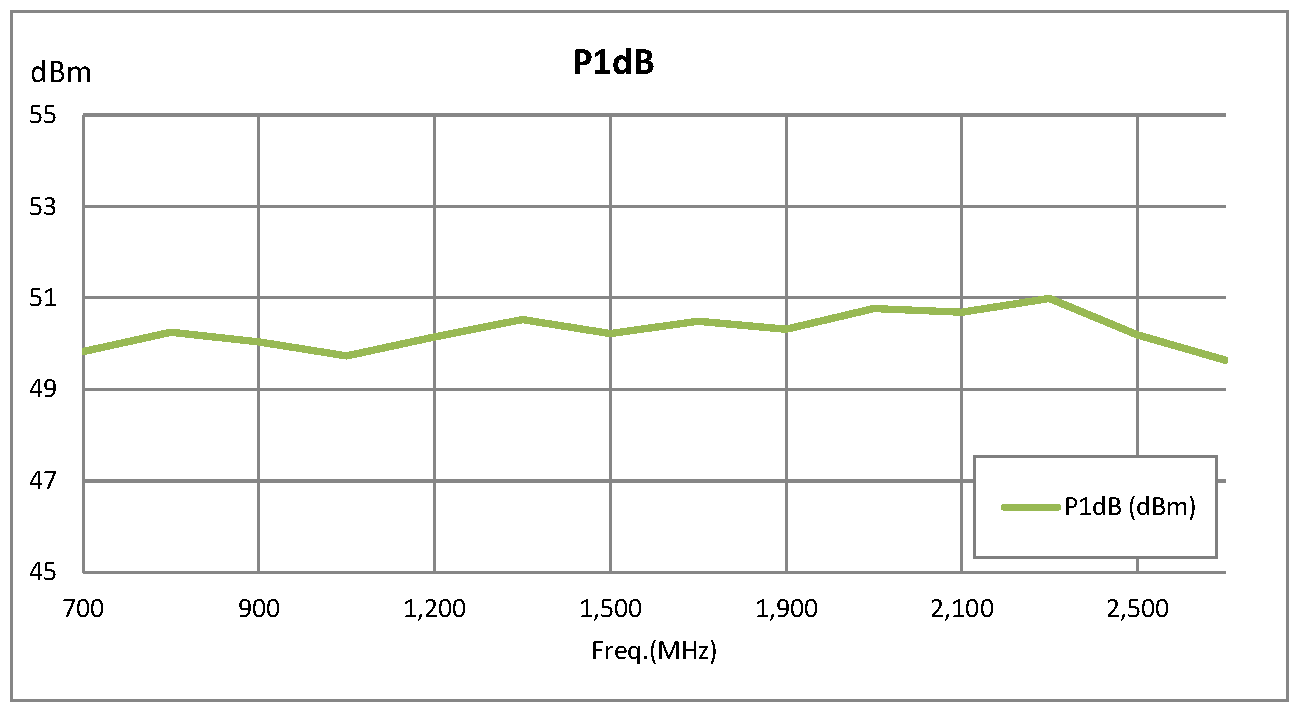

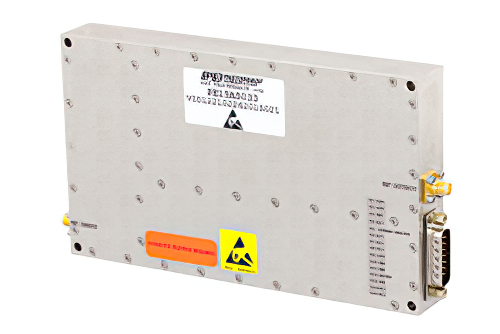

45 dB Gain, 100 Watt Psat, 700 MHz to 2.7 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5033

0.7 to 2.7

45

1.5

-20

100

30

Yes

30/16.7

7.25 x 4.25 x 0.95

SMA

EAR99

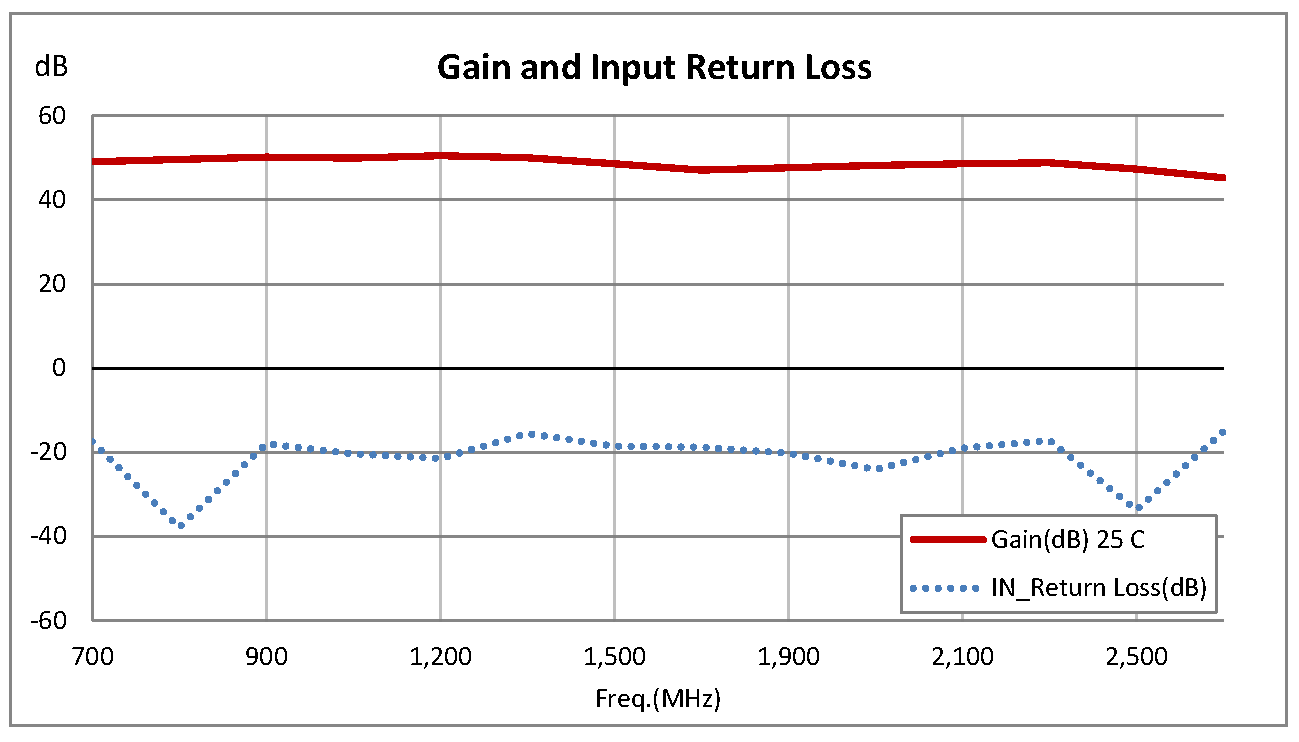

45 dB Gain, 100 Watt Psat, 700 MHz to 2.7 GHz, High Power High Gain Amplifier, GaN, SMA PE15A5033F

0.7 to 2.7

45

1.5

-20

100

30

Yes

30/16.7

7.25 x 4.25 x 0.95

SMA

EAR99

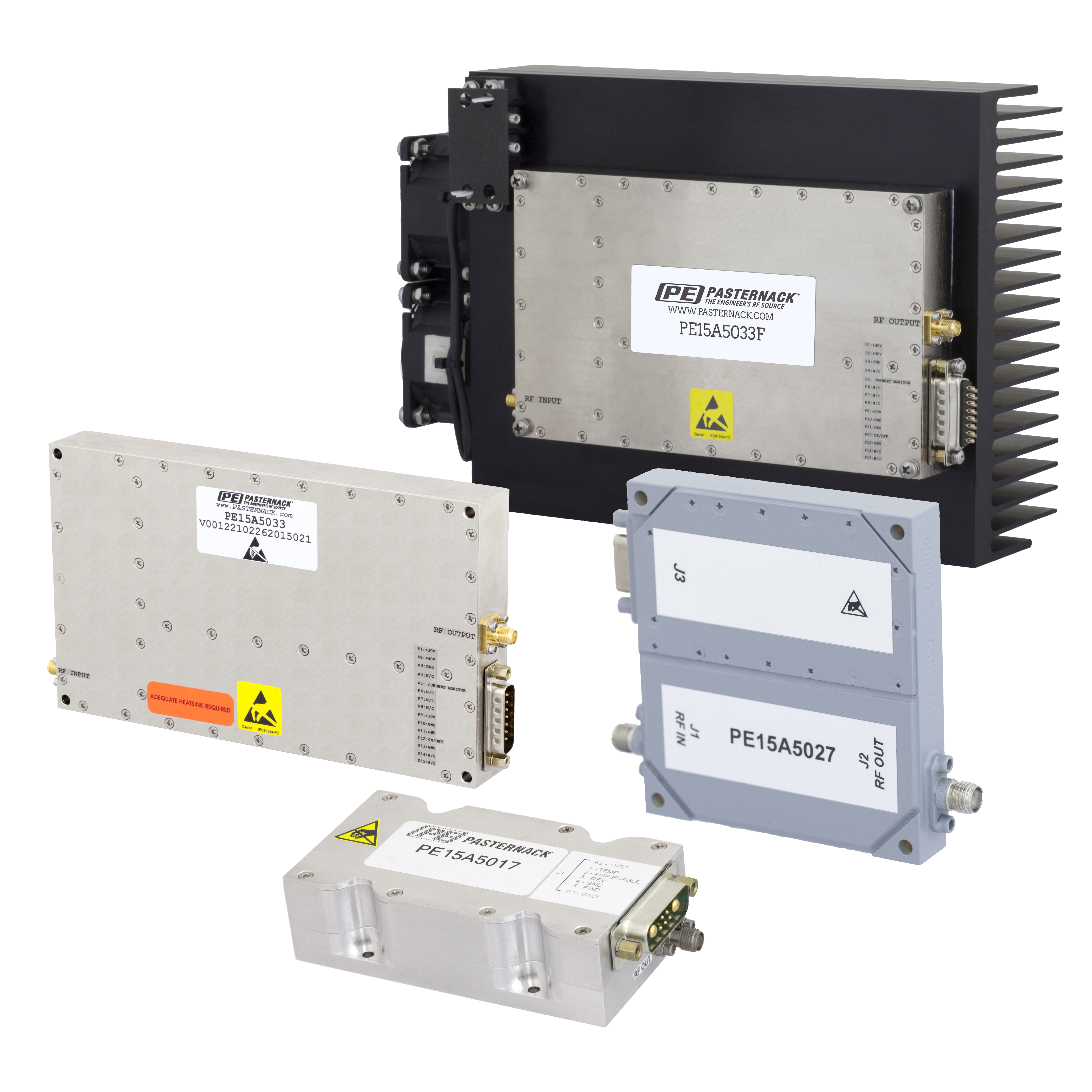

GaN Solid State Power Amplifiers

Pasternack’s Gallium Nitride (GaN) solid state power amplifiers (SSPAs) feature very high gain levels from 43 to 60 dB across mostly broad frequency bands ranging from 30 MHz to 7.5 GHz.  Saturated output power levels range from 10 watts to 100 watts with 20 to 35% Power Added Efficiency (PAE). The thermal efficiency of GaN technology enables these solid state power amplifier assemblies to be integrated into smaller more compact coaxial package outlines with the same level of high reliability.

All of the solid state high power GaN amplifiers from Pasternack have single voltage supplies which are internally regulated. The 50 ohm input/output matched designs are adaptable to a range of power and modulation requirements. These GaN SSPAs also show impressive harmonic response (-15 to -20 dBc) under worst case conditions. Our solid state GaN power amplifiers are designed to withstand environmental conditions such as humidity, altitude, shock and vibration. Some solid state power amplifier models are also equipped with integrated heat sinks and cooling fans. Most designs are EAR99.
