Pasternack Introduces New Line of

X Band High Gain Power Amplifiers

Product Features
  • X-Band Amplifiers Utilize SMA connectors
  • 1 Watt & 4 Watt high gain amplifier models
  • 8 to 12 GHz max. frequency amps
  • Hermetically-sealed modules
  • GaAs pHEMT based technology
  • Unconditionally stable X Band Power Amplifiers
  • High P1dB Power Output: 30 to 36 dBm
  • Small Signal Gain: 30 dB min
  • High Output IP3 (Linearity): 38 to 44dBm
  • Gain Flatness: ±0.5 to 1.0 dB
  • EAR99 (No Export License Required)

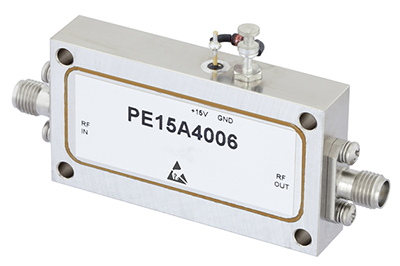

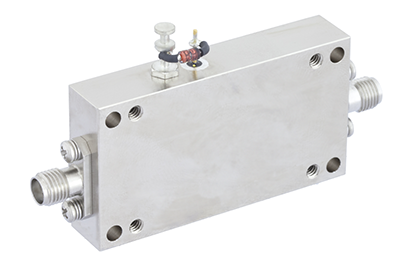

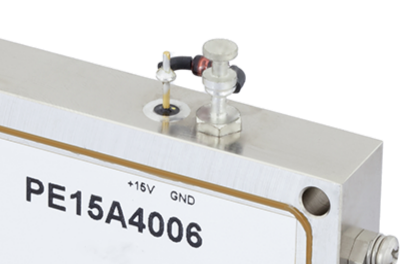

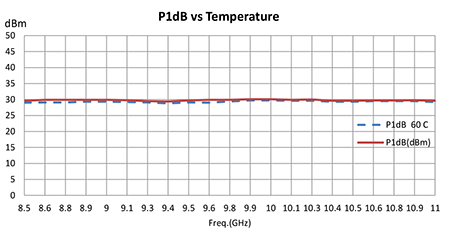

1 Watt, 8.5 GHz to 11 GHz, Medium Power Amplifier, 30 dB Gain, 38 dBm IP3, 3 dB NF, SMA

Click to Buy PE15A4006

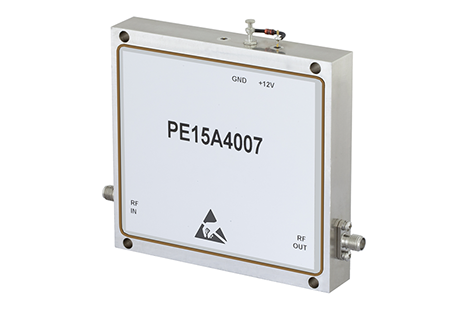

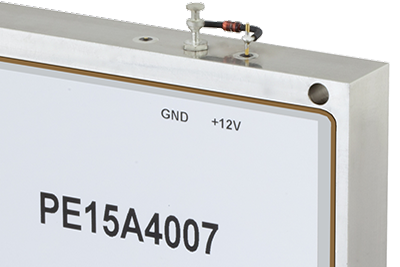

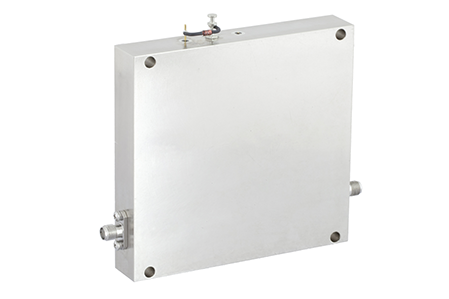

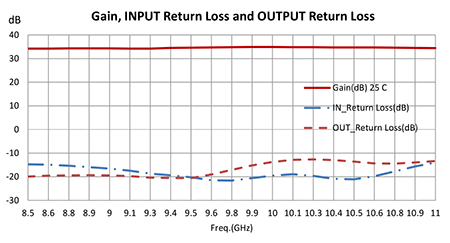

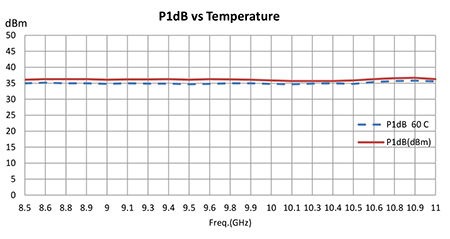

4 Watt, 8.5 GHz to 11 GHz, Medium Power Amplifier, 30 dB Gain, 45 dBm IP3, 5 dB NF, SMA

Click to BuyPE15A4007

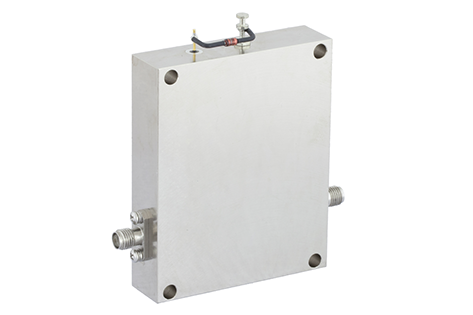

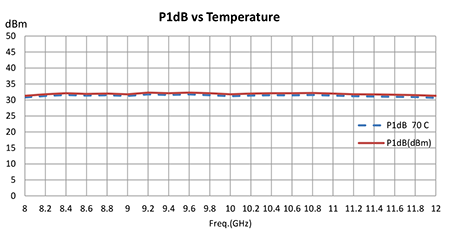

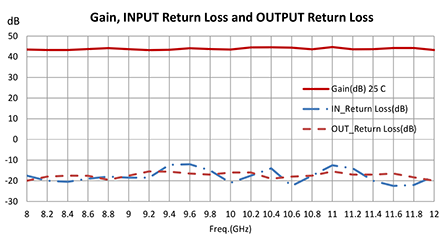

41 dB Gain, 1 Watt, 8 GHz to 12 GHz, Medium Power High Gain Amplifier, 3.5 dB NF, SMA

Click to Buy PE15A4008

X Band High Gain Power Amplifiers

Pasternack’s new X band high gain power amplifiers are packaged in a hermetically-sealed metal enclosures and exhibit outstanding performance in high gain, gain flatness, high linearity and wide dynamic range. This excellent X-Band power amplifier performance is achieved by using a hybrid microwave integrated circuit design and advanced GaAs pHEMT components. The connectorized SMA high gain amplifier modules are unconditionally stable and include built-in voltage regulation, bias sequencing, and reverse bias protection for added reliability.

The over-voltage protection on our high gain RF amplifiers is installed externally for easy repair. These high reliability X band amplifiers are fully matched internally for 50 Ohm input and output. This matching eliminates the need for any additional sensitive external RF tuning components.

The new X band high gain power amplifiers from Pasternack are perfectly suited for high linearity applications with frequencies ranging from 8 to 12 GHz. These radio frequency amplifiers offer 30 to 41 dB small signal gain over a temperature range of -30°C and +70°C. These Pasternack high gain amplifiers have excellent gain flatness ranges from 0.50 dB to 1.0 dB and the IP3 output performs up to 44 dBm. Pasternack’s new RF amplifiers are offered in 1 Watt and 4 Watt designs depending on the configuration.

Pasternack RF Amplifier Part #
Parameter (Typical) Units PE15A4006 PE15A4007 PE15A4008
Amplifier Frequency Range GHz 8.5 - 11 8.5 - 11 8.0 - 12
Small Signal Gain dB 30 30 41
Gain Flatness dB ±0.5 ±0.75 ±1.0
P1dB Output Power dBm 30 36 30
Output IP3 (Linearity) dBm 38 45
Noise Figure dB 3 5 3.5
Input VSWR 1.7:1 1.8:1 2:1
Output VSWR 1.7:1 1.8:1 2:1
DC Supply Voltage V 15 12 12
Current Supply A 0.9 4.5 1.2
Operating Temperature Range °C -30 to +60 -30 to +60 -30 to +70
