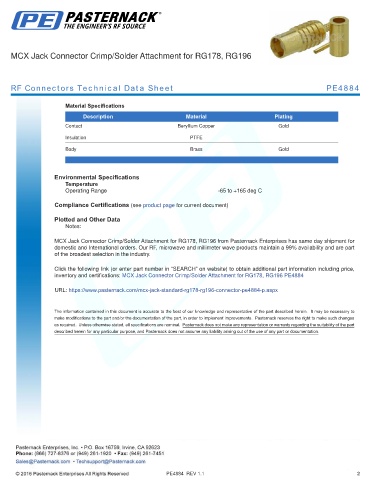

MCX Jack Connector Crimp/Solder Attachment for RG178, RG196





     RF Connectors Technical Data Sheet                                                                      PE4884


                       Material Specifications
                            Description                       Material                      Plating
                       Contact                              Beryllium Copper                 Gold

                       Insulation                               PTFE
                       Body                                     Brass                        Gold
                       .


                   Environmental Specifications
                       Temperature
                       Operating Range                                   -65 to +165 deg C


                   Compliance Certifications (see product page for current document)
                   Plotted and Other Data
                       Notes:

                   MCX Jack Connector Crimp/Solder Attachment for RG178, RG196 from Pasternack Enterprises has same day shipment for
                   domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
                   of the broadest selection in the industry.

                   Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
                   inventory and certifications: MCX Jack Connector Crimp/Solder Attachment for RG178, RG196 PE4884

                   URL: https://www.pasternack.com/mcx-jack-standard-rg178-rg196-connector-pe4884-p.aspx



































                                                        PE4884  REV 1.1                                                2
