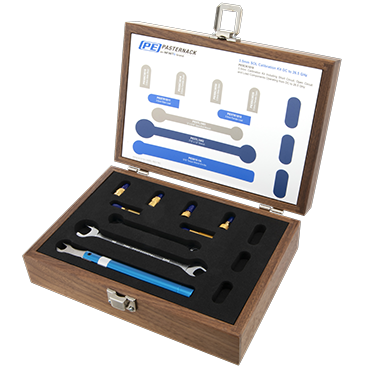

3.5 mm DC to 26.5 GHz VNA Calibration Kits

3.5 mm connector, DC to 26.5 GHz frequency range
SOL or SOLT versions available
Cal kit definition files for Keysight, Rohde & Schwarz, and Anritsu VNAs
Works with all major VNAs
Protective wooden case for safe storage of components
Torque wrench and tools included
Ideal for calibration of VNAs in R&D, aerospace and defense, production test environments

3.5 mm DC to 26.5 GHz VNA Calibration Kits

3.5mm SOL VNA Calibration Kit Operating from DC to 26.5 GHz, Including Short Circuit, Open Circuit, and Load

PE5CK1019

3.5mm SOLT VNA Calibration Kit Operating from DC to 26.5 GHz, Including Short Circuit, Open Circuit, Load, and Thru

PE5CK1020

3.5 mm DC to 26.5 GHz VNA Calibration Kits from Pasternack

Pasternack’s 3.5 mm, DC to 26.5 GHz Vector Network Analyzer (VNA) calibration kit is used to calibrate VNA and associated test setups, to allow Vector Error Correction to
compensate for systematic errors

SOL – Short Open Load Kit contains:

Female Termination, 1.083 Max. VSWR, DC to 26.5 GHz
Male Termination, 1.083 Max. VSWR, DC to 26.5 GHz
Female Short, ±2.0º Deviation from Nominal, DC to 26.5 GHz
Male Short, ±2.0º Deviation from Nominal, DC to 26.5 GHz
Female Open, ±1.4º Deviation from Nominal, DC to 26.5 GHz
Male Open, ±1.4º Deviation from Nominal, DC to 26.5 GHz
Torque Wrench Open, 8 in-lbs Torque Setting
End Wrench Open, 1/4”x5/16” Dimensions
End Wrench Open, 7/16”x1/2” Dimensions

SOLT – Short Open Load Thru Kit contains:

All SOL – Short Open Load Kit Components (See list above.)
Adapter Thru Female, 1.08 Max. VSWR, DC to 26.5 GHz
Adapter Thru Female to Male, 1.08 Max. VSWR, DC to 26.5 GHz
Adapter Thru Male, 1.08 Max. VSWR, DC to 26.5 GHz
