Part No.

Waveguide

 Type

Frequency

 Range

(GHz)

Frequency
Band

Insertion

 Loss

(dB)

VSWR

Coupling
(dB)

Directivity

Coupling

 Plane

Flange

USA & Canada (866) 727-8376  International +1 (949) 261-1920

USA & Canada (866) 727-8376  International +1 (949) 261-1920

  • Waveguide sizes from WR-42 to WR-10
  • Frequency range of 18 GHz to 110 GHz in seven bands (K, Ka, Q, U, V, E, W)
  • Standard waveguide and split block waveguide versions available
  • Available in both E Bend and H Bend configurations
  • Multi-hole designs are optimal for power reflection measurements
  • Offered in both 10 dB and 20 dB coupling values
  • High directivity: 30 dB typical

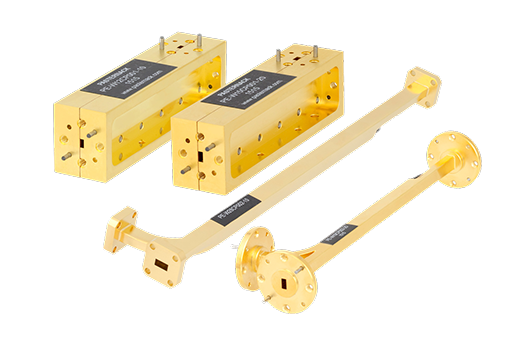

Waveguide Couplers

Part No.

Waveguide

 Size

Frequency

 Range

(GHz)

Frequency

 Band

Insertion

 Loss

(dB)

VSWR

Coupling

(dB)

Directivity

Coupling

 Plane

Flange

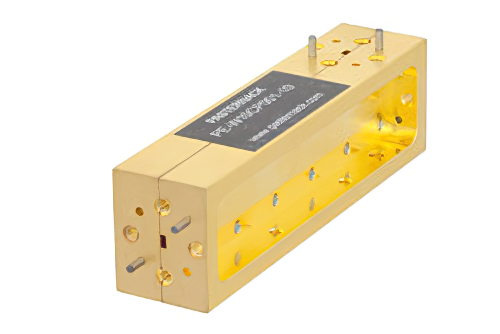

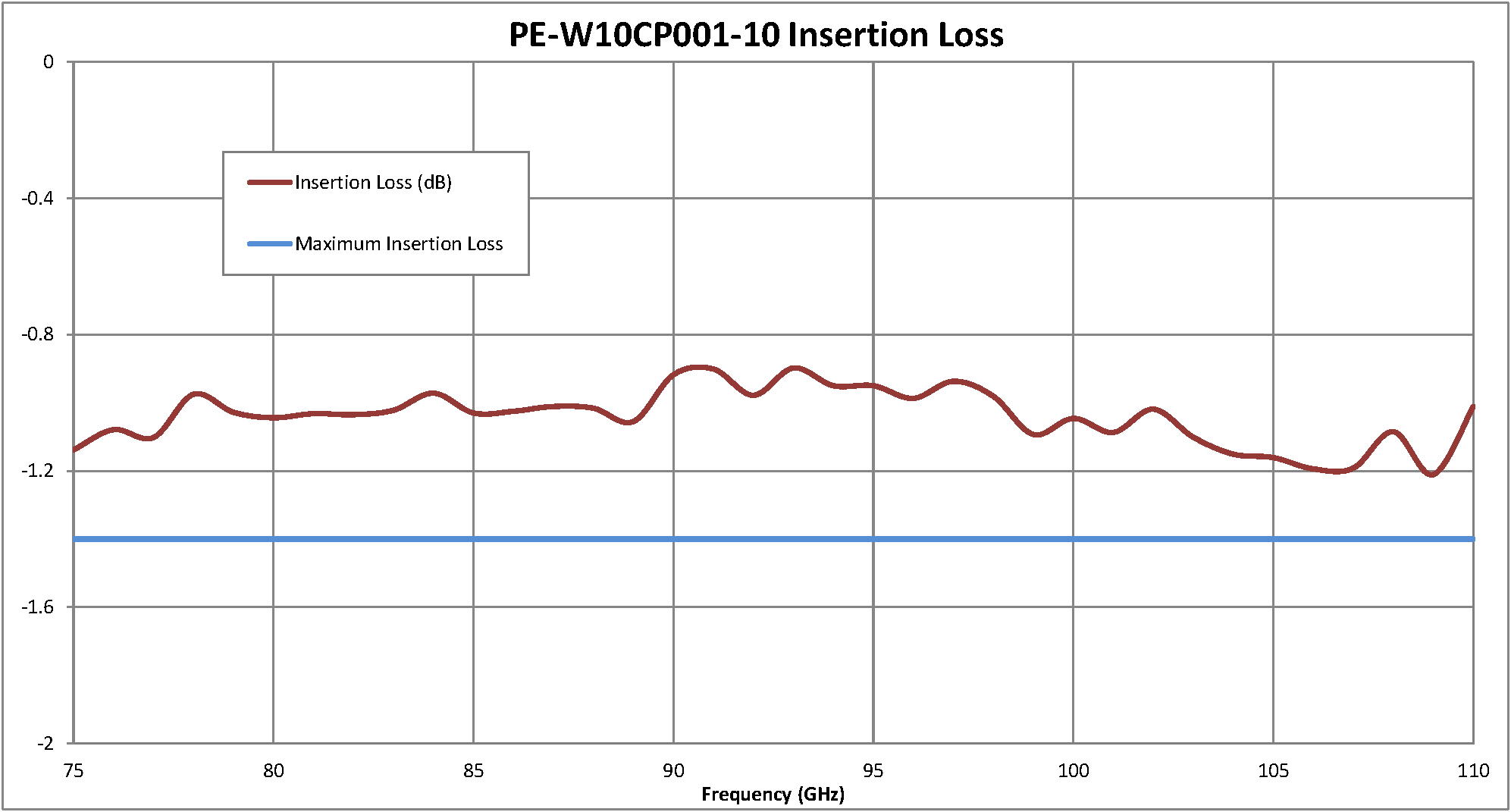

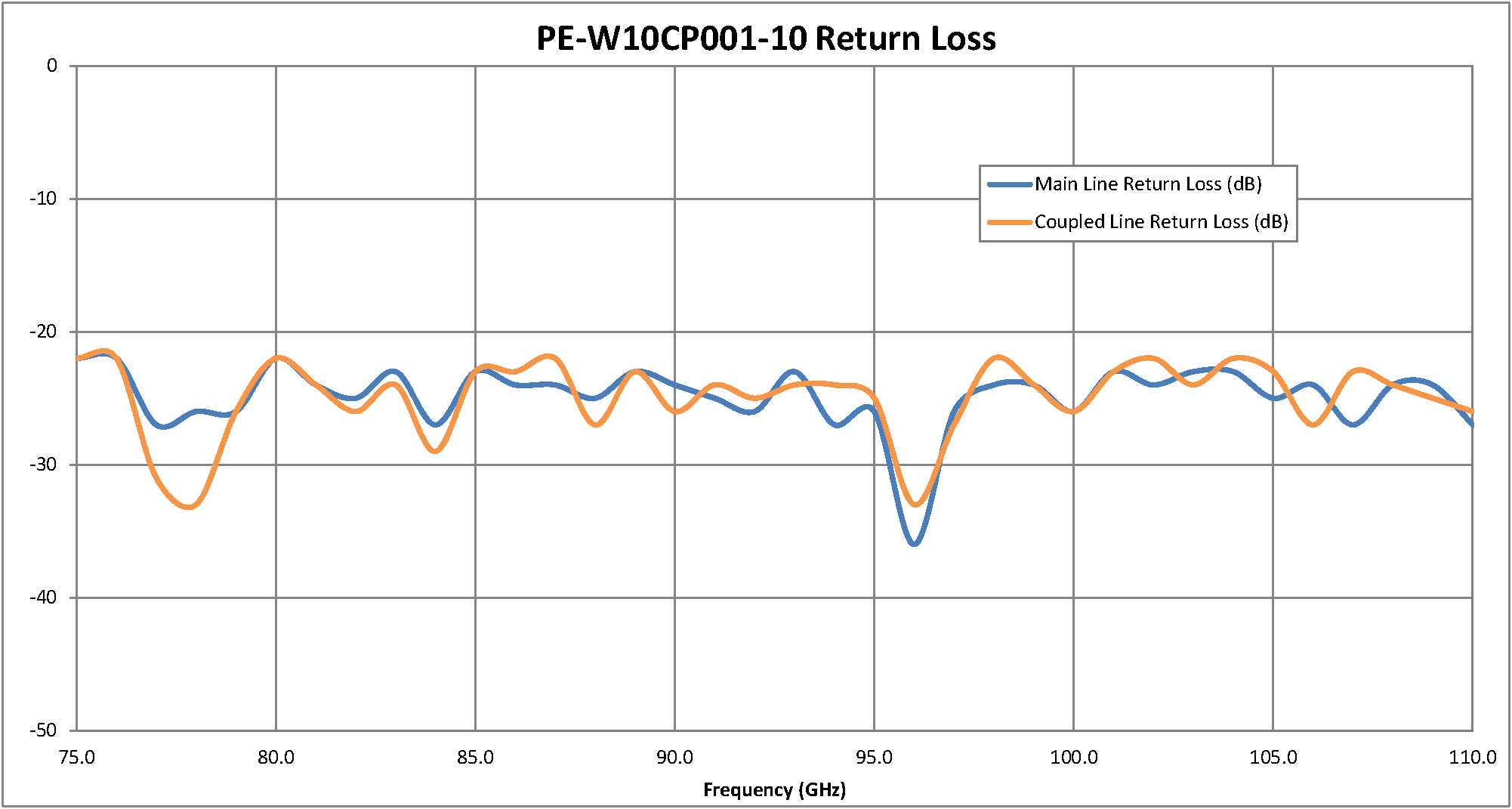

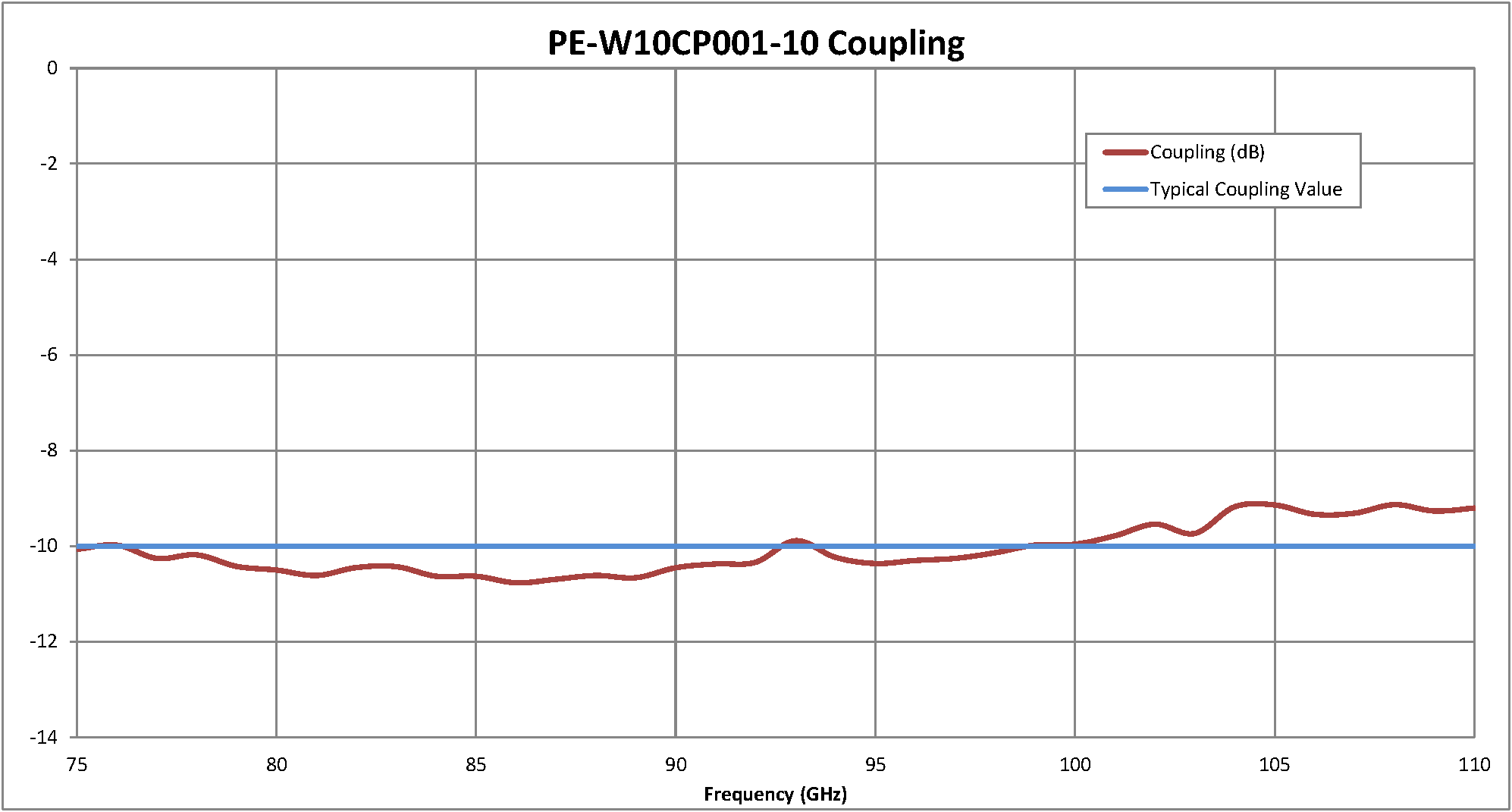

WR-10 Directional Waveguide Coupler UG-387/U-Mod 75 GHz to 110 GHz PE-W10CP001-10

WR-10

75-110

W Band

1.4

1.2:1

10.00

30.00

H-Plane

UG-387/U-Mod

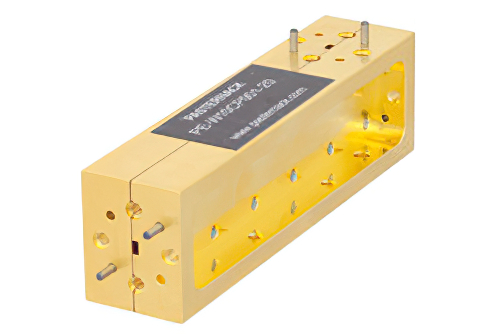

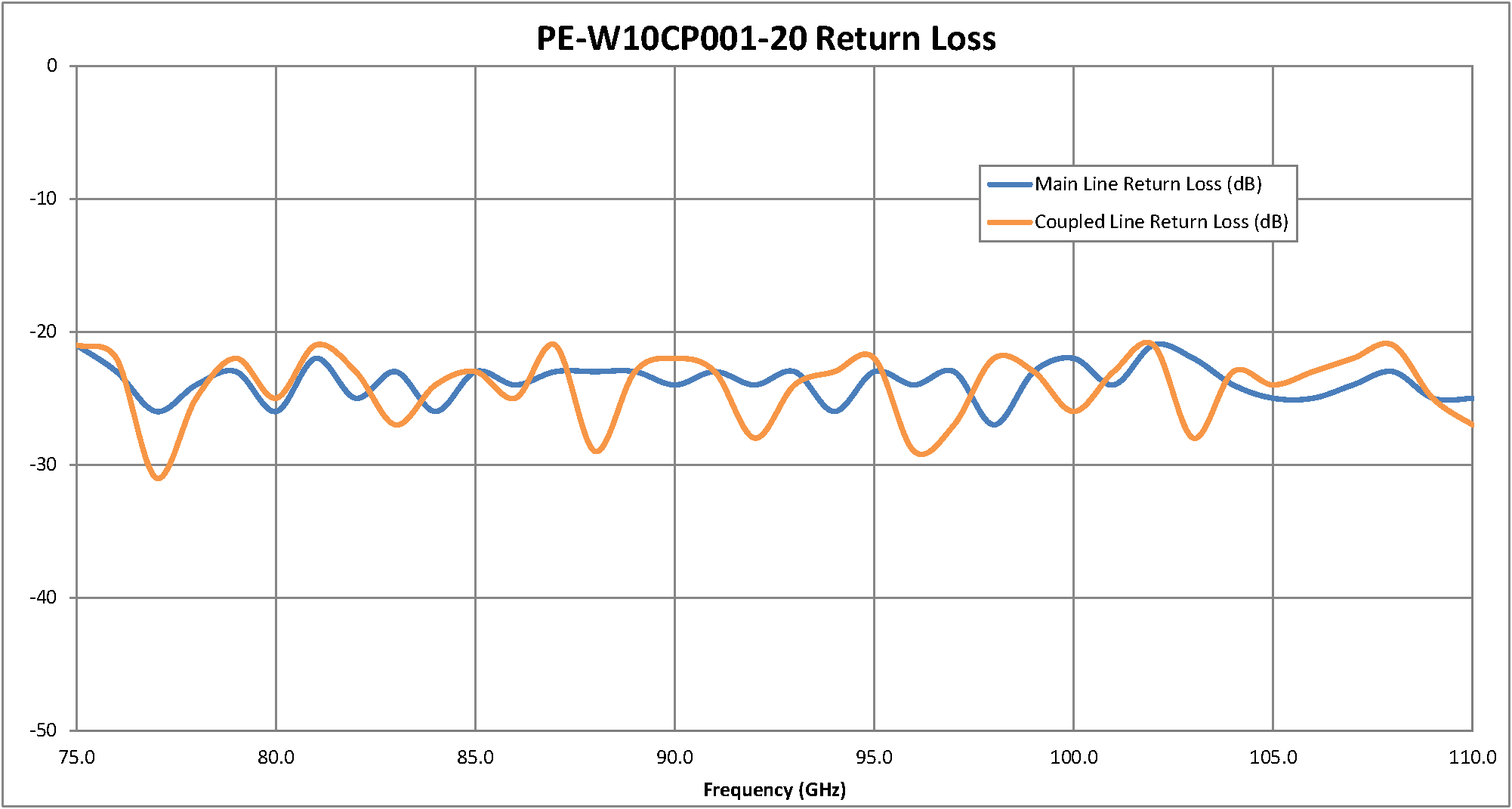

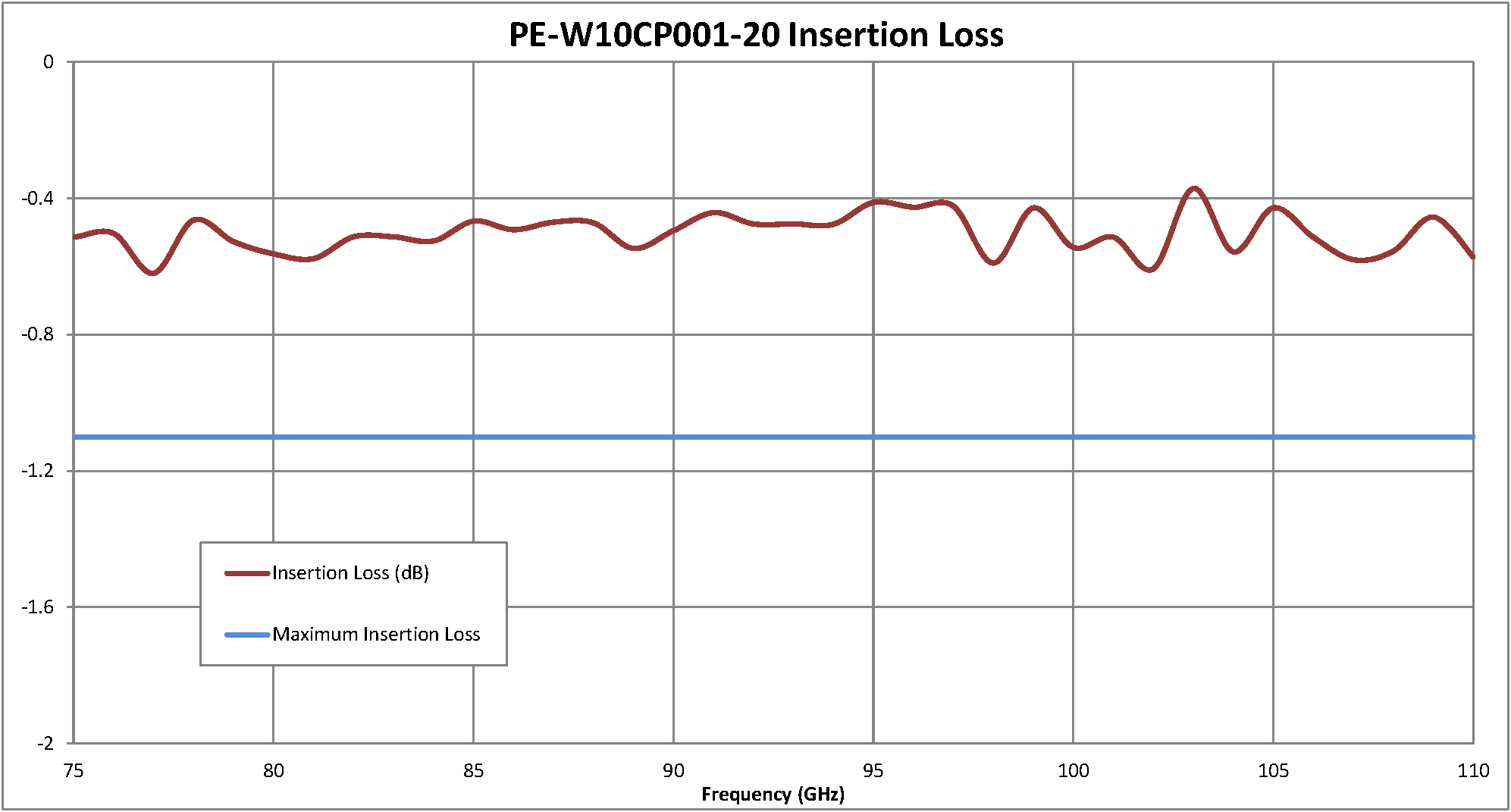

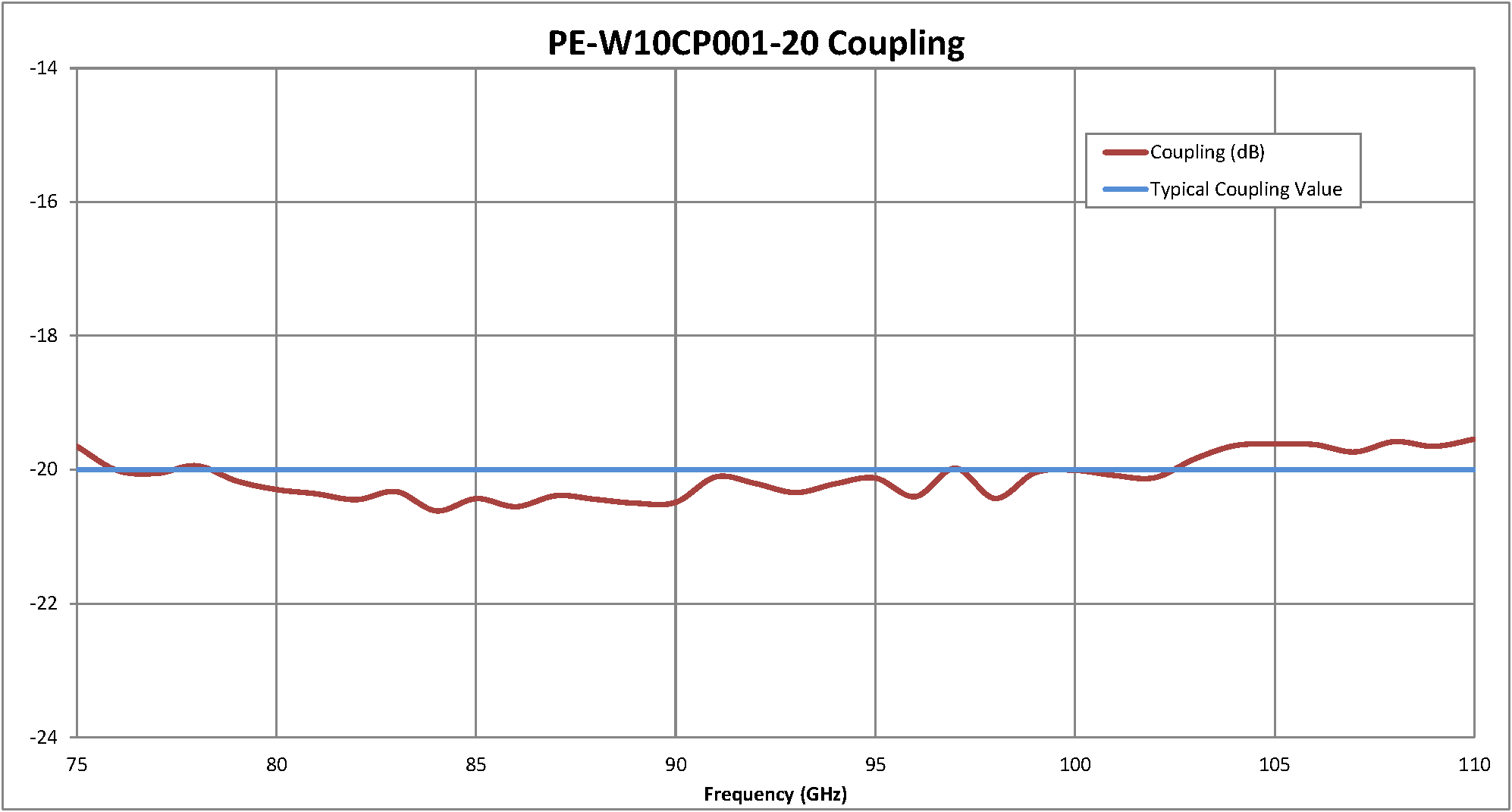

WR-10 Directional Waveguide Coupler UG-387/U-Mod 75 GHz to 110 GHz PE-W10CP001-20

WR-10

75-110

W Band

1.1

1.2:1

20.00

30.00

H-Plane

UG-387/U-Mod

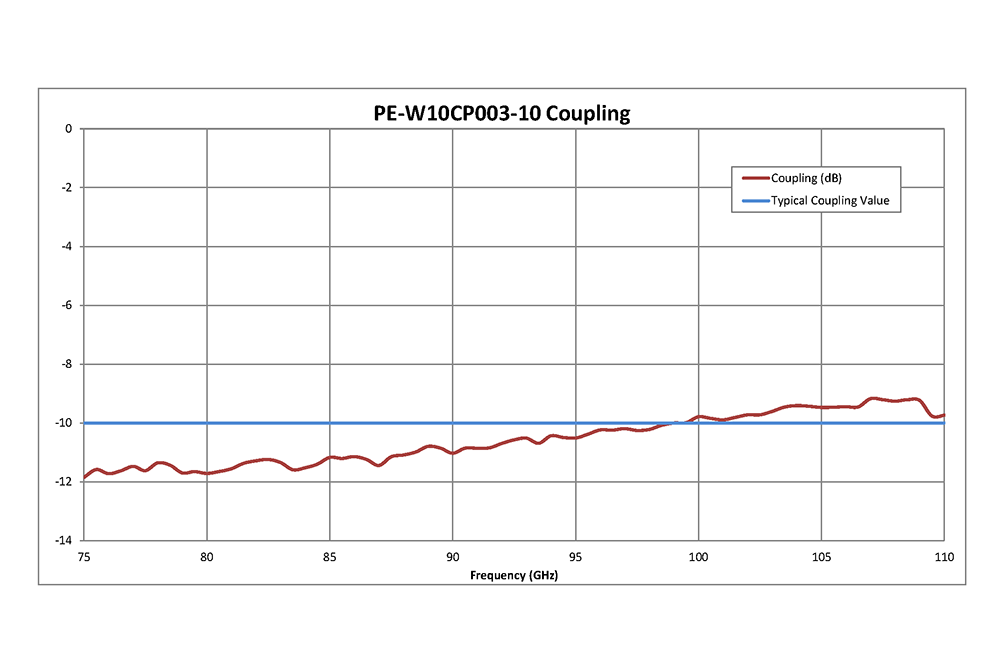

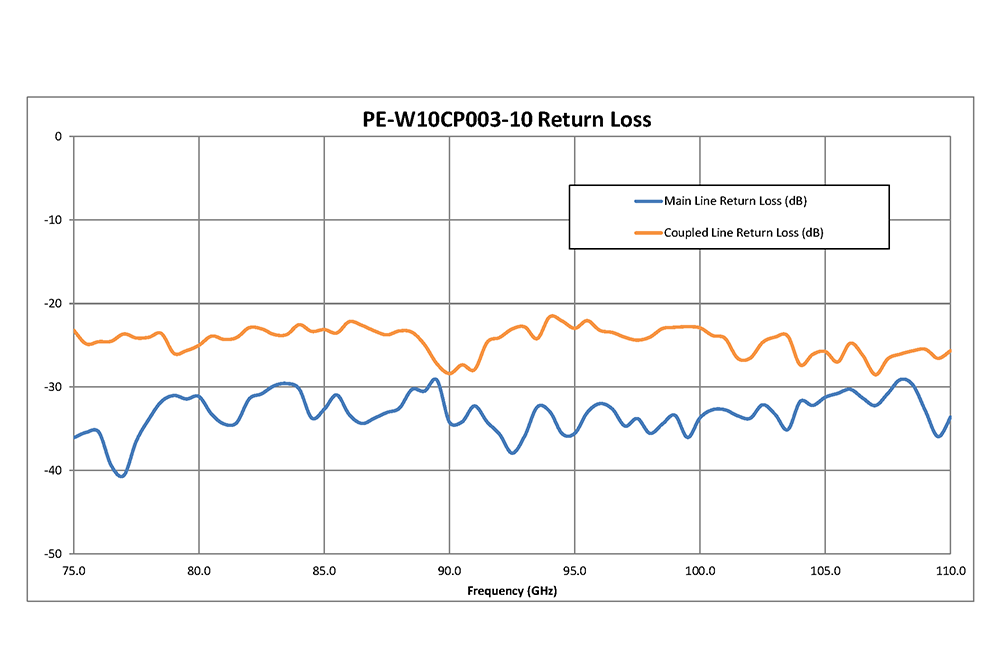

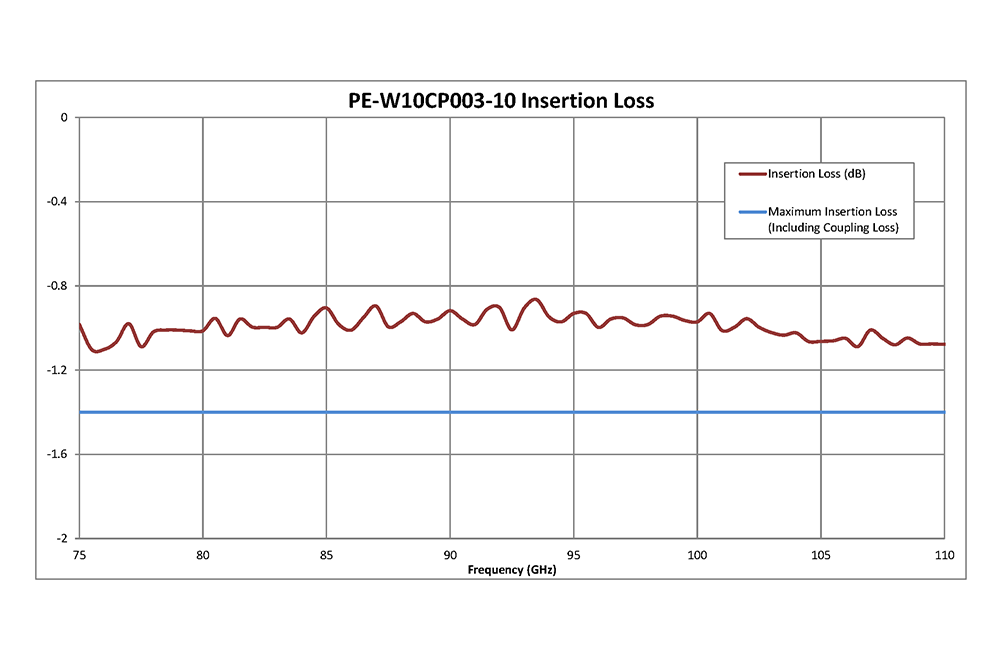

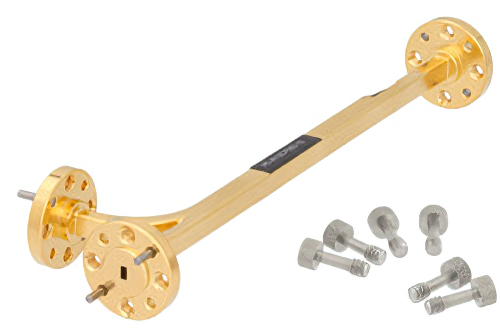

WR-10 Directional Waveguide Coupler UG-387/U-Mod 75 GHz to 110 GHz PE-W10CP003-10

WR-10

75-110

W Band

1.4

1.2:1

10.00

30.00

E-Plane

UG-387/U-Mod

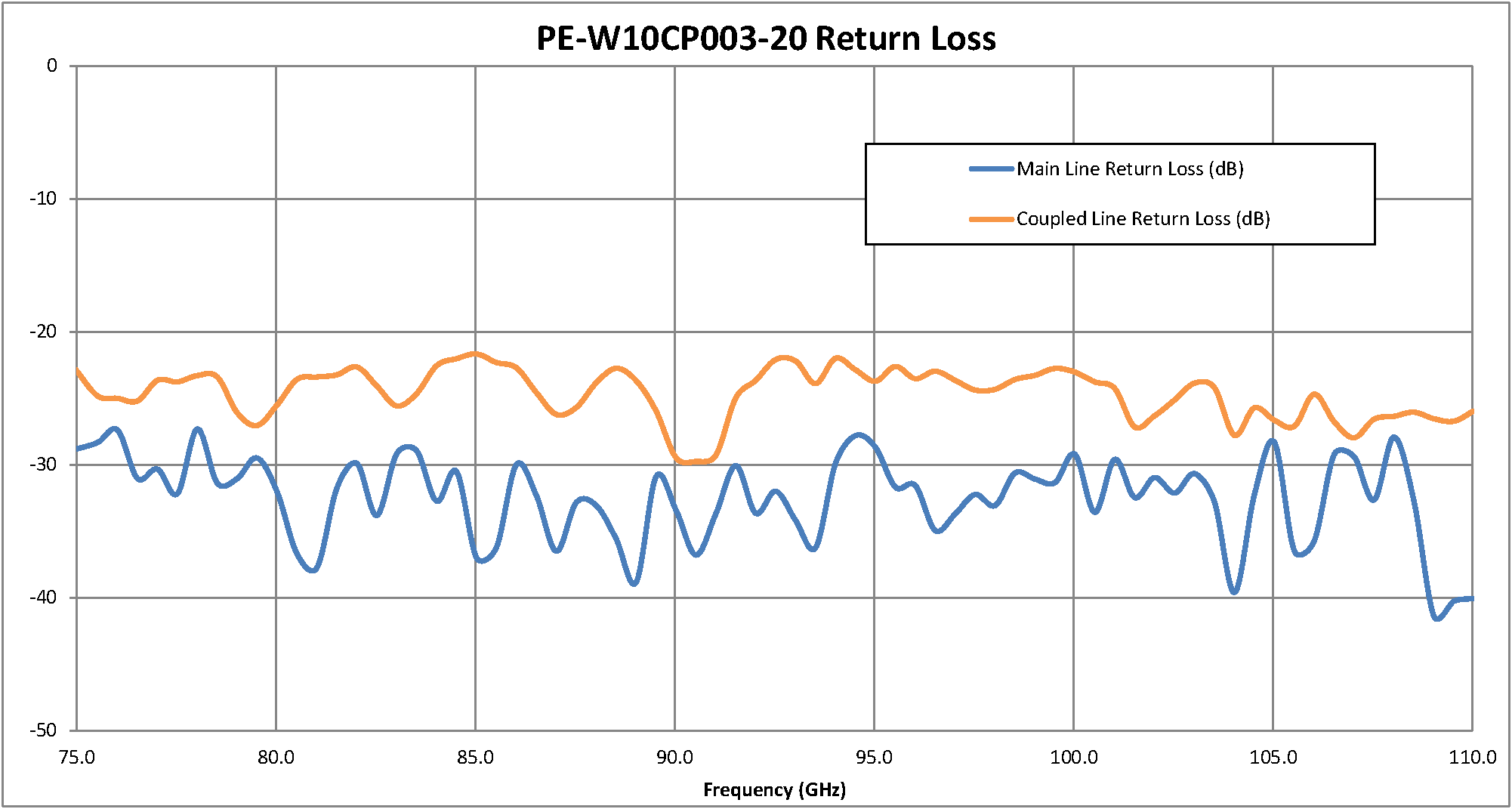

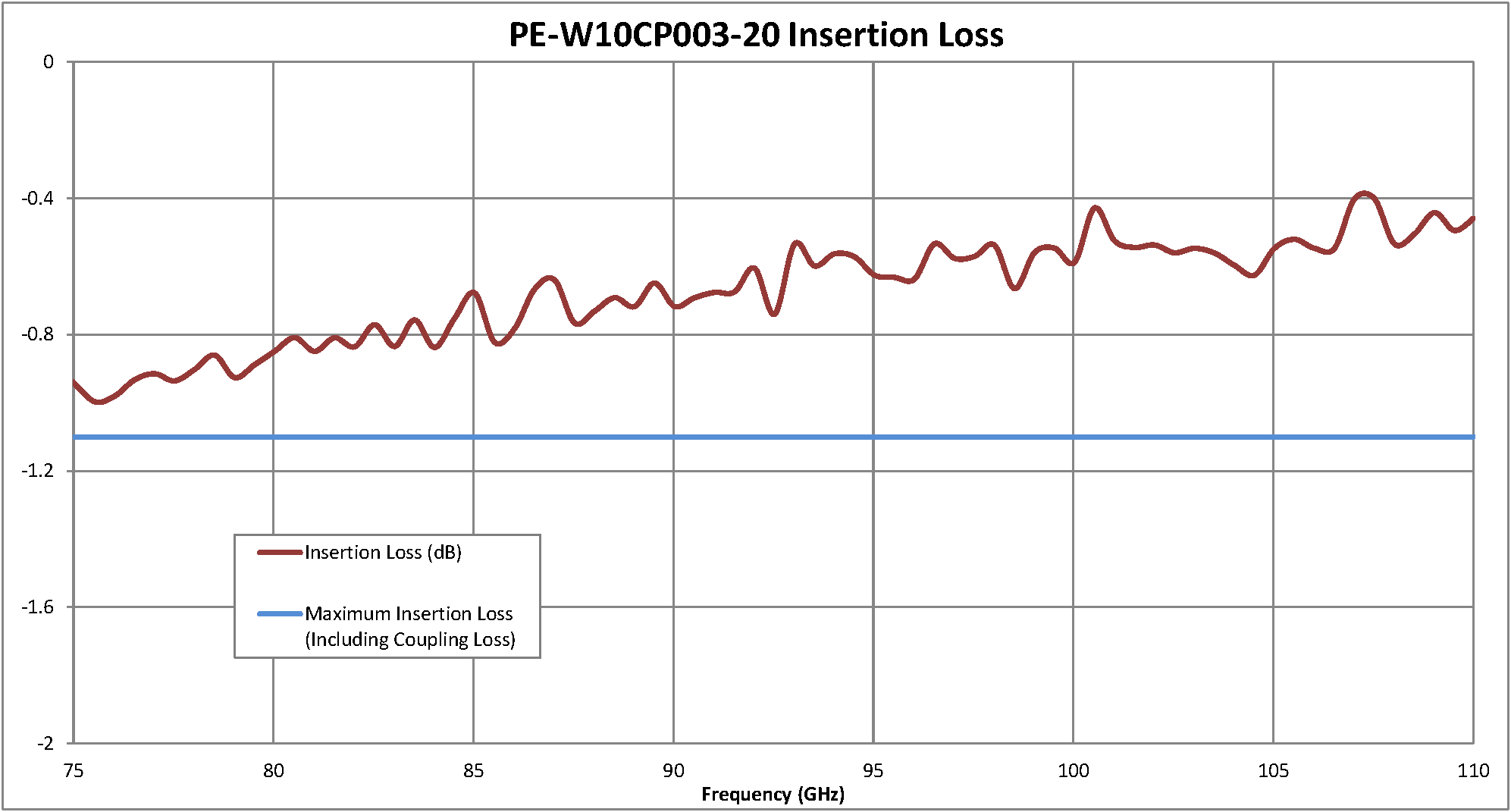

WR-10 Directional Waveguide Coupler UG-387/U-Mod 75 GHz to 110 GHz PE-W10CP003-20

WR-10

75-110

W Band

1.1

1.2:1

20.00

30.00

E-Plane

UG-387/U-Mod

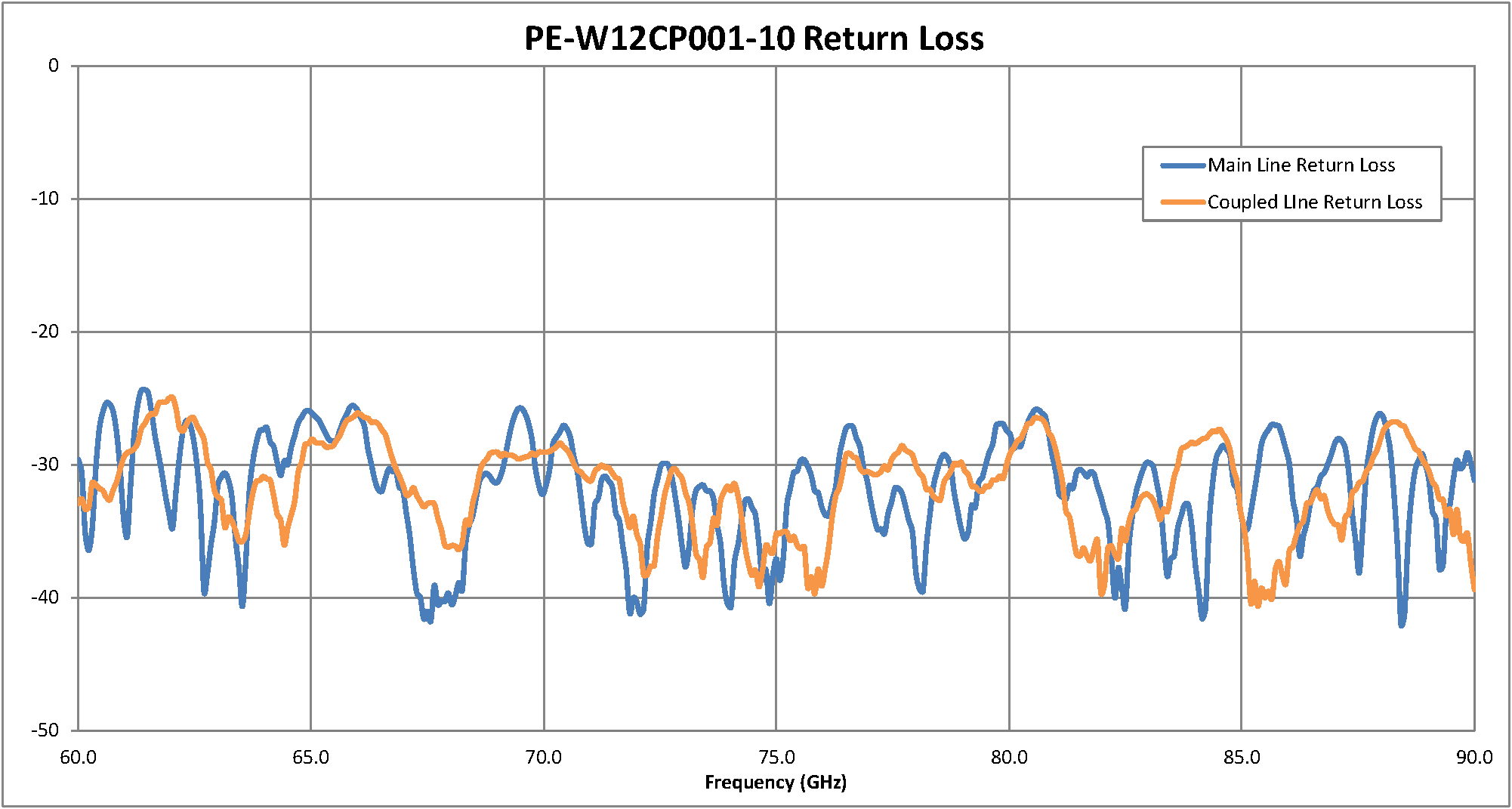

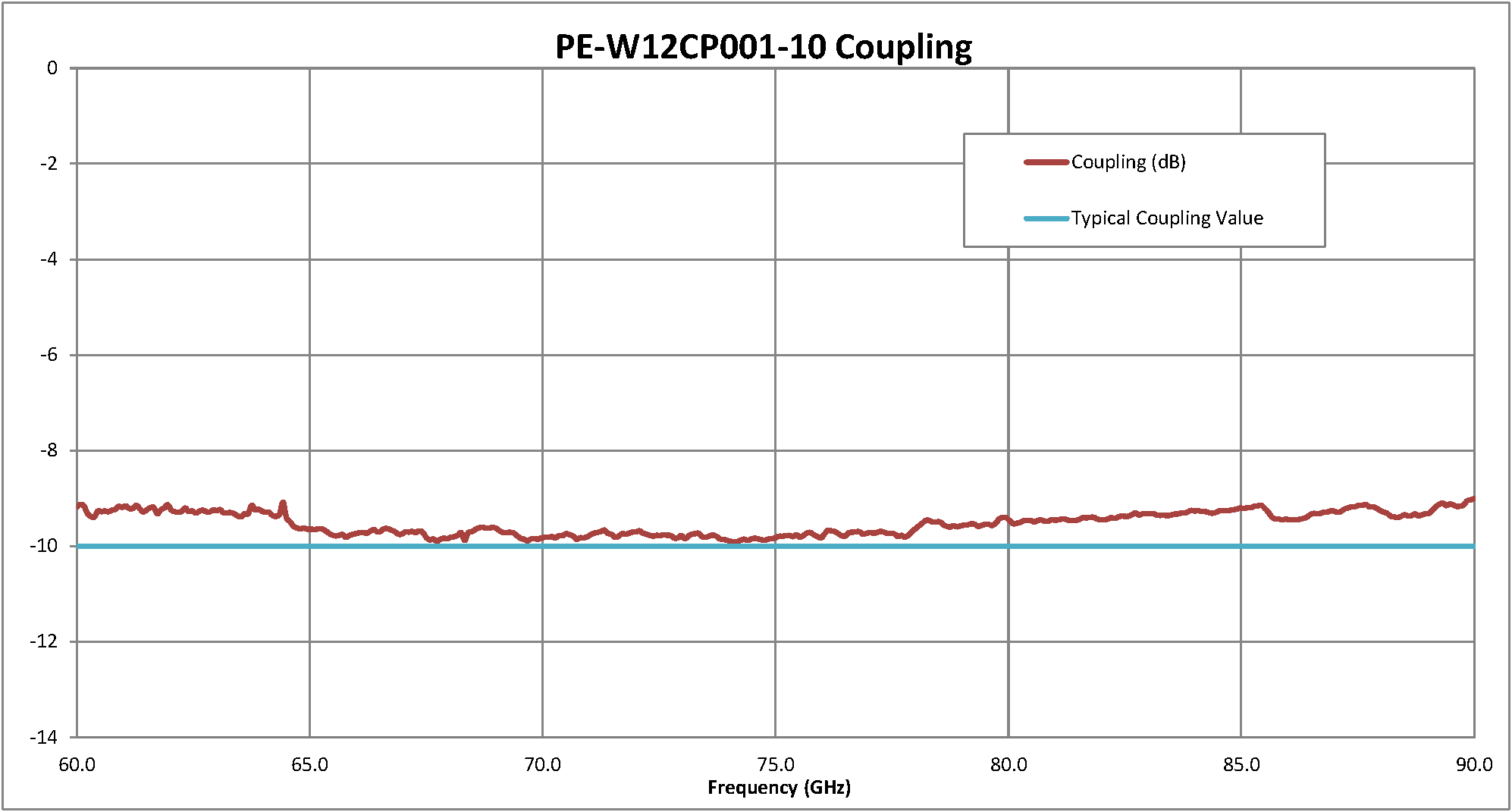

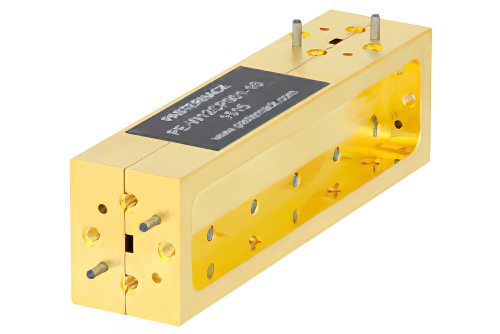

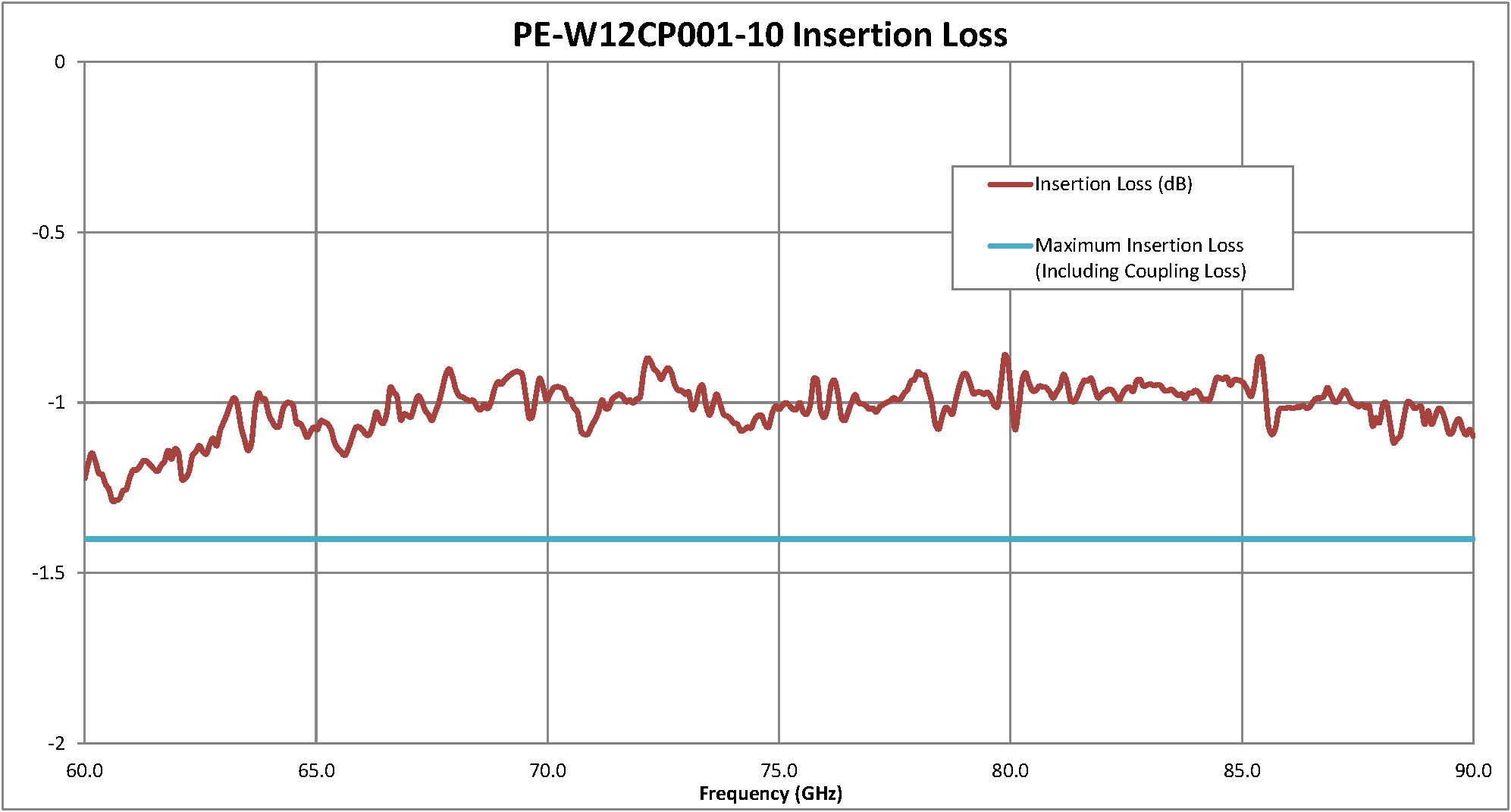

WR-12  Directional Waveguide Coupler UG-387/U 60 GHz to 90 GHz PE-W12CP001-10

WR-12

60-90

E Band

1.4

1.2:1

10.00

30.00

H-Plane

UG-387/U

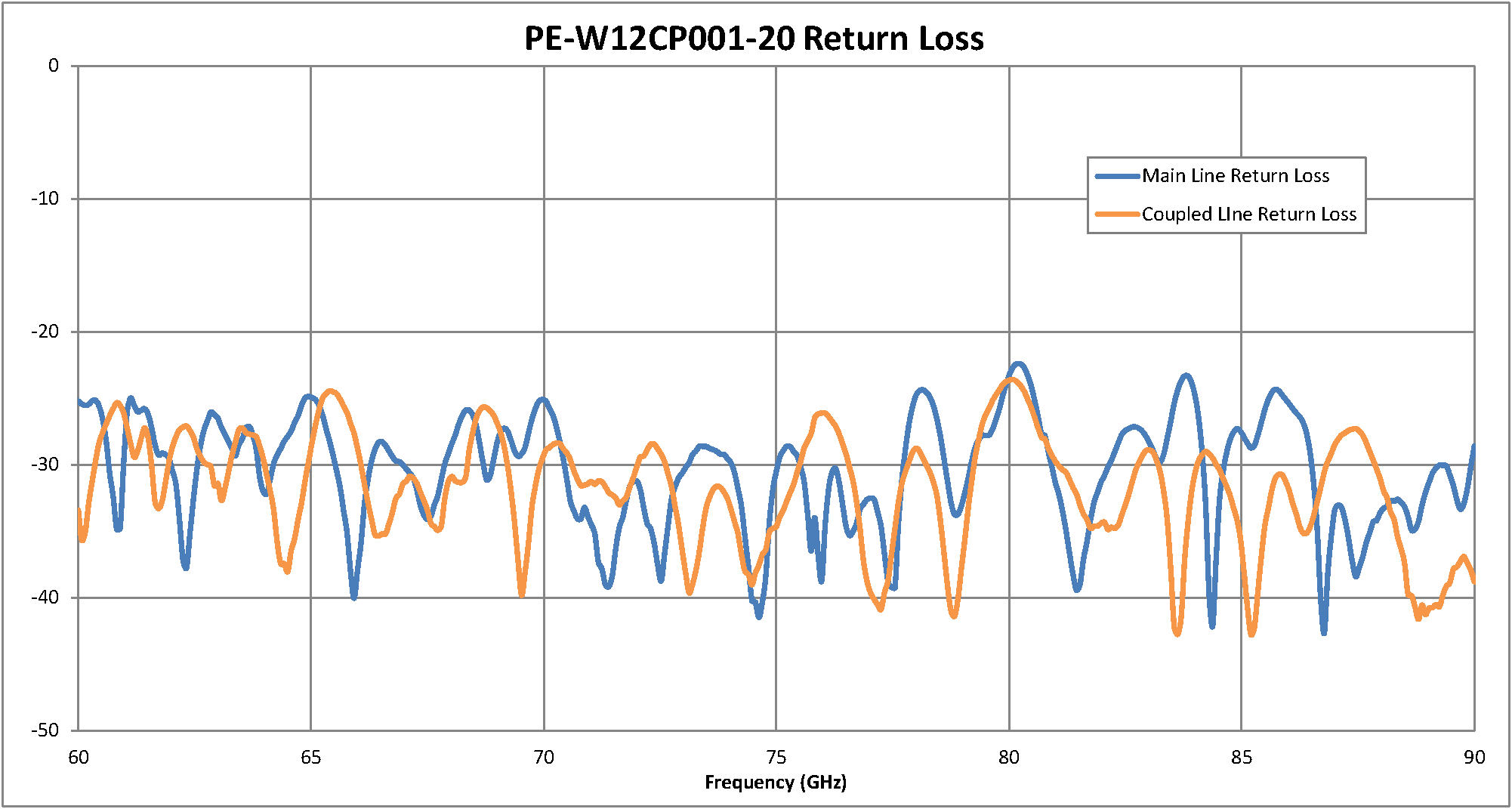

WR-12  Directional Waveguide Coupler UG-387/U 60 GHz to 90 GHz PE-W12CP001-20

WR-12

60-90

E Band

1

1.2:1

20.00

30.00

H-Plane

UG-387/U

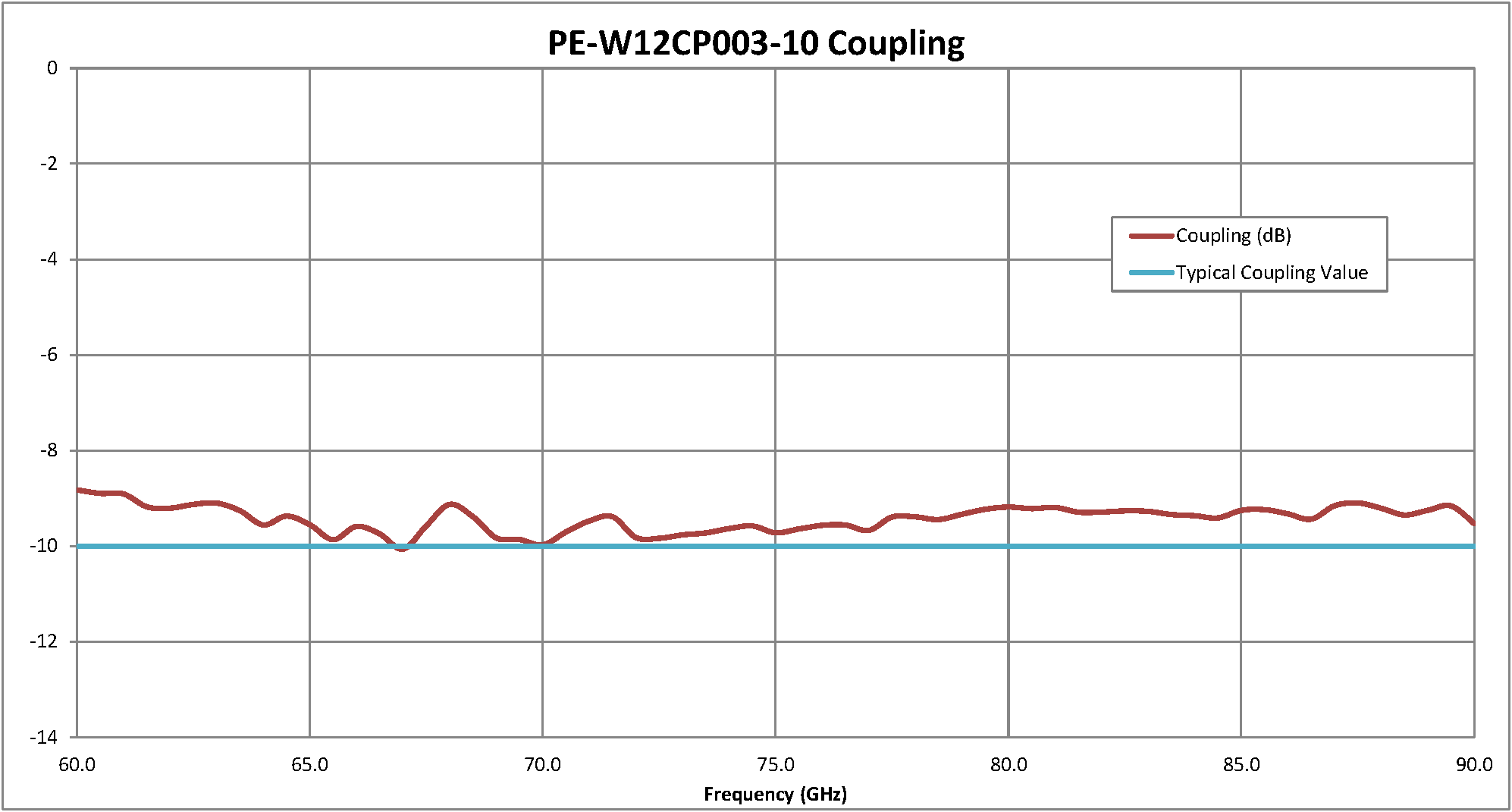

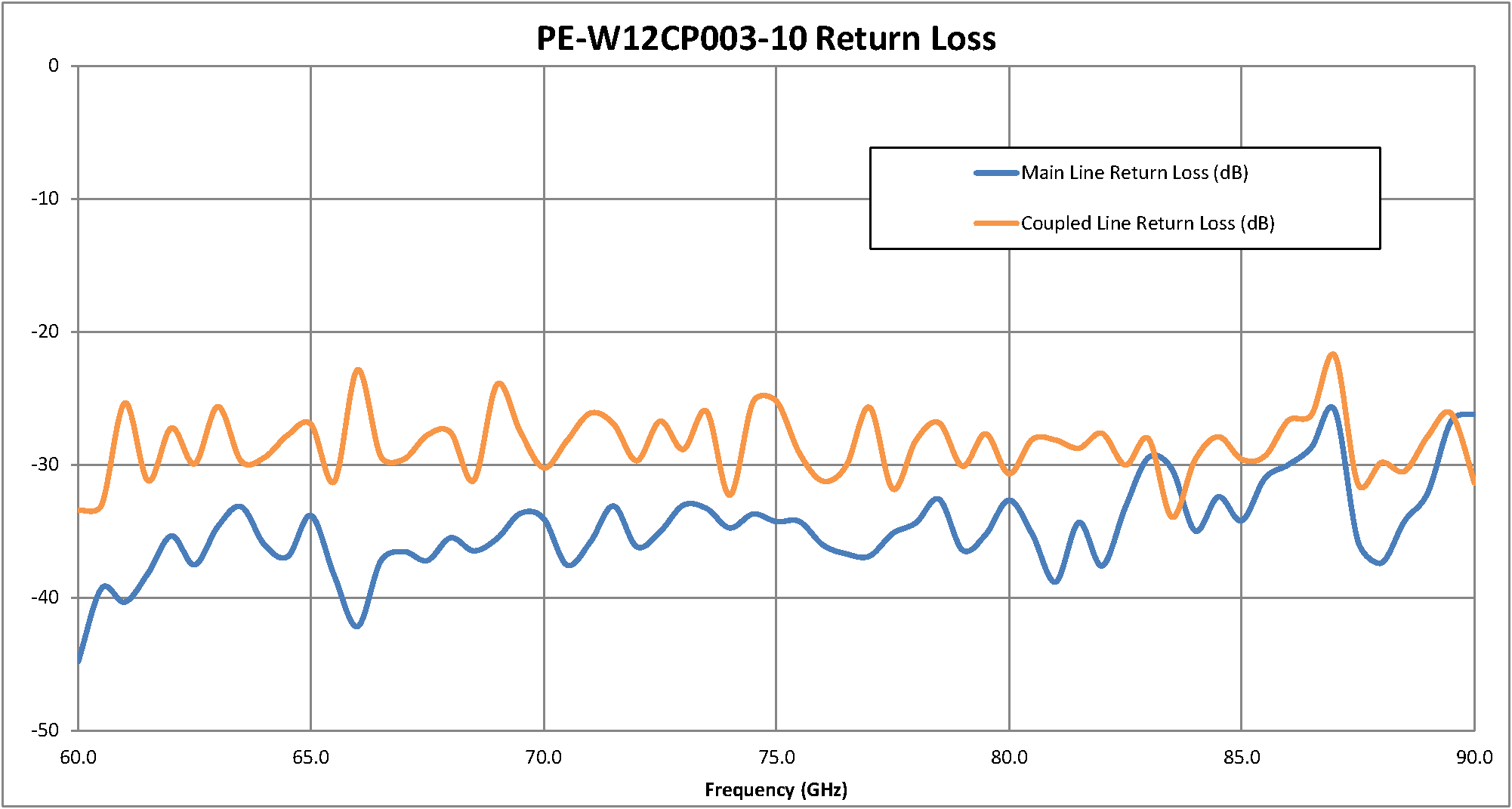

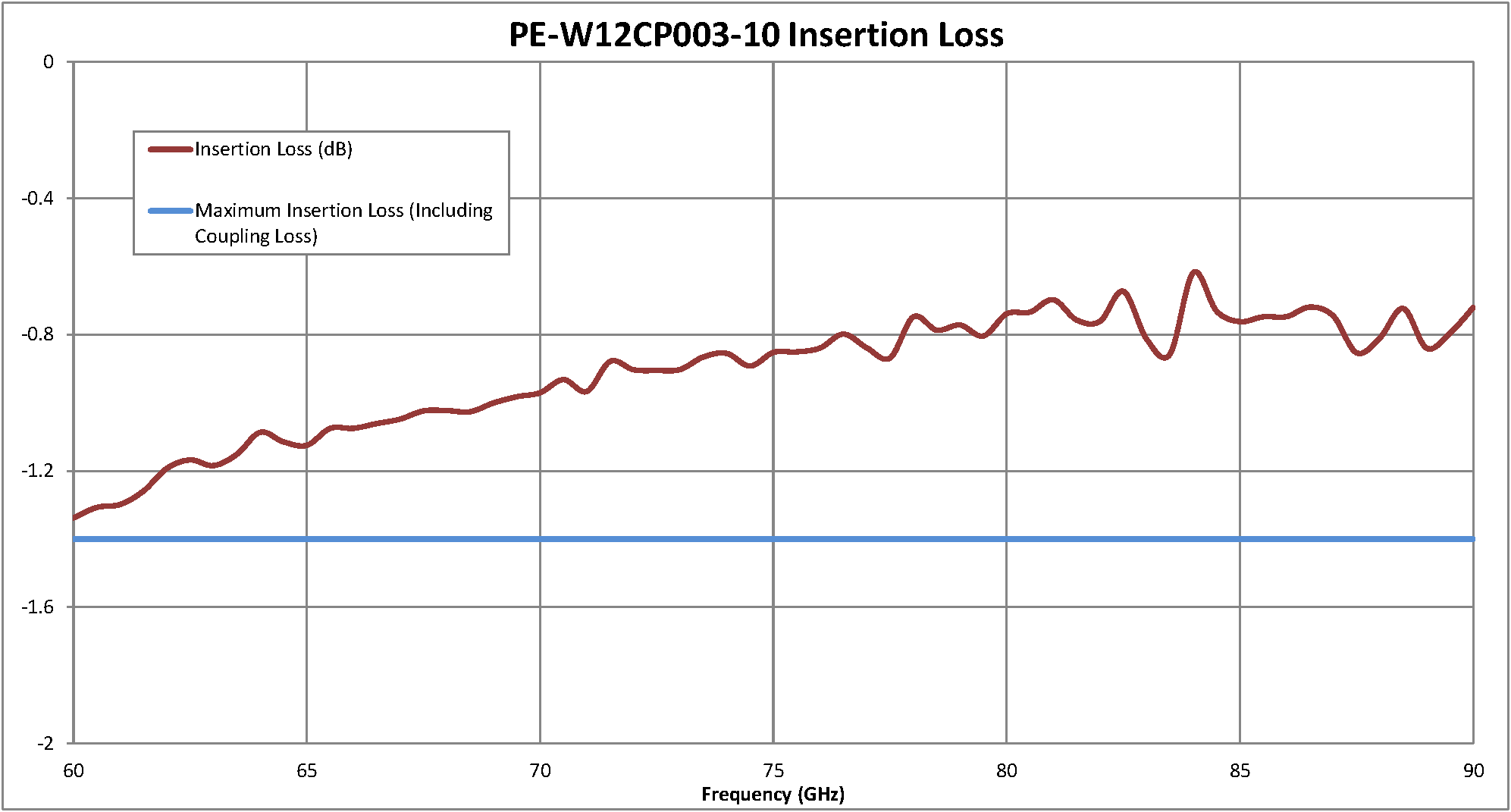

WR-12  Directional Waveguide Coupler UG-387/U 60 GHz to 90 GHz PE-W12CP003-10

WR-12

60-90

E Band

1.4

1.2:1

10.00

30.00

E-Plane

UG-387/U

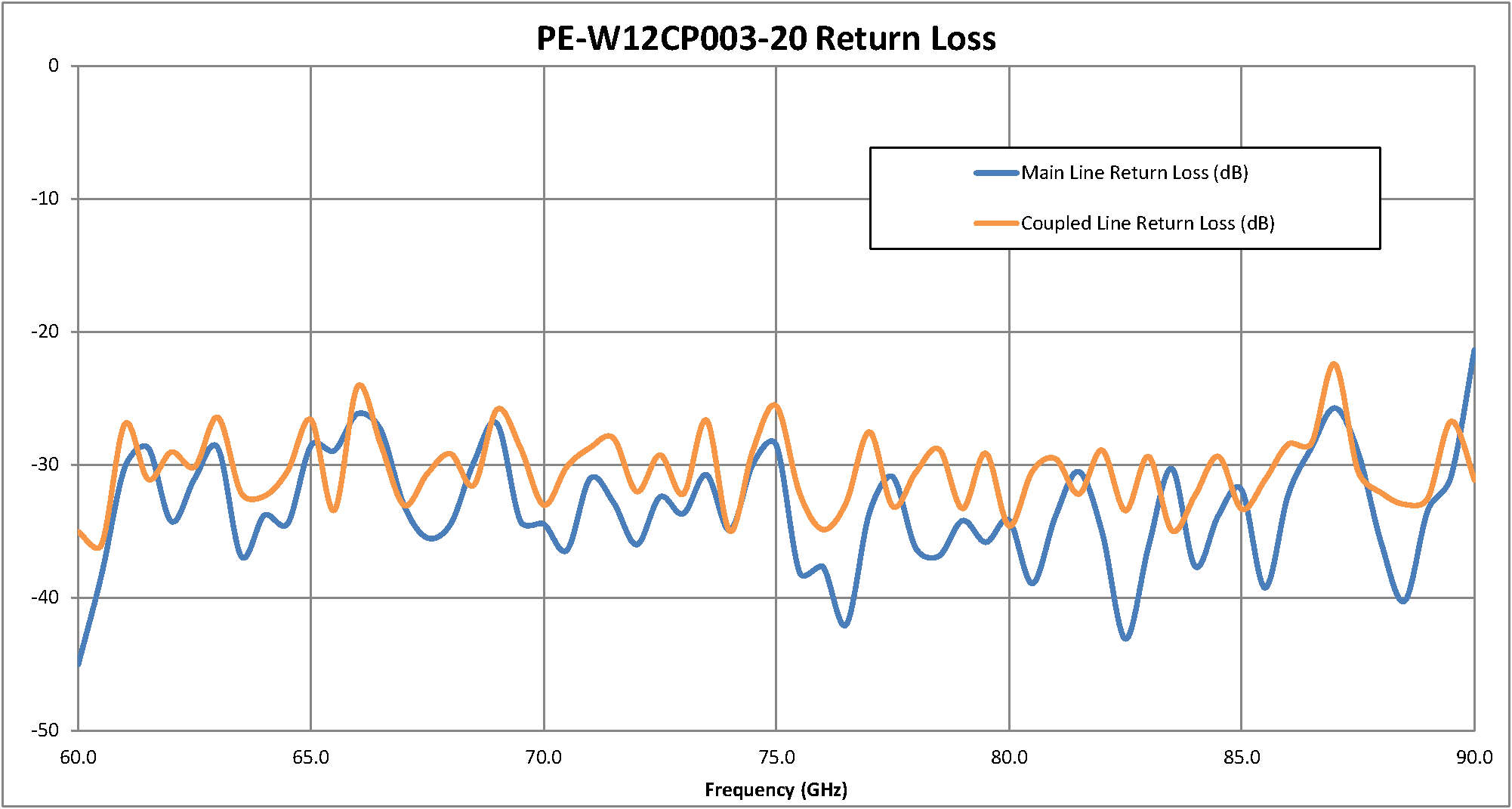

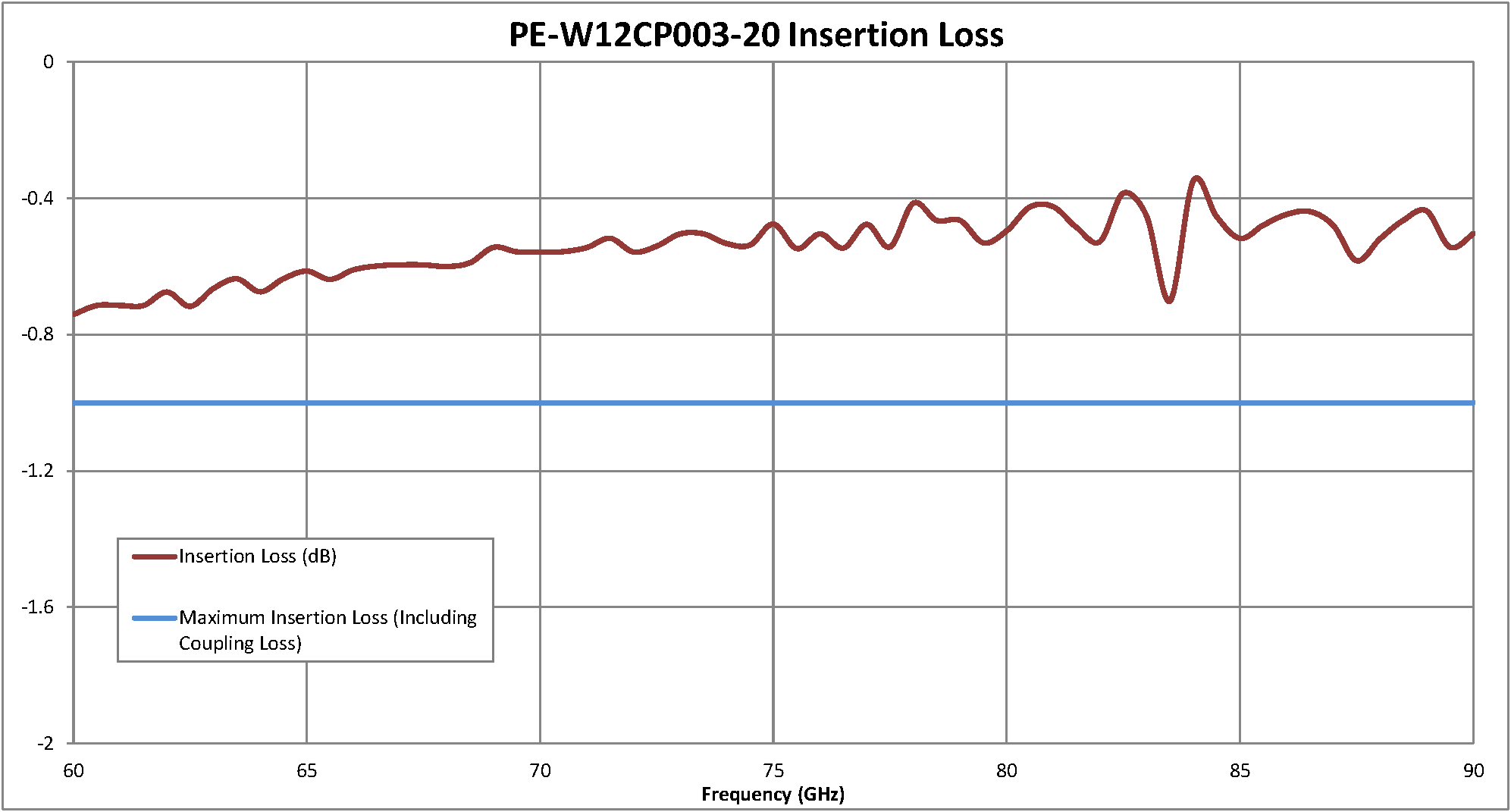

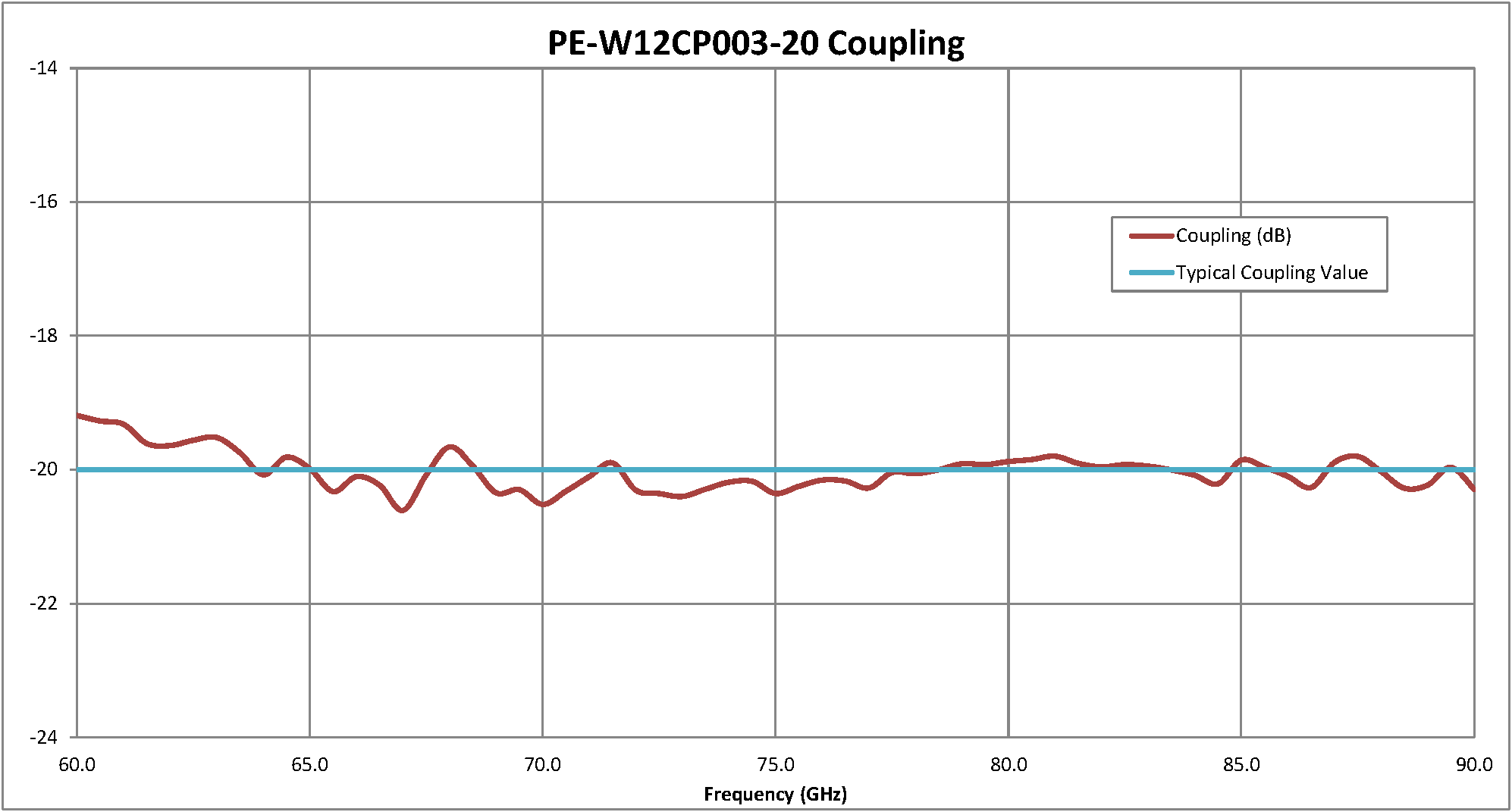

WR-12  Directional Waveguide Coupler UG-387/U 60 GHz to 90 GHz PE-W12CP003-20

WR-12

60-90

E Band

1

1.2:1

20.00

30.00

E-Plane

UG-387/U

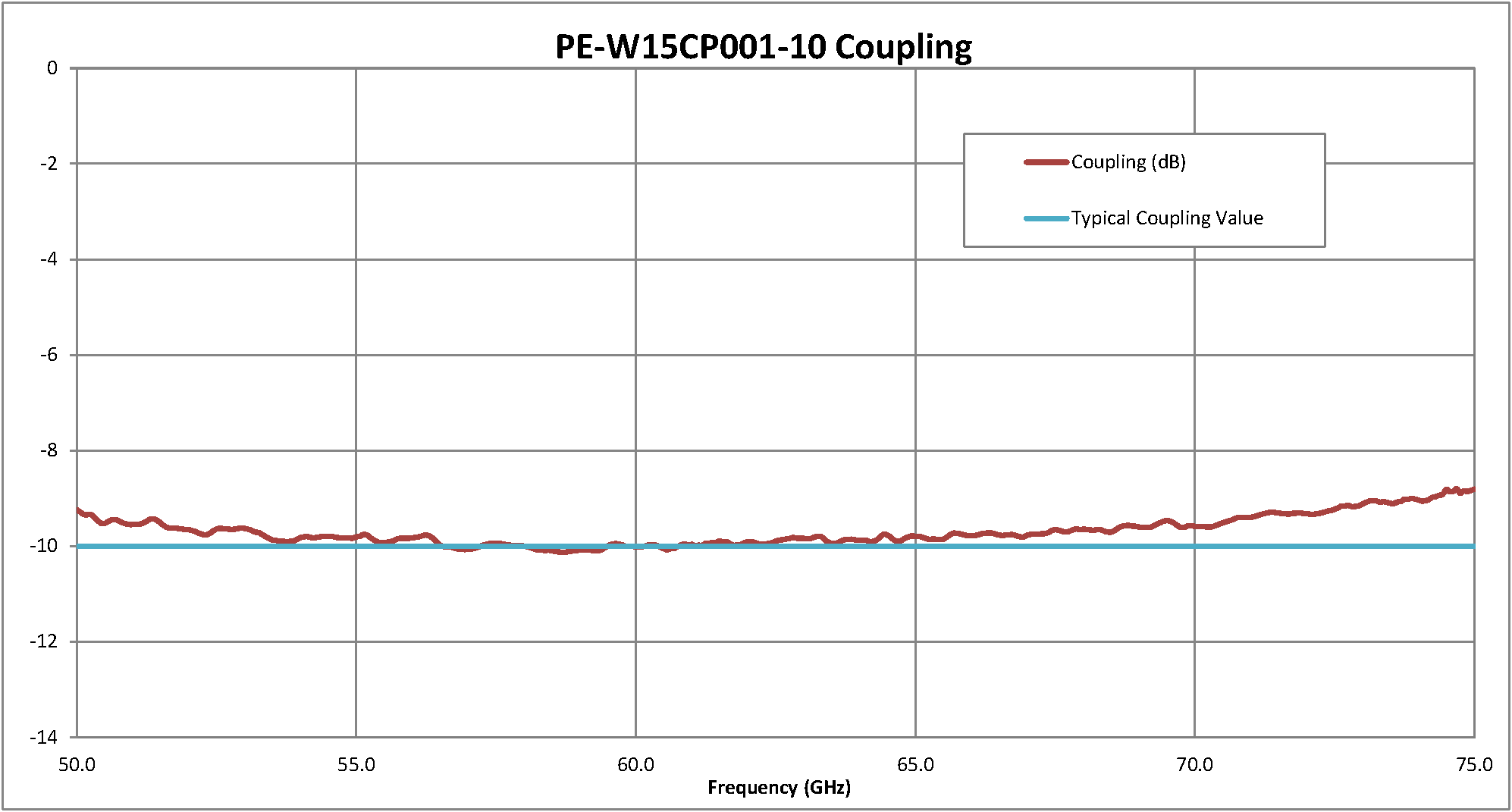

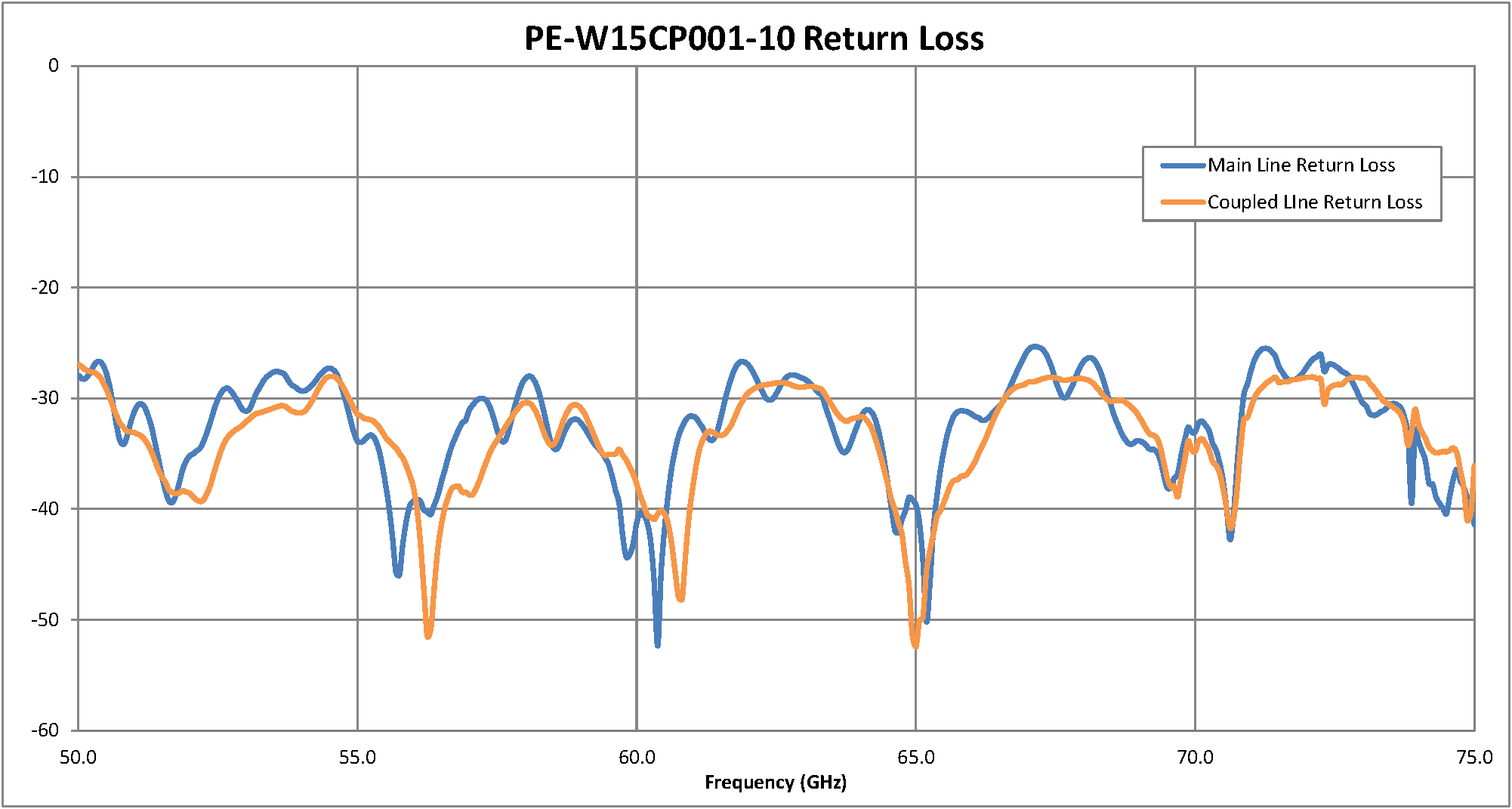

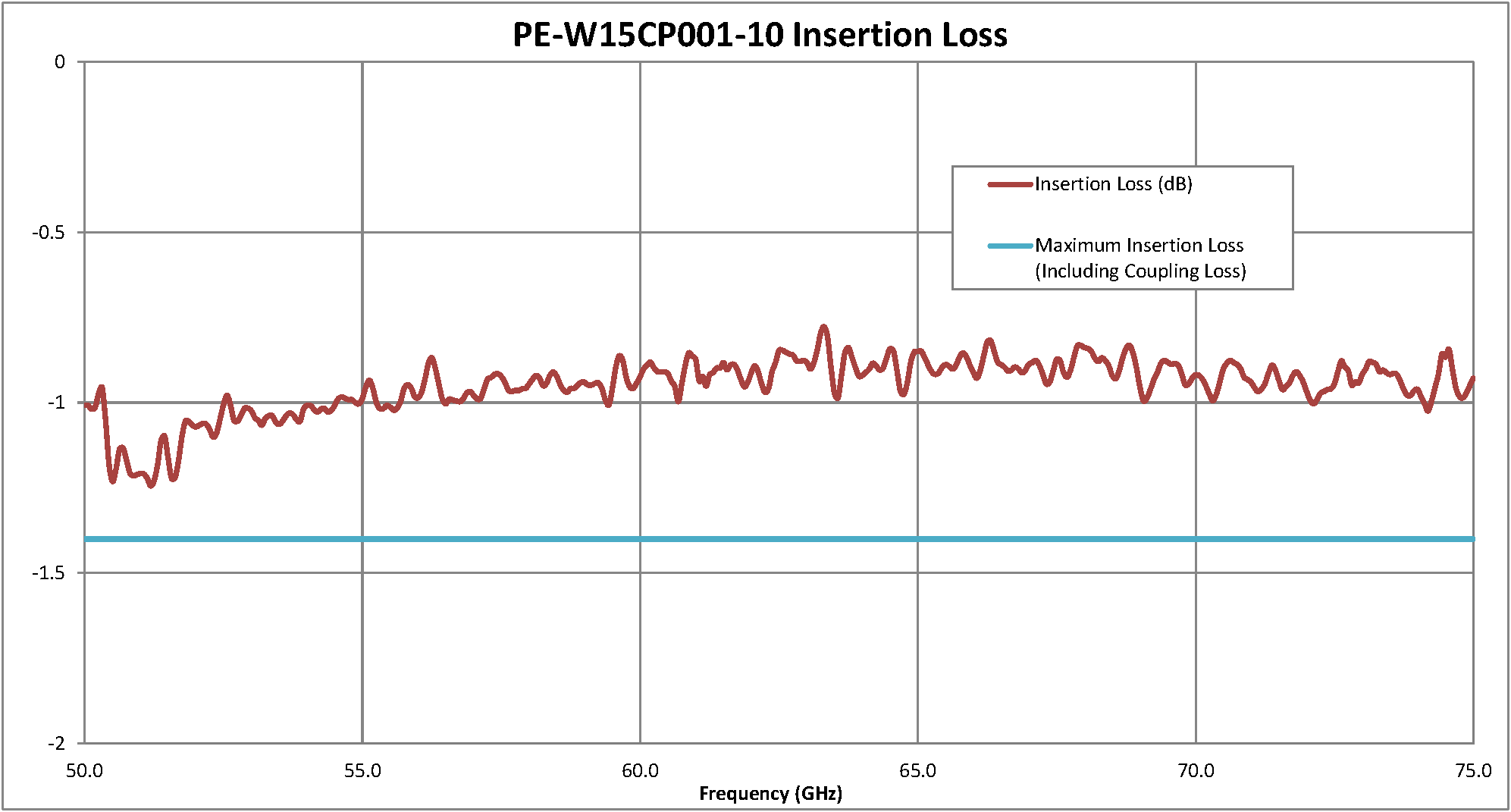

WR-15  Directional Waveguide Coupler UG-385/U 50 GHz to 75 GHz PE-W15CP001-10

WR-15

50-75

V Band

1.4

1.2:1

10.00

30.00

H-Plane

UG-385/U

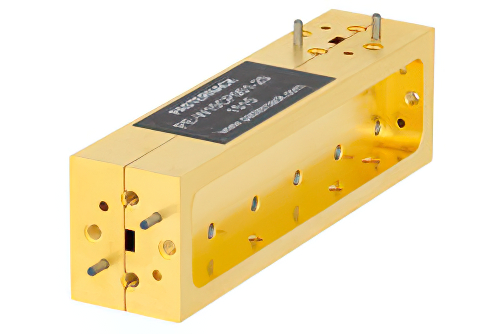

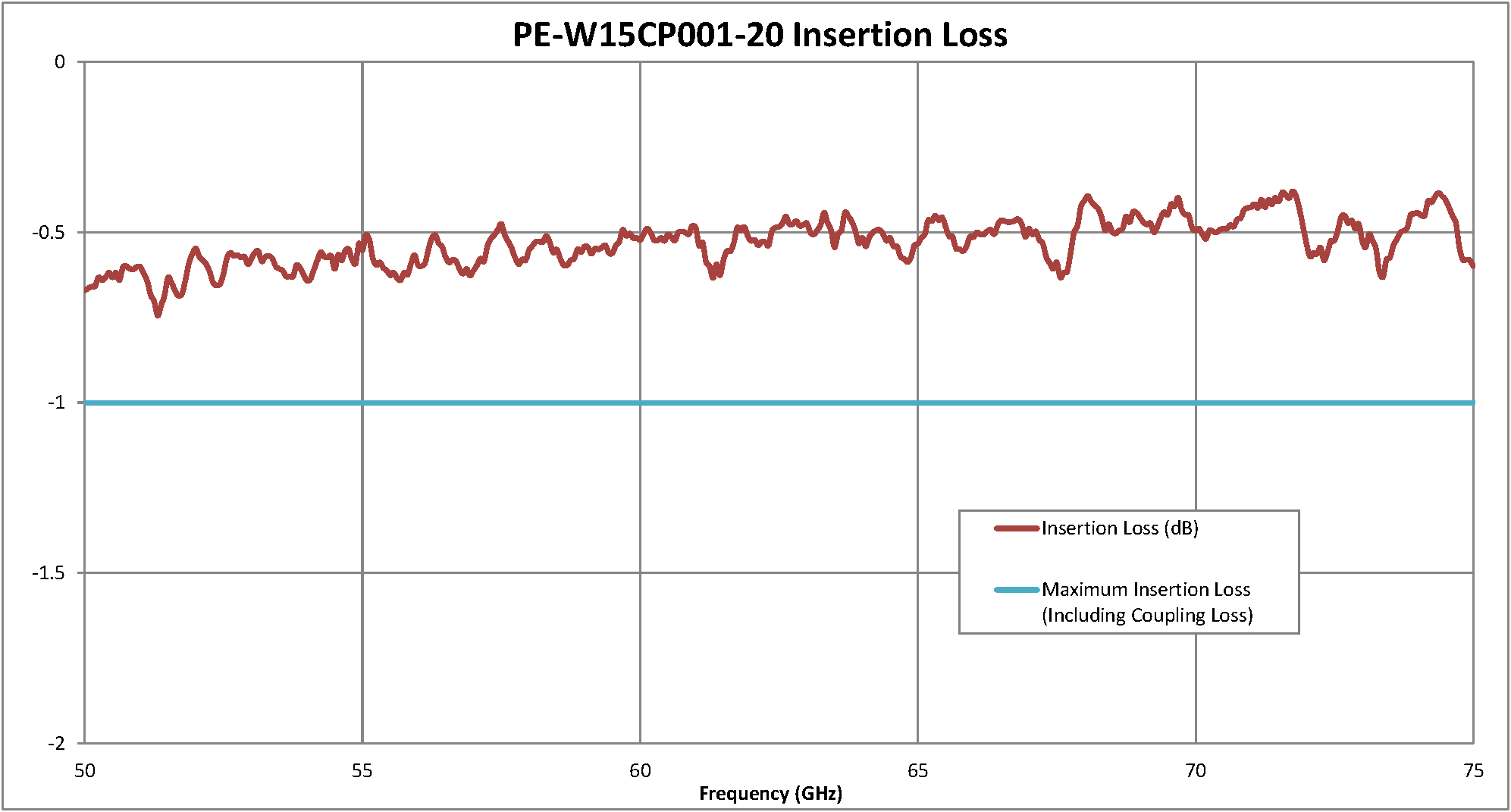

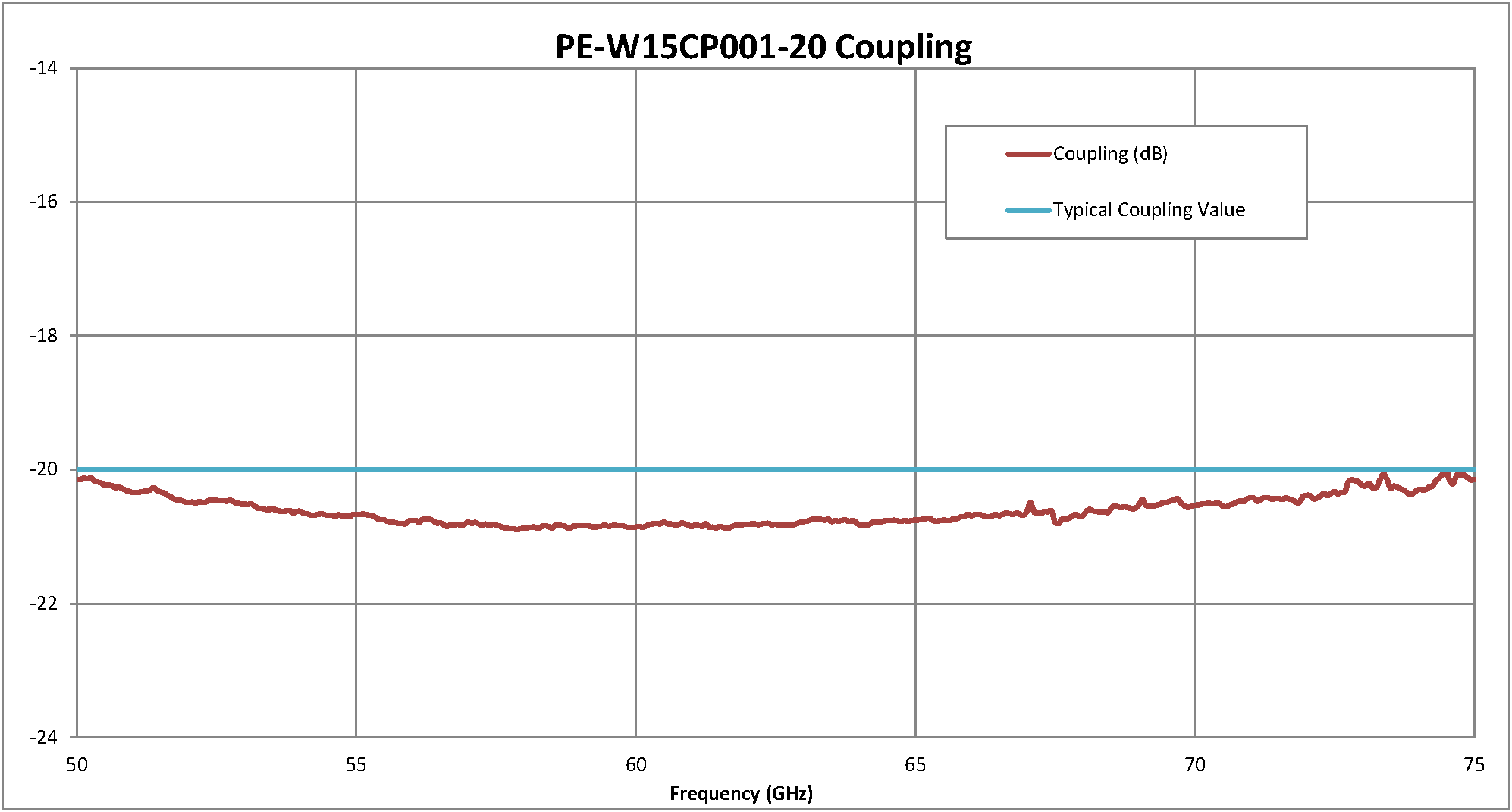

WR-15  Directional Waveguide Coupler UG-385/U 50 GHz to 75 GHz PE-W15CP001-20

WR-15

50-75

V Band

1

1.2:1

20.00

30.00

H-Plane

UG-385/U

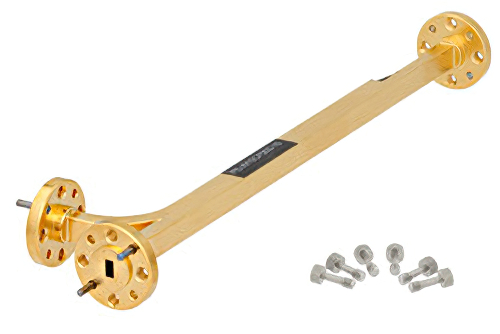

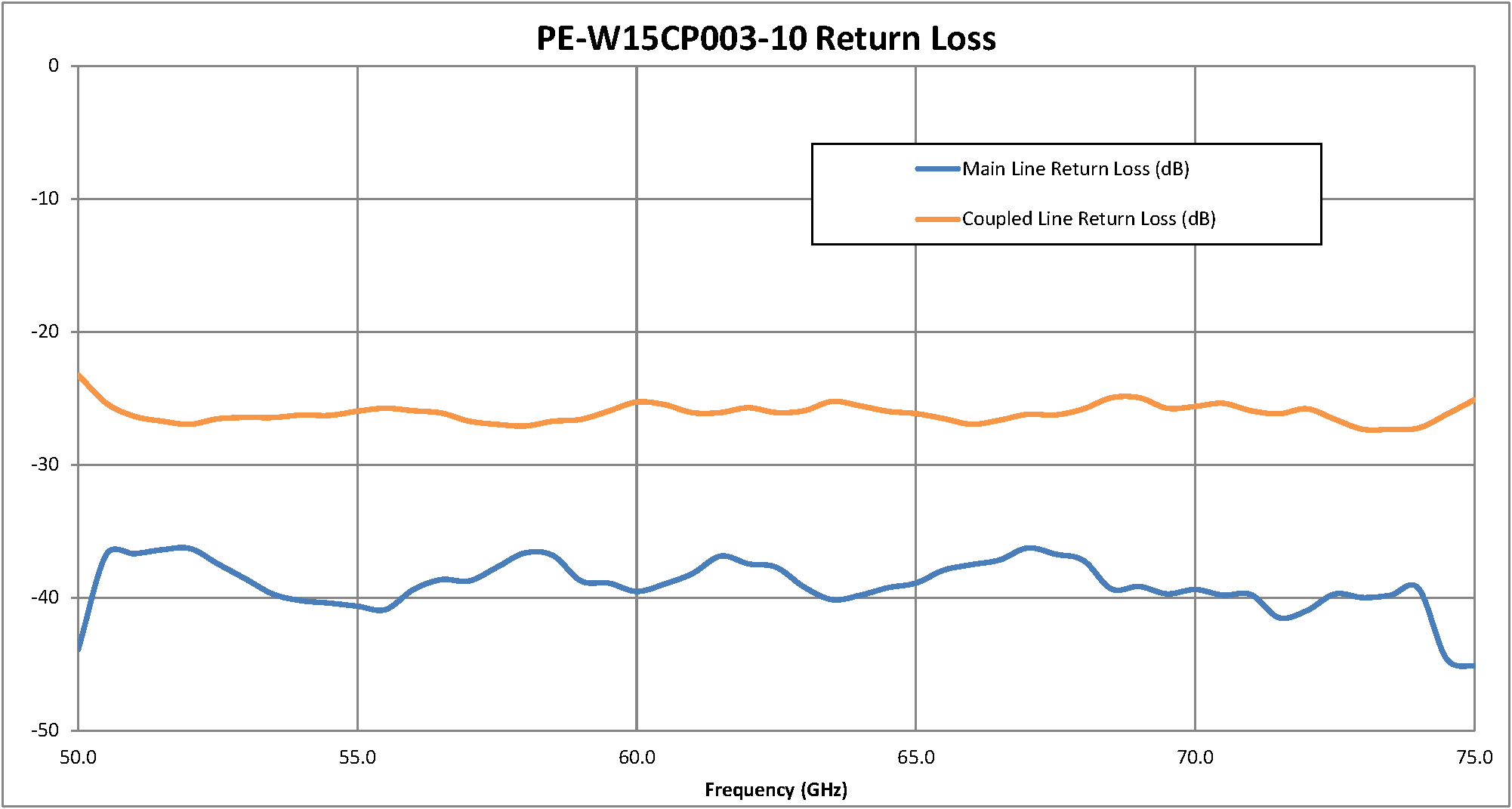

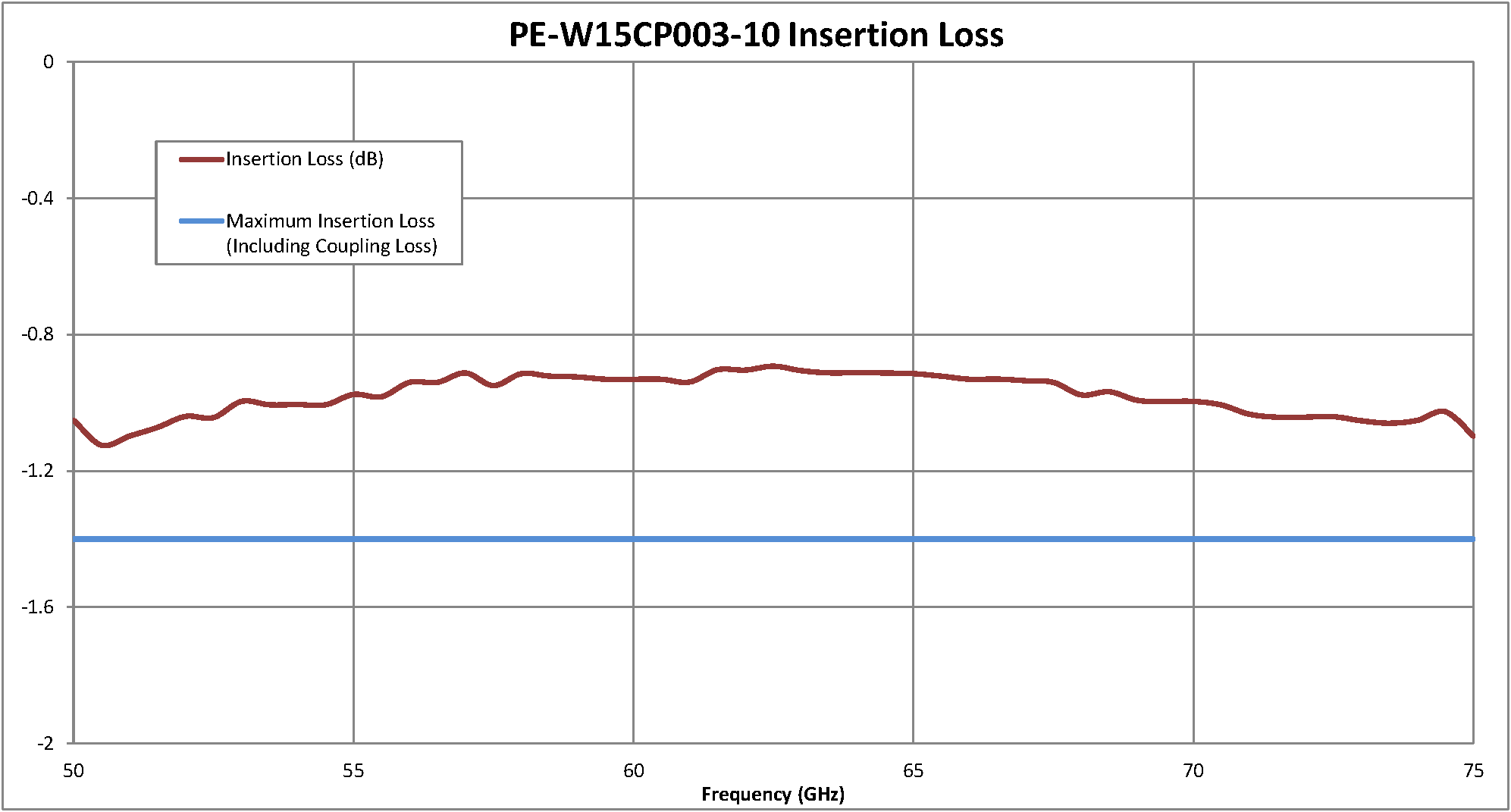

WR-15  Directional Waveguide Coupler UG-385/U 50 GHz to 75 GHz PE-W15CP003-10

WR-15

50-75

V Band

1.4

1.2:1

10.00

30.00

E-Plane

UG-385/U

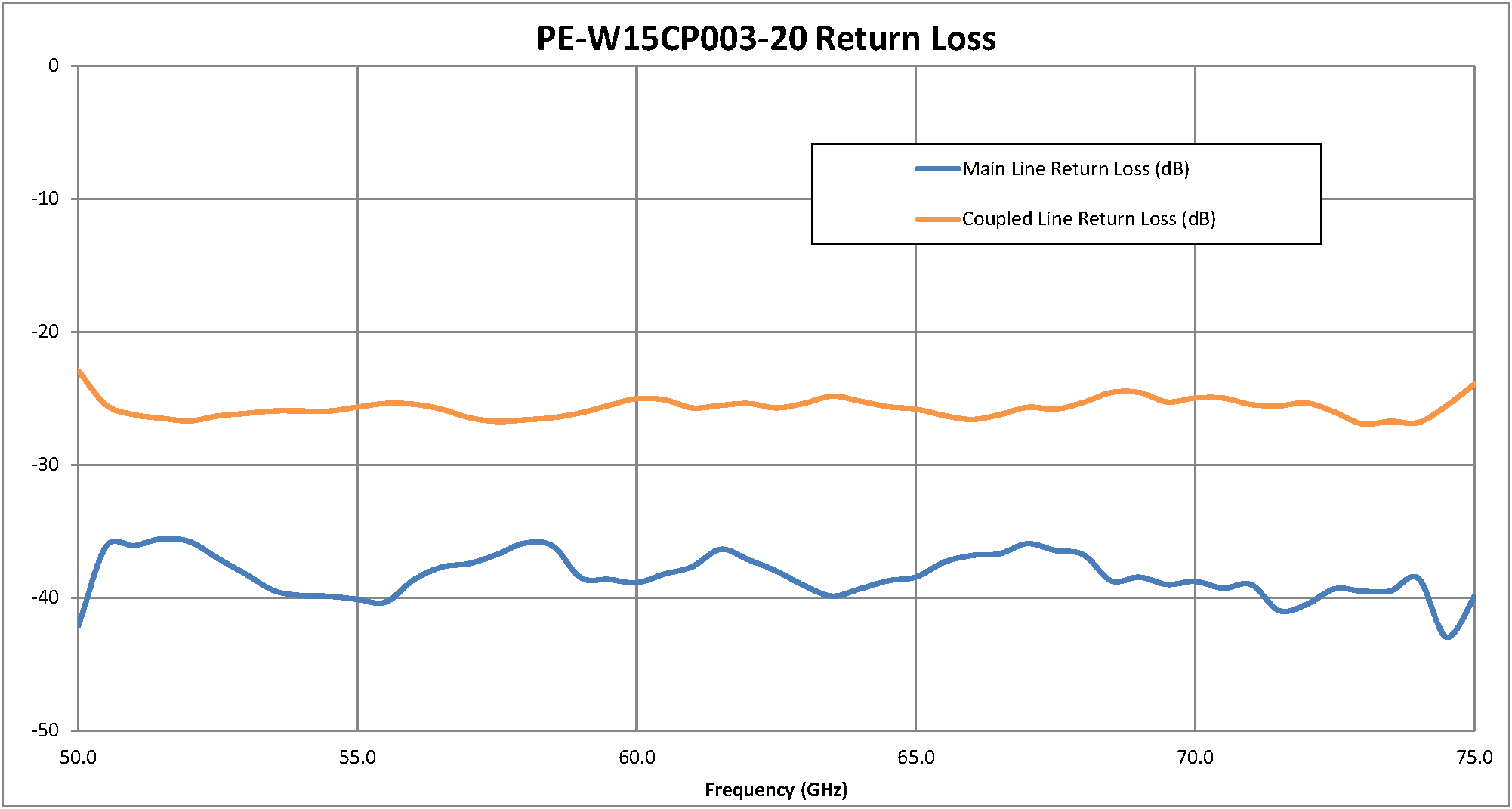

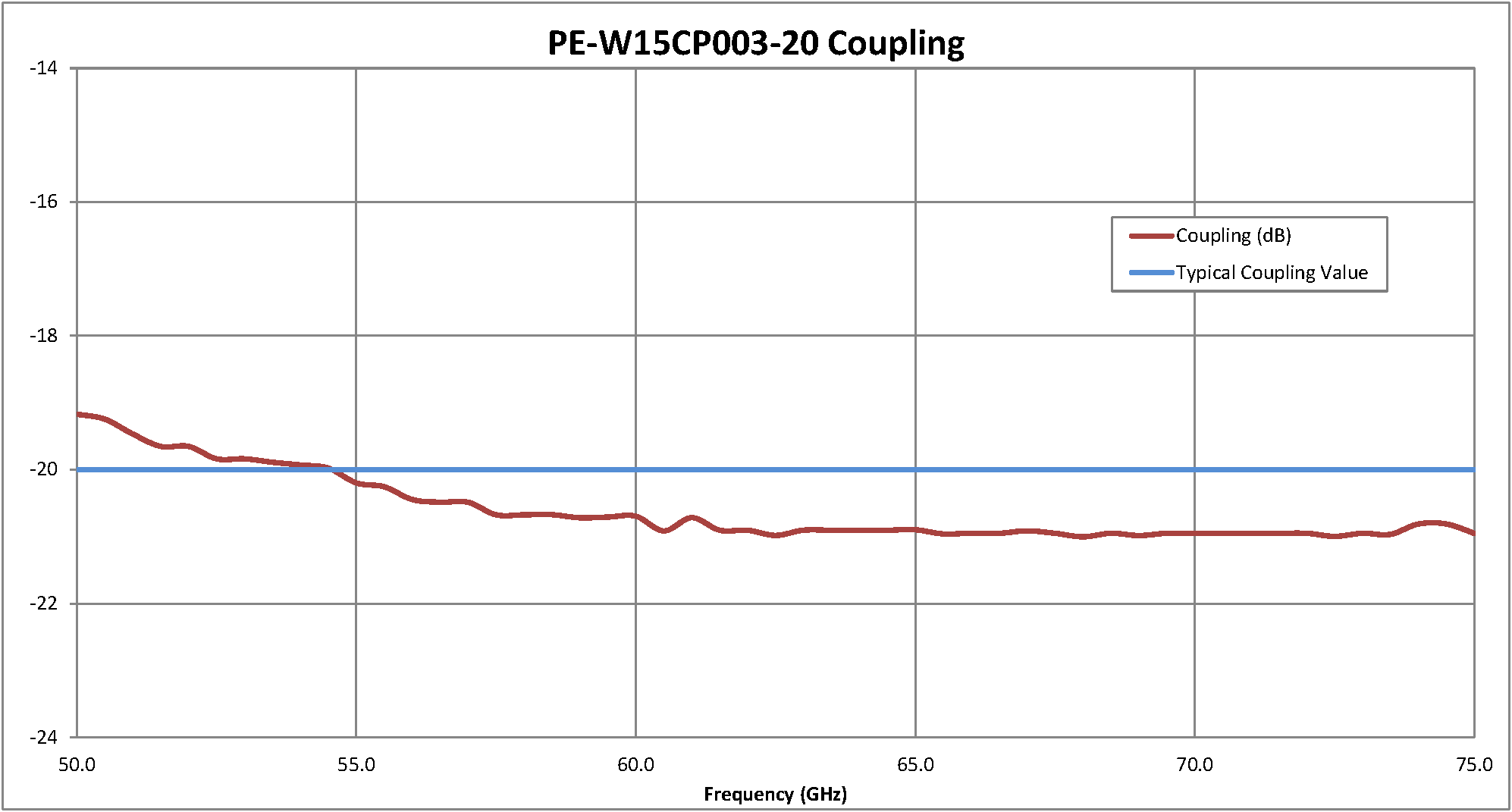

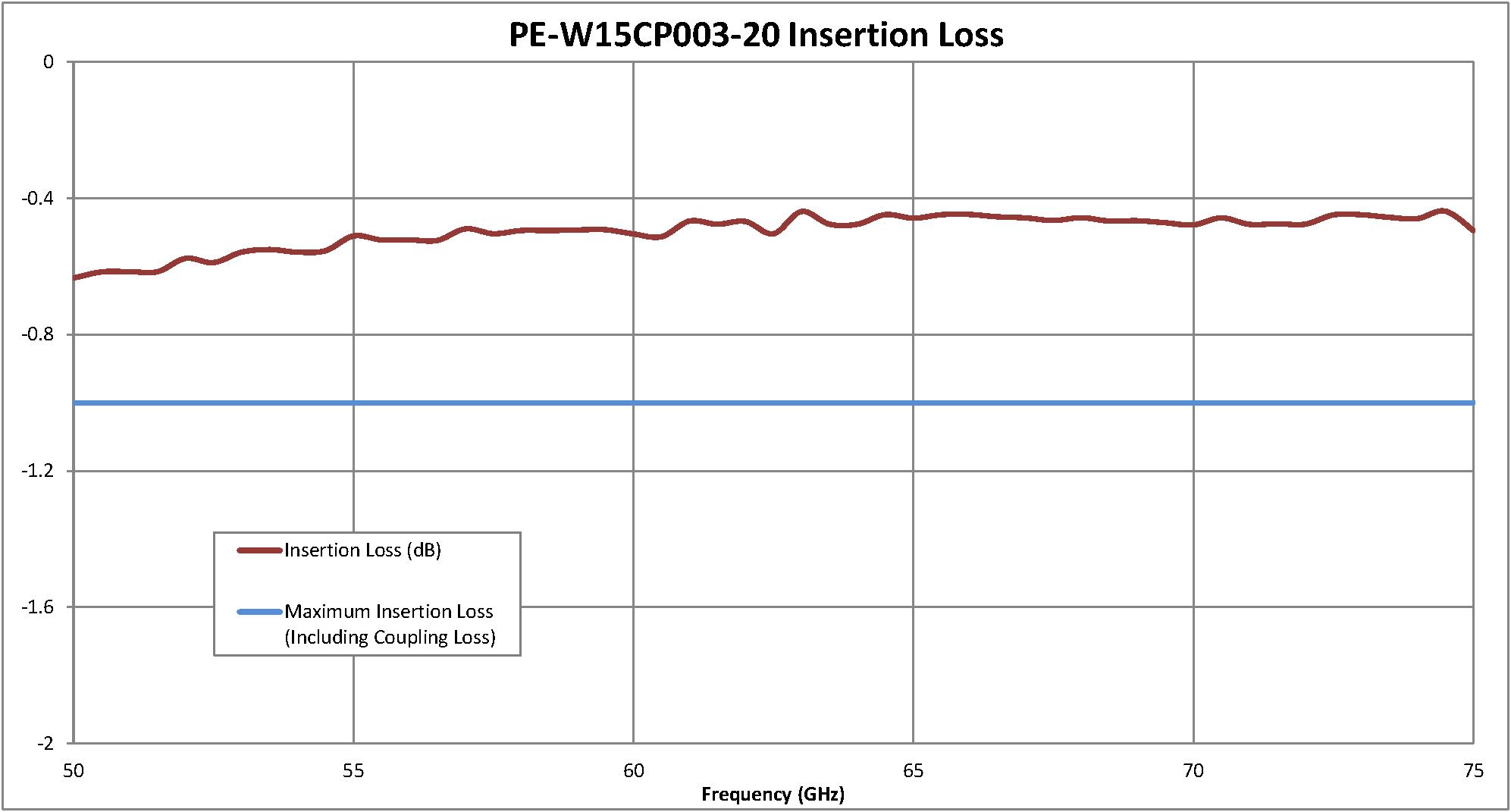

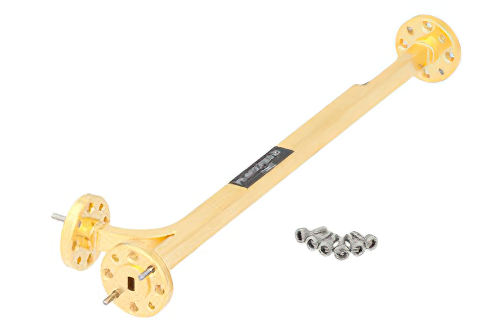

WR-15  Directional Waveguide Coupler UG-385/U 50 GHz to 75 GHz PE-W15CP003-20

WR-15

50-75

V Band

1

1.2:1

20.00

30.00

E-Plane

UG-385/U

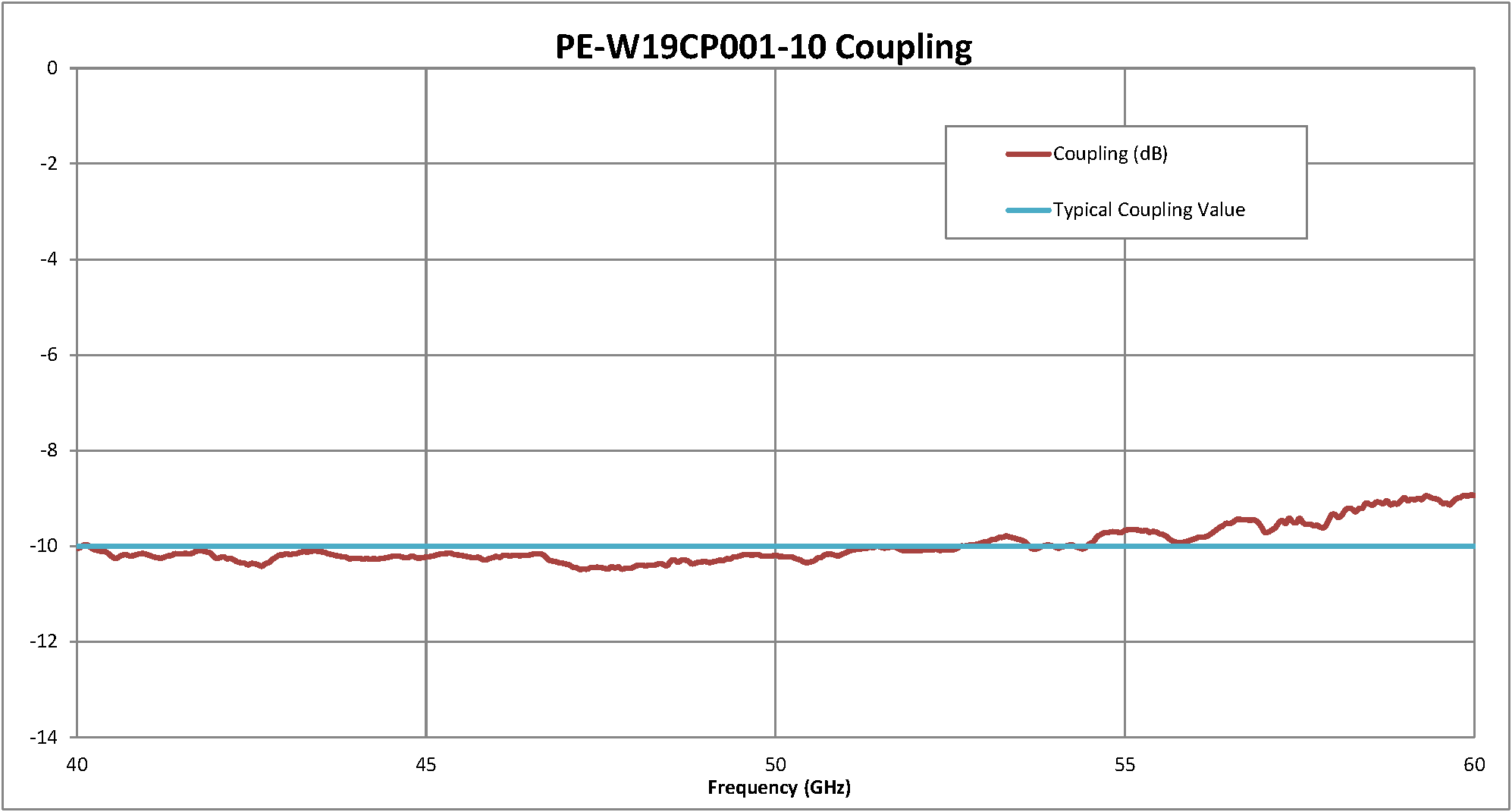

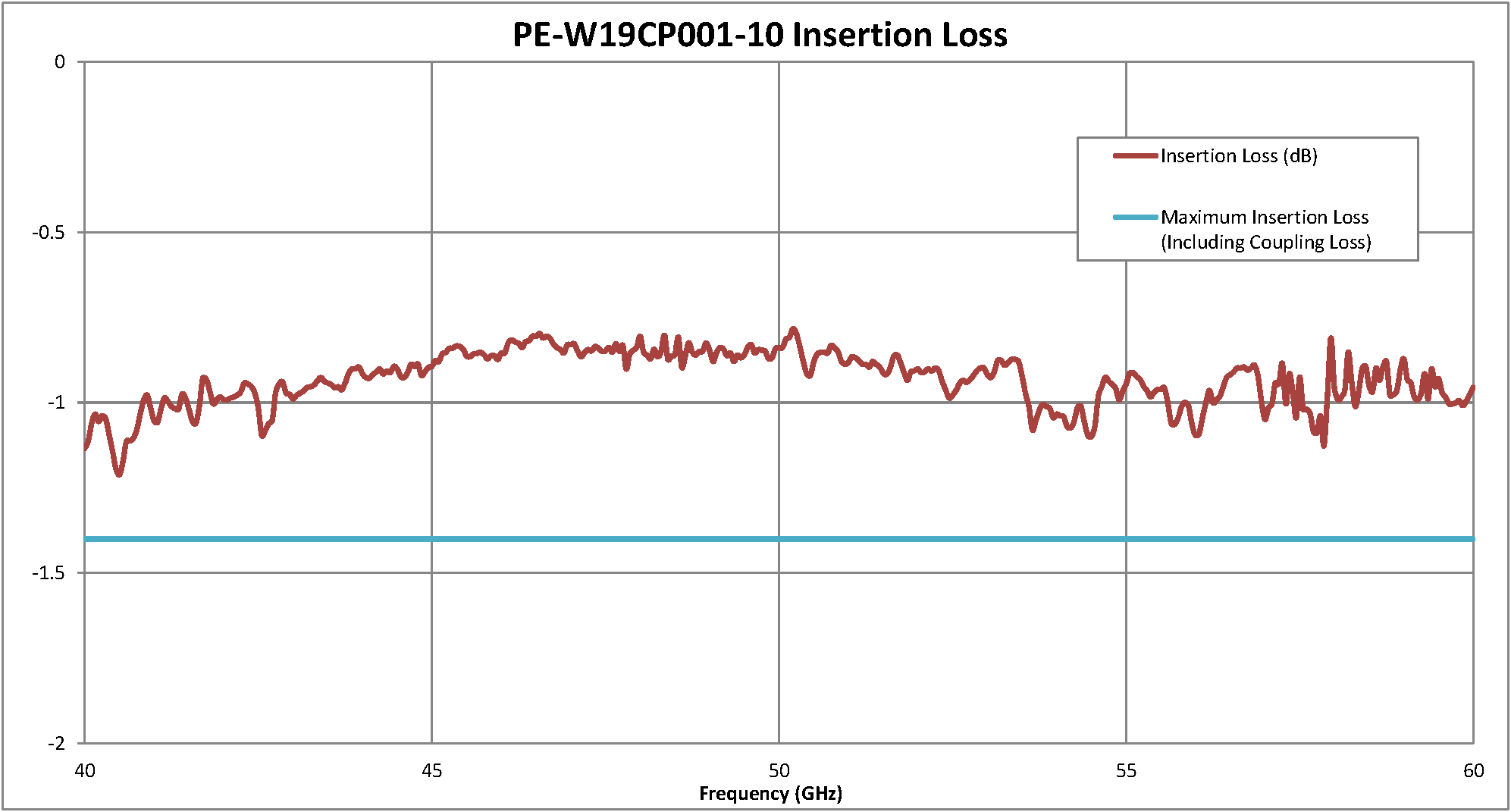

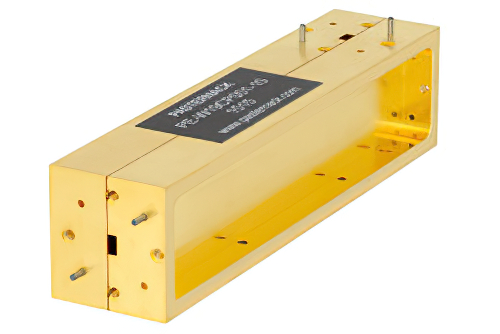

WR-19  Directional Waveguide Coupler UG-383/U 40 GHz to 60 GHz PE-W19CP001-10

WR-19

40-60

U Band

1.4

1.2:1

10.00

30.00

H-Plane

UG-383/U-Mod

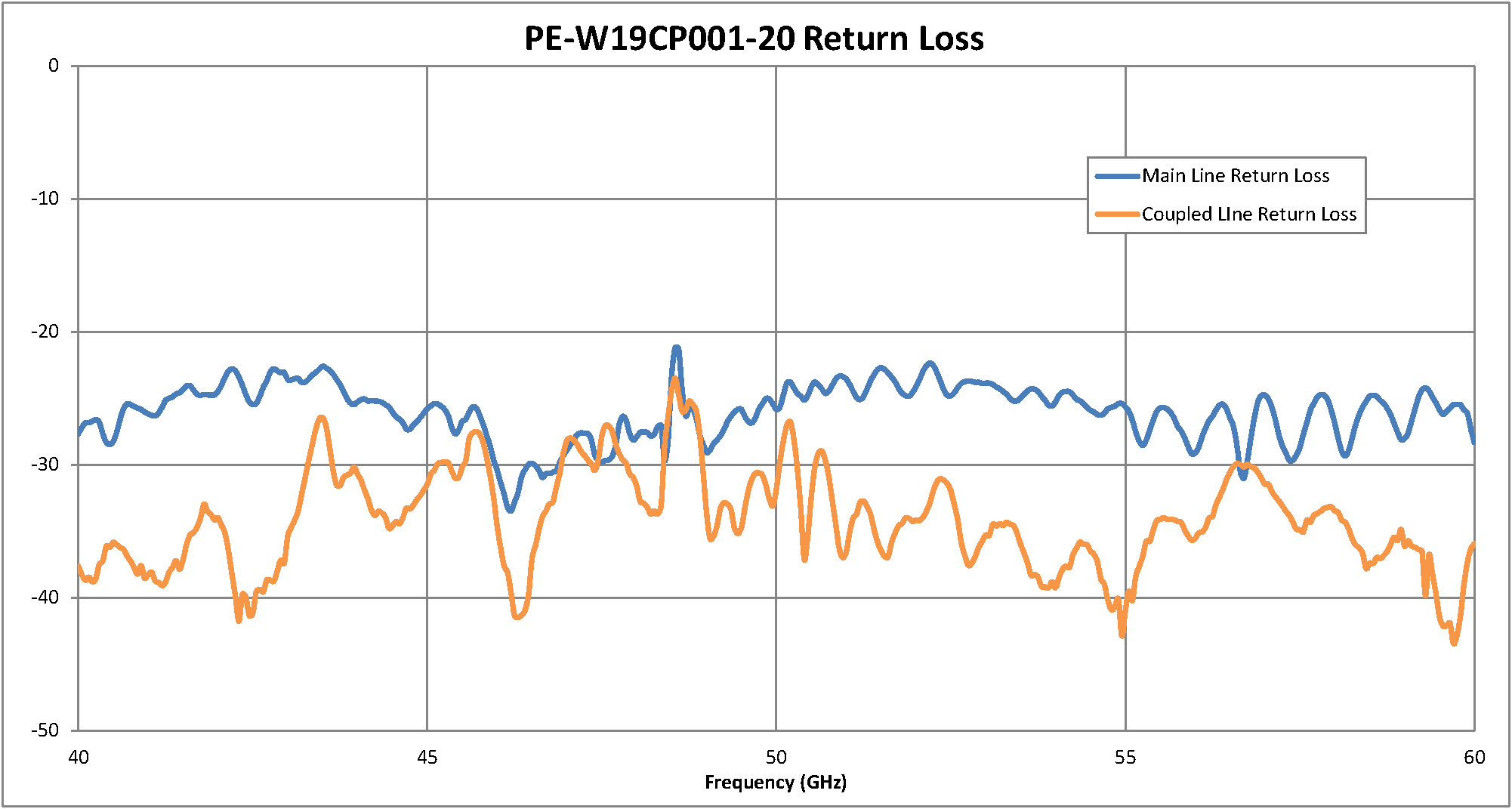

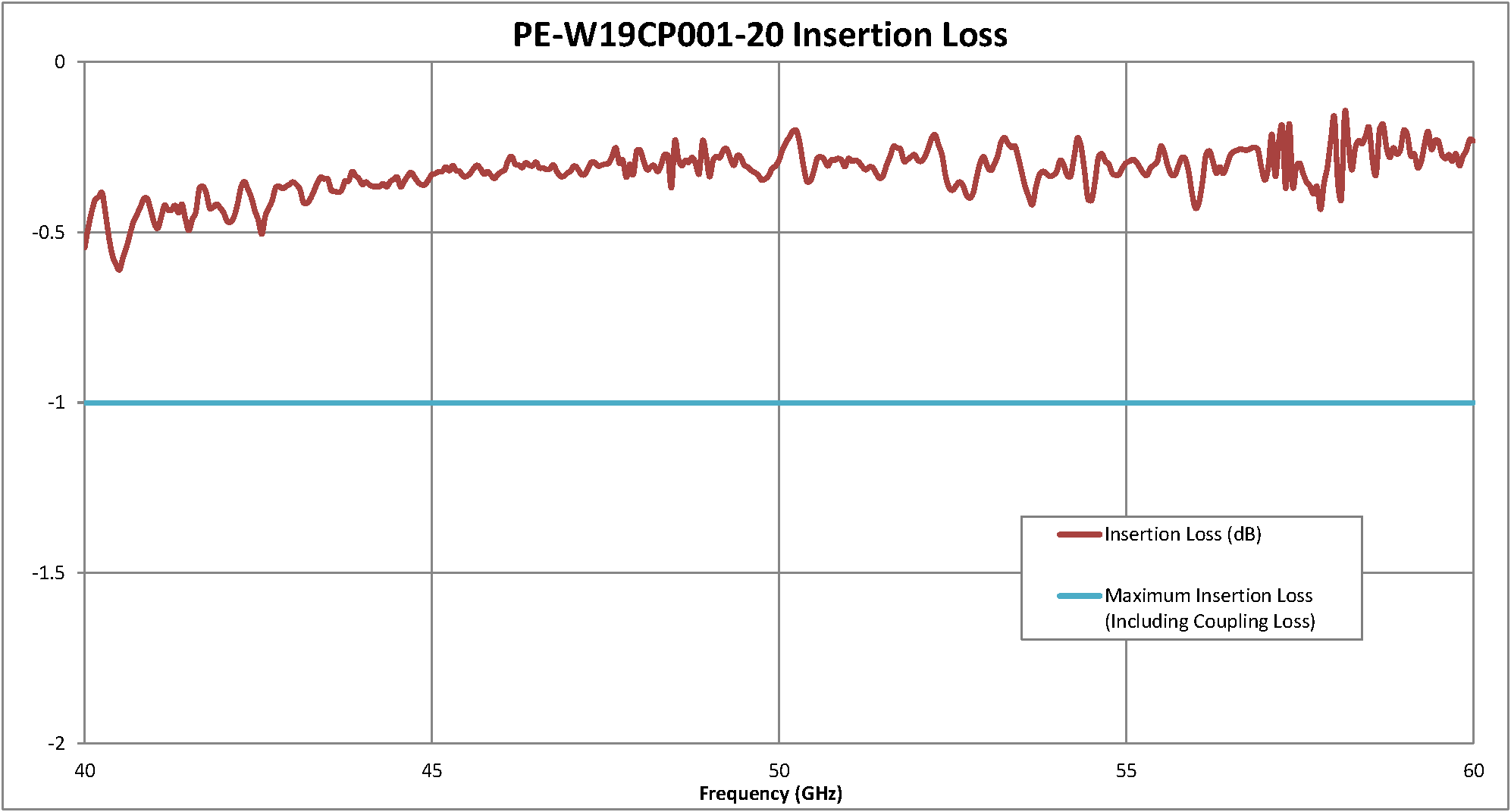

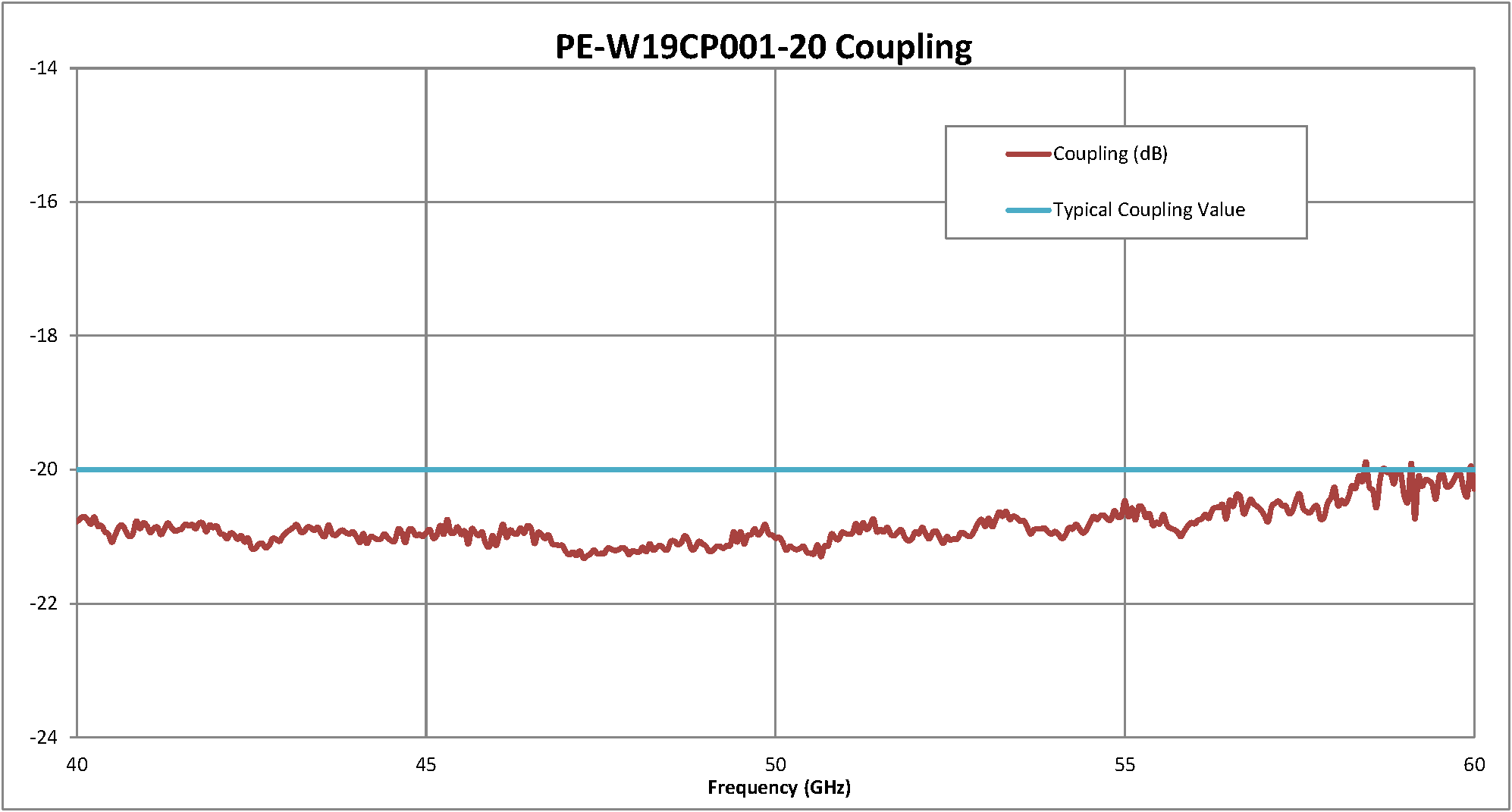

WR-19  Directional Waveguide Coupler UG-383/U 40 GHz to 60 GHz PE-W19CP001-20

WR-19

40-60

U Band

1

1.2:1

20.00

30.00

H-Plane

UG-383/U-Mod

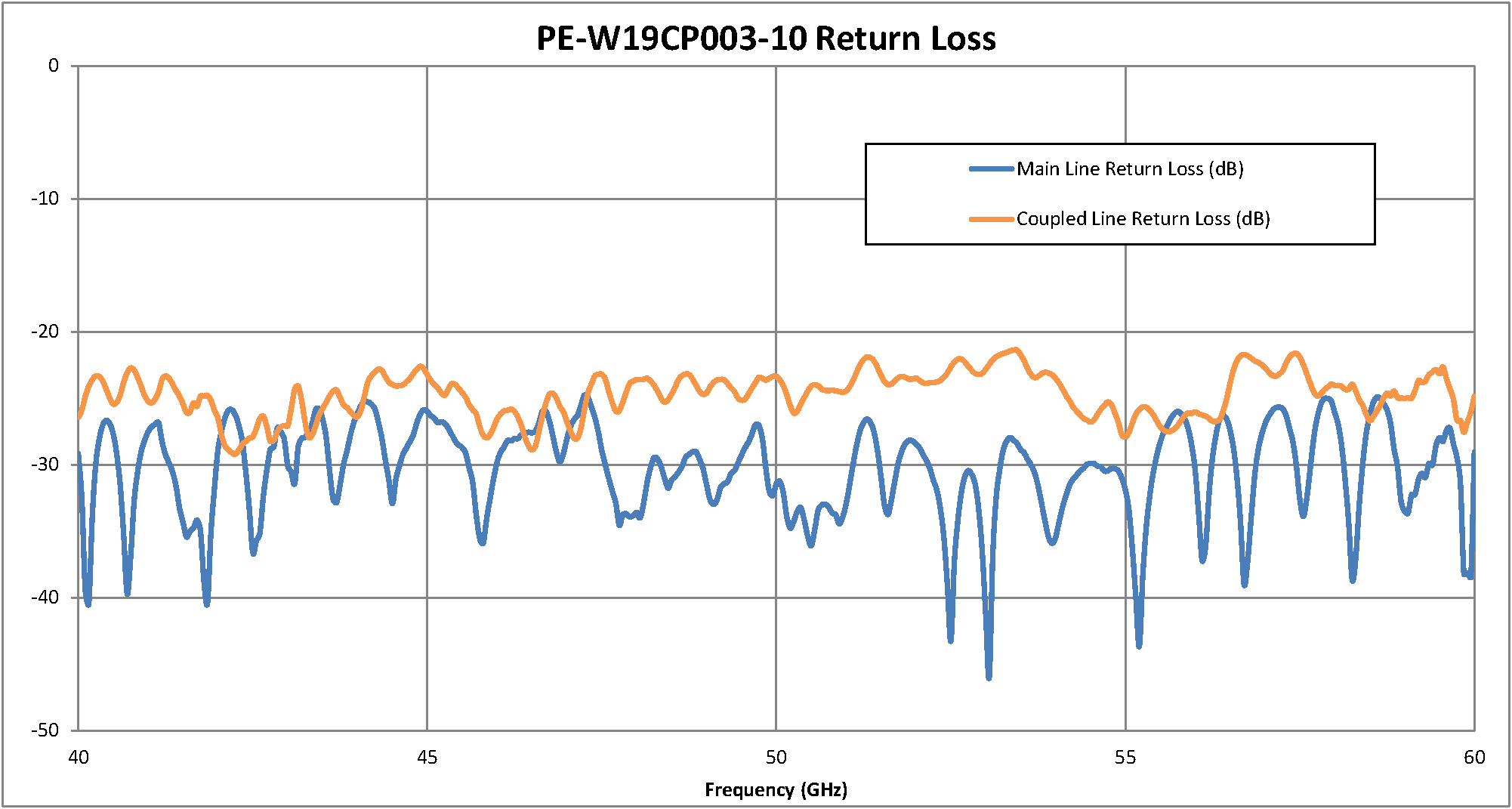

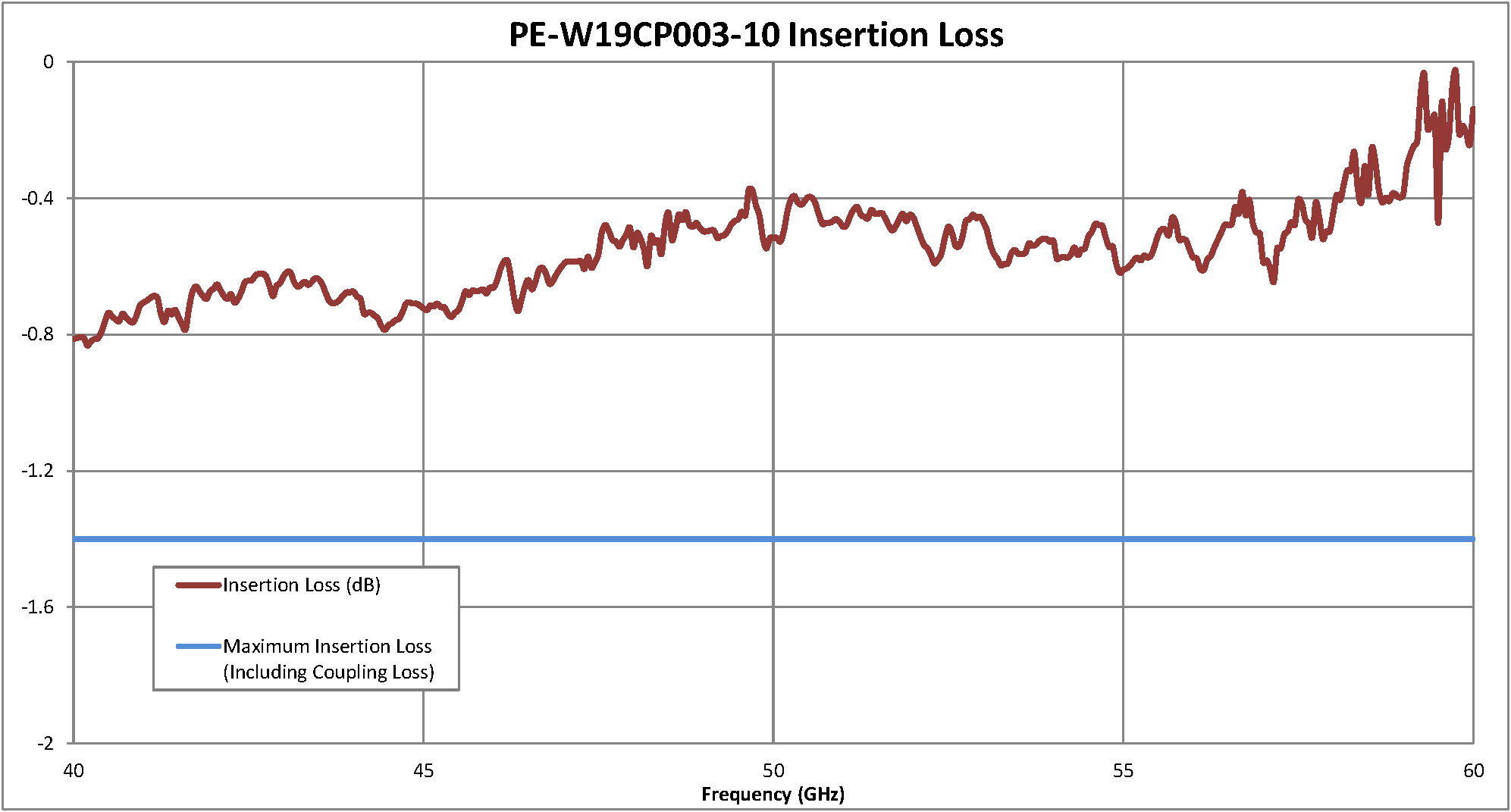

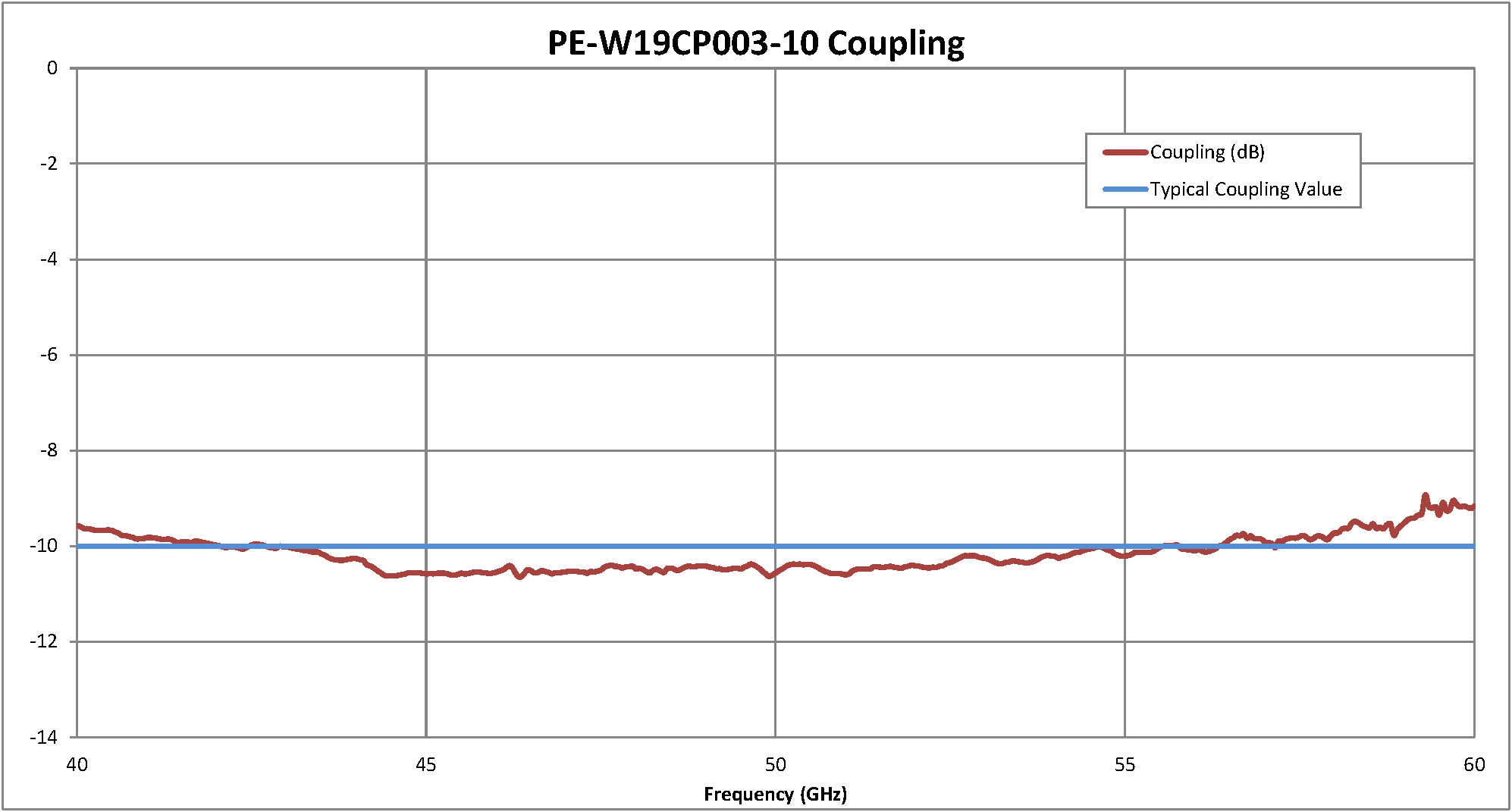

WR-19  Directional Waveguide Coupler UG-383/U 40 GHz to 60 GHz PE-W19CP003-10

WR-19

40-60

U Band

0.8

1.2:1

10.00

30.00

E-Plane

UG-383/U-Mod

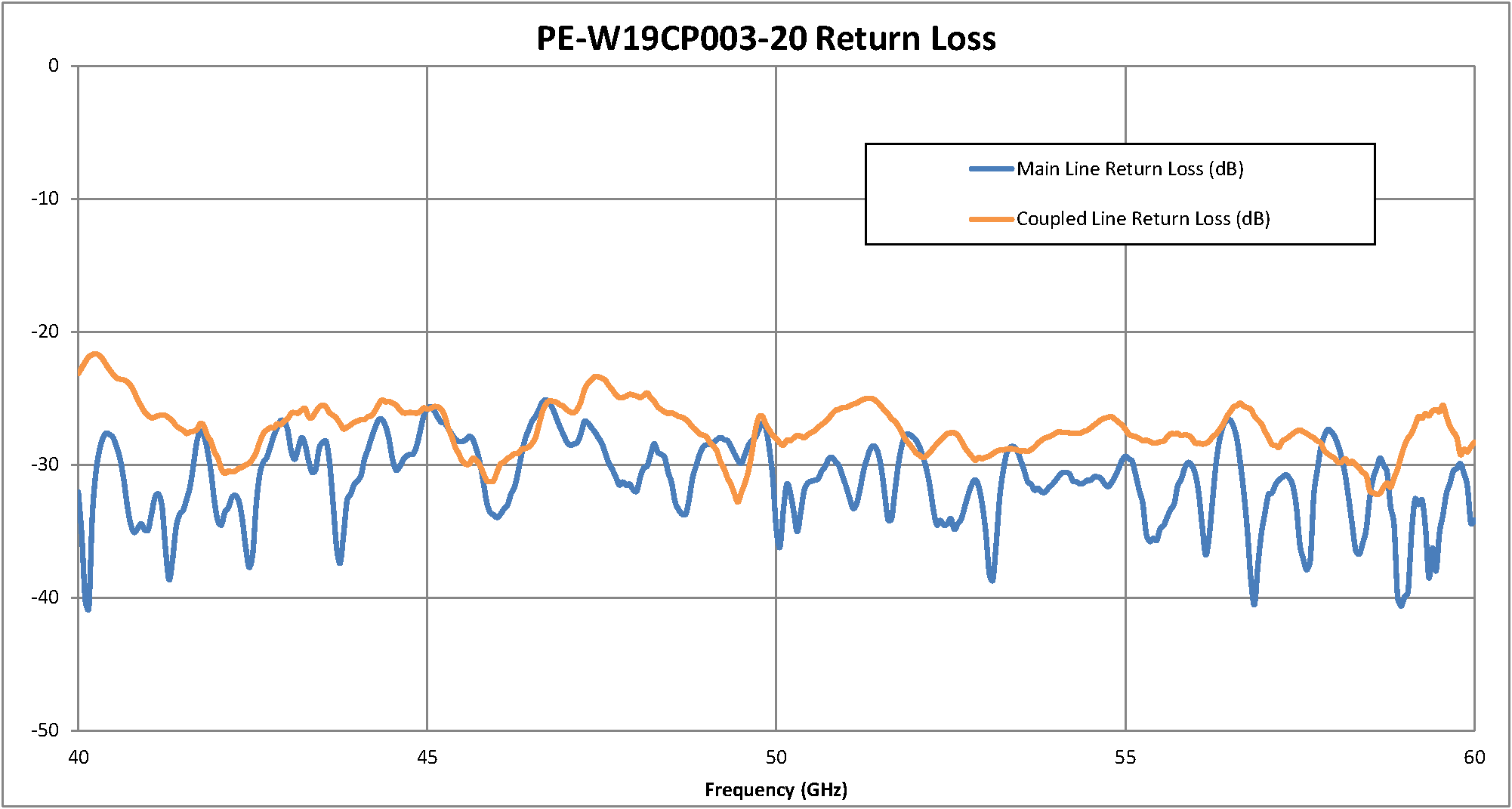

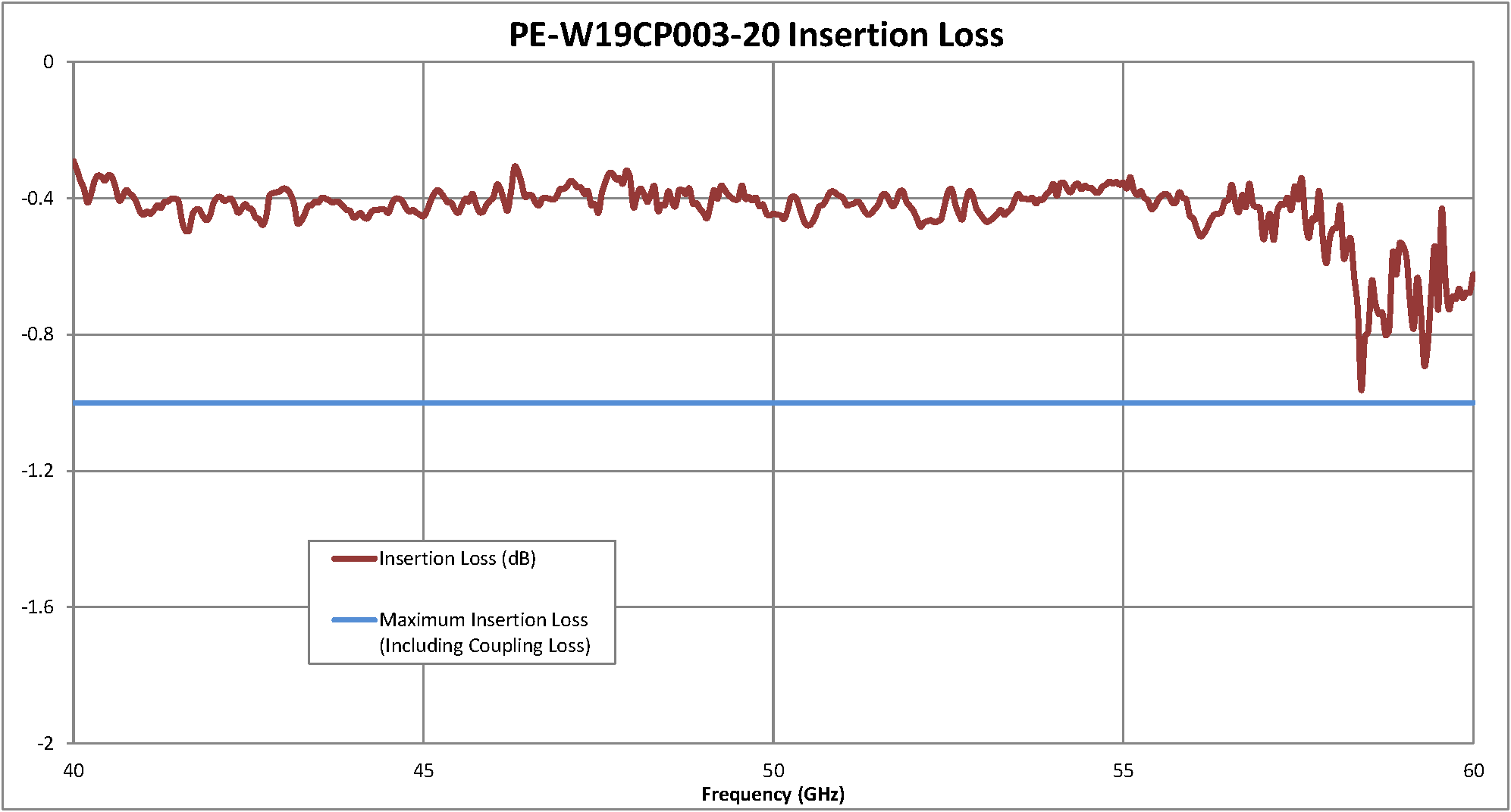

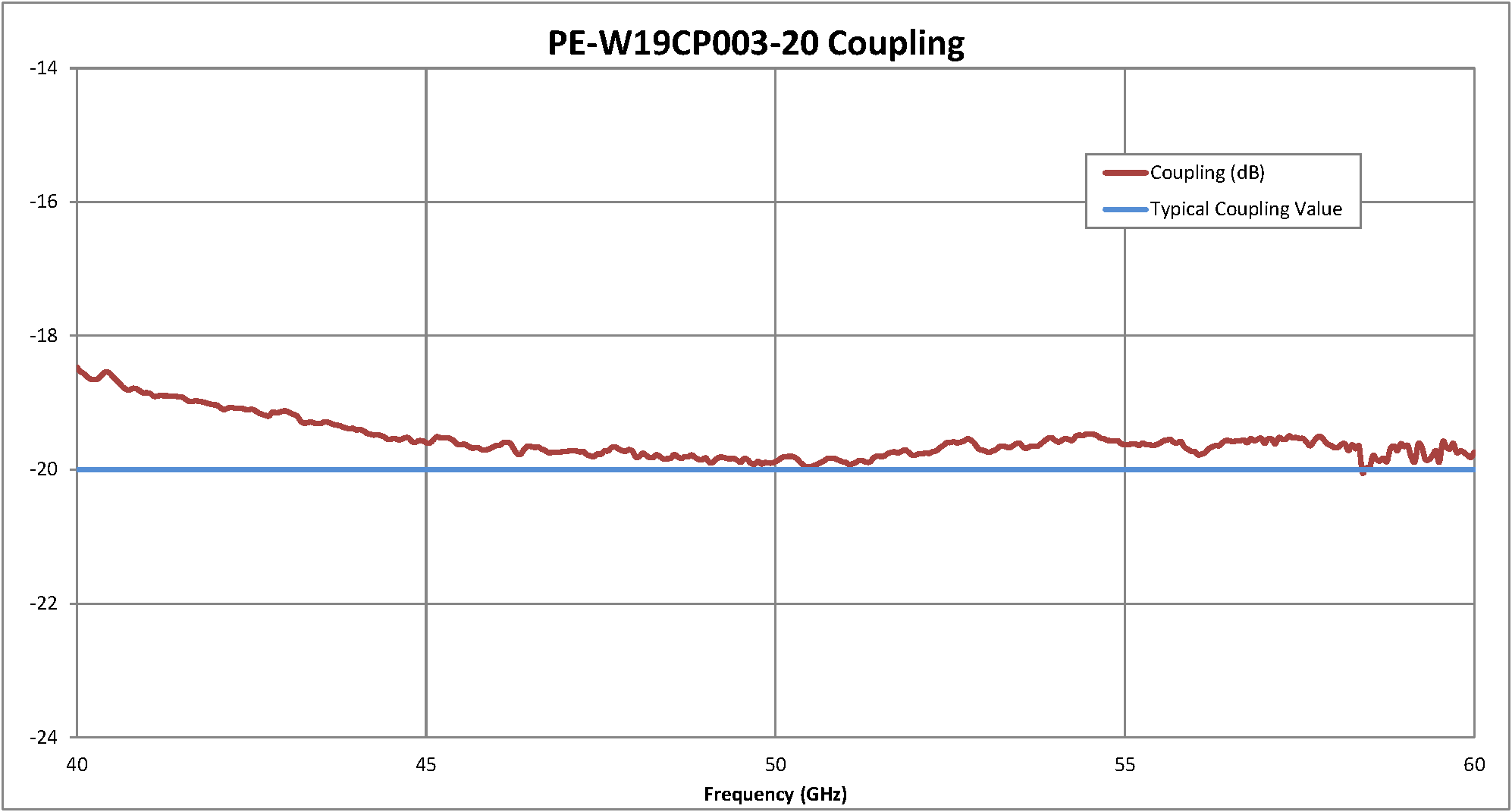

WR-19  Directional Waveguide Coupler UG-383/U 40 GHz to 60 GHz PE-W19CP003-20

WR-19

40-60

U Band

0.8

1.2:1

20.00

30.00

E-Plane

UG-383/U-Mod

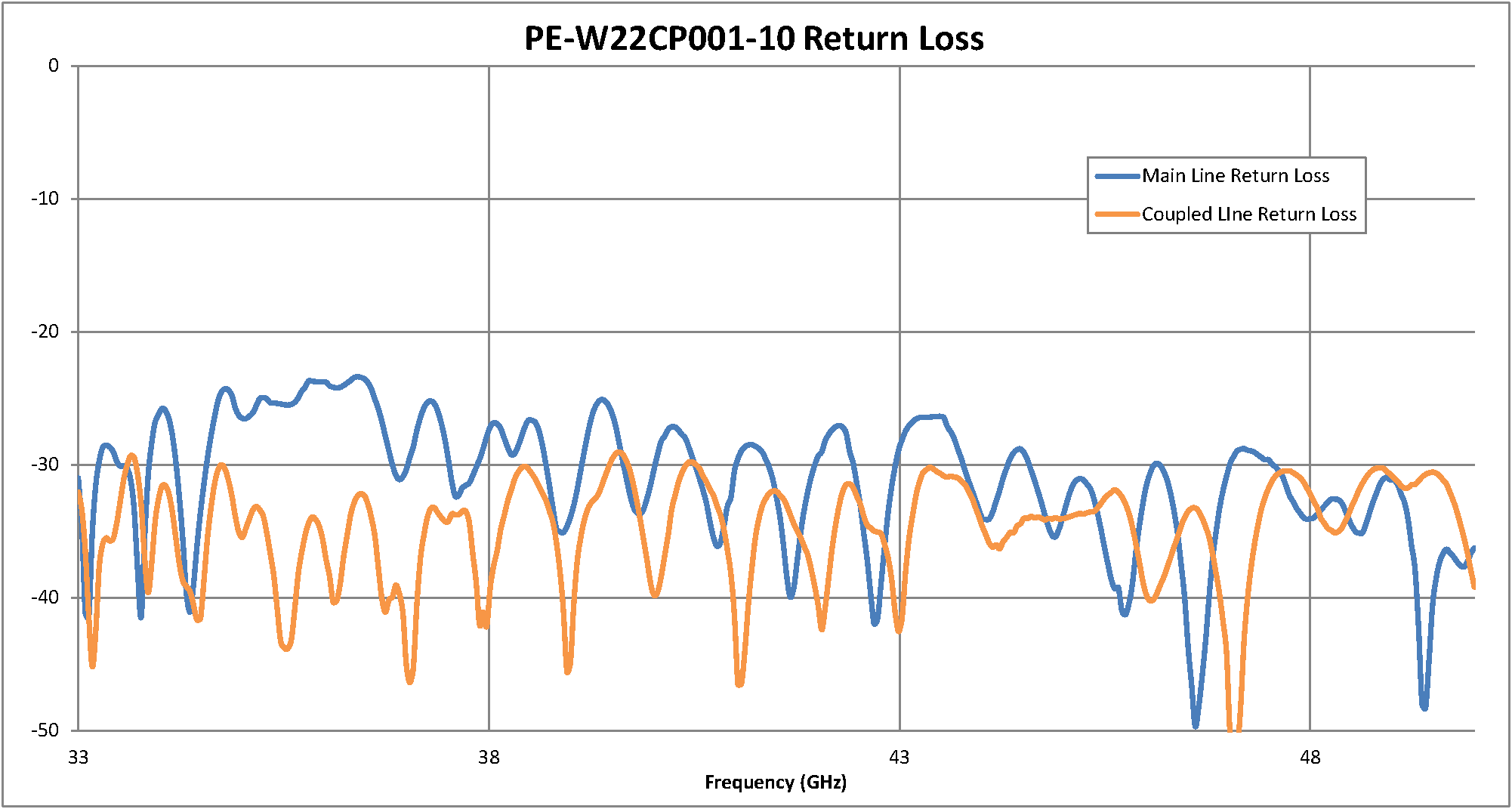

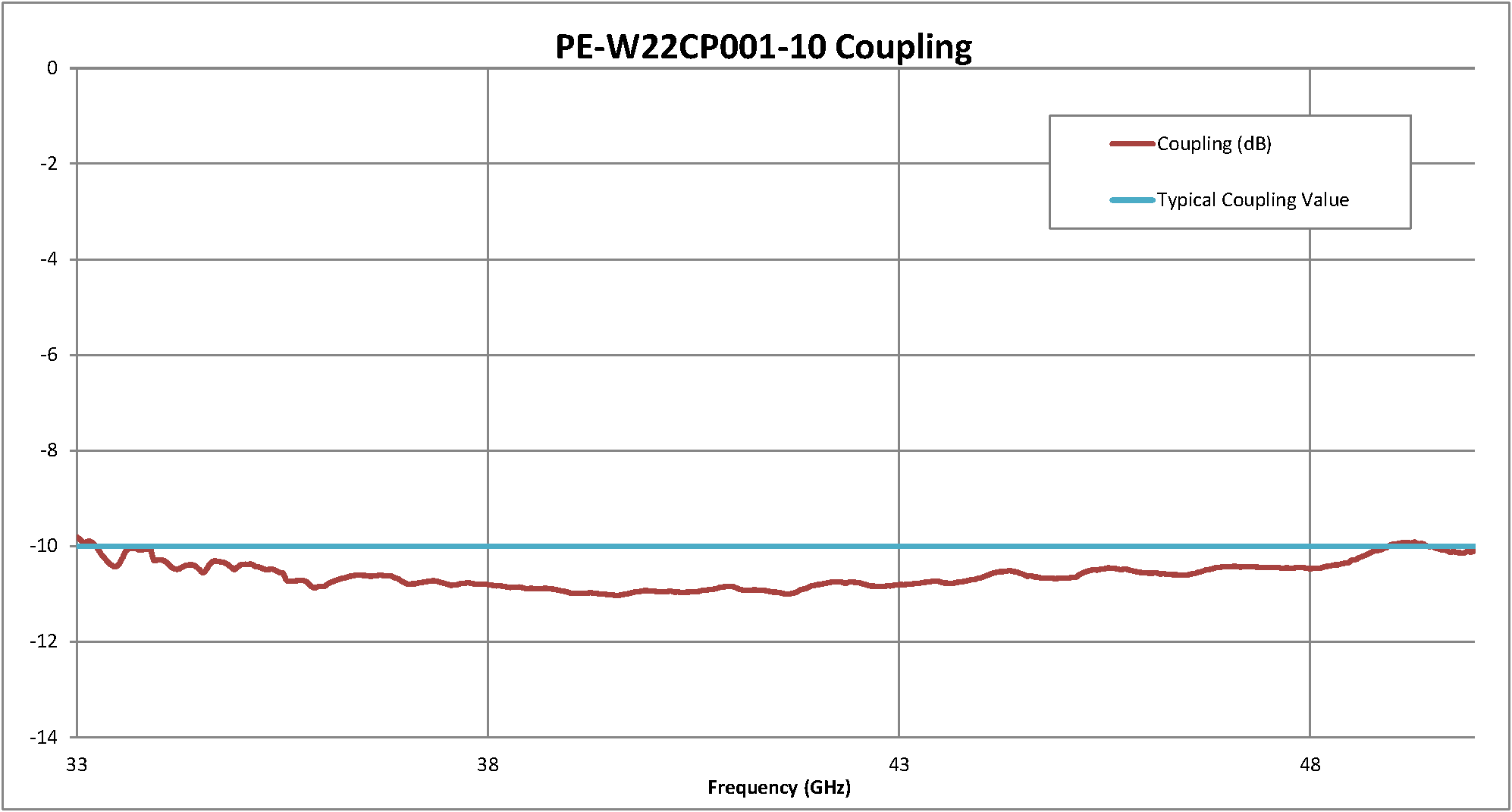

WR-22  Directional Waveguide Coupler UG-383/U 33 GHz to 50 GHz PE-W22CP001-10

WR-22

33-50

Q Band

1.2

1.2:1

10.00

30.00

H-Plane

UG-383/U

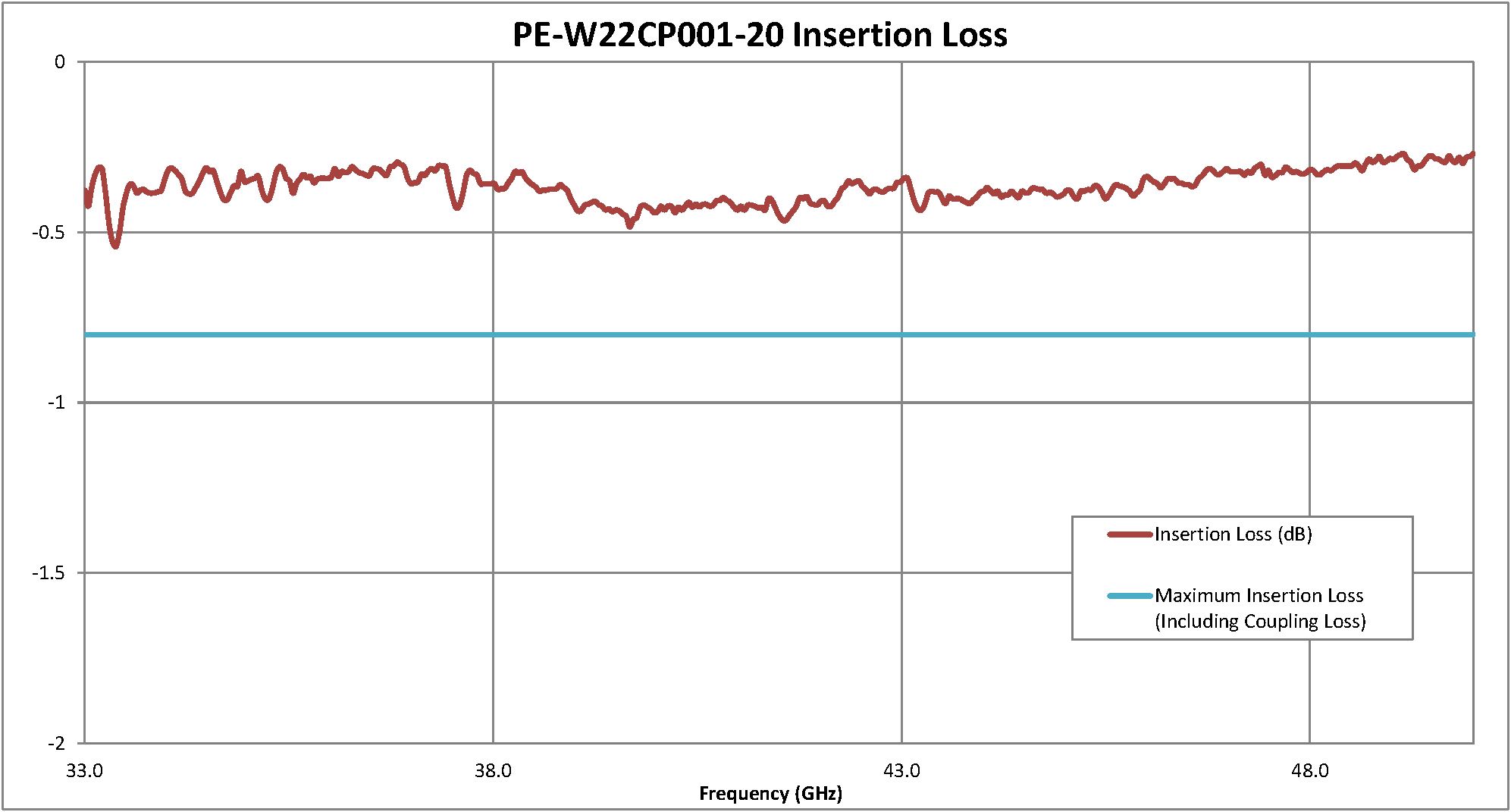

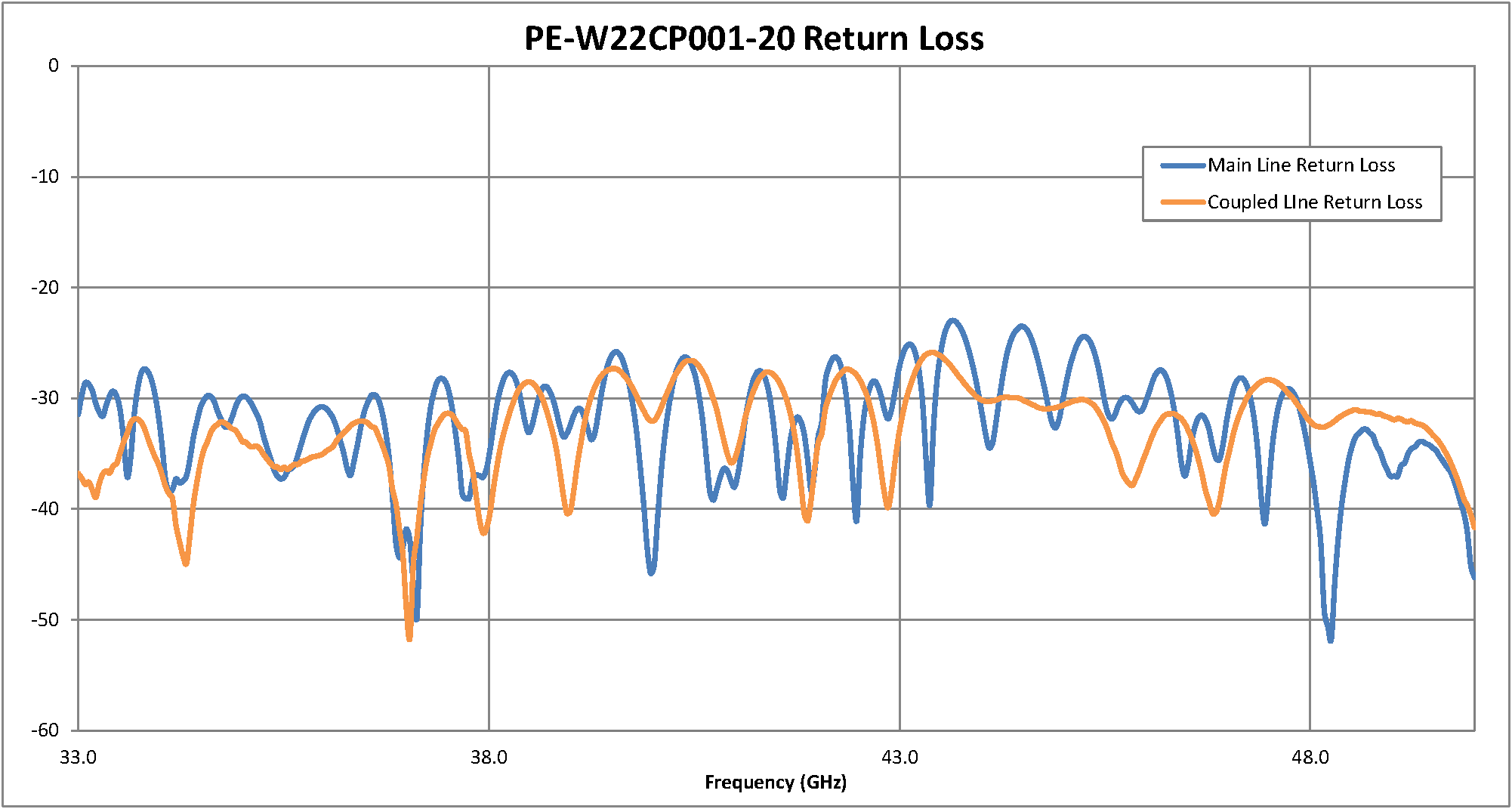

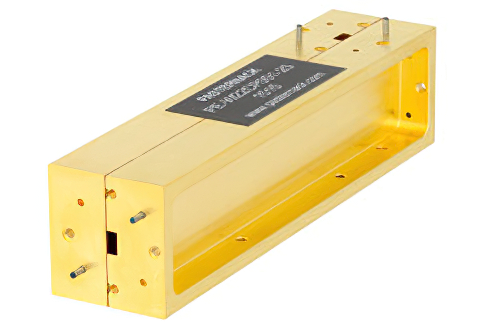

WR-22  Directional Waveguide Coupler UG-383/U 33 GHz to 50 GHz PE-W22CP001-20

WR-22

33-50

Q Band

0.8

1.2:1

20.00

30.00

H-Plane

UG-383/U

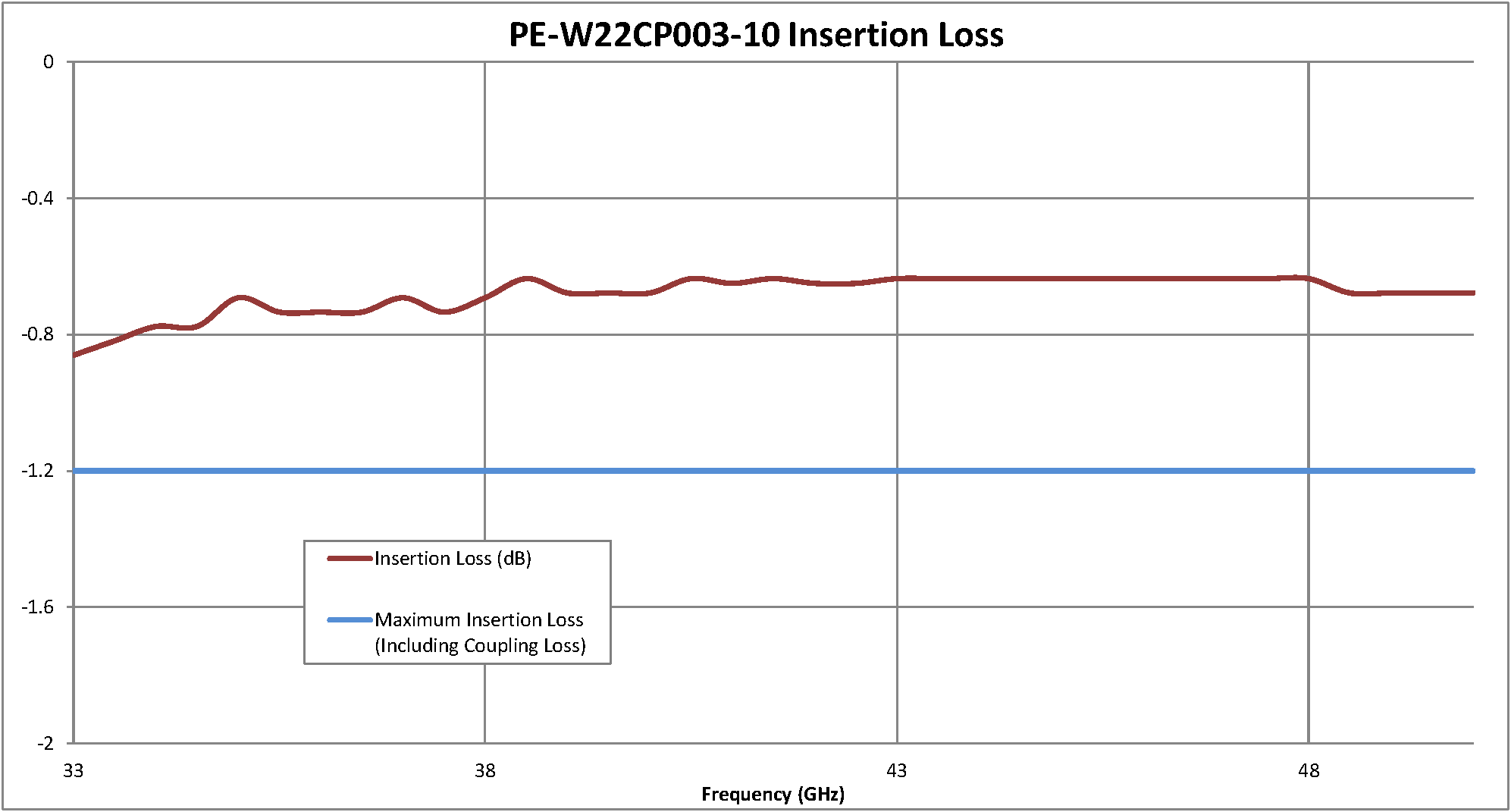

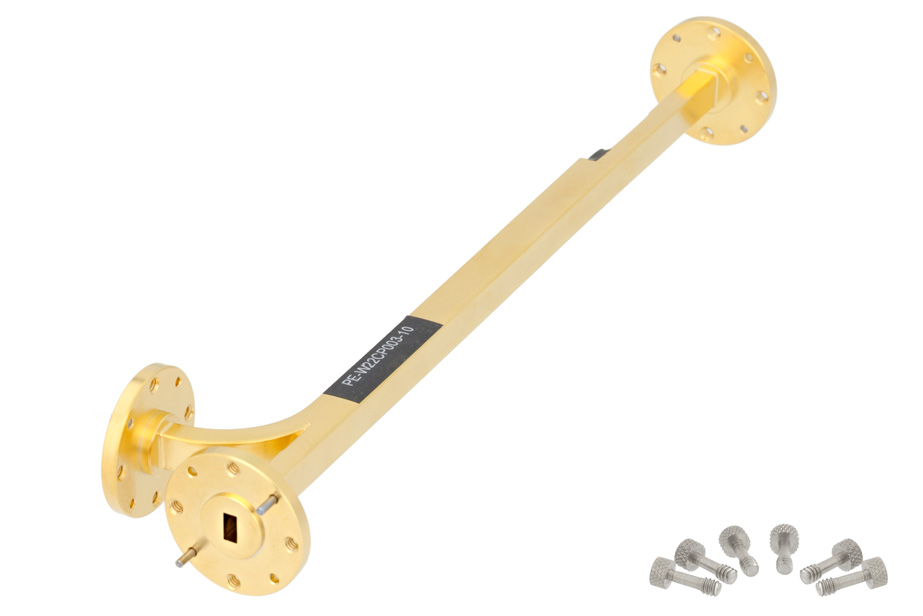

WR-22  Directional Waveguide Coupler UG-383/U 33 GHz to 50 GHz PE-W22CP003-10

WR-22

33-50

Q Band

1.2

1.2:1

10.00

30.00

E-Plane

UG-383/U

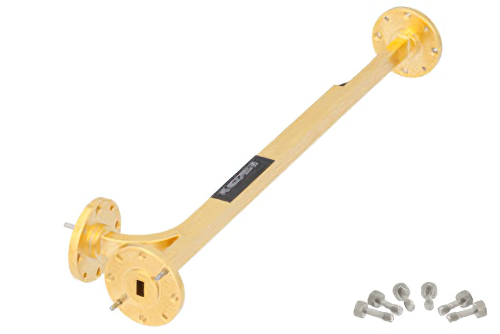

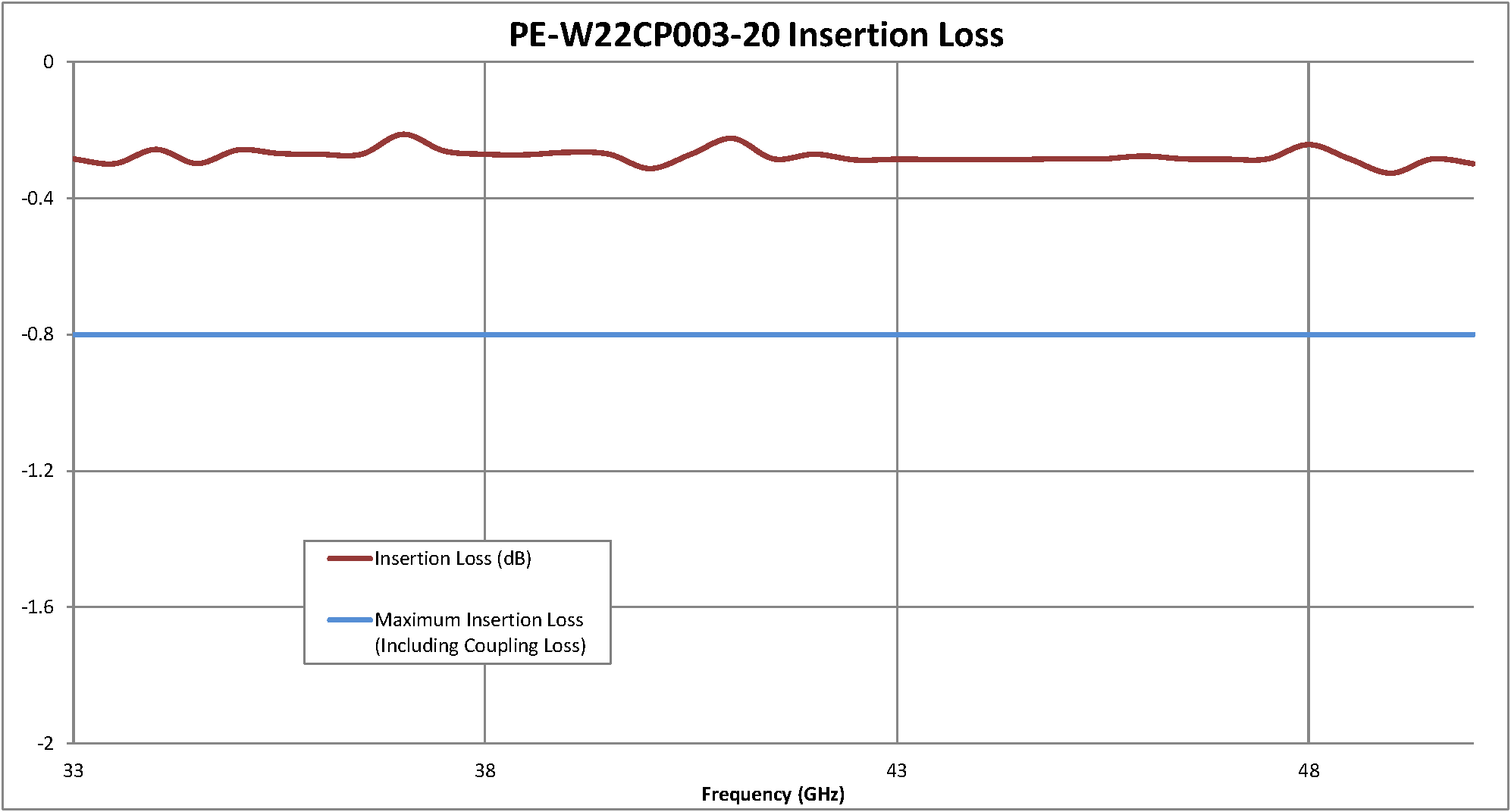

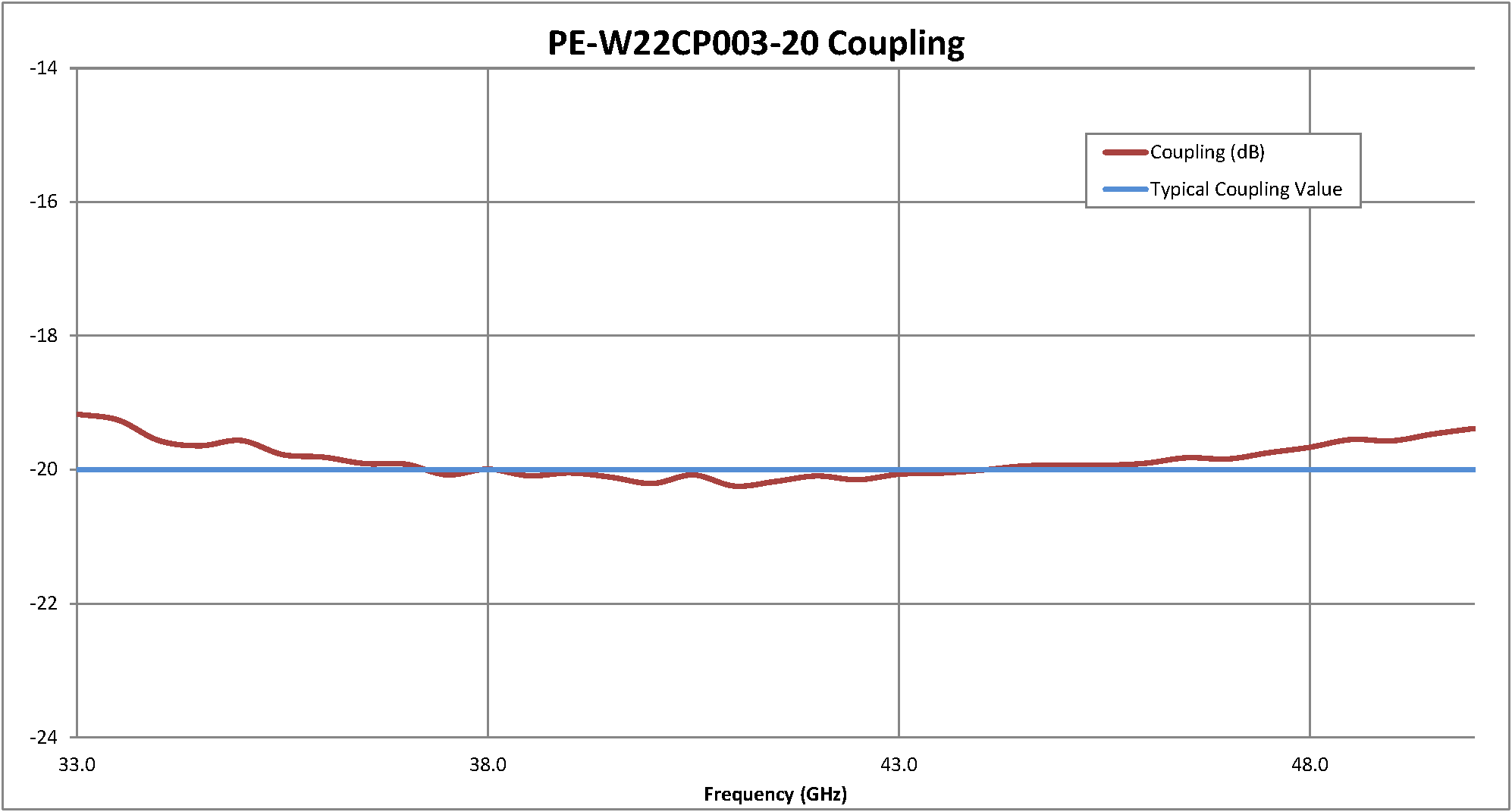

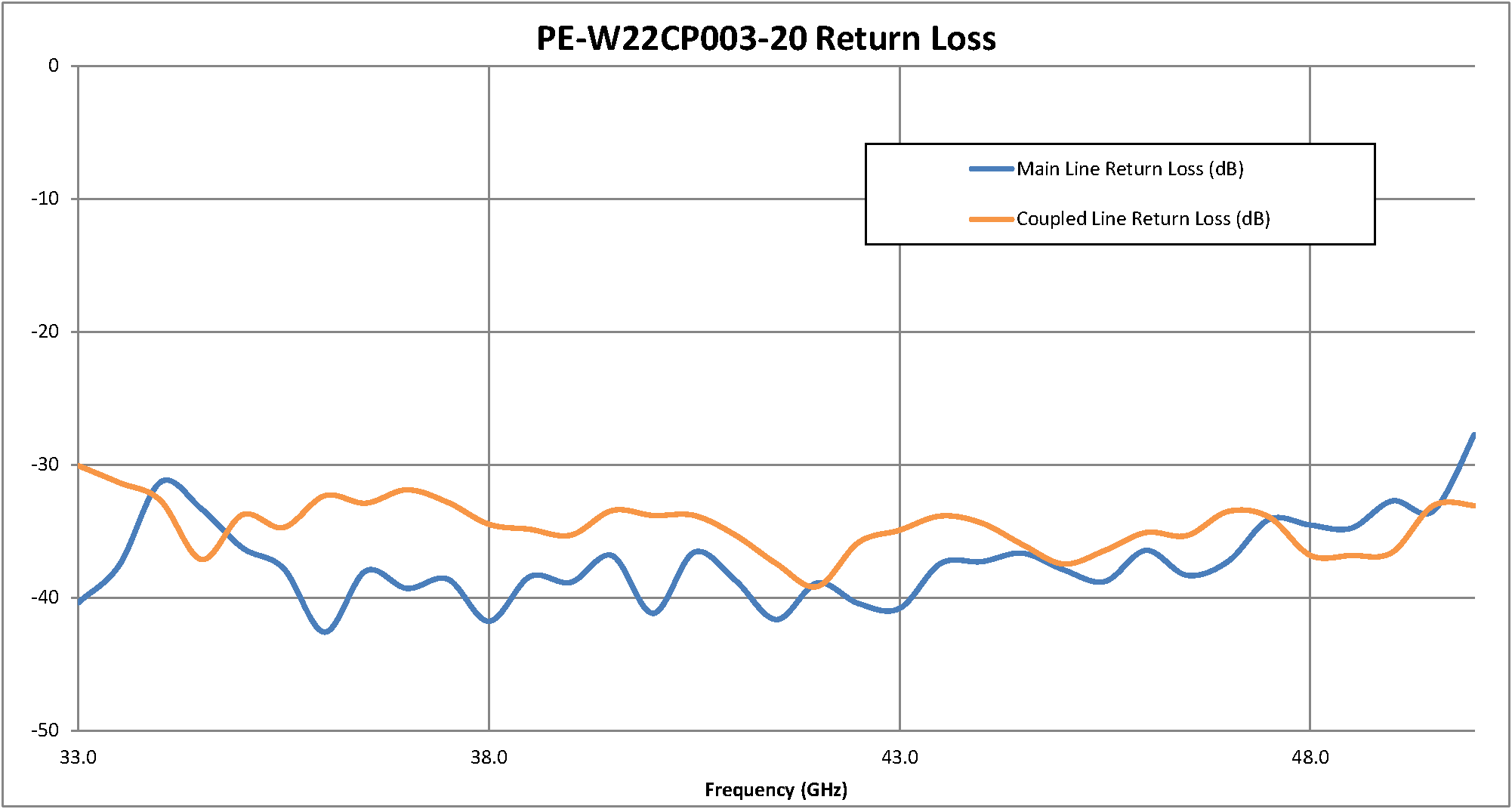

WR-22  Directional Waveguide Coupler UG-383/U 33 GHz to 50 GHz PE-W22CP003-20

WR-22

33-50

Q Band

0.8

1.2:1

20.00

30.00

E-Plane

UG-383/U

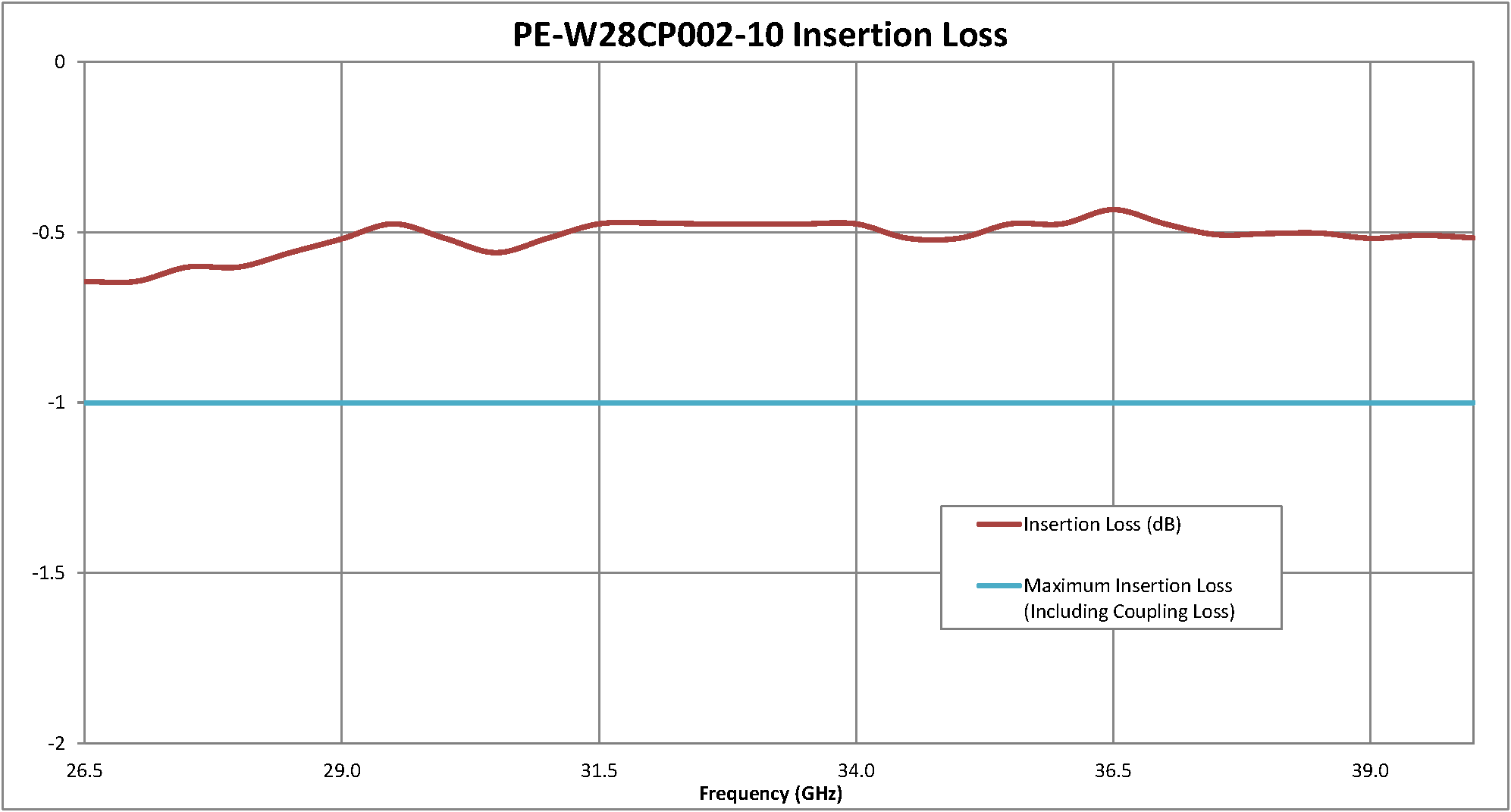

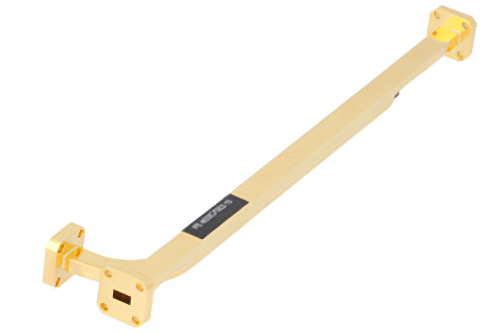

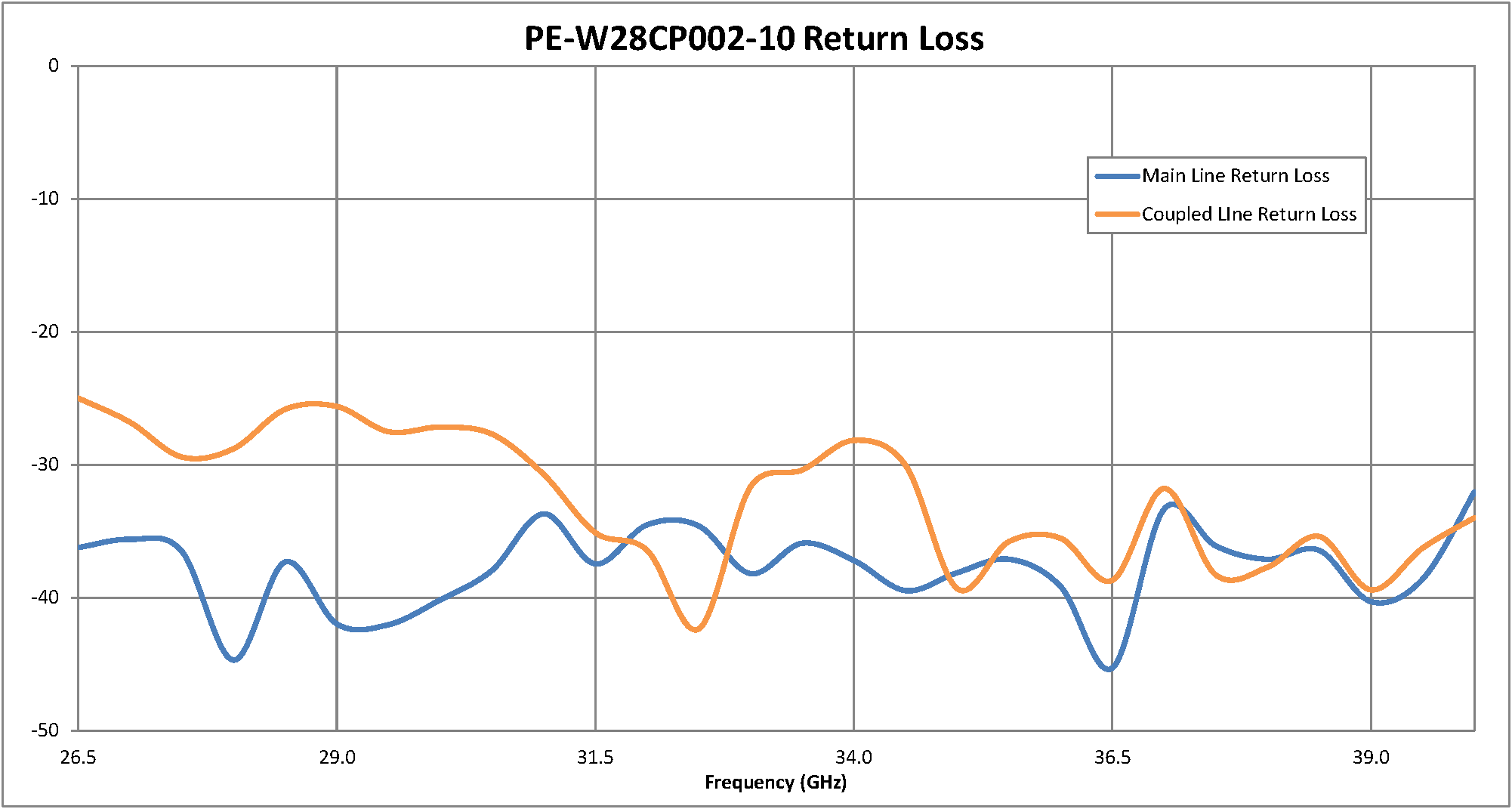

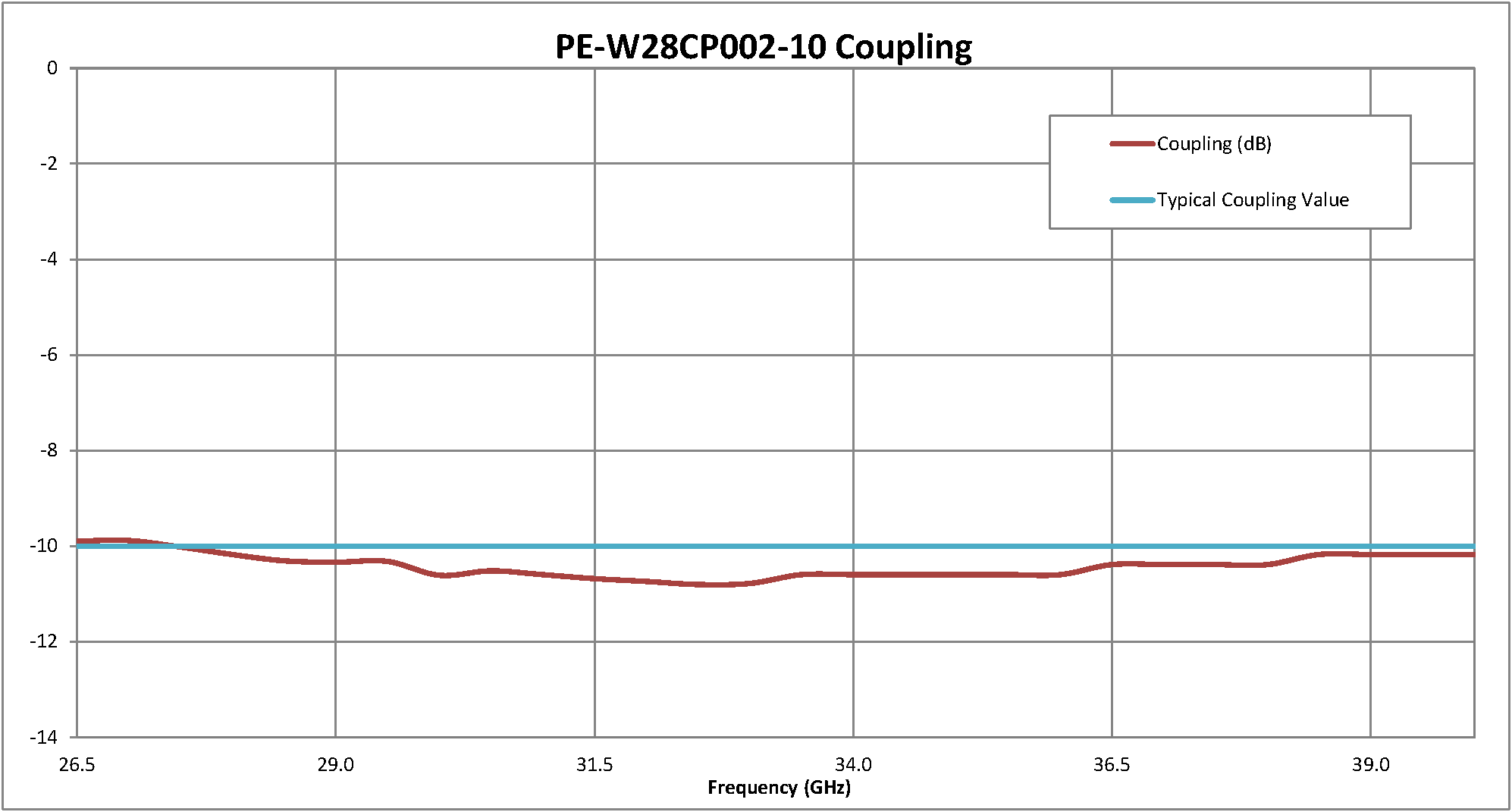

WR-28  Directional Waveguide Coupler UG-599/U 26.5 GHz to 40 GHz PE-W28CP002-10

WR-28

26.5-40

Ka Band

1

1.2:1

10.00

30.00

H-Plane

UG-599/U

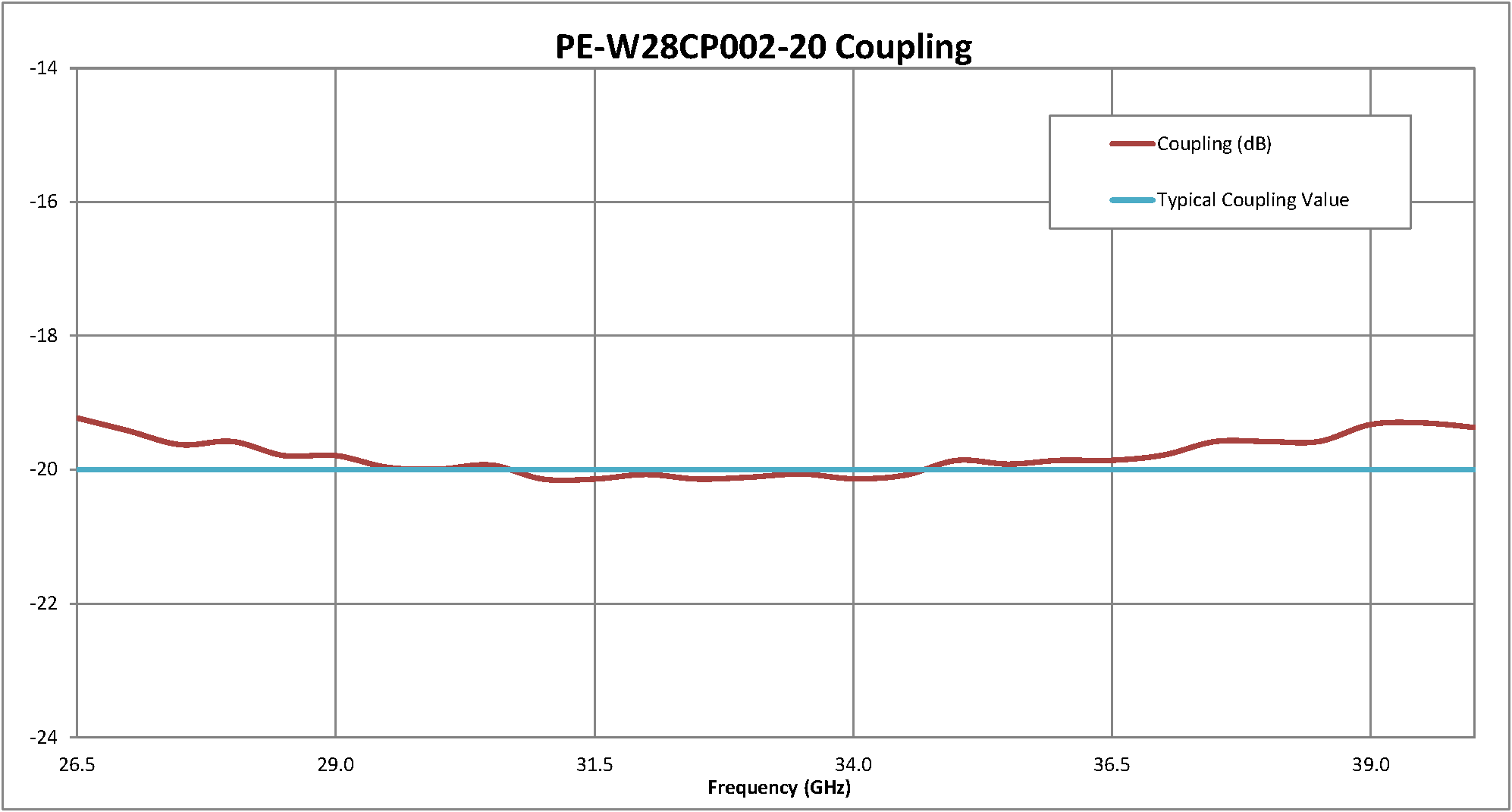

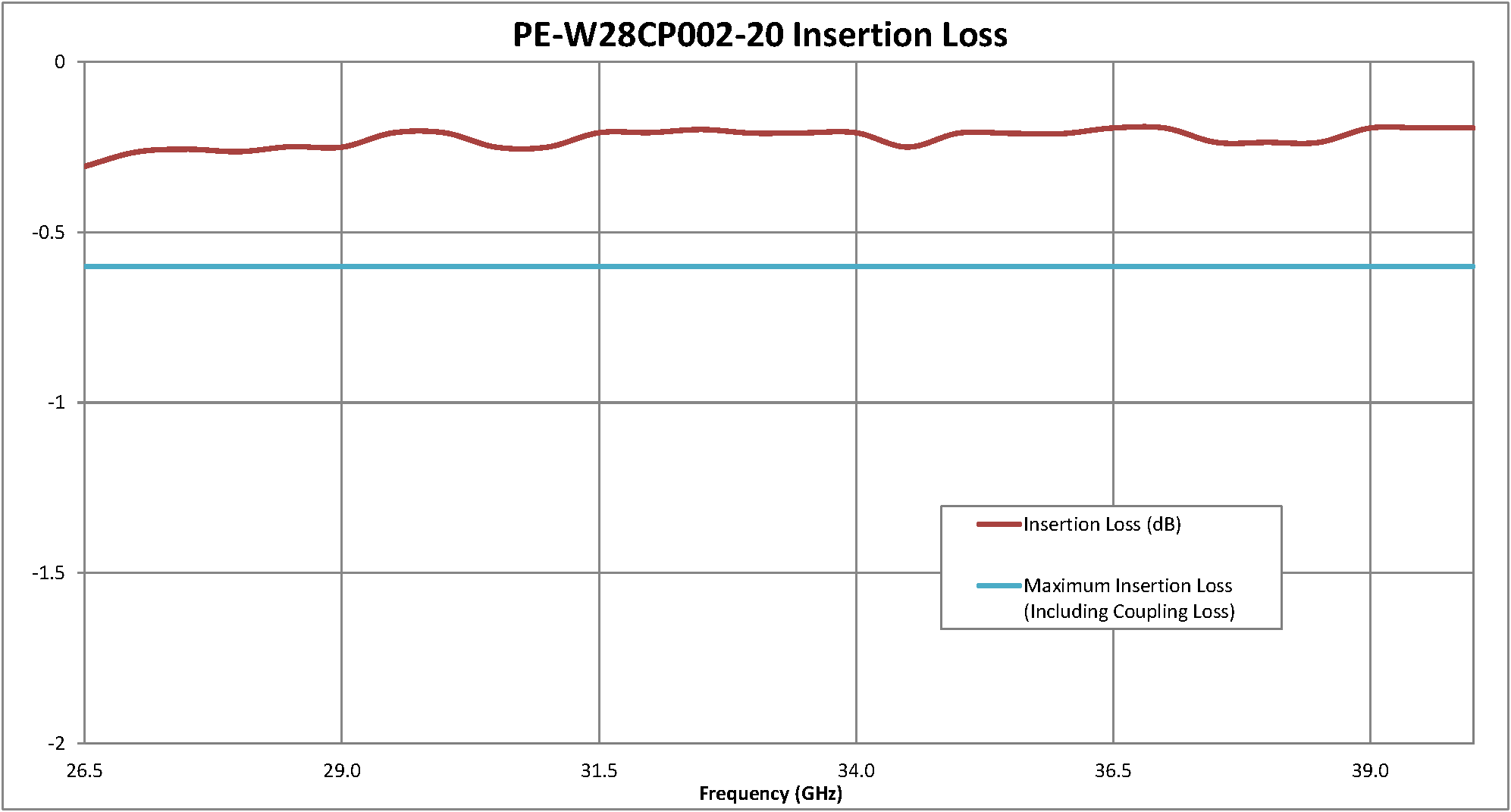

WR-28  Directional Waveguide Coupler UG-599/U 26.5 GHz to 40 GHz PE-W28CP002-20

WR-28

26.5-40

Ka Band

0.6

1.2:1

20.00

30.00

H-Plane

UG-599/U

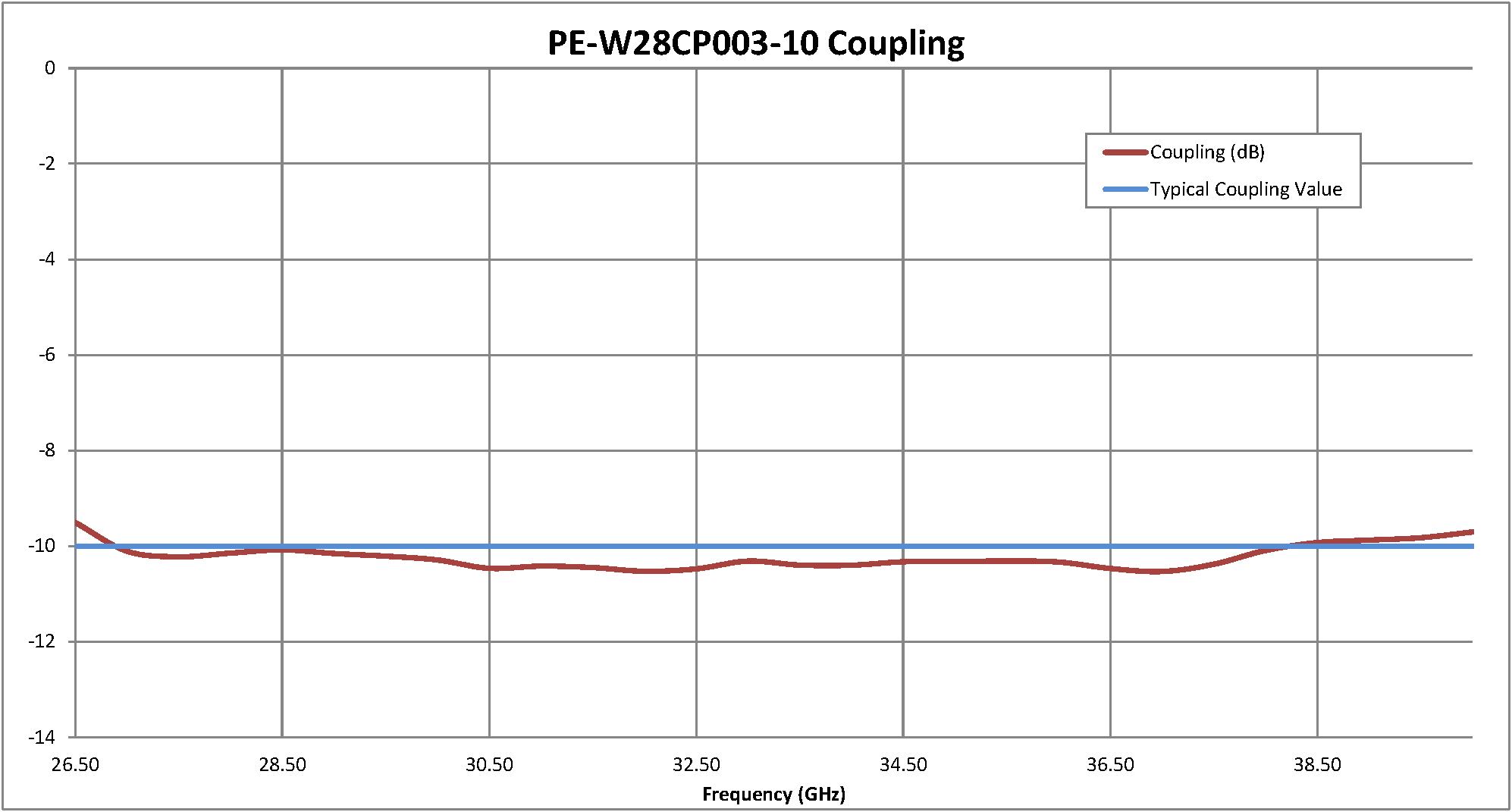

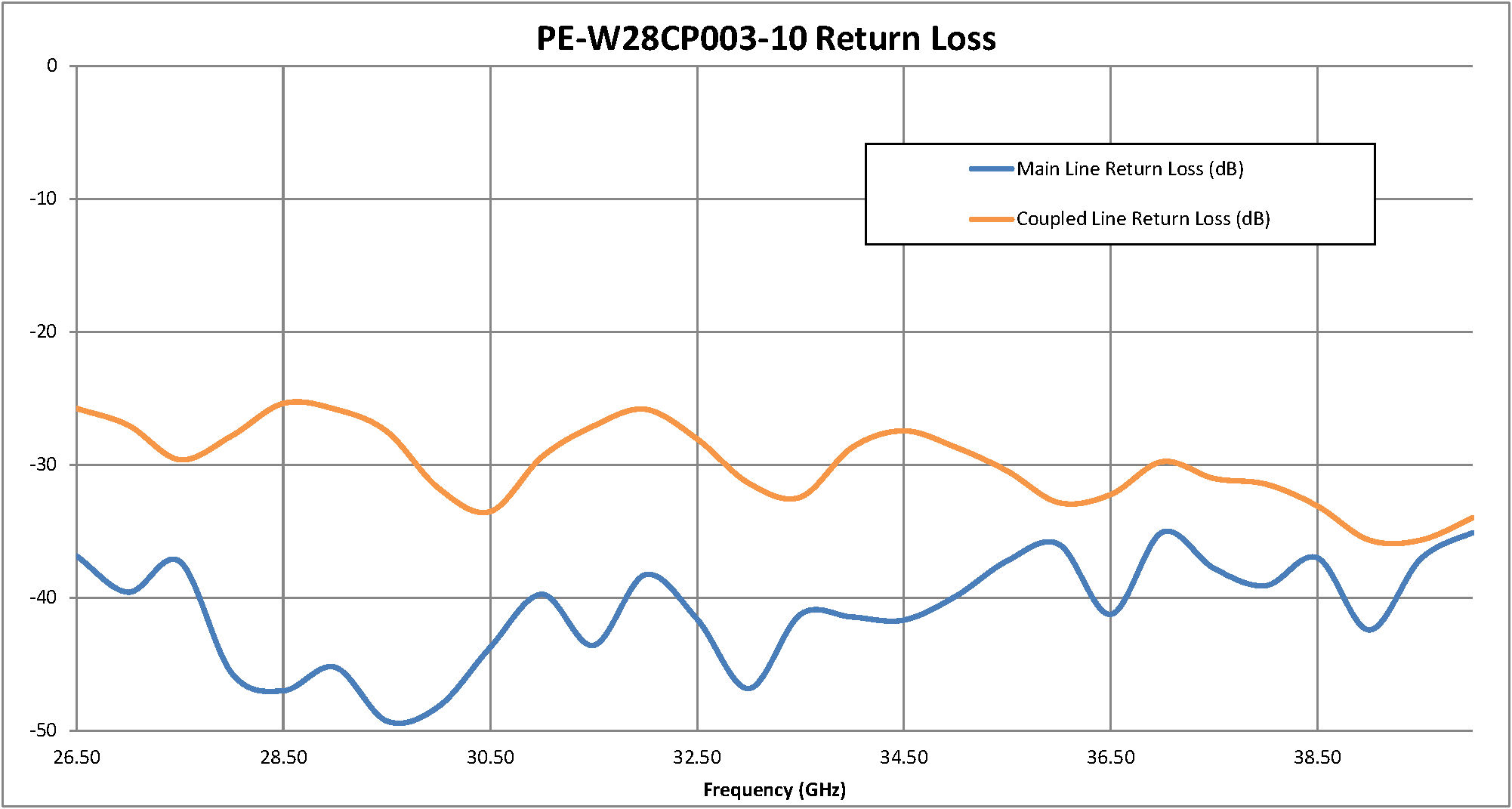

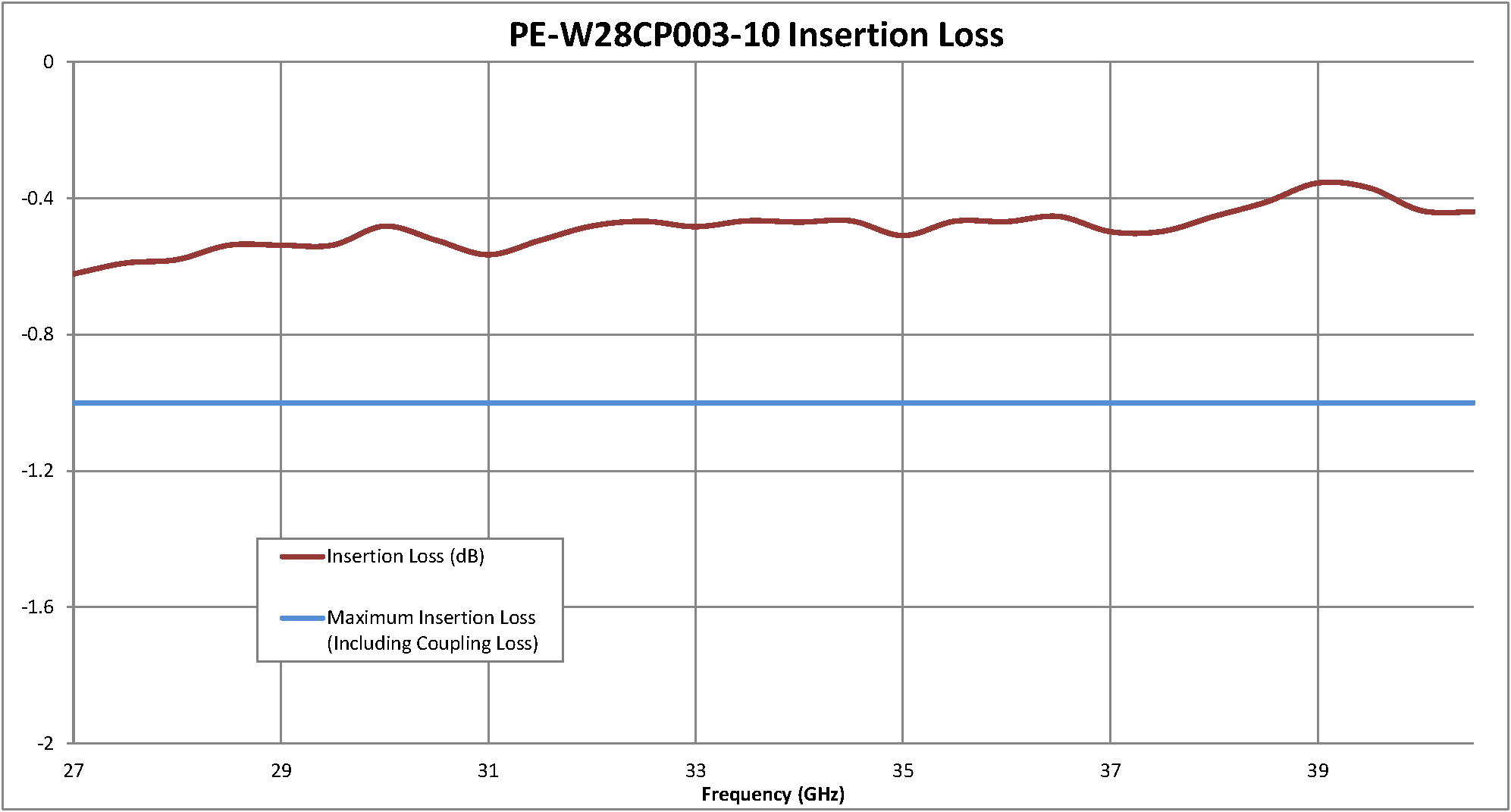

WR-28  Directional Waveguide Coupler UG-599/U 26.5 GHz to 40 GHz PE-W28CP003-10

WR-28

26.5-40

Ka Band

1

1.2:1

10.00

30.00

E-Plane

UG-599/U

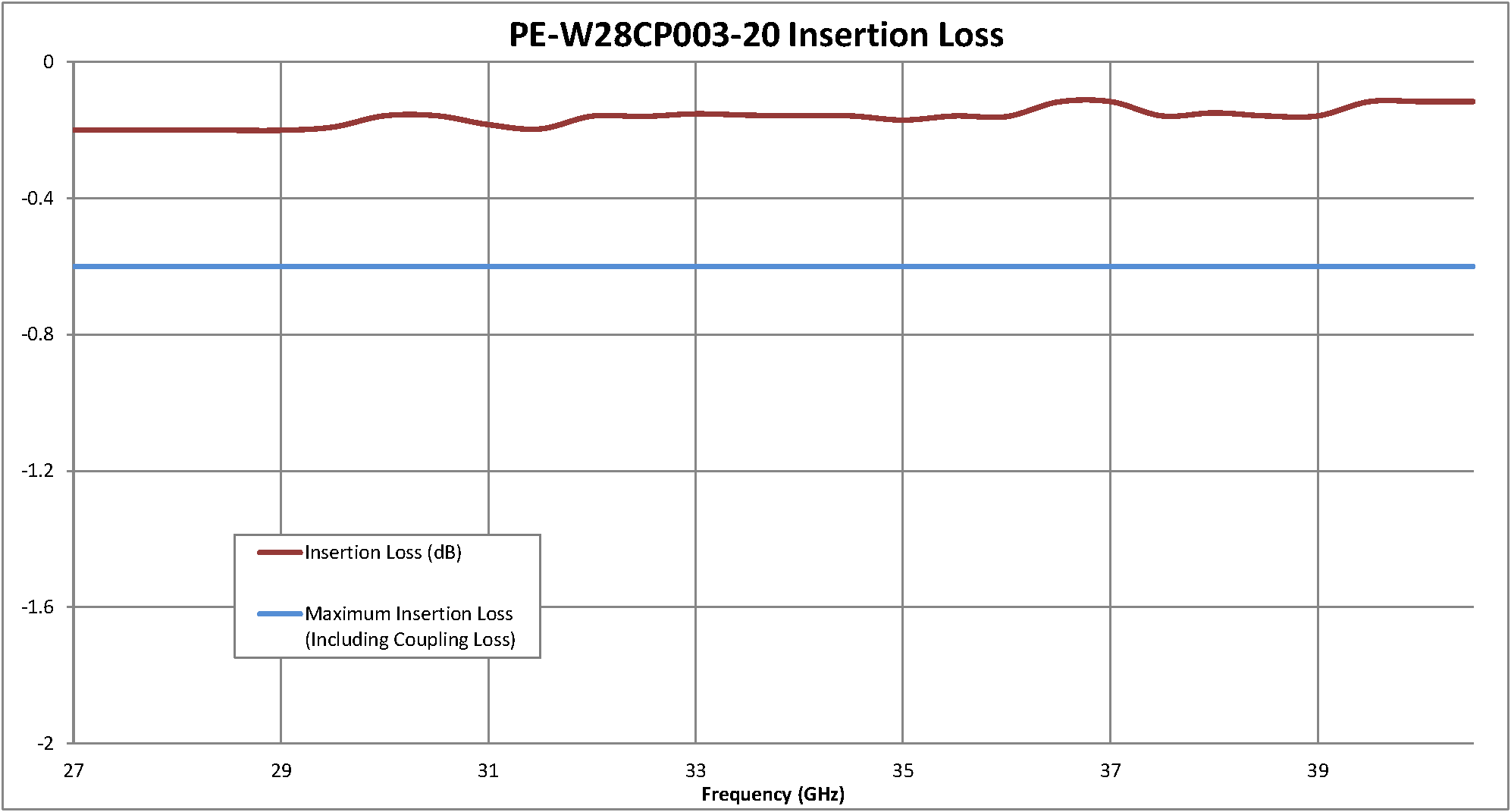

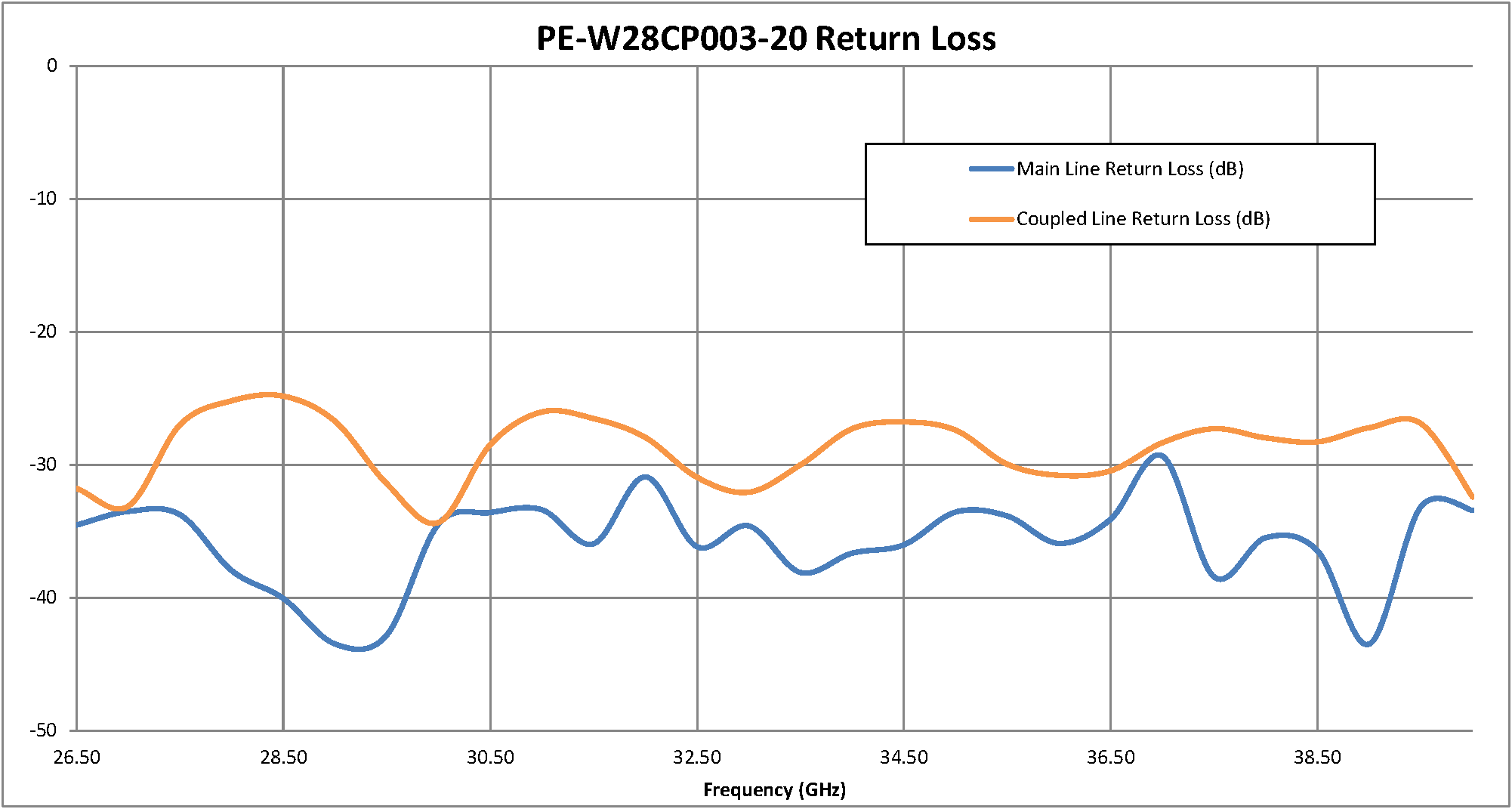

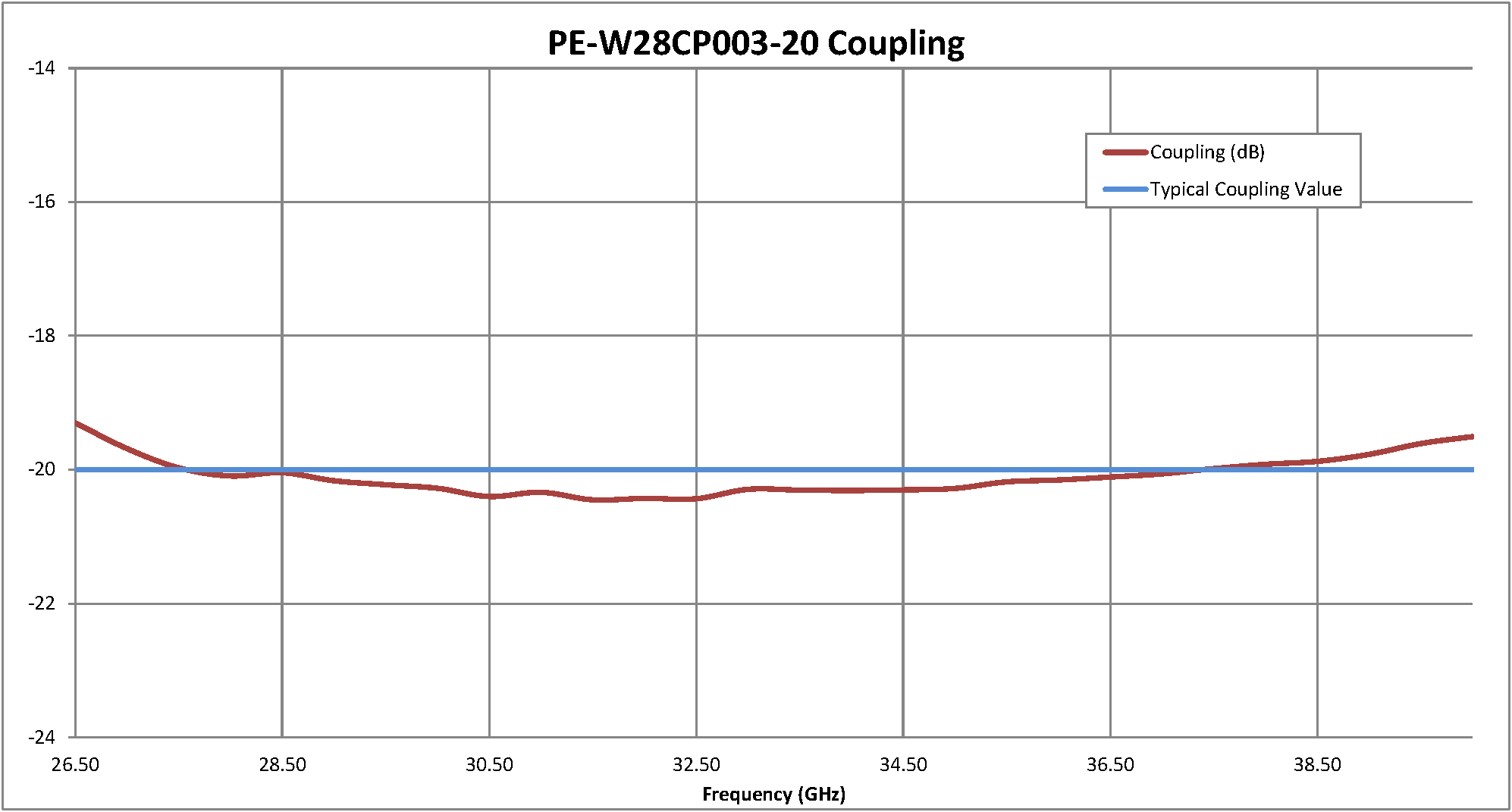

WR-28  Directional Waveguide Coupler UG-599/U 26.5 GHz to 40 GHz PE-W28CP003-20

WR-28

26.5-40

Ka Band

0.6

1.2:1

20.00

30.00

E-Plane

UG-599/U

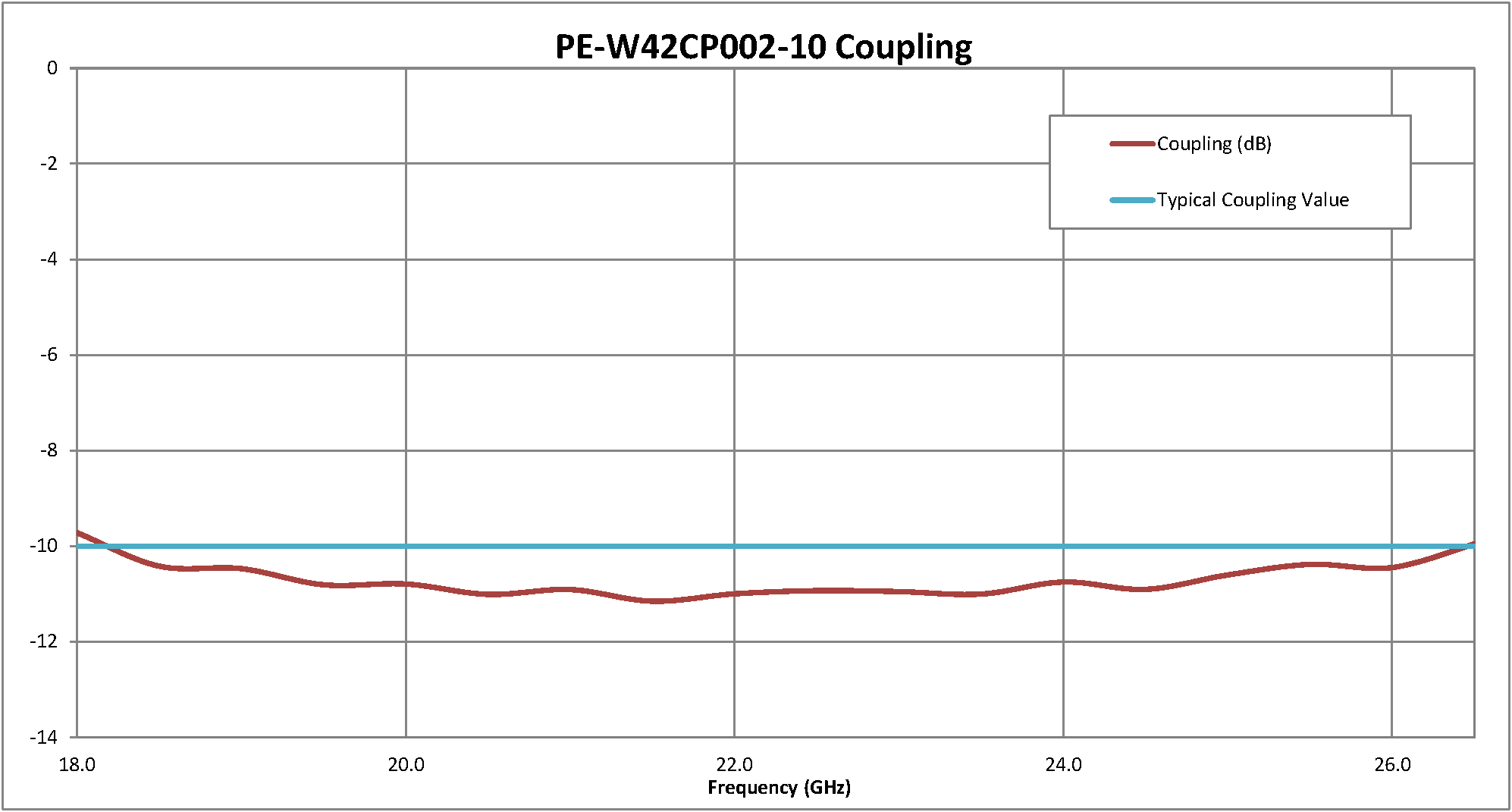

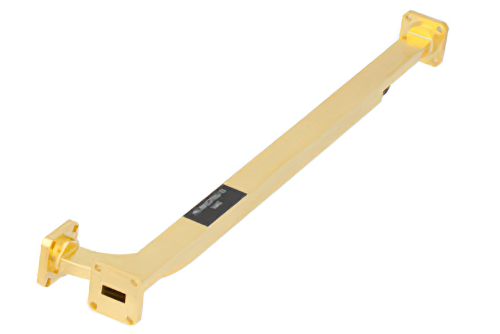

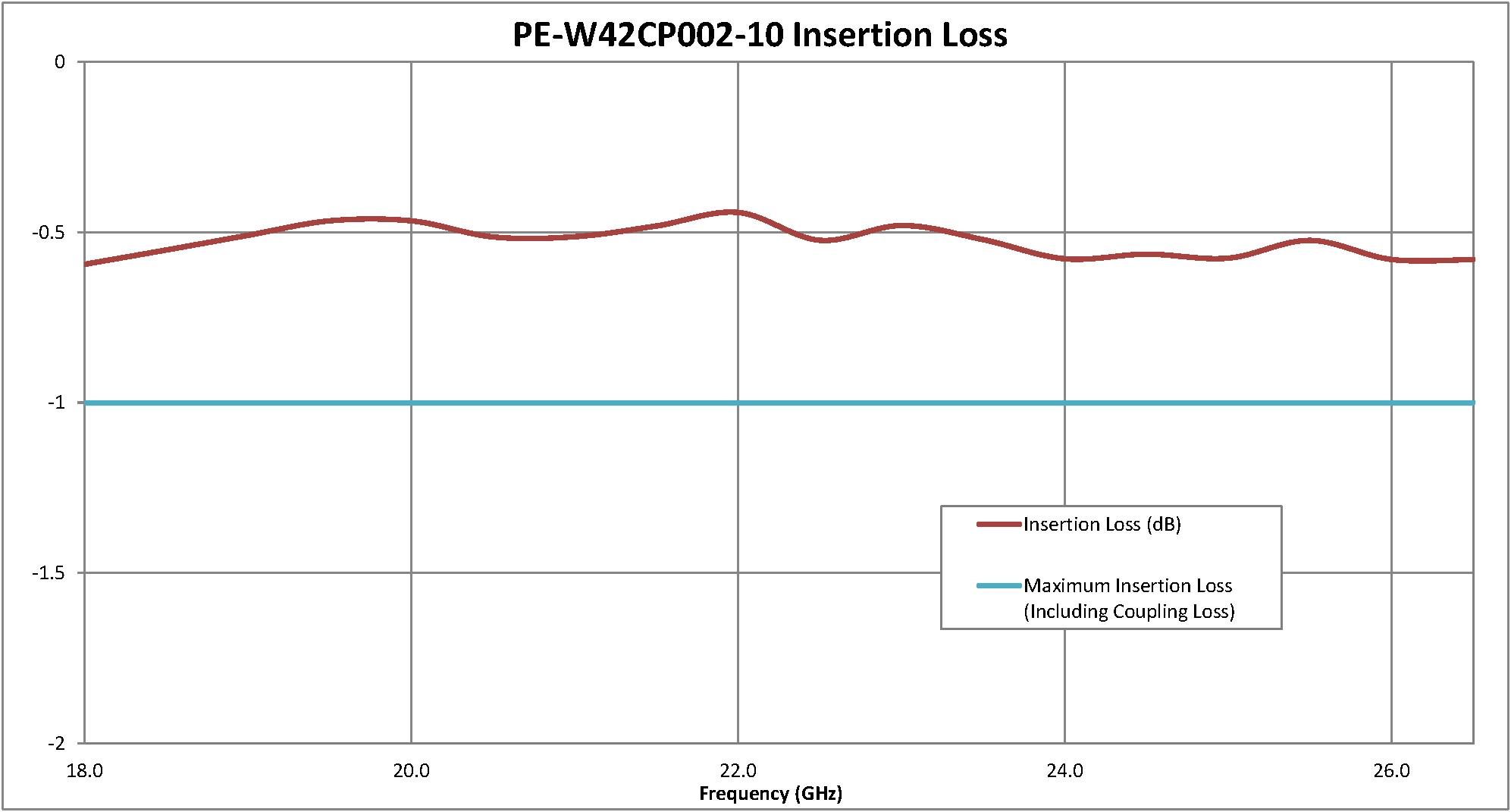

WR-42  Directional Waveguide Coupler UG-595/U 18 GHz to 26.5 GHz PE-W42CP002-10

WR-42

18-26.5

K Band

1

1.2:1

10.00

30.00

H-Plane

UG-595/U

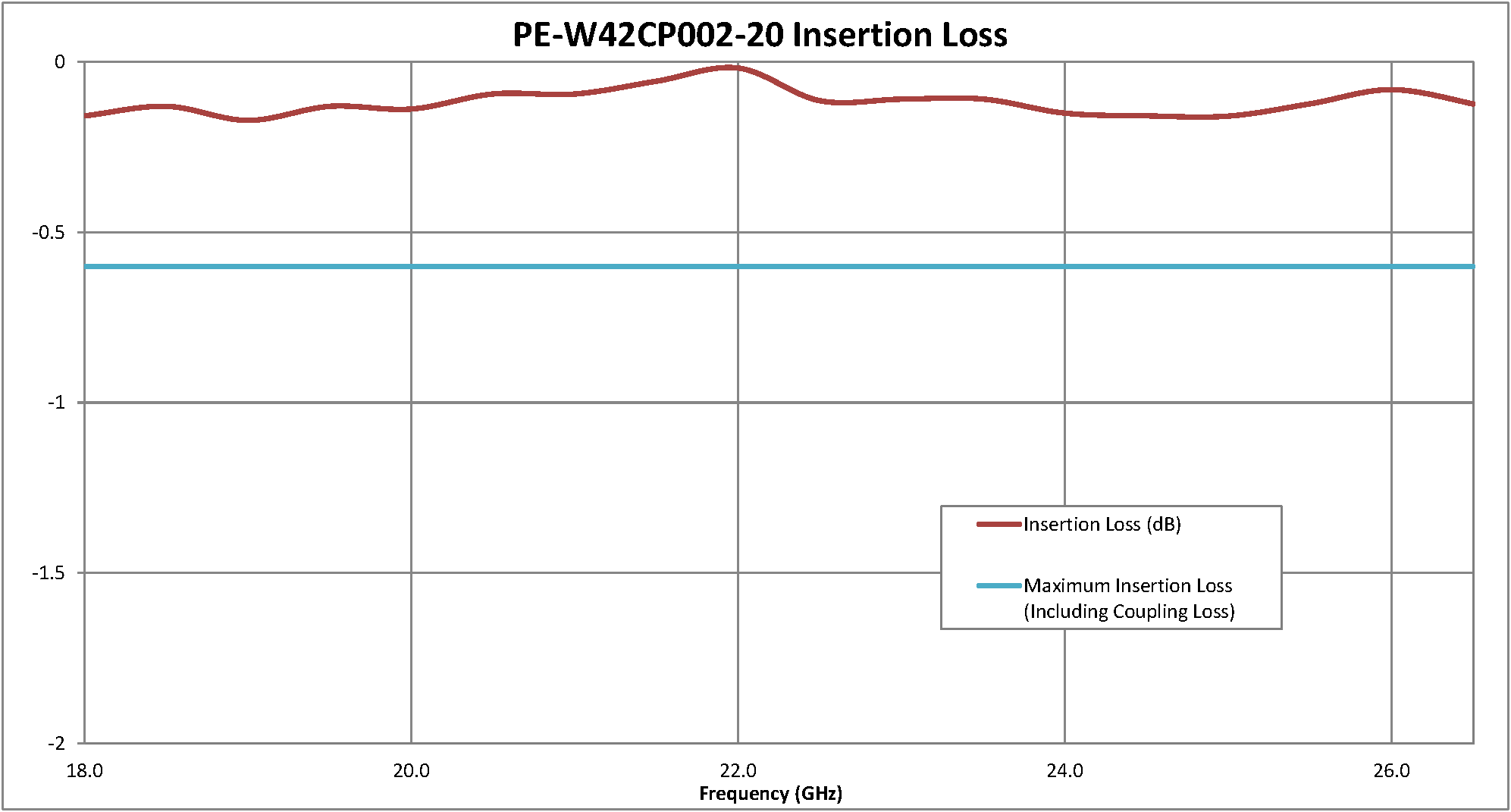

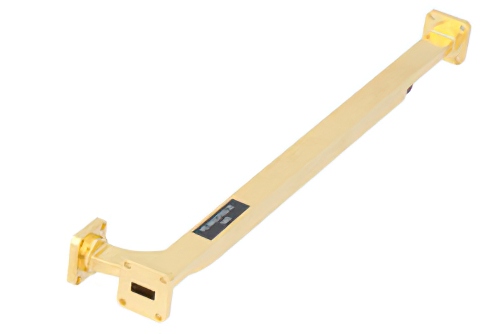

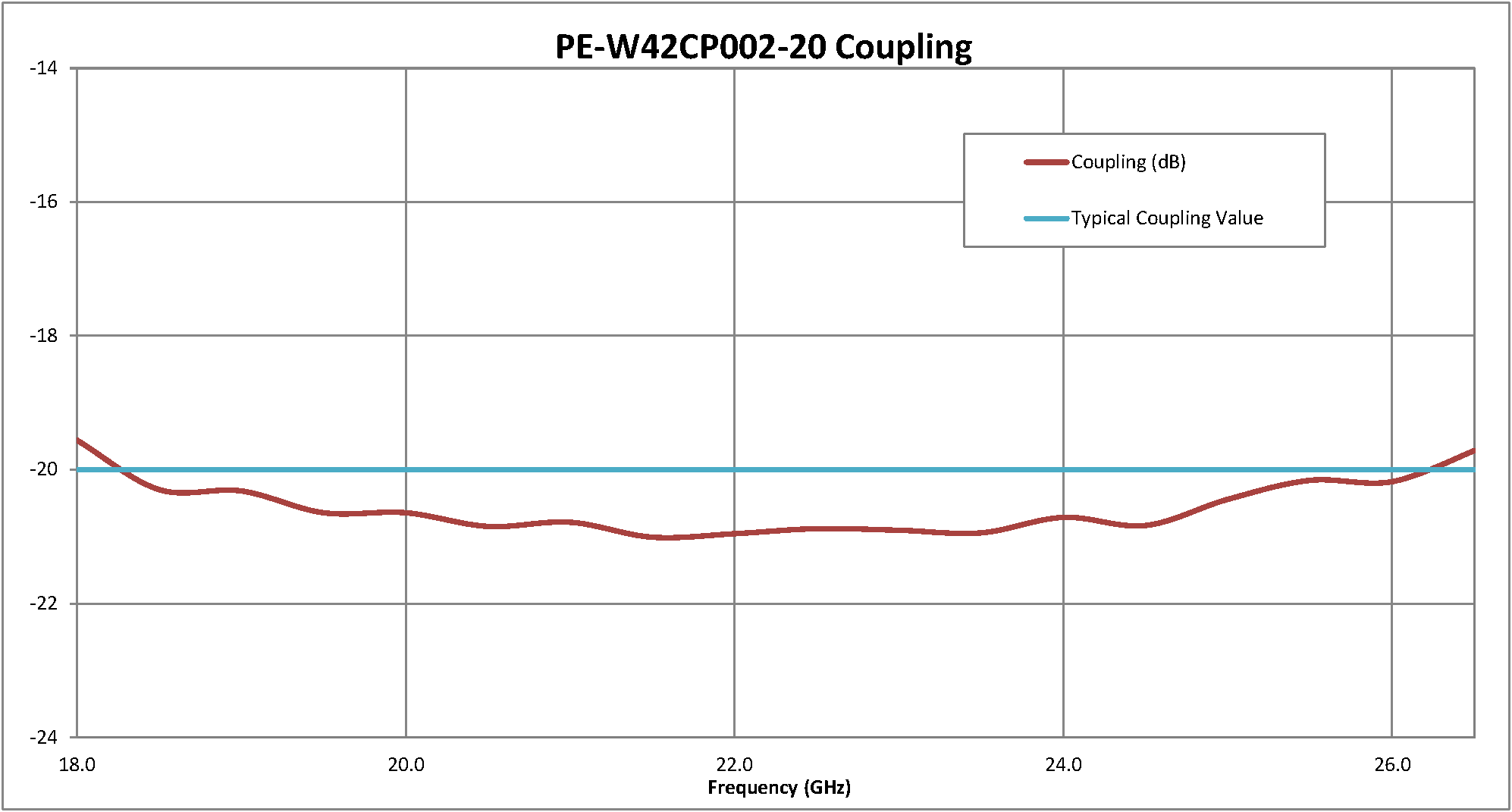

WR-42  Directional Waveguide Coupler UG-595/U 18 GHz to 26.5 GHz PE-W42CP002-20

WR-42

18-26.5

K Band

0.6

1.2:1

20.00

30.00

H-Plane

UG-595/U

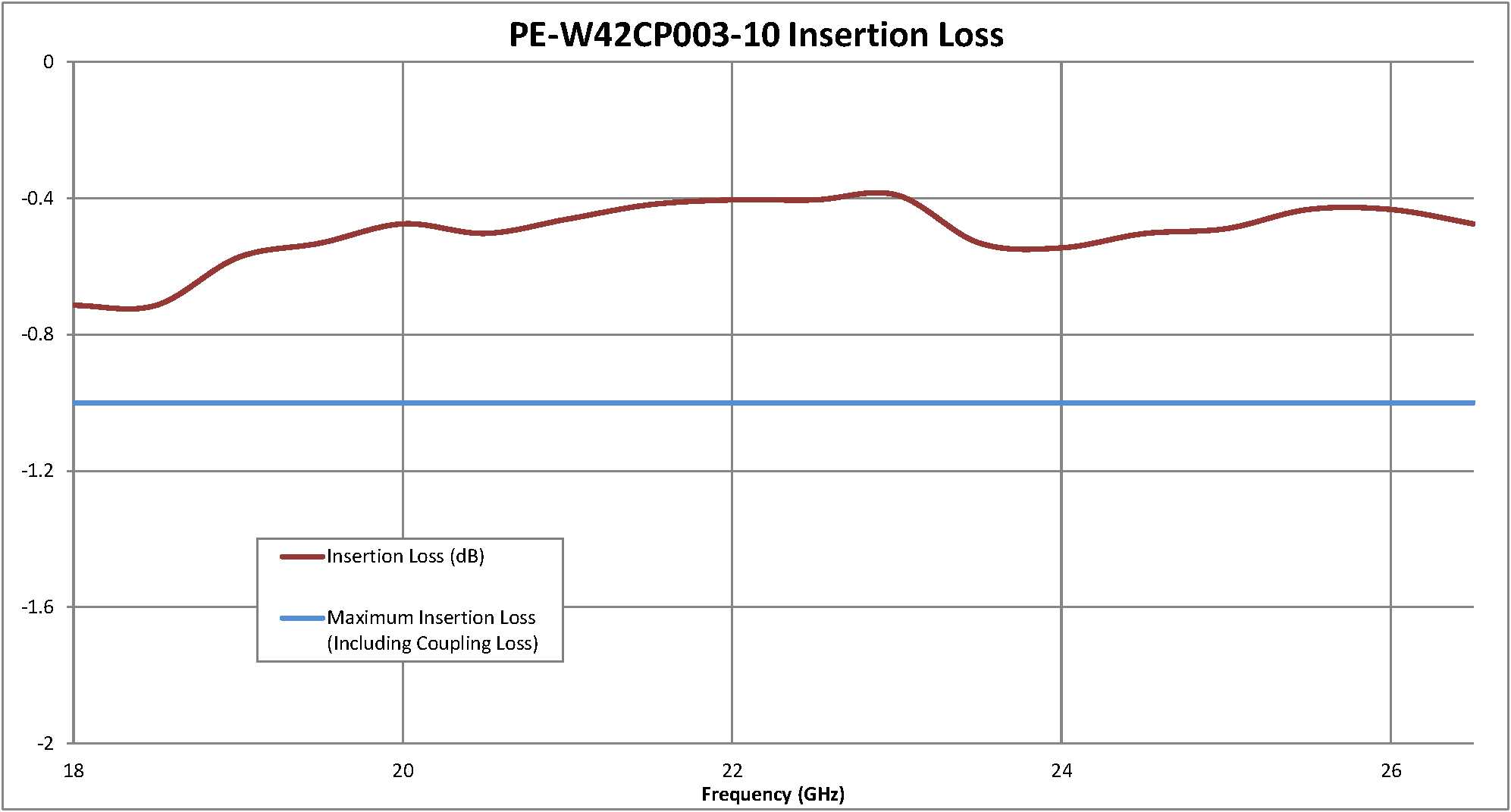

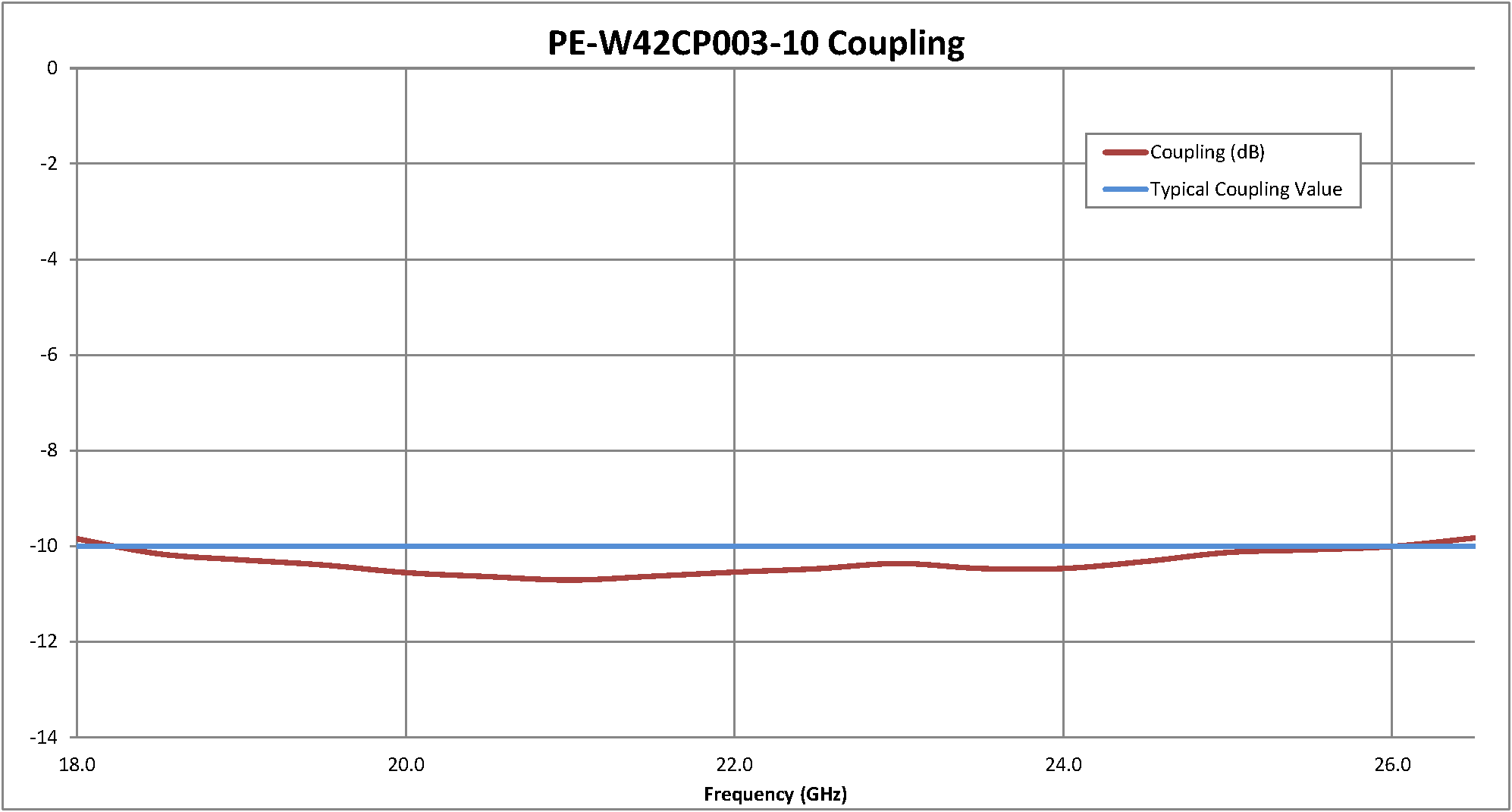

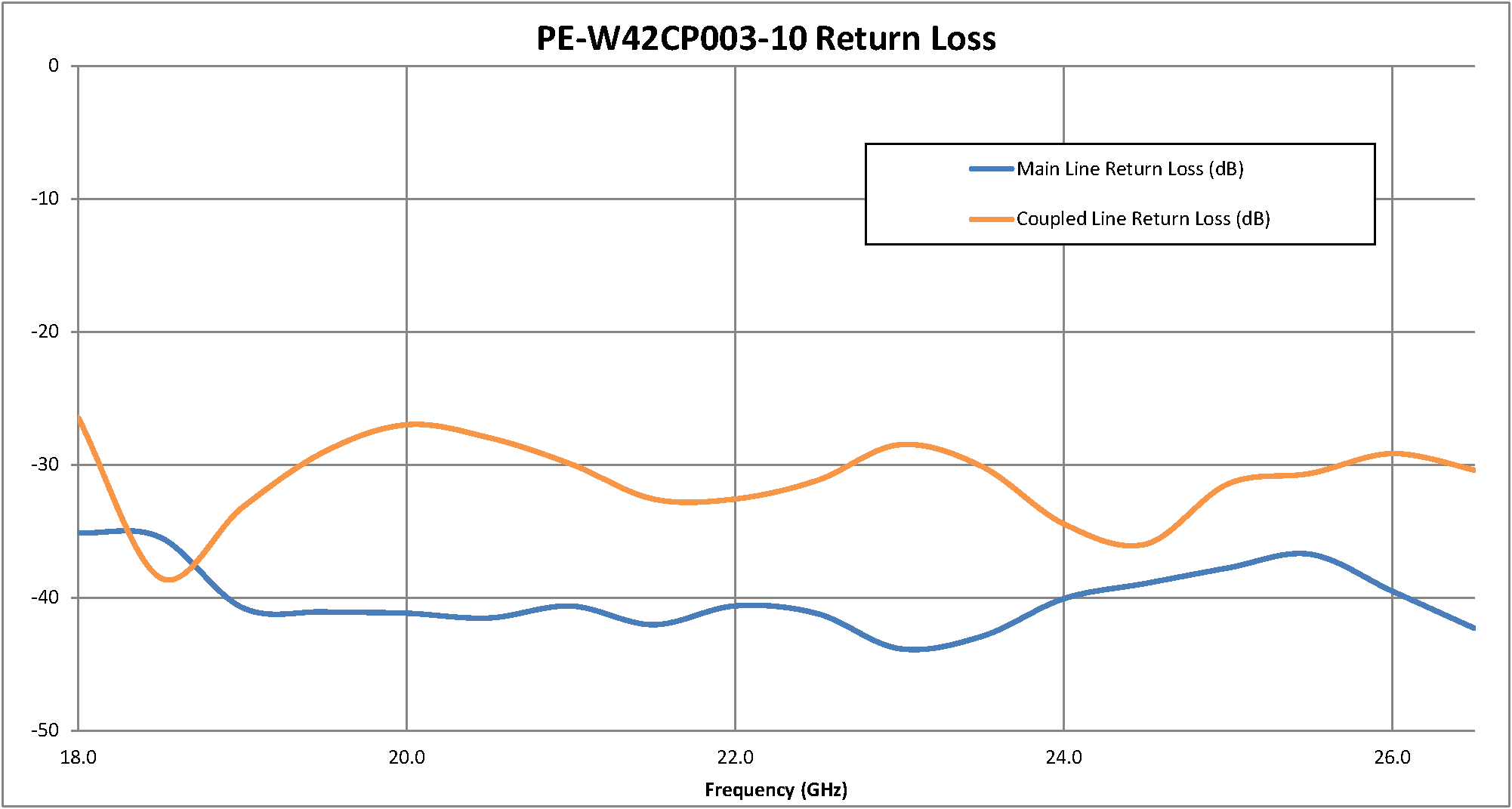

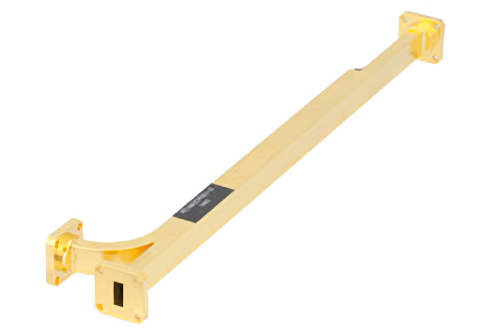

WR-42  Directional Waveguide Coupler UG-595/U 18 GHz to 26.5 GHz PE-W42CP003-10

WR-42

18-26.5

K Band

1

1.2:1

10.00

30.00

E-Plane

UG-595/U

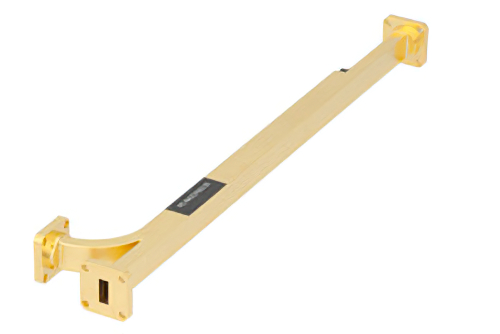

WR-42  Directional Waveguide Coupler UG-595/U 18 GHz to 26.5 GHz PE-W42CP003-20

WR-42

18-26.5

K Band

0.6

1.2:1

20.00

30.00

E-Plane

UG-595/U




Waveguide Couplers
