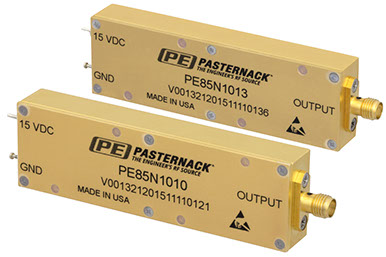

Amplified Noise Sources

Amplified Noise Sources

Amplified noise source series is in-stock and available to ship the same day!

Pasternack coaxial amplified noise sources cover frequency bands ranging from 100 KHz to 6 GHz. These amplified noise source designs incorporate additional gain stages. The noise sources additional gain stages boost output power levels to overcome system losses. Amplified noise source output power levels range from -14 dBm to +10 dBm.


Part No.

& Additional

Views

Frequency
Range
(GHz)

Output Power (dBm)

Output Power Spectral Density (dBm/Hz)

Output
Flatness
(dB)

Temperature
Coefficient

Bias
Voltage
(Vdc)

DC
Connector

RF Output
Connector

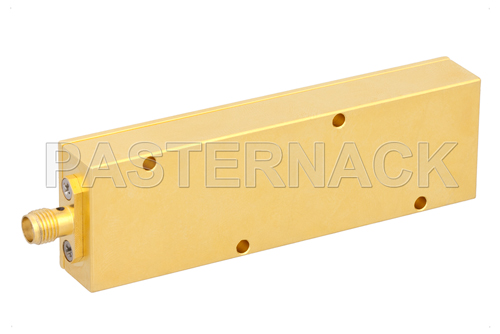

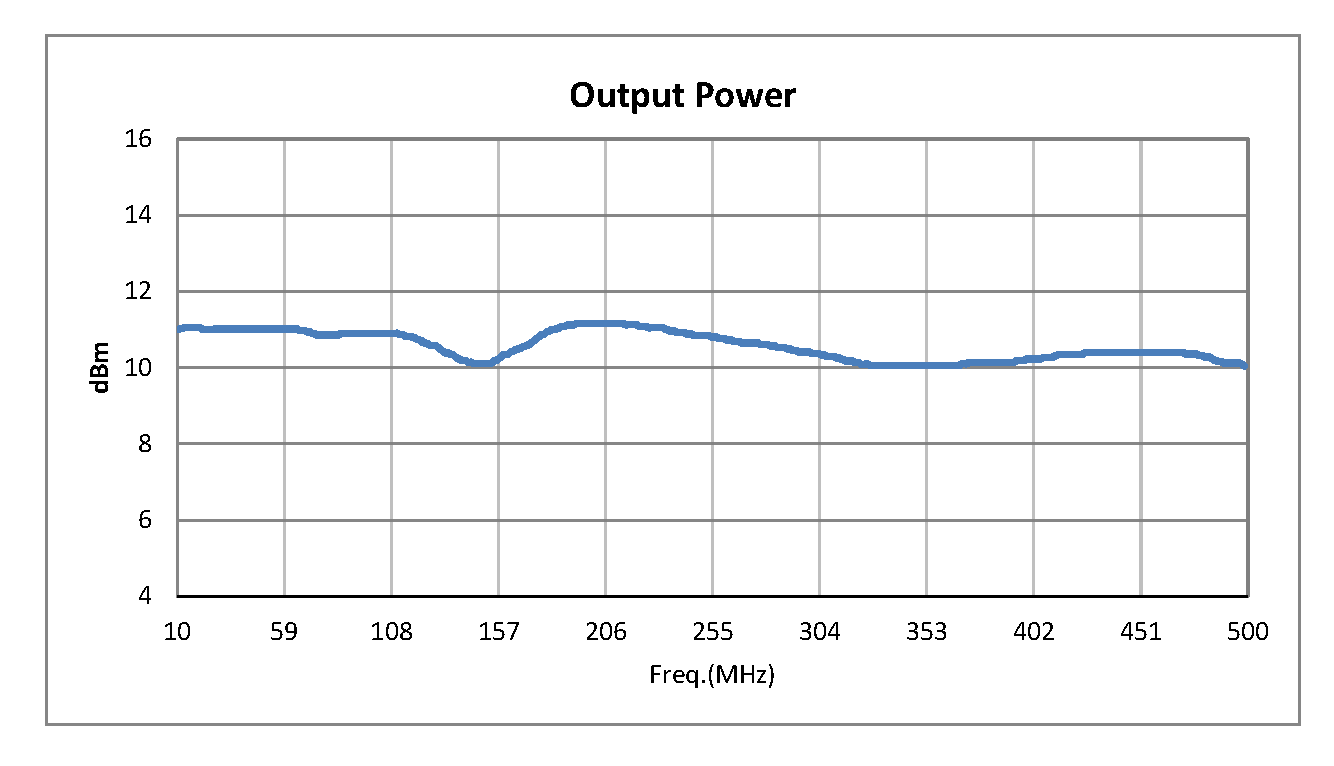

50 Ohm Amplified Noise Module Pout = +10 dBm, -77 dBm/Hz, SMA Connectorized   PE85N1010

0.0001 - 0.5

+10

-77

± 1.5

0.025 dB/°C

+15

DC Pin

SMA Female
  • descr50 Ohm Amplified Noise Module Pout = +10 dBm, -77 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = +10 dBm, -77 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = +10 dBm, -77 dBm/Hz, SMA Connectorized

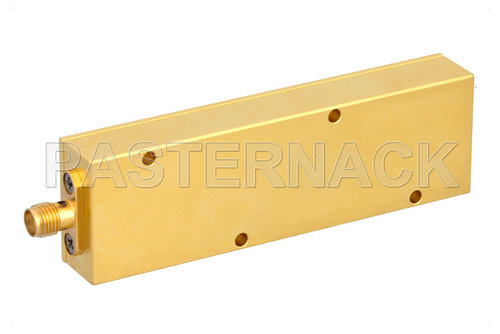

50 Ohm Amplified Noise Module Pout = 0 dBm, -93 dBm/Hz, SMA Connectorized   PE85N1011

0.01 - 2

0

-93

± 2.0

0.025 dB/°C

+15

DC Pin

SMA Female
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -93 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -93 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -93 dBm/Hz, SMA Connectorized

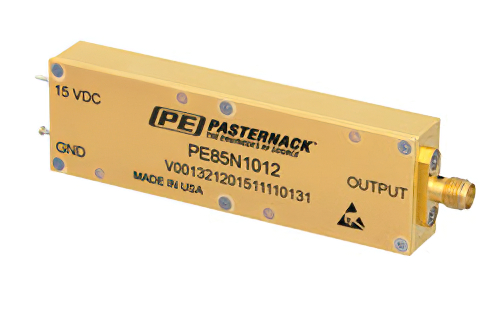

50 Ohm Amplified Noise Module Pout = 0 dBm, -95 dBm/Hz, SMA Connectorized   PE85N1012

0.01 - 3

0

-95

± 2.0

0.025 dB/°C

+15

DC Pin

SMA Female
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -95 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -95 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = 0 dBm, -95 dBm/Hz, SMA Connectorized

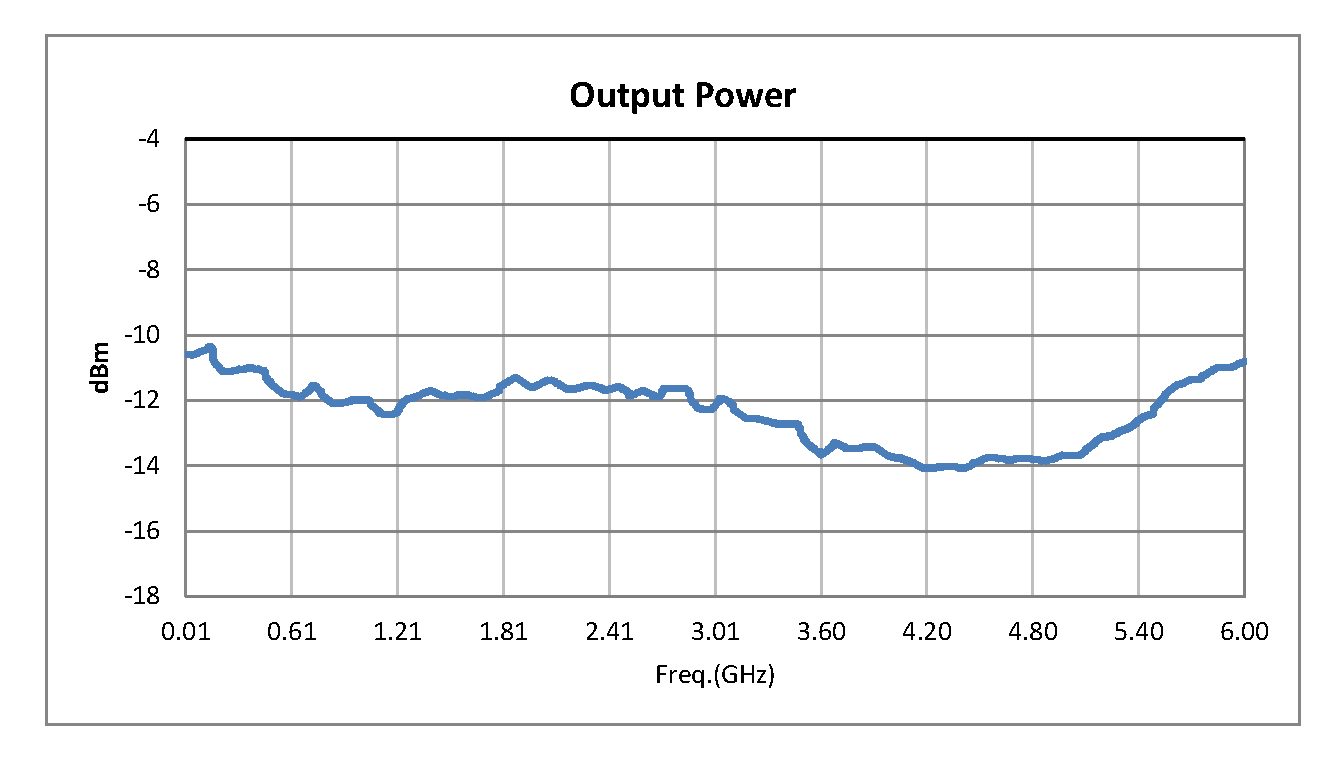

50 Ohm Amplified Noise Module Pout = -14 dBm, -112 dBm/Hz, SMA Connectorized   PE85N1013

0.01 - 6

-14

-112

± 2.5

0.025 dB/°C

+15

DC Pin

SMA Female
  • descr50 Ohm Amplified Noise Module Pout = -14 dBm, -112 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = -14 dBm, -112 dBm/Hz, SMA Connectorized
  • descr50 Ohm Amplified Noise Module Pout = -14 dBm, -112 dBm/Hz, SMA Connectorized


Click a noise source category below for more details

For a complete list of Pasternack's products please click here
