  • BNC connector, DC to 10 GHz frequency range
  • Cal kit definition files for Keysight, Rohde & Schwarz, and Anritsu VNAs
  • Works with all major VNAs
  • Protective wooden case for safe storage of components
  • Ideal for calibration of VNAs in R&D, aerospace and defense, production test environments

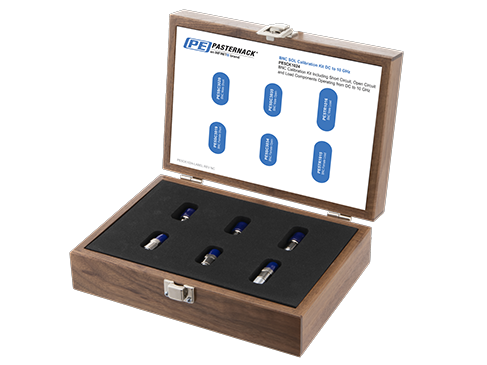

BNC DC to 10 GHz VNA Calibration Kits
BNC SOL VNA Calibration Kit Operating from DC to 10 GHz, Including Short Circuit, Open Circuit, and Load
BNC SOL VNA Calibration Kit Operating from DC to 10 GHz, Including Short Circuit, Open Circuit, and Load

BNC DC to 10 GHz VNA Calibration Kits from Pasternack

Pasternack’s BNC, DC to 10 GHz Vector Network Analyzer (VNA) calibration kit is used to calibrate VNA and associated test setups, to allow Vector Error Correction to compensate for systematic errors inherent in the measurement of the Device Under Test (DUT) allowing for accurate characterization of its performance.

SOL – Short Open Load Kit contains:

  • Female Termination, 1.2 Max. VSWR, DC to 10 GHz
  • Male Termination, 1.2 Max. VSWR, DC to 10 GHz
  • Female Short, ±5.0º Deviation from Nominal, DC to 10 GHz
  • Male Short, ±5.0º Deviation from Nominal, DC to 10 GHz
  • Female Open, ±5.0º Deviation from Nominal, DC to 10 GHz
  • Male Open, ±5.0º Deviation from Nominal, DC to 10 GHz
