- Right angle Type-N and TNC cable connectors operate to 18 GHz
- Right angle SMA cable connectors operate to 27 GHz
- 1.25:1 Typical VSWR on right angle connectors
- Solid PTFE dielectric allows phase velocity of 69.5%
- Stainless steel RF connectors provide >500 mating cycles
- RF test cable shielding >90dB
Industry-Leading
Performance
Typical Data example for Right Angle SMA Male to Right Angle SMA Male on PE-141FLEX Coax
Flexible High Performance
RF Right Angle Test Cables
with Low Profile Design
Right angle RF test cable series ships same-day
Right Angle RF Test Cable Series
27 GHz, SMA (M) to RA SMA (M) |
 |
| SMA Male to SMA Male Right Angle Cable Using PE-141 Flex Coax, RoHS |
27 GHz, RA SMA (M) to RA SMA (M) |
 |
| SMA Male Right Angle to SMA Male Right Angle Cable Using PE-141FLEX Coax, RoHS |
27 GHz, SMA (M) to RA SMA (M) |
 |
| SMA Male to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS |
27 GHz, RA SMA (M) to RA SMA (M) |
 |
| SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS |
18 GHz, Type N (M) to RA Type N (M) |
 |
| N Male to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS |
18 GHz, RA Type N (M) to RA Type N (M) |
 |
| N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS |
18 GHz, TNC (M) to RA TNC (M) |
 |
| TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS |
18 GHz, RA TNC (M) to RA TNC (M) |
 |
| TNC Male Right Angle to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS |
Straight Female Bulkhead RF Test Cable Series
27 GHz, SMA (M) to BH SMA (F) |
 |
| SMA Female Bulkhead to SMA Male Cable Using PE-141FLEX Coax, RoHS |
27 GHz, SMA (M) to BH SMA (F) |
 |
| SMA Male to SMA Female Bulkhead Cable Using PE-086FLEX Coax, RoHS |
18 GHz, Type N (M) to BH Type N (F) |
 |
| N Female Bulkhead to N Male Cable Using PE-141FLEX Coax, RoHS |
18 GHz, TNC (M) to BH TNC (F) |
 |
| TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS |
Straight Male RF Test Cable Series
27 GHz, SMA (M) to SMA (M) |
 |
| SMA Male to SMA Male Cable Using PE-086FLEX Coax, RoHS |
27 GHz, SMA (M) to SMA (M) |
 |
| SMA Male to SMA Male Cable Using PE-141FLEX Coax, RoHS |
18 GHz, Type N (M) to Type N (M) |
 |
| N Male to N Male Cable Using PE-141FLEX Coax, RoHS |
18 GHz, TNC (M) to TNC (M) |
 |
| TNC Male to TNC Male Cable Using PE-141FLEX Coax, RoHS |
Flexible High Performance Right Angle Test Cable Series with Low Profile Design
Pasternack’s flexible high performance right angle test cable series has a low profile design. This right angle RF testing cable series in low profile are rated up to 27 GHz. These 27 GHz test cables are available in 3 connector series including SMA, Type N, and TNC.
The right angle SMA and Type-N cable test connectors incorporate an internal radius design that optimizes performance in a low profile configuration. These testing cables are also available in 0.086 and 0.141 inch diameter double shielded, silver plated copper braid over silver plated copper tape, coax designs.
Our Pasternack PE-141FLEX is a flexible RF cable alternate to RG402 coax. This RF test cable is a 0.141” diameter semi-rigid coax. PE-141FLEX 141 coax has a solid PTFE dielectric resulting in 69.5% phase velocity.
PE-086FLEX test cable is a flexible cable alternate to RG405 coax. Pasternack's PE-086FLEX .086” diameter cable is a semi-rigid coax of superior quality. The smooth wall formed by the braid over spiral ribbon design allows for a flexible cable that has similar performance to a solid wall 086 semi-rigid cable.
Pasternack high performance RF test cable in flexible semi-rigid type coax with SMA, Type N or TNC connectors is a great choice. Like our other over 40,000 RF, microwave and millimeter wave products, these low profile right angle RF testing cables are in-stock. Not only is this flexible RG-402 and RG-405 type right angle radio frequency test cable series in stock, but it also ships the same day as purcheased.
Customers Who Bought This Flexible Semi Rigid Right Angle Test Cable Series Also Bought
PE-TC195 Test Cables
PE-TC151 Test Cables
75 Ohm Test Cables
PE-TC195 Series Phase Stable Test Cables
18 GHz, SMA (M) to SMA (M), 0.195 Dia. |
 |
| PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Male to 18 GHz ,RoHS |
18 GHz, SMA (M) to SMA (F), 0.195 Dia. |
 |
| PE-TC195 Series Phase Stable Test Cable SMA Male to SMA Female to 18 GHz ,RoHS |
18 GHz, Type N (M) to Type N (M), 0.195 Dia. |
 |
| PE-TC195 Series Phase Stable Test Cable N Male to N Male to 18 GHz ,RoHS |
18 GHz, Type N (M) to Type N (F), 0.195 Dia. |
 |
| PE-TC195 Series Phase Stable Test Cable N Male to N Female to 18 GHz ,RoHS |
18 GHz, SMA (M) to Type N (M), 0.195 Dia. |
 |
| PE-TC195 Series Phase Stable Test Cable SMA Male to N Male to 18 GHz ,RoHS |

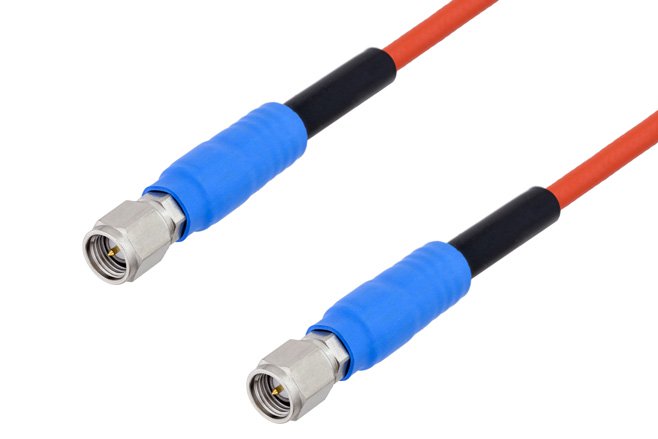

27 GHz, SMA (M) to SMA (M), 0.195 Dia. |
 |
