  • IQ Mixers Feature GaAs MESFET MMIC Technology
  • Hermetically Sealed Drop-In Packages/field replaceable connectors
  • Mil-Spec Compliant IQ Mixer Designs
  • RF/LO Broadband Frequency Coverage from 4 GHz to 38 GHz
  • L to R Isolation up to 45 dB typical
  • Input IP3 Linearity as high as 35 dBm
  • High Image Rejection ranges from 15 to 35 dB
  • L to R Isolation up to 45 dB typical

IQ mixers are in stock and ship same-day

▼ Click below for more IQ mixer details

IQ Mixers with RF and LO Frequency Bands Ranging from 4 GHz to 38 GHz

Part No.

Frequency
Band

(GHz)

Gain

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Part No.

RF & LO
Frequency
Band (GHz)

IF
Frequency
Band (GHz)

LO Drive
Power
(dBm)

IRM
Conversion
Loss (dB)

Rejection
(dB)

L to R
Isolation
(dB)

Input 1 dB
Compression
Point (dBm)

Input IP3
(dBm)

Field
Replaceable
Connectors

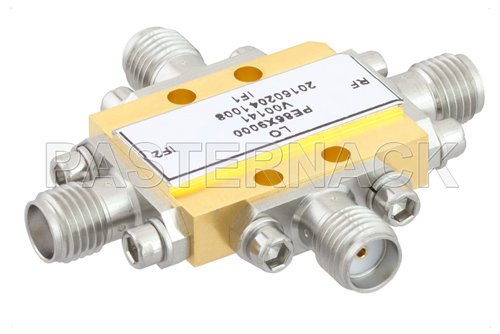

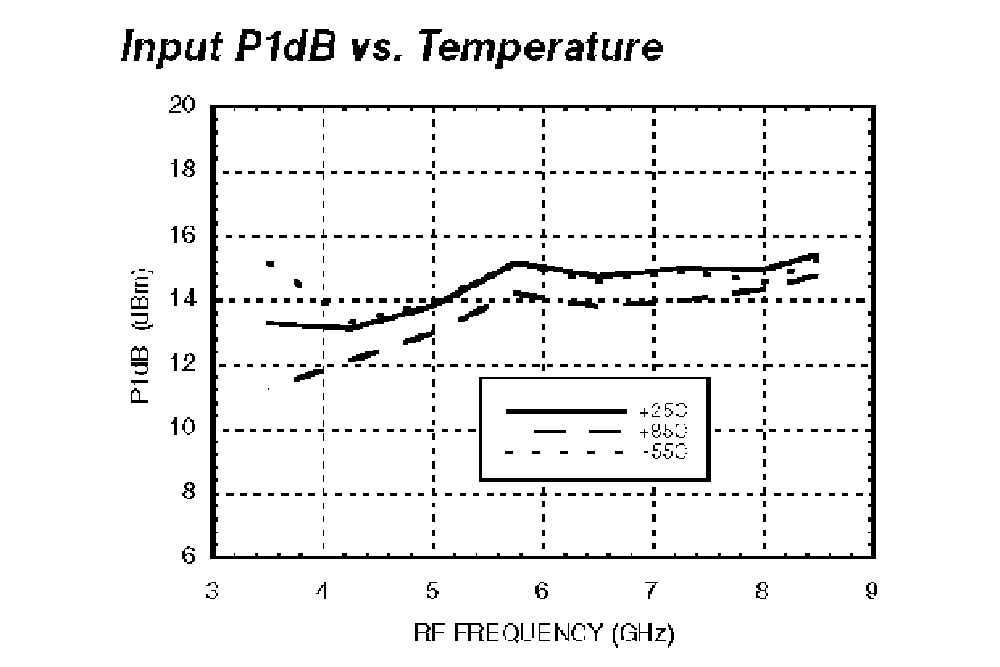

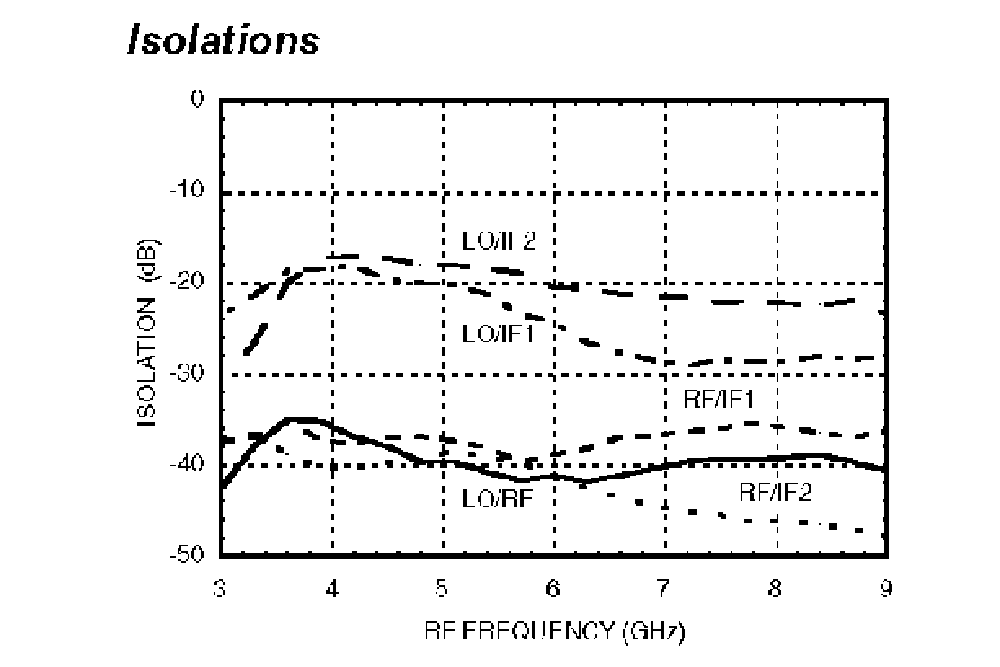

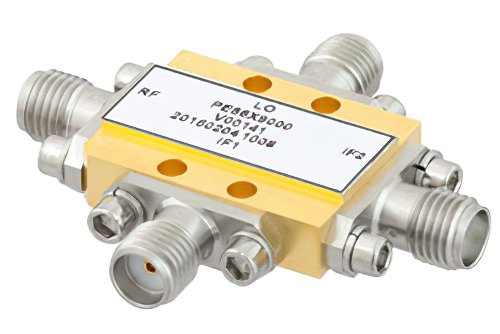

IQ Mixer Operating From 4 GHz to 8.5 GHz With an IF Range From DC to 3.5 GHz And LO Power of +15 dBm, Field Replaceable SMA   PE86X9000

4 to 8.5

DC to 3.5

+15

7.5

35

40

+15

+35

SMA
  • descrIQ Mixer Operating From 4 GHz to 8.5 GHz With an IF Range From DC to 3.5 GHz And LO Power of +15 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 4 GHz to 8.5 GHz With an IF Range From DC to 3.5 GHz And LO Power of +15 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 4 GHz to 8.5 GHz With an IF Range From DC to 3.5 GHz And LO Power of +15 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 4 GHz to 8.5 GHz With an IF Range From DC to 3.5 GHz And LO Power of +15 dBm, Field Replaceable SMA

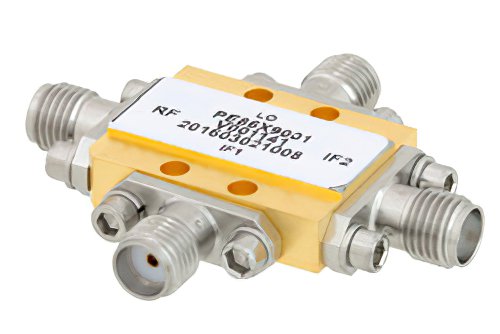

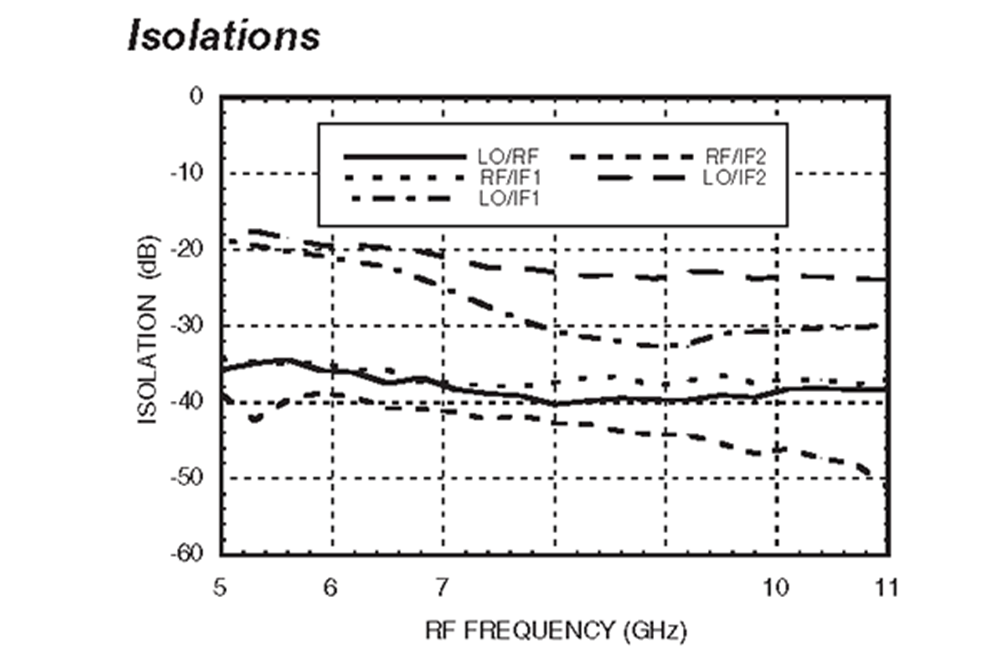

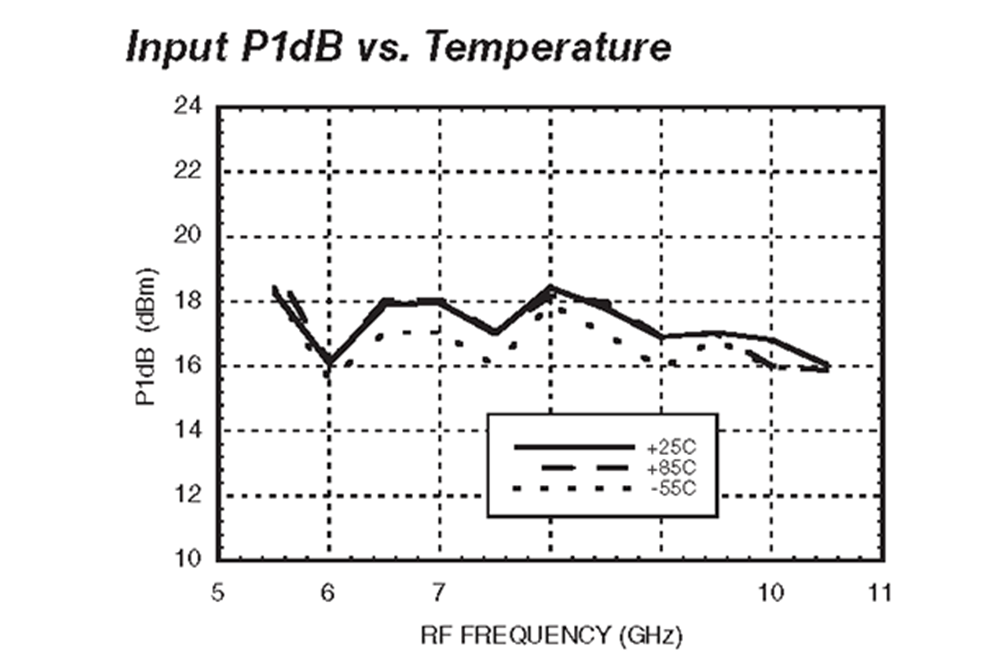

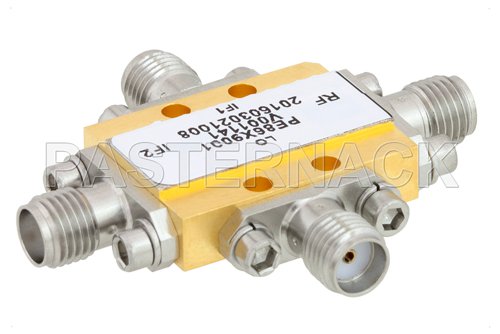

IQ Mixer Operating From 6 GHz to 10 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA   PE86X9001

6 to 10

DC to 3.5

+19

7.5

35

45

+15

+25

SMA
  • descrIQ Mixer Operating From 6 GHz to 10 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 6 GHz to 10 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 6 GHz to 10 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 6 GHz to 10 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA

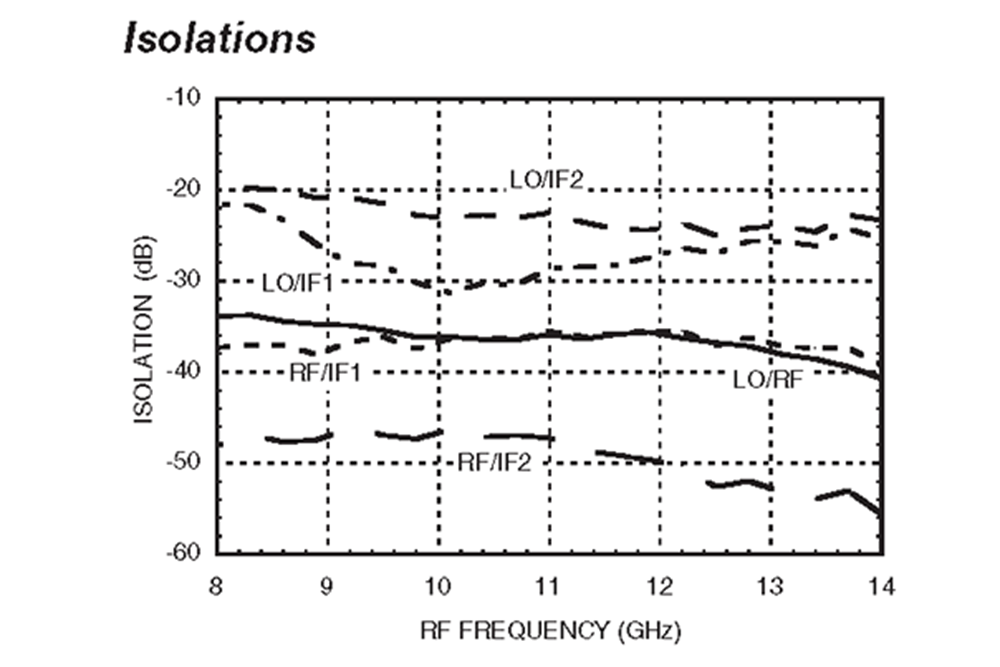

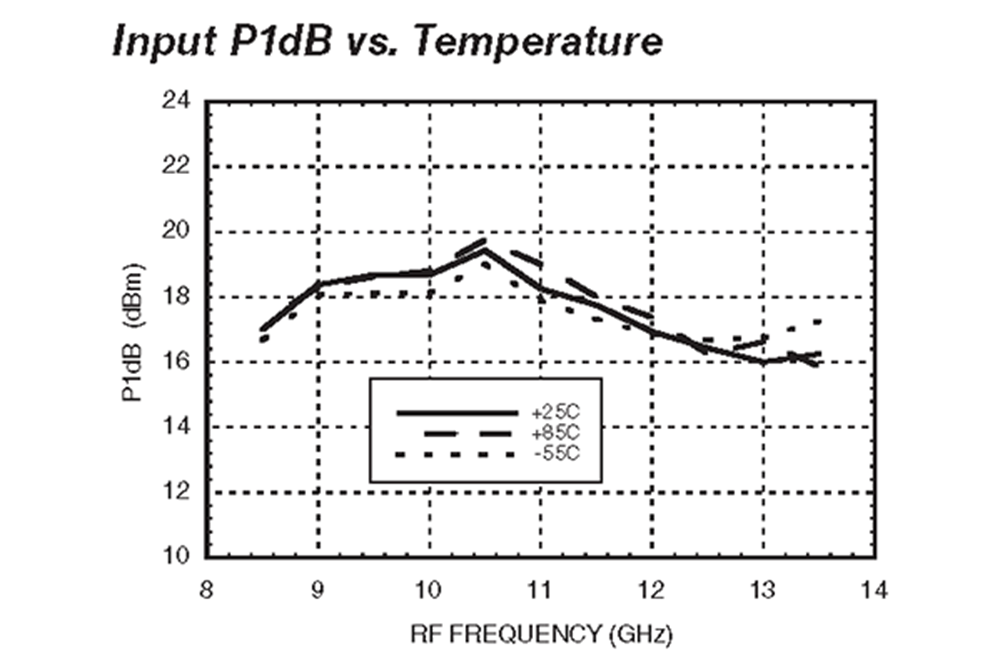

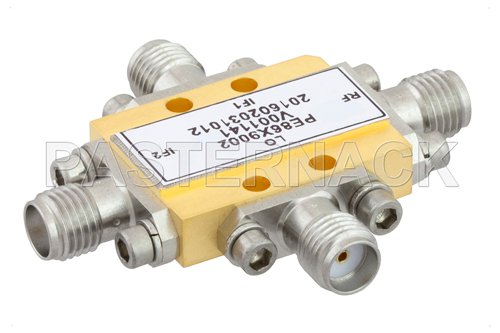

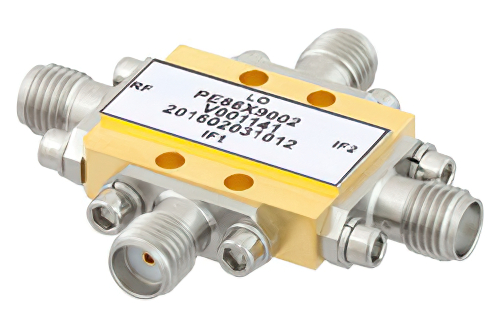

IQ Mixer Operating From 8.5 GHz to 13.5 GHz With an IF Range From DC to 2 GHz And LO Power of +19 dBm, Field Replaceable SMA   PE86X9002

8.5 to 13.5

DC to 2

+15

8

28

38

+17

+25

SMA
  • descrIQ Mixer Operating From 8.5 GHz to 13.5 GHz With an IF Range From DC to 2 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 8.5 GHz to 13.5 GHz With an IF Range From DC to 2 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 8.5 GHz to 13.5 GHz With an IF Range From DC to 2 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 8.5 GHz to 13.5 GHz With an IF Range From DC to 2 GHz And LO Power of +19 dBm, Field Replaceable SMA

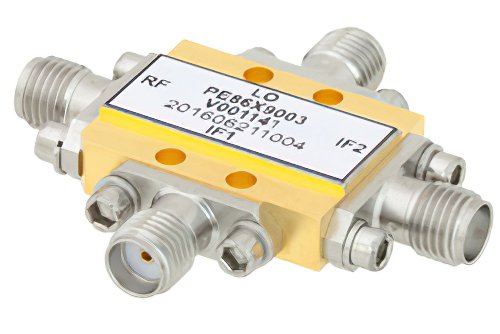

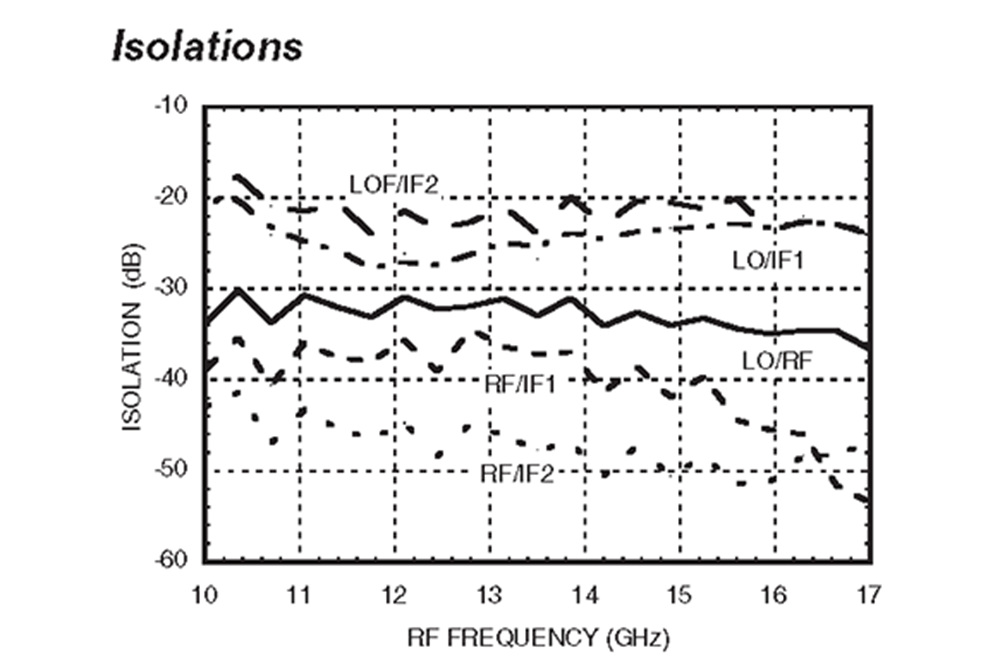

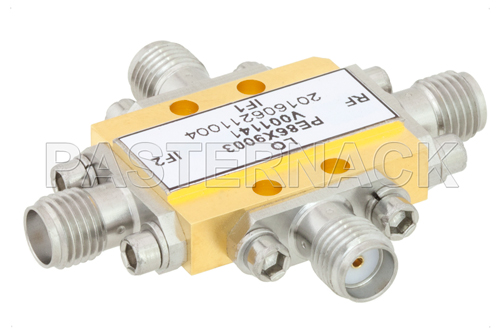

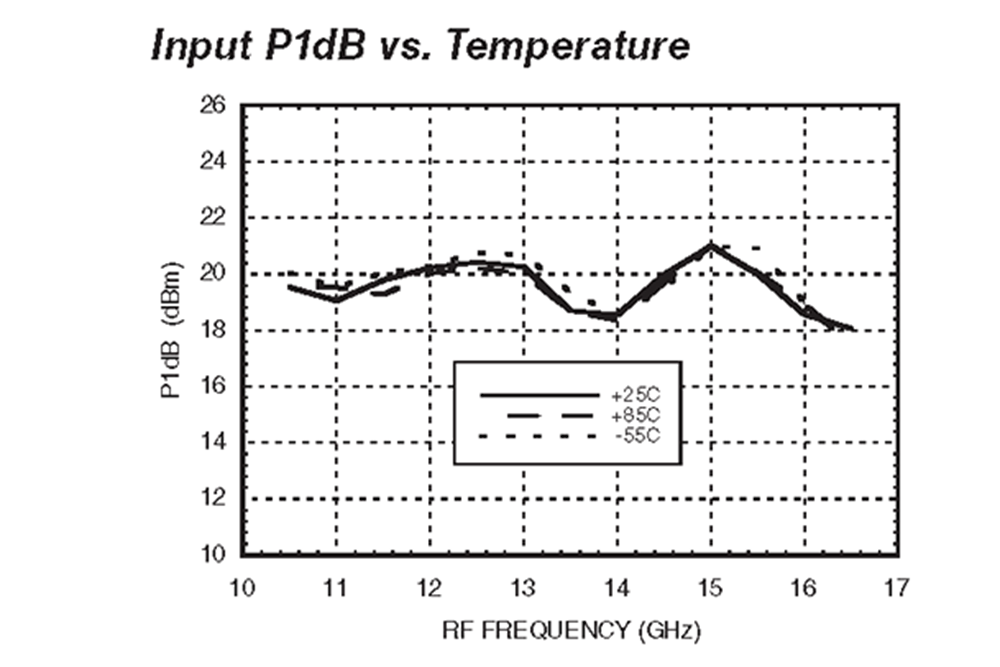

IQ Mixer Operating From 11 GHz to 16 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA   PE86X9003

11 to 16

DC to 3.5

+19

9

30

35

+20

+28

SMA
  • descrIQ Mixer Operating From 11 GHz to 16 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 11 GHz to 16 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 11 GHz to 16 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 11 GHz to 16 GHz With an IF Range From DC to 3.5 GHz And LO Power of +19 dBm, Field Replaceable SMA

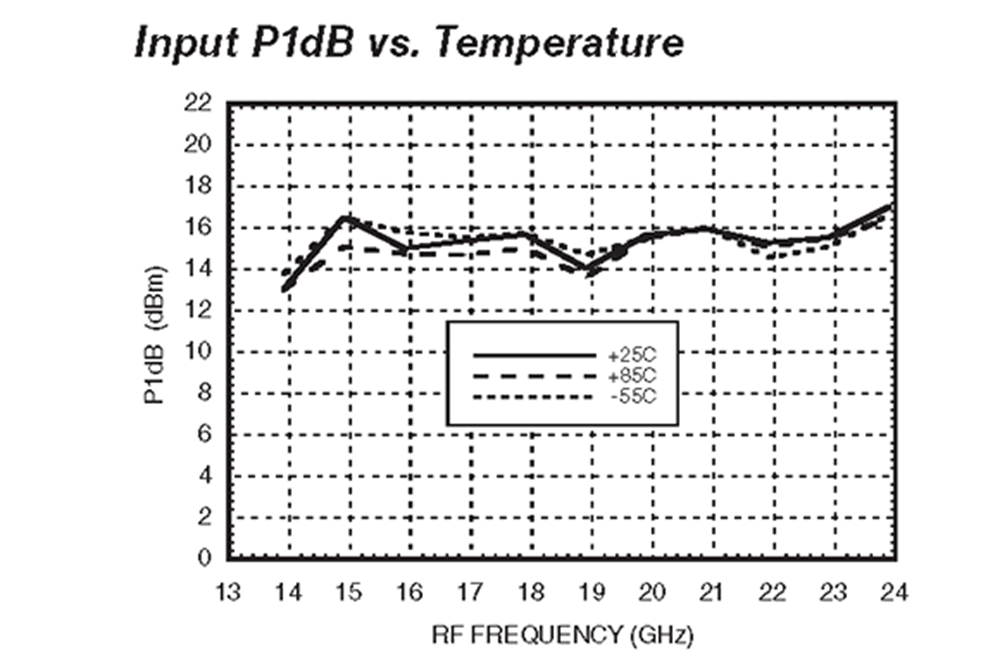

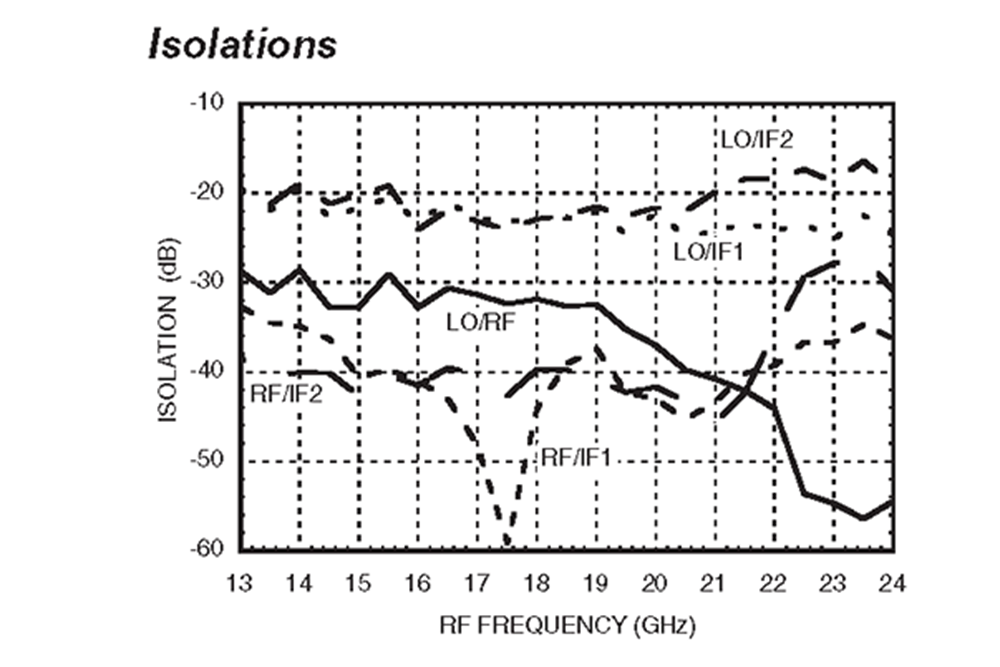

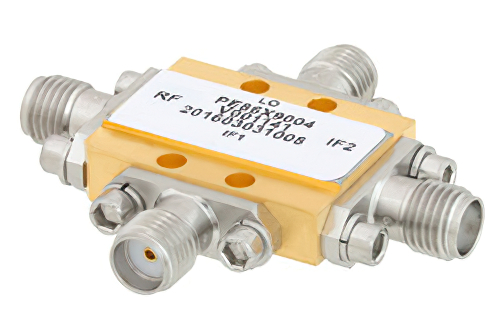

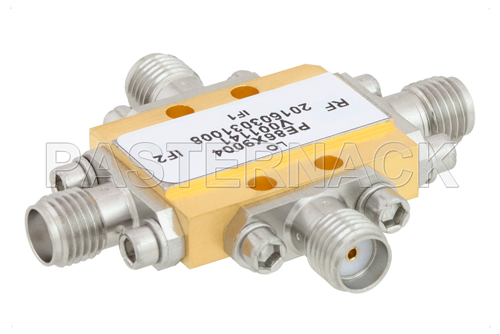

IQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA   PE86X9004

15 to 23

DC to 3.5

+17

8

30

35

+15

+25

SMA
  • descrIQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA
  • descrIQ Mixer Operating From 15 GHz to 23 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable SMA

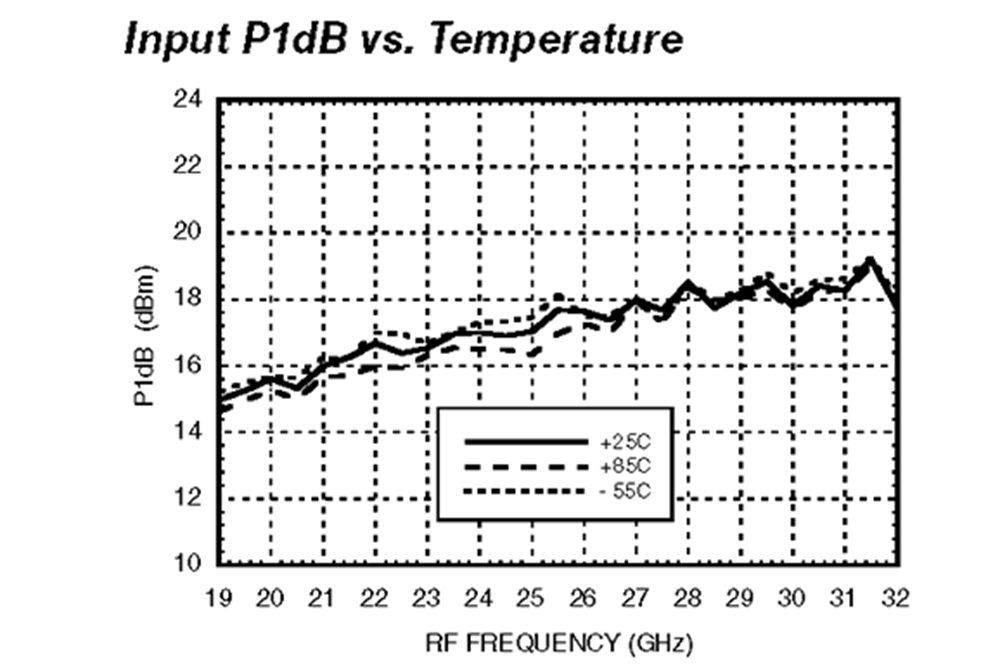

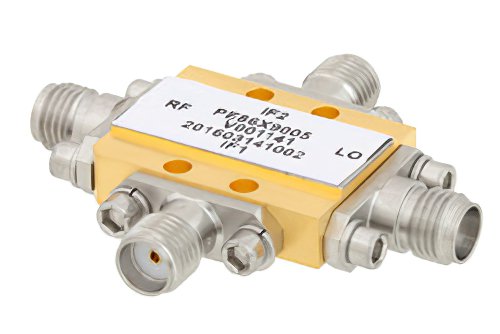

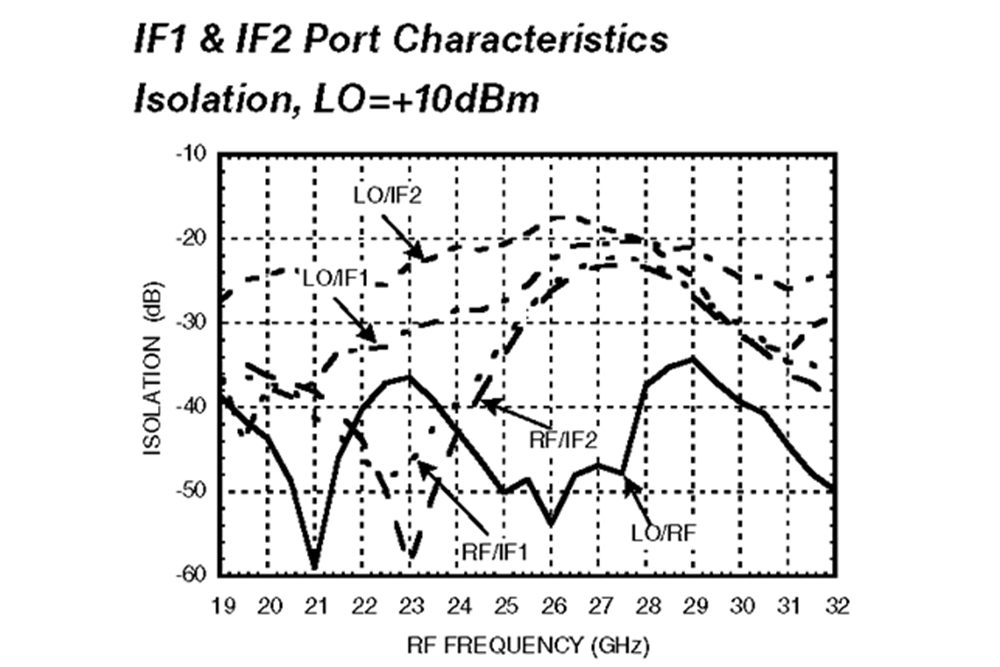

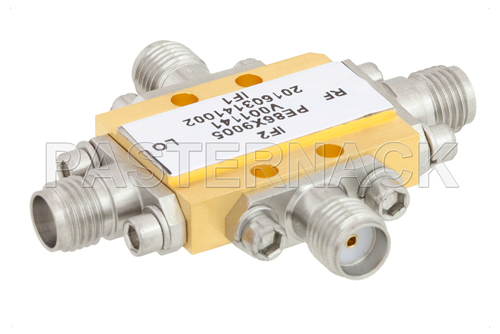

IQ Mixer Operating From 20 GHz to 31 GHz With an IF Range From DC to 4.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm   PE86X9005

20 to 31

DC to 4.5

+17

10

24

42

+17

+22.5

2.92mm / SMA
  • descrIQ Mixer Operating From 20 GHz to 31 GHz With an IF Range From DC to 4.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 20 GHz to 31 GHz With an IF Range From DC to 4.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 20 GHz to 31 GHz With an IF Range From DC to 4.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 20 GHz to 31 GHz With an IF Range From DC to 4.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm

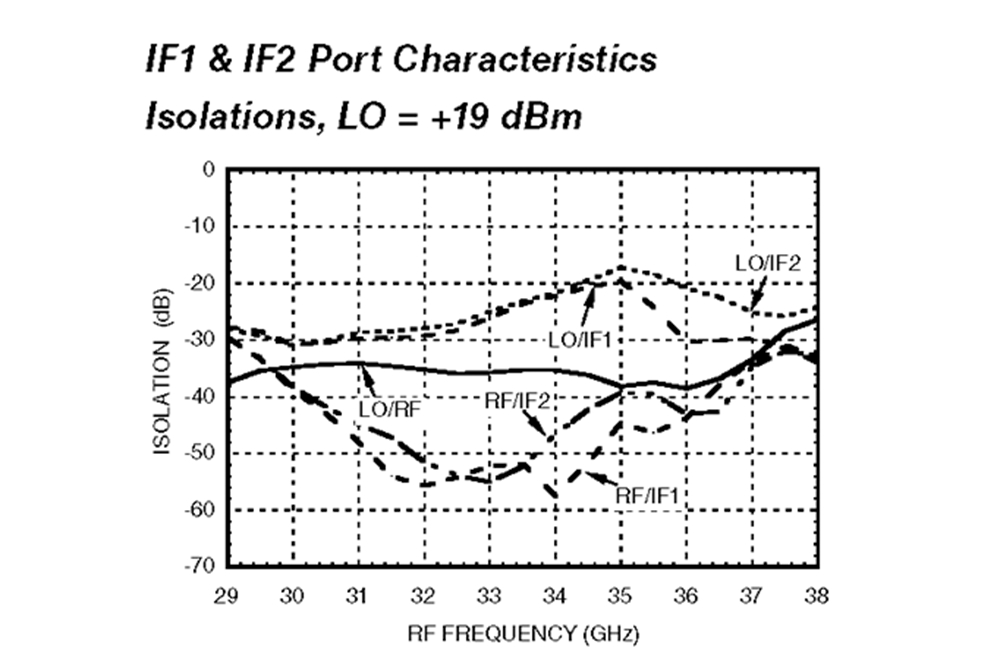

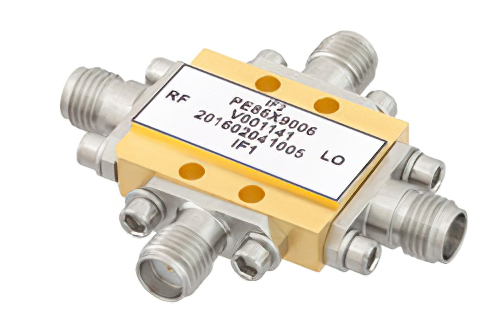

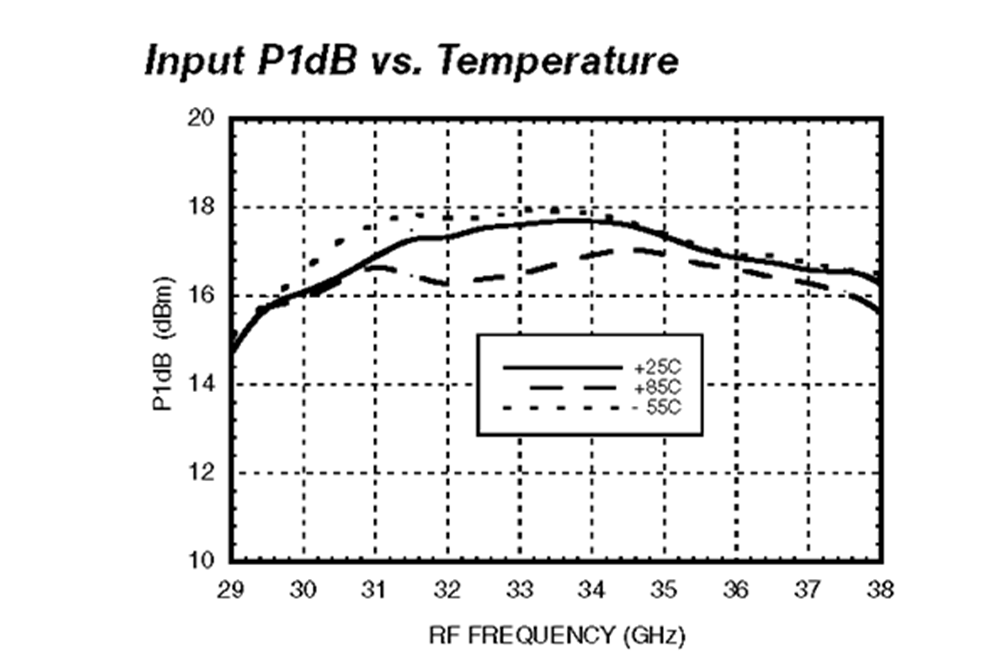

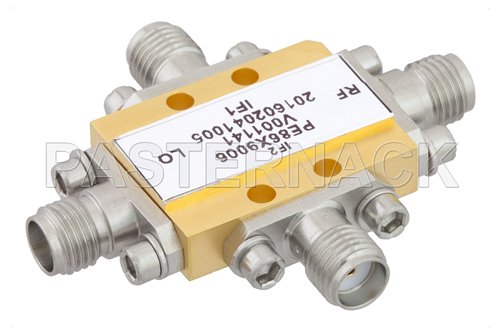

IQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm   PE86X9006

30 to 38

DC to 3.5

+19

10.5

15

35

+17

+19

2.92mm / SMA
  • descrIQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm
  • descrIQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm


IQ Mixer Series

New IQ mixer series from Pasternack have modules composed of MMIC based assemblies which use a highly reliable GaAs MESFET semiconductor process. The IQ mixer GaAs MESFET semiconductor process consists of a pair of matched double-balanced mixer cells, a 90-degree hybrid and a 0-degree splitter/combiner. This level of integration offers advantages in size and performance when compared to discrete module assemblies.

With the addition of an external 90-degree IF hybrid module, these IQ mixers can be configured as an Image Reject Mixer or Single Sideband Upconverter Mixer. Image rejection and sideband suppression can reduce overall system cost and complexity by removing the need for preselection filtering.

The IQ mixer performance as an Image Reject Mixer (IRM) includes low conversion loss that ranges from 7.5 to 10 dBm, high image rejection up to 35 dB typical, and LO to RF Isolation up to 42 dB typical. These mixer designs offer excellent linearity with input 1 dB compression as high as +20 dB typical and Input IP3 as high as +35 dB typical. LO drive power ranges from +15 to +19 dBm.

Pasternack IQ mixer models are offered in hermetically sealed Kovar™ drop-in metal packages that are gold-over-nickel-plated and support field-replaceable SMA connectors. All units are RoHS compliant, export classified as EAR99, and guaranteed to meet MIL-STD-883 environmental test conditions for fine and gross leak and temperature cycle. IQ mixers are in-stock and ship same-day from Pasternack.
