Part No.

& Additional

Views

Frequency
Band

Small Signal
Gain Typ
(dB)

Small Signal
Gain Flatness
Typ (dB)

Noise
Figure Typ
(dB)

P1dB
Typ
(dBm)

Output
IP3 Typ
(dBm)

Reverse
Isolation
(dB)

DC Power
(Volts/mA)

Input Protected /
Max Input Power

RF
Connectors

USA & Canada +1 (866) 727-8376  International  +1 (949) 261-1920

USA & Canada (866) 727-8376  International +1 (949) 261-1920

Embedded GPS Antennas
  • 10 models cover broadband frequencies ranging from 1 KHz to 40 GHz
  • Input Protected Designs have up to 1 Watt CW RF Power Handling
  • High Gain: 45 dB typ
  • Low Noise Figure down to 1 dB typ
  • High Gain from 25 dB to 60 dB
  • Output P1dB up to +21.5 dB typ
  • Operating Temperature -40°C to +85°C
  • Rugged and compact Mil Grade Aluminum Package Designs support Female SMA or 2.92mm Connectors
Low Noise Amplifier Expansion from Pasternack


Part No.

& Additional

Views

Frequency
Band

Small Signal
Gain Typ
(dB)

Small Signal
Gain Flatness
Typ (dB)

Noise
Figure Typ
(dB)

P1dB
Typ
(dBm)

Output
IP3 Typ
(dBm)

Reverse
Isolation
(dB)

DC Power
(Volts/mA)

Input Protected /
Max Input Power

RF
Connectors

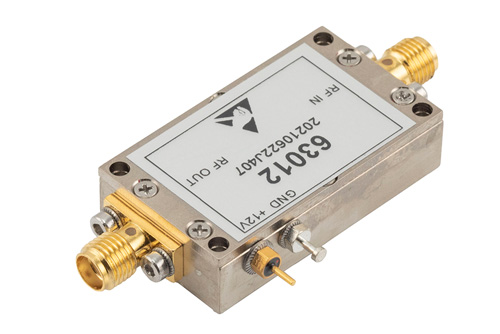

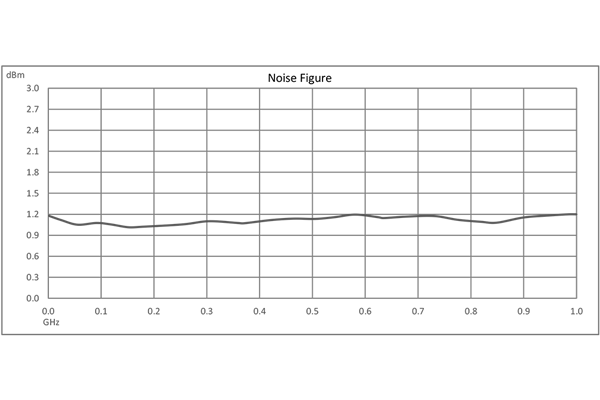

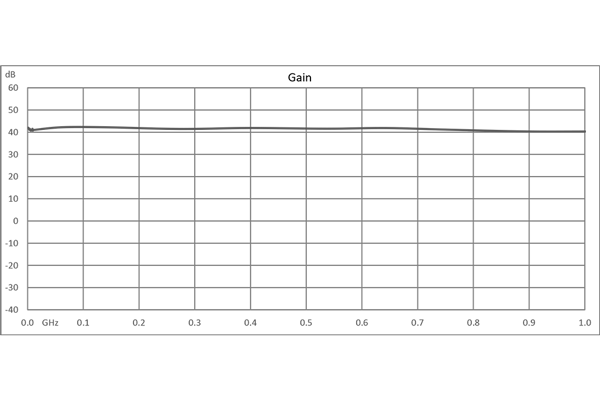

Broadband Low Noise Amplifier, 1 KHz to 1000 MHz, 40 dB Gain, 1 dB Noise Figure, +12V, SMA   PE15A63012

1 KHz to
1000 MHz

40

+/- 1

1

+15

+27

50

12/80

No / +5 dBm

SMA
Female
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 40 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 40 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 40 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 40 dB Gain, 1 dB Noise Figure, +12V, SMA

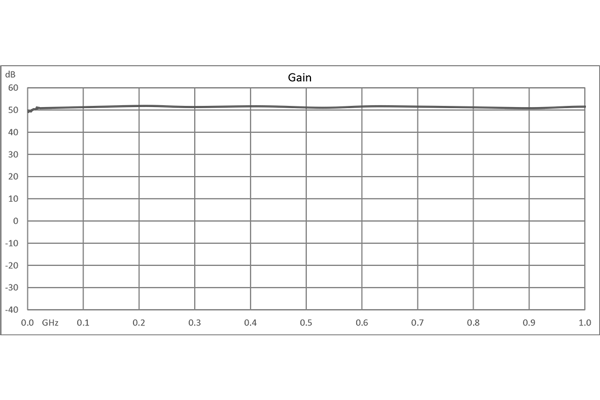

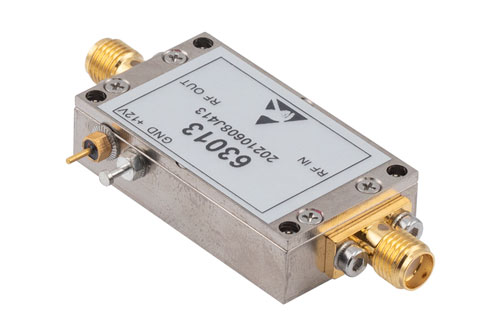

Broadband Low Noise Amplifier, 1 KHz to 1000 MHz, 50 dB Gain, 1 dB Noise Figure, +12V, SMA   PE15A63013

1 KHz to
1000 MHz

50

+/- 1.25

1

+15

+30

70

12/110

No / +10 dBm

SMA
Female
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 50 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 50 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 50 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 50 dB Gain, 1 dB Noise Figure, +12V, SMA

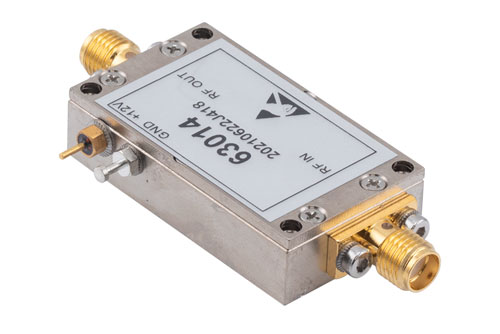

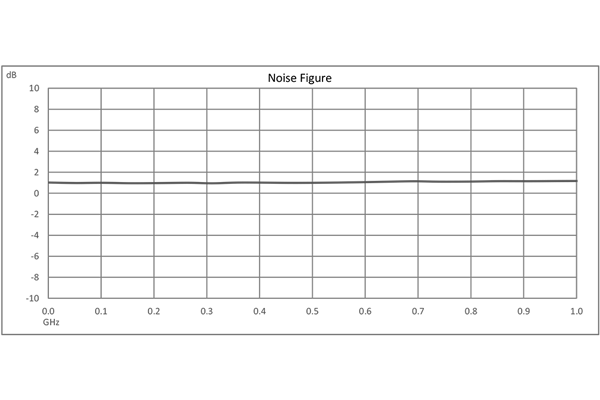

Broadband Low Noise Amplifier, 1 KHz to 1000 MHz, 60 dB Gain, 1 dB Noise Figure, +12V, SMA   PE15A63014

1 KHz to
1000 MHz

60

+/- 1.5

1

+16

- - -

80

12/130

No / +10 dBm

SMA
Female
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 60 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 60 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 60 dB Gain, 1 dB Noise Figure, +12V, SMA
  • descrBroadband Low Noise Amplifier, 1 KHz to 1000 MHz, 60 dB Gain, 1 dB Noise Figure, +12V, SMA

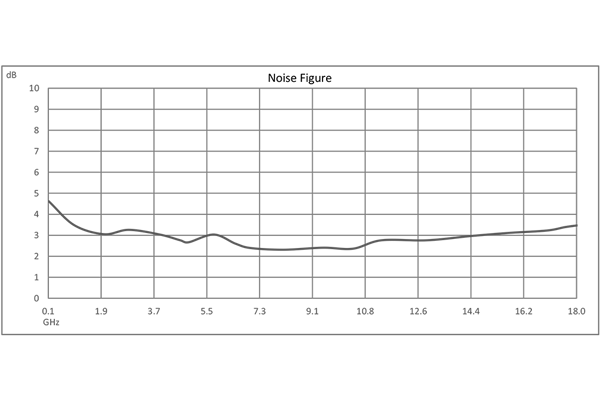

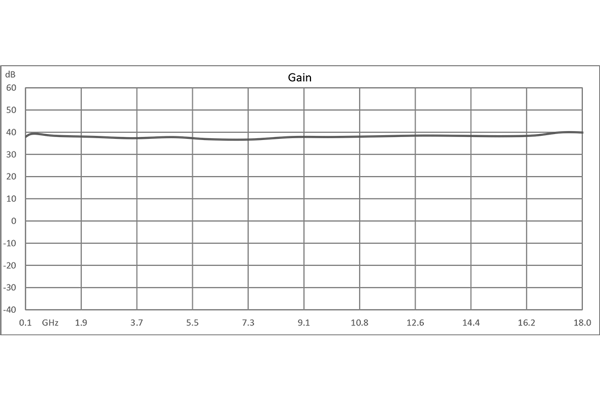

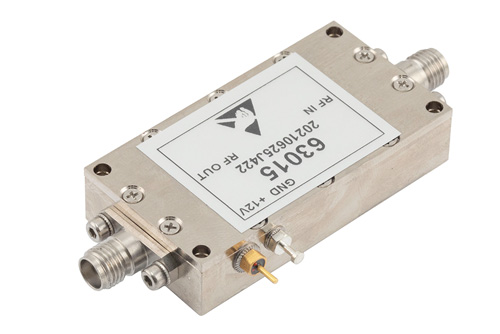

Broadband Low Noise Amplifier, 100 MHz to 18 GHz, 38 dB Gain, 3 dB Noise Figure, 12V, SMA   PE15A63015

100 MHz to
18 GHz

38

+/- 1.5

3

+17.5

+26

> 50

12/300

No / +15 dBm

SMA
Female
  • descrBroadband Low Noise Amplifier, 100 MHz to 18 GHz, 38 dB Gain, 3 dB Noise Figure, 12V, SMA
  • descrBroadband Low Noise Amplifier, 100 MHz to 18 GHz, 38 dB Gain, 3 dB Noise Figure, 12V, SMA
  • descrBroadband Low Noise Amplifier, 100 MHz to 18 GHz, 38 dB Gain, 3 dB Noise Figure, 12V, SMA
  • descrBroadband Low Noise Amplifier, 100 MHz to 18 GHz, 38 dB Gain, 3 dB Noise Figure, 12V, SMA

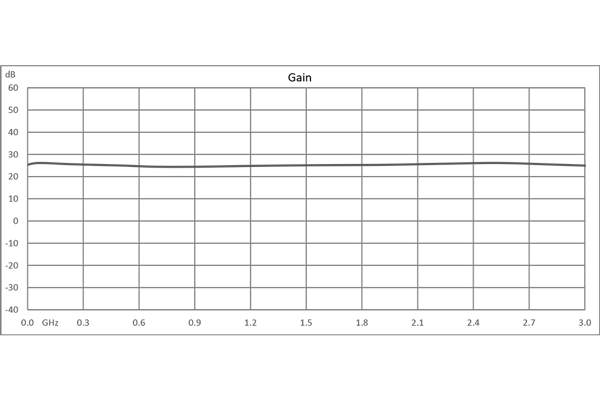

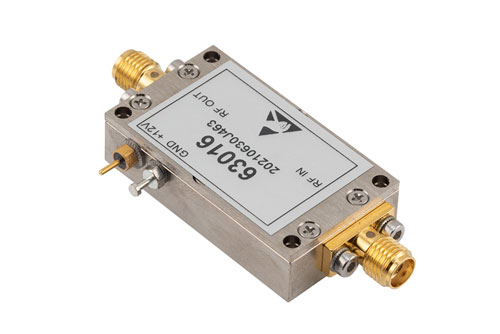

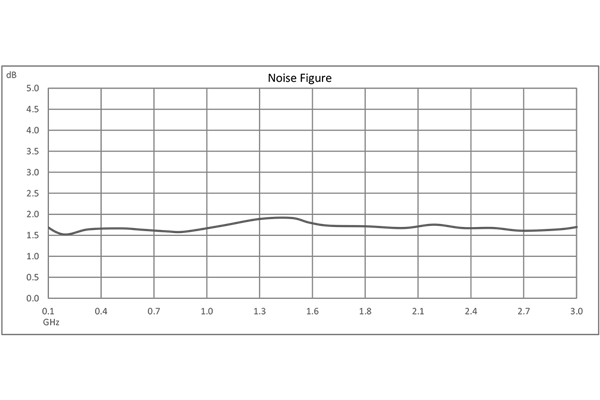

Input Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 25 dB Gain, 1.7 dB Noise Figure, 12V, SMA   PE15A63016

20 MHz to
3 GHz

25

+/- 0.75

1.7

+13

+23

45

12/75

Yes / +30 dBm

SMA
Female
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 25 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 25 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 25 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 25 dB Gain, 1.7 dB Noise Figure, 12V, SMA

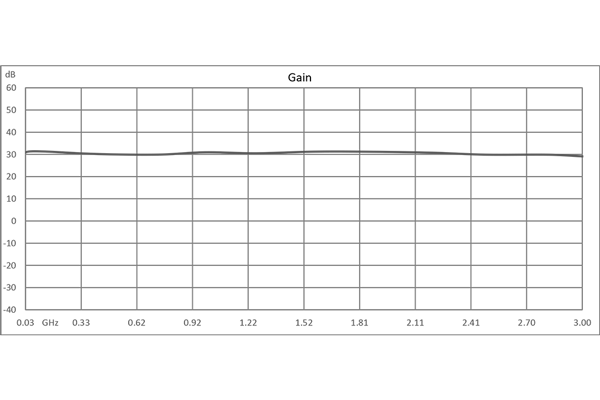

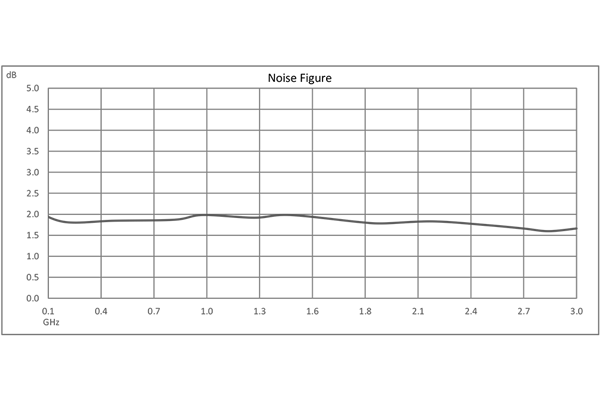

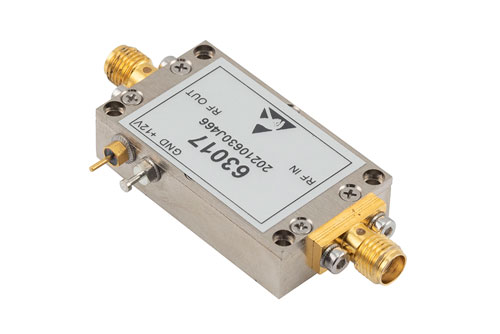

Input Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 30 dB Gain, 1.7 dB Noise Figure, 12V, SMA   PE15A63017

20 MHz to
3 GHz

30

+/- 1.25

1.7

+15

+28

45

12/80

Yes / +30 dBm

SMA
Female
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 30 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 30 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 30 dB Gain, 1.7 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 20 MHz to 3000 MHz, 1 Watt RF Input Power, 30 dB Gain, 1.7 dB Noise Figure, 12V, SMA

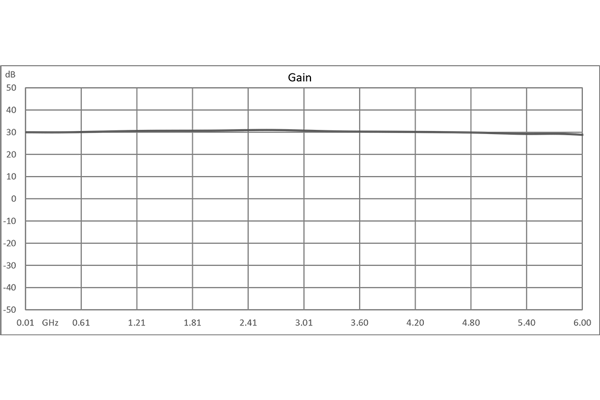

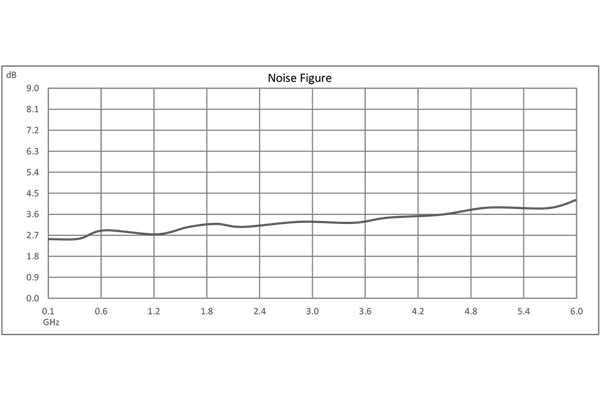

Input Protected Low Noise Amplifier, 10 MHz to 6000 MHz, 1 Watt RF Input Power, 30 dB Gain 3.5 dB Noise Figure, 12V, SMA   PE15A63018

10 MHz to
6 GHz

30

+/- 1.0

3.5

+14.5

+37

45

12/100

Yes / +30 dBm

SMA
Female
  • descrInput Protected Low Noise Amplifier, 10 MHz to 6000 MHz, 1 Watt RF Input Power, 30 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 10 MHz to 6000 MHz, 1 Watt RF Input Power, 30 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 10 MHz to 6000 MHz, 1 Watt RF Input Power, 30 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 10 MHz to 6000 MHz, 1 Watt RF Input Power, 30 dB Gain 3.5 dB Noise Figure, 12V, SMA

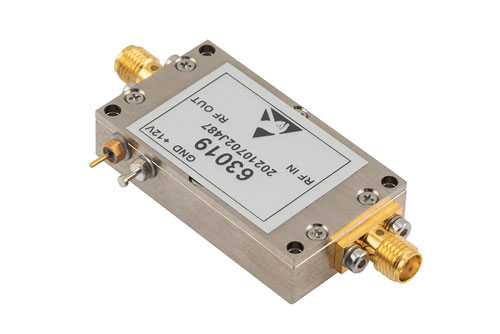

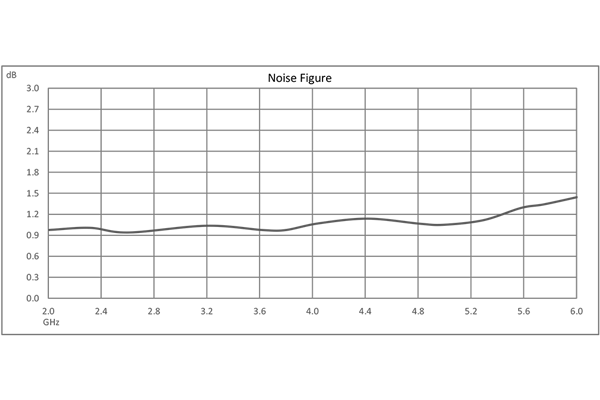

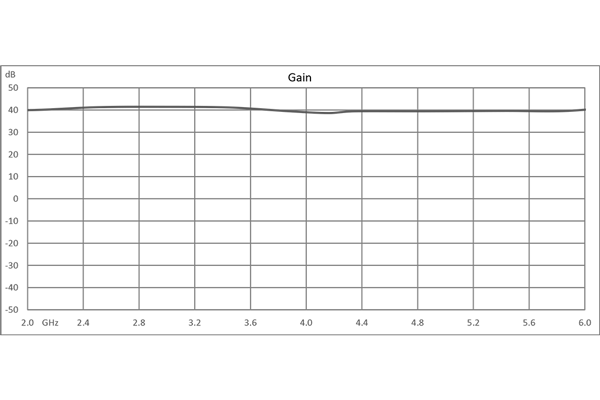

Input Protected Low Noise Amplifier, 2 GHz to 6 GHz, 1 Watt RF Input Power, 40 dB Gain 1.2 dB Noise Figure, 12V, SMA   PE15A63019

2 GHz to
6 GHz

40

+/- 1.0

1.2

+14.5

- - -

60

12/90

Yes / +30 dBm

SMA
Female
  • descrInput Protected Low Noise Amplifier, 2 GHz to 6 GHz, 1 Watt RF Input Power, 40 dB Gain 1.2 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 2 GHz to 6 GHz, 1 Watt RF Input Power, 40 dB Gain 1.2 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 2 GHz to 6 GHz, 1 Watt RF Input Power, 40 dB Gain 1.2 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 2 GHz to 6 GHz, 1 Watt RF Input Power, 40 dB Gain 1.2 dB Noise Figure, 12V, SMA

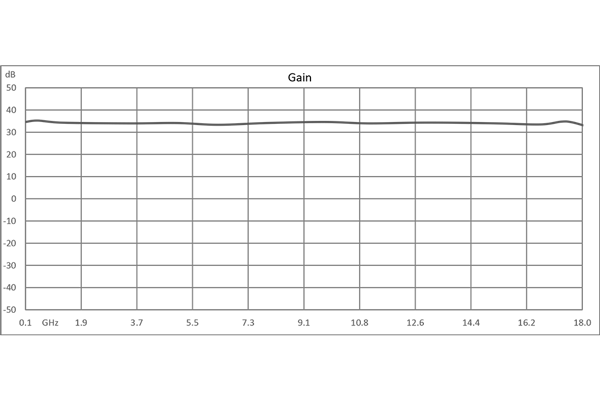

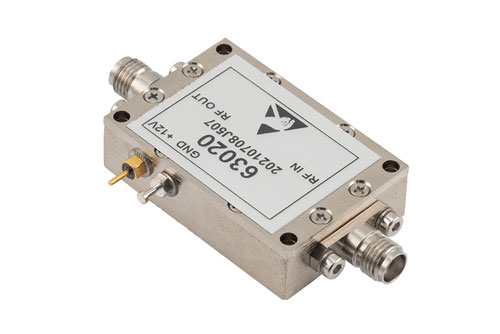

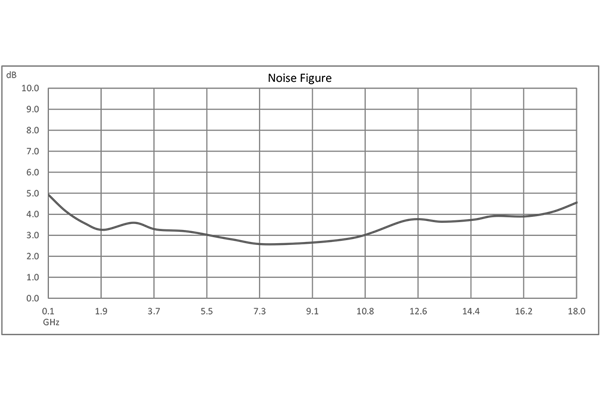

Input Protected Low Noise Amplifier, 100 MHz to 18 GHz, 1 Watt RF Input Power, 33 dB Gain 3.5 dB Noise Figure, 12V, SMA   PE15A63020

100 MHz to
18 GHz

33

+/- 1.5

3.5

+21.5

+30

50

12/280

Yes / +30 dBm

SMA
Female
  • descrInput Protected Low Noise Amplifier, 100 MHz to 18 GHz, 1 Watt RF Input Power, 33 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 100 MHz to 18 GHz, 1 Watt RF Input Power, 33 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 100 MHz to 18 GHz, 1 Watt RF Input Power, 33 dB Gain 3.5 dB Noise Figure, 12V, SMA
  • descrInput Protected Low Noise Amplifier, 100 MHz to 18 GHz, 1 Watt RF Input Power, 33 dB Gain 3.5 dB Noise Figure, 12V, SMA

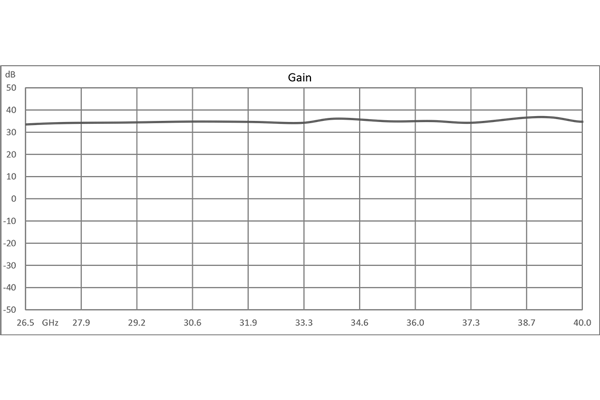

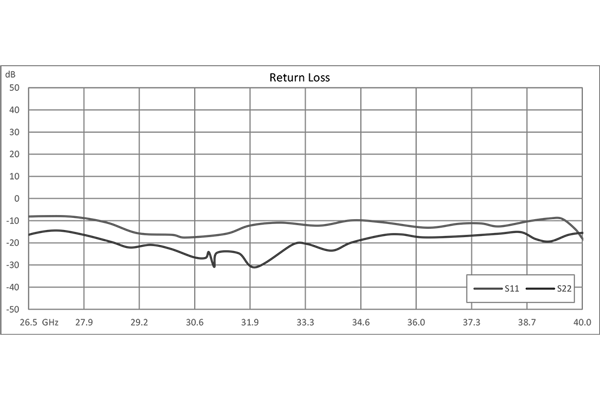

Ka Band Low Noise Amplifier, 26.5 GHz to 40 GHz, 35 dB Gain, 2.5 dB Noise Figure, 12V, 2.92mm   PE15A63021

26.5 GHz to
40 GHz

35

+/- 2.0

2.5

+11

+20

45

12/110

No / +10 dBm

2.92mm
Female
  • descrKa Band Low Noise Amplifier, 26.5 GHz to 40 GHz, 35 dB Gain, 2.5 dB Noise Figure, 12V, 2.92mm
  • descrKa Band Low Noise Amplifier, 26.5 GHz to 40 GHz, 35 dB Gain, 2.5 dB Noise Figure, 12V, 2.92mm
  • descrKa Band Low Noise Amplifier, 26.5 GHz to 40 GHz, 35 dB Gain, 2.5 dB Noise Figure, 12V, 2.92mm
  • descrKa Band Low Noise Amplifier, 26.5 GHz to 40 GHz, 35 dB Gain, 2.5 dB Noise Figure, 12V, 2.92mm

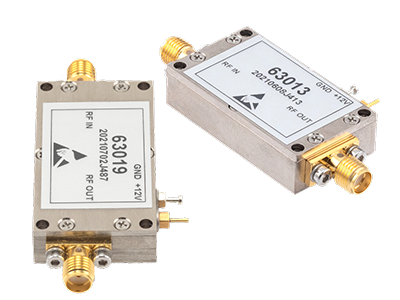

Low Noise Amplifier Expansion from Pasternack

This new series of Low Noise Amplifiers from Pasternack are available in compact coaxial packages and cover broadband frequencies ranging from 1 KHz to 40 GHz.  This includes a series of input protected designs that have 1 Watt CW RF input power handling capability.  The Low Noise Amplifier typical performance features high gain from 25 dB to 60 dB, low noise figure down to 1 dB, and output P1dB up to +21.5 dBm.

Low Noise Amplifiers are available in rugged Mil-Grade aluminum packages that support female SMA or 2.92mm connectors, and have an operational temperature range from -40°C to +85°C.  Low Noise Amplifiers are part of over 40,000 RF, microwave, and millimeter wave components available from Pasternack.  Our Low Noise Amplifiers ship worldwide the same day that it is bought as with our other available RF parts.
