Embedded GPS Antennas
  • Over 400 Unique Configurations
  • 10 popular Cable types
  • 8 Connector series/ 90+ connectors
  • Straight and Right-Angle connector bodies
  • Panel mount and bulkhead mount options
  • 1000’s of standard cables in stock
  • 100% PIM tested
  • PIM levels marked on each assembly
  • Custom Combinations available same day

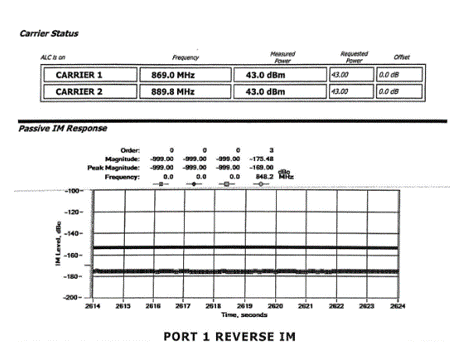

  • Every cable PIM tested to published performance specifications
  • Each assembly labeled with production tested PIM level
  • PIM performance varies by connector type most assemblies having PIM levels below -160dBc
  • High quality components and precision assembly processes result in Excellent RF performance
  • RF verification testing of max frequency and VSWR prior to shipment

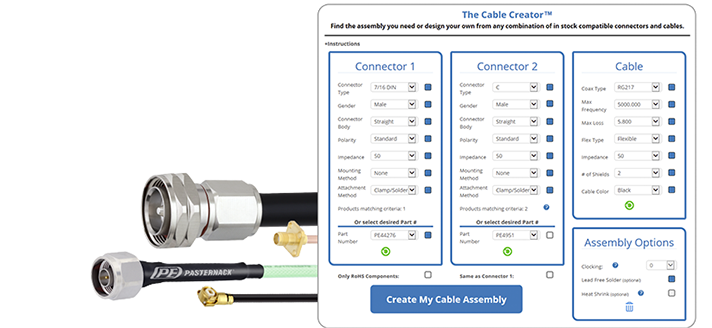

The Cable Creator

  • Large selection of connector and coax options
  • On-line cable configurator
  • Professional technical support staff
  • Custom assemblies ship same day with verified
    PIM performance

Check out our cable creator

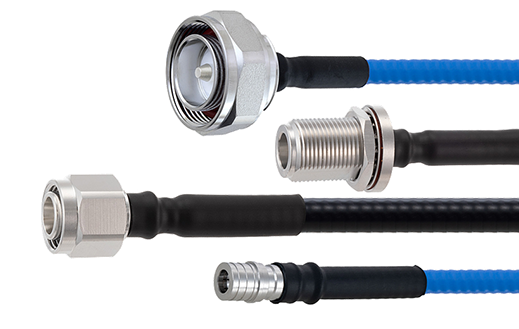

Low PIM RF Cable Assemblies Pasternack from Pasternack

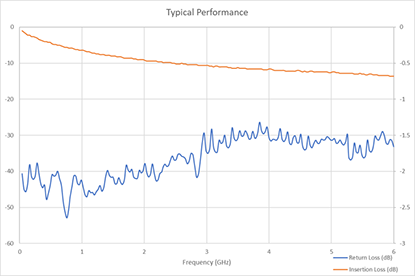

Pasternack’s low passive intermodulation (PIM), low loss jumper cable assemblies feature a max PIM level of -160 dBc depending on connector of choice and ship the same day they are ordered. We build these low PIM, low loss assemblies using Pasternack’s own ¼ inch Superflex as well as popular coax options from Times Microwave, a leading supplier of low PIM coaxial cable. The PIM levels of each RF cable assembly have been fully tested with the results of those tests marked on each cable. These low-PIM coaxial cables boast a maximum operating frequency of 6 GHz and a maximum VSWR of 1.25:1 up to 2 GHz and 1.35:1 up to 6 GHz.

These low PIM coax cables are lightweight, flexible and have an operating temperature range of -55 degC to +125 deg C. A broad selection of RF cable connectors are available including 2.2-5, 4.3-10, 7/16 DIN, Type N, QMA, NEX10, 4.1-9.5 mini-DIN, and SMA. These coax cable connectors are available in multiple configurations including straight male and female genders, bulkhead mount and right angle configurations. Typical applications for these Pasternack low loss, low PIM coaxial cable assembly products include multi-carrier communication systems, indoor wireless systems, industrial automation systems, distributed antenna systems (DAS) as well as outdoor antenna jumpers. These low PIM cables are offered in custom lengths and connector combinations with same day shipping!
