Pasternack's coaxial noise sources with integral isolators feature high output ENR levels. Our noise source components also have excellent flatness and stability. These integral isolator noise source modules offer good VSWR and protection from potential high incident RF power that may result from interaction with other components in system applications.


Part No.

& Additional

Views

Frequency
Range
(GHz)

Noise Output ENR (dB)

Typical ENR Flatness
(dB)

Bias
Voltage
(Vdc)

DC
Connector

RF Output
Connector

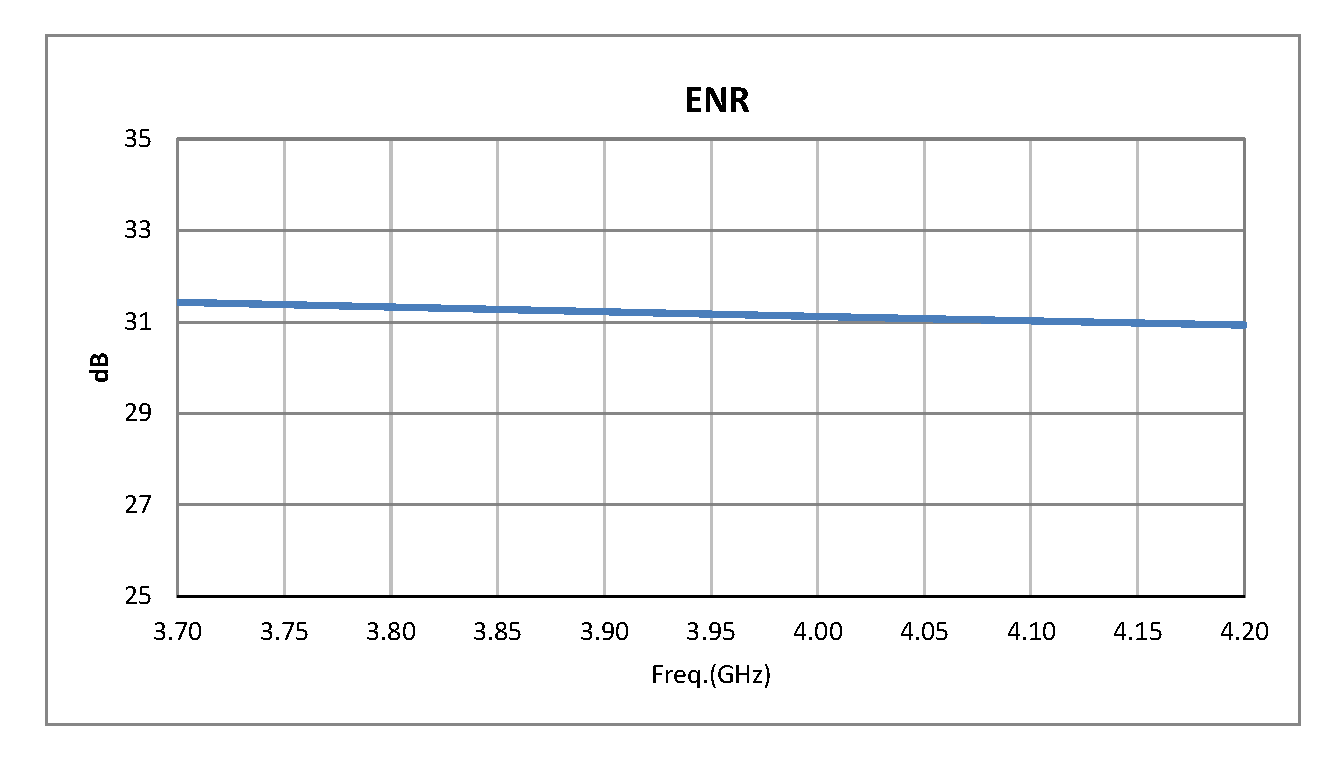

50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized   PE85N1014

3.7 - 4.2

30 - 35

± 0.75

+28

BNC Female

SMA Female

  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized

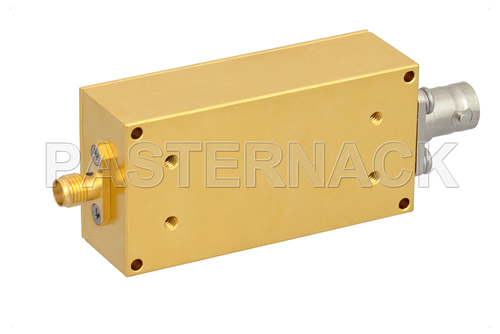

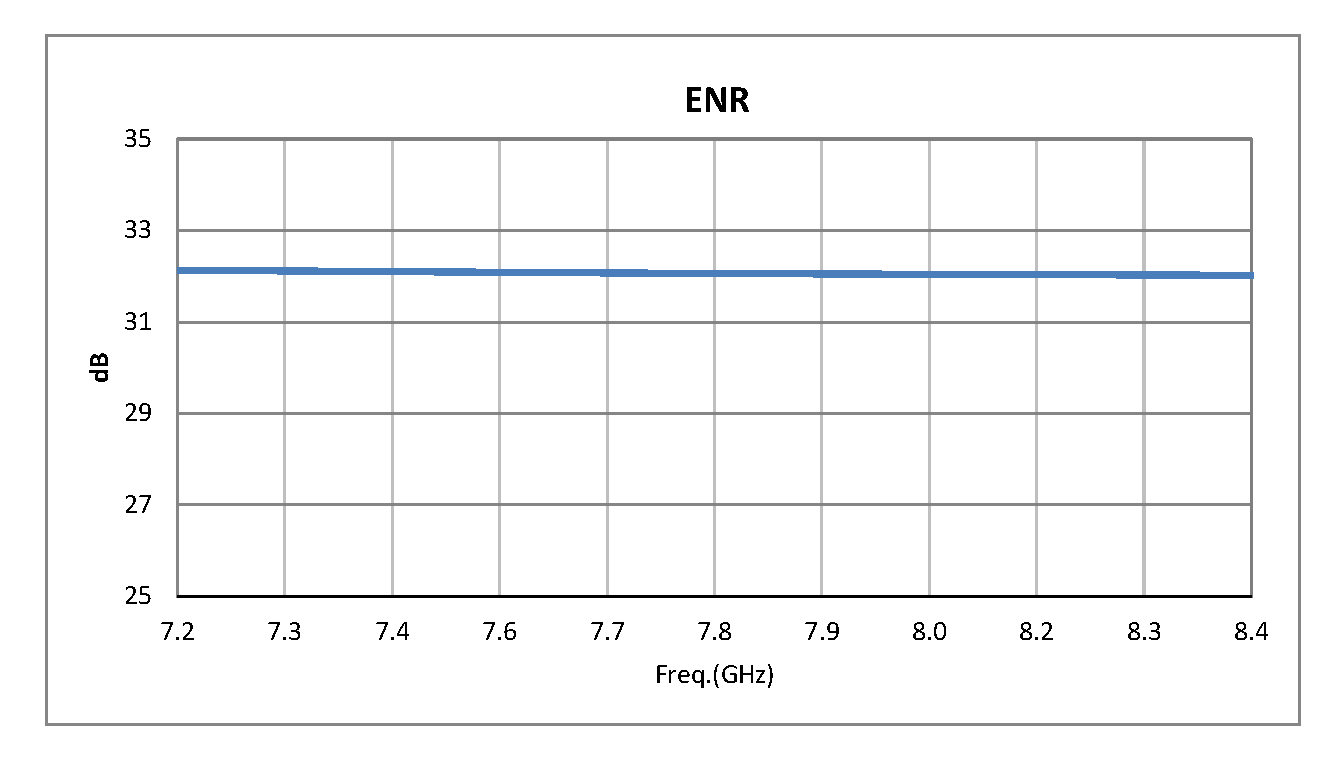

50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized   PE85N1015

7.2 - 8.4

30 - 35

± 0.75

+28

BNC Female

SMA Female

  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized

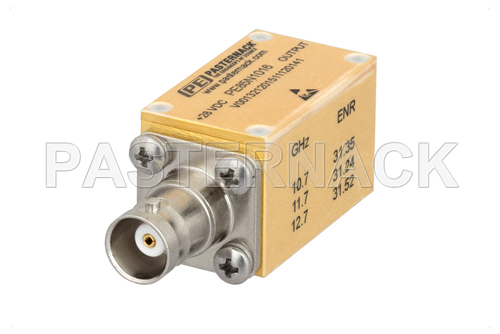

50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized   PE85N1016

10.7 - 12.7

30 - 35

± 0.75

+28

BNC Female

SMA Female

  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
  • descr50 Ohm Calibrated Noise Source w/ Isolator 30-35 dB High Output ENR, Connectorized
