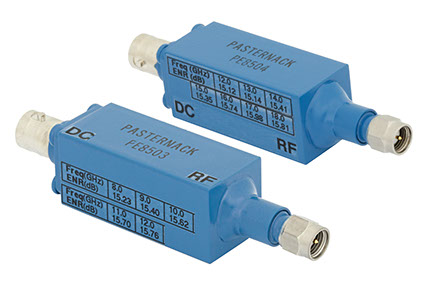

Noise Sources in Octave Bands

Pasternack's series of coaxial packaged noise sources cover several popular octave frequency bands. Noise source components range from 1 GHz to 18 GHz. These RF noise source models generate noise output ENR levels ranging from 15.5 to 32.5 dB with excellent flatness and stability over temperature.


Part No.

& Additional

Views

Frequency
Range
(GHz)

Noise Output ENR (dB)

Typical ENR Flatness
(dB)

Noise Output
Variation

Bias
Voltage
(Vdc)

DC
Connector

RF Output
Connector

50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 1 GHz to 2 GHz   PE8500

1 - 2

15.5

± 1

0.1 dB/%V

+28

BNC Female

SMA Male
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 1 GHz to 2 GHz
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 1 GHz to 2 GHz

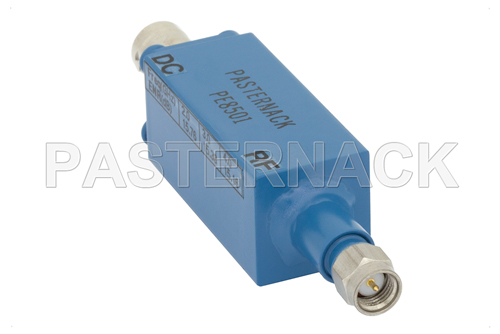

50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 2 GHz to 4 GHz   PE8501

2 - 4

15.5

± 1

0.1 dB/%V

+28

BNC Female

SMA Male
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 2 GHz to 4 GHz
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 2 GHz to 4 GHz

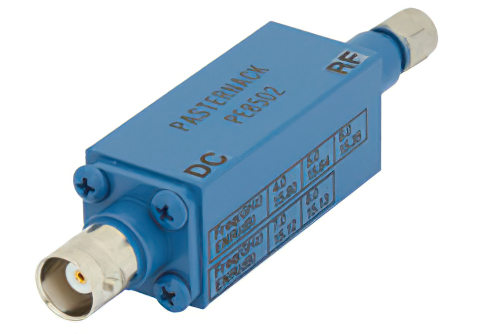

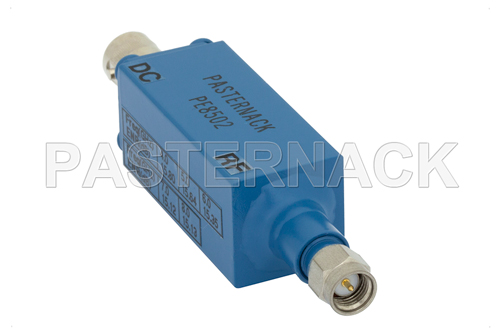

50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 4 GHz to 8 GHz   PE8502

4 - 8

15.5

± 1

0.1 dB/%V

+28

BNC Female

SMA Male
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 4 GHz to 8 GHz
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 4 GHz to 8 GHz

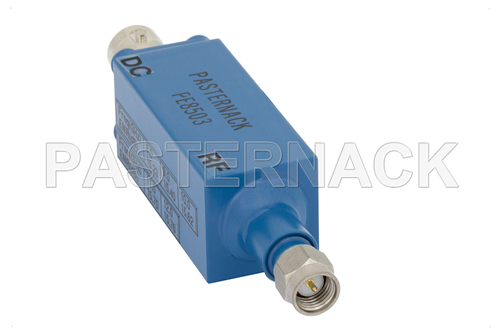

50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 8 GHz to 12 GHz   PE8503

8 - 12

15.5

± 1

0.1 dB/%V

+28

BNC Female

SMA Male
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 8 GHz to 12 GHz
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 8 GHz to 12 GHz

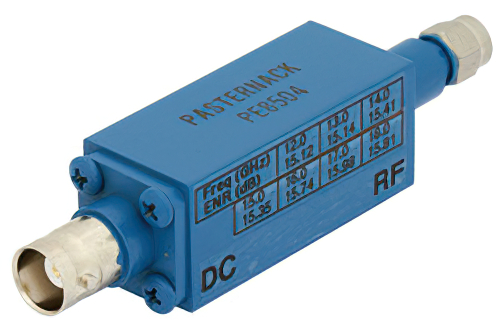

50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 12 GHz to 18 GHz   PE8504

12 - 18

15.5

± 1

0.1 dB/%V

+28

BNC Female

SMA Male
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 12 GHz to 18 GHz
  • descr50 Ohm BNC Medium Power Noise Source With A Noise Output ENR Of 15.5 dB From 12 GHz to 18 GHz

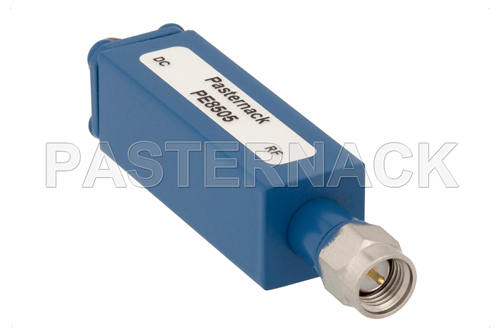

50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 1 GHz to 2 GHz   PE8505

1 - 2

32.5

± 1

0.1 dB/%V

+28

SMA Female

SMA Male
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 1 GHz to 2 GHz
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 1 GHz to 2 GHz

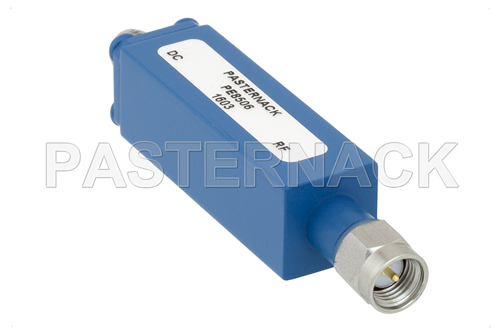

50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 2 GHz to 4 GHz   PE8506

2 - 4

32.5

± 1

0.1 dB/%V

+28

SMA Female

SMA Male
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 2 GHz to 4 GHz
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 2 GHz to 4 GHz

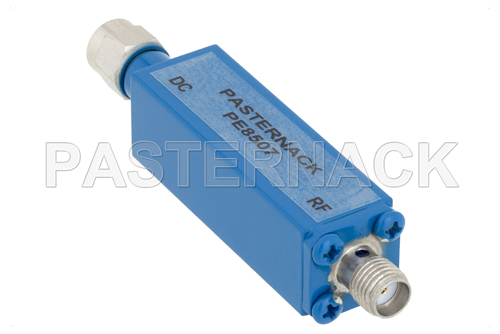

50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 4 GHz to 8 GHz   PE8507

4 - 8

32.5

± 1

0.1 dB/%V

+28

SMA Female

SMA Male
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 4 GHz to 8 GHz
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 35 dB From 4 GHz to 8 GHz

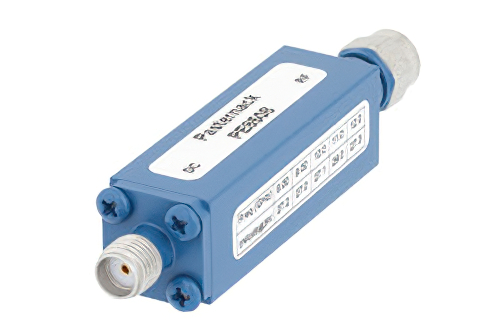

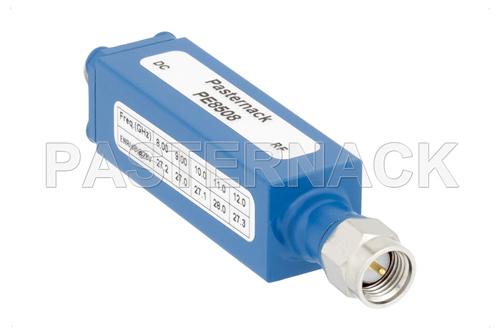

50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 33 dB From 8 GHz to 12 GHz   PE8508

8 - 12

30.0

± 1

0.1 dB/%V

+28

SMA Female

SMA Male
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 33 dB From 8 GHz to 12 GHz
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 33 dB From 8 GHz to 12 GHz

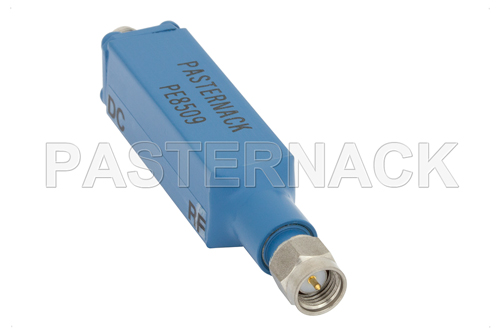

50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 32 dB From 12 GHz to 18 GHz   PE8509

12 - 18

30.0

± 1

0.1 dB/%V

+28

SMA Female

SMA Male
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 32 dB From 12 GHz to 18 GHz
  • descr50 Ohm SMA High Power Noise Source With A Noise Output ENR Of 32 dB From 12 GHz to 18 GHz
