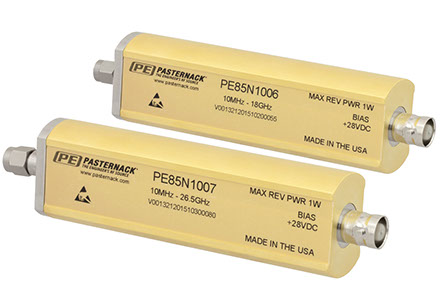

Precision Calibrated Noise Standards

Pasternack's series of coaxial precision calibrated noise sources cover extremely wide frequency bands. RF Calibrated precision noise sources range from 10 MHz to 60 GHz. The precision noise source designs feature very low VSWR and calibration points every 10 MHz that significantly reduces measurement uncertainty, in addition to stringent temperature and voltage stability.


Part No.

& Additional

Views

Frequency
Range
(GHz)

Noise Output ENR (dB)

Typical ENR Flatness
(dB)

Temperature
Coefficient / Noise
Output Variation

Calibrated
Frequencies
(MHz)

Bias
Voltage
(Vdc)

DC
Connector

RF Output
Connector

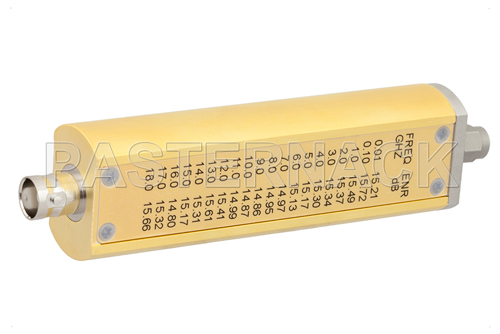

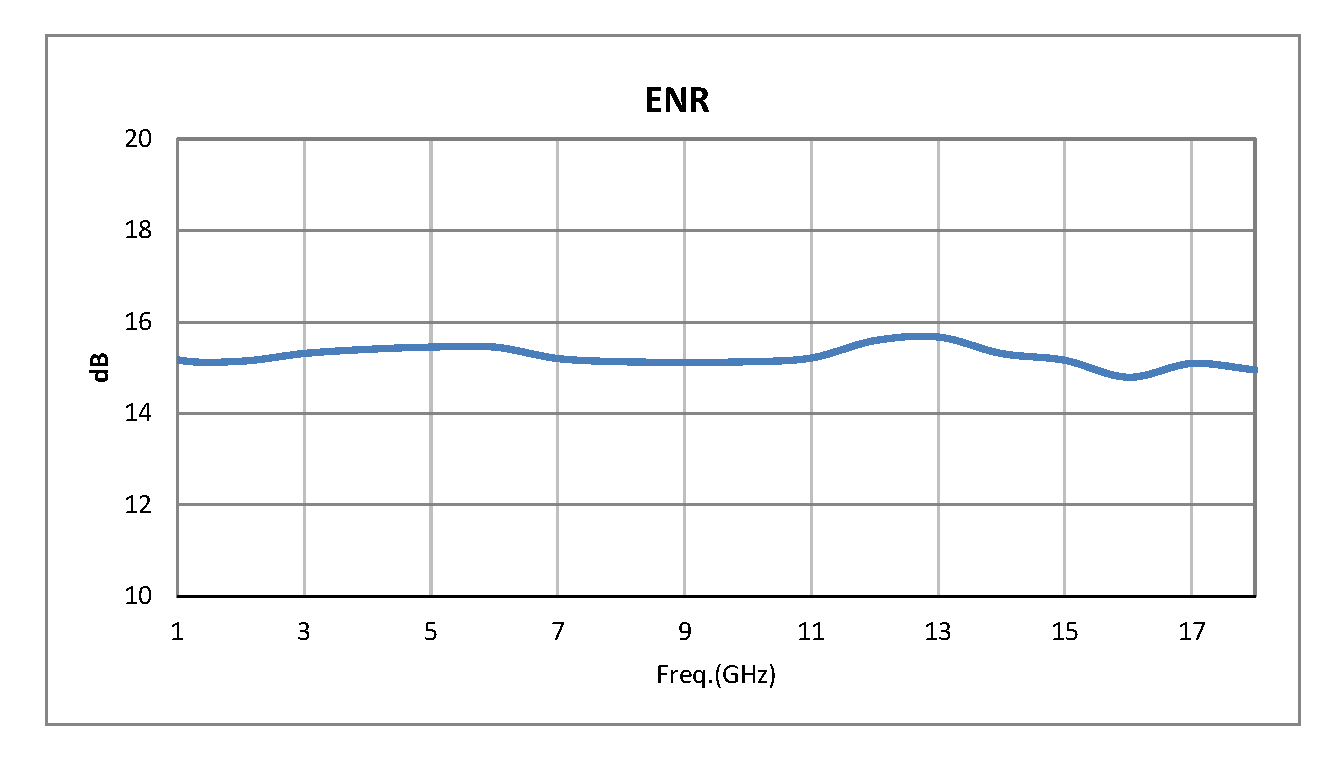

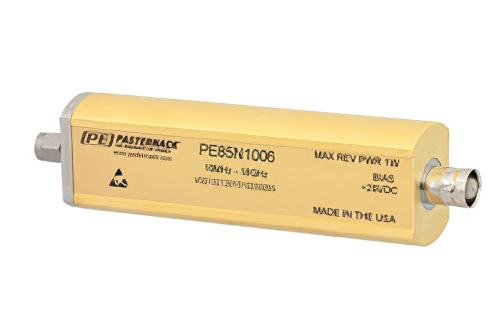

SMA Precision Calibrated Noise Source With A Noise Output ENR Of 14 dB From 10 MHz to 18 GHz   PE85N1006

0.01 - 18

14 - 16

± 1.5

< 0.009 dB/°C
< 0.002 dB/%V

10 MHz
Every 1 GHz

+28V ±2V

BNC Female

SMA Male
  • descrSMA Precision Calibrated Noise Source With A Noise Output ENR Of 14 dB From 10 MHz to 18 GHz
  • descrSMA Precision Calibrated Noise Source With A Noise Output ENR Of 14 dB From 10 MHz to 18 GHz
  • descrSMA Precision Calibrated Noise Source With A Noise Output ENR Of 14 dB From 10 MHz to 18 GHz

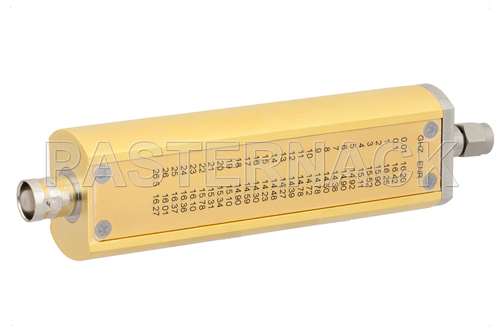

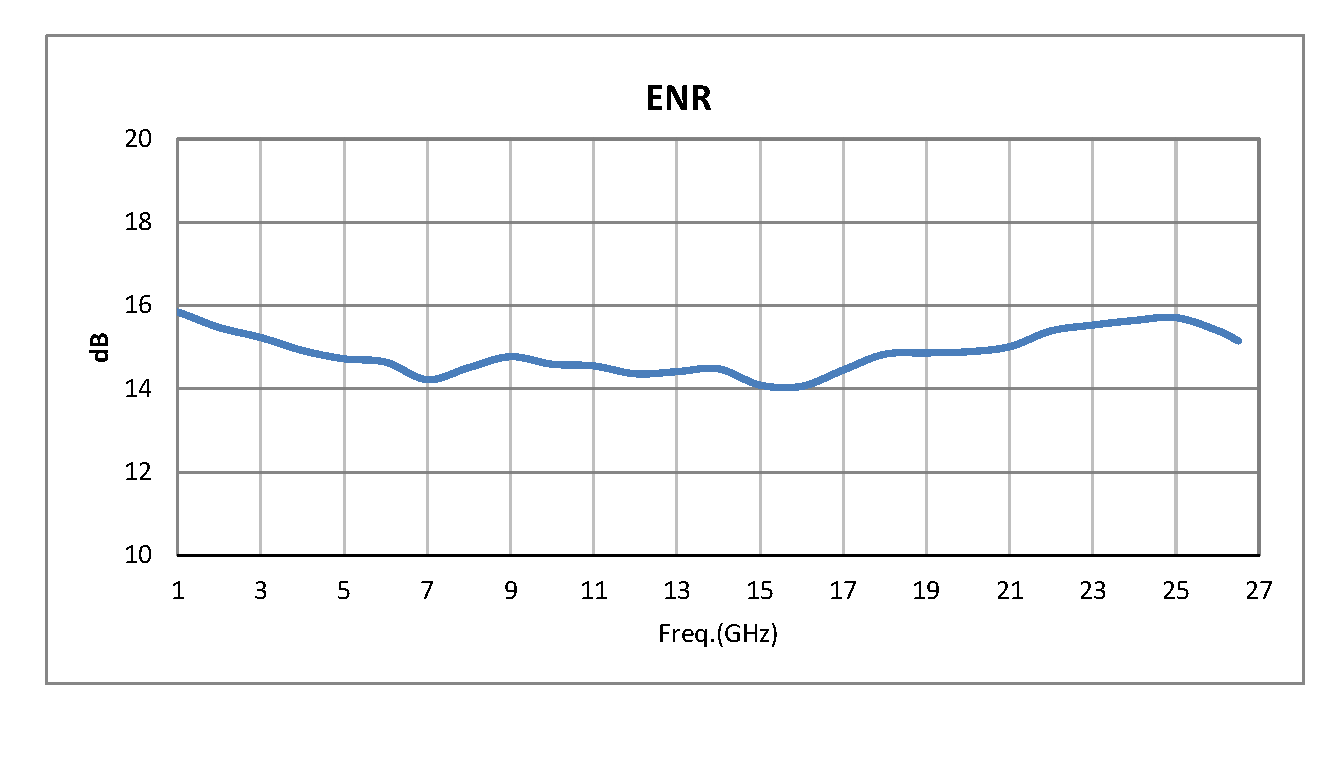

3.5mm Precision Calibrated Noise Source With A Noise Output ENR Of 13 dB From 10 MHz to 26 GHz   PE85N1007

0.01 - 26

13 - 17

± 1.5

< 0.009 dB/°C
< 0.002 dB/%V

10 MHz
Every 1 GHz

+28V ±2V

BNC Female

3.5 mm Male
  • descr3.5mm Precision Calibrated Noise Source With A Noise Output ENR Of 13 dB From 10 MHz to 26 GHz
  • descr3.5mm Precision Calibrated Noise Source With A Noise Output ENR Of 13 dB From 10 MHz to 26 GHz
  • descr3.5mm Precision Calibrated Noise Source With A Noise Output ENR Of 13 dB From 10 MHz to 26 GHz

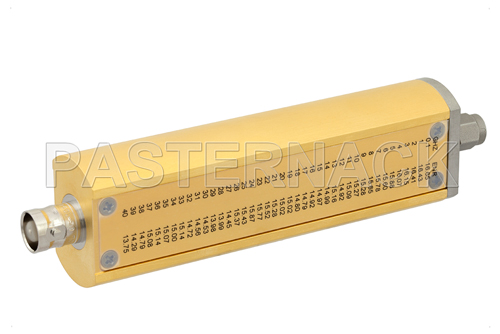

2.92mm Precision Calibrated Noise Source With A Noise Output ENR Of 10 dB From 100 MHz to 40 GHz   PE85N1008

0.01 - 40

10 - 17

- - -

< 0.009 dB/°C
< 0.002 dB/%V

10 MHz
Every 1 GHz

+28V ±2V

BNC Female

2.92 mm Male
  • descr2.92mm Precision Calibrated Noise Source With A Noise Output ENR Of 10 dB From 100 MHz to 40 GHz
  • descr2.92mm Precision Calibrated Noise Source With A Noise Output ENR Of 10 dB From 100 MHz to 40 GHz
  • descr2.92mm Precision Calibrated Noise Source With A Noise Output ENR Of 10 dB From 100 MHz to 40 GHz

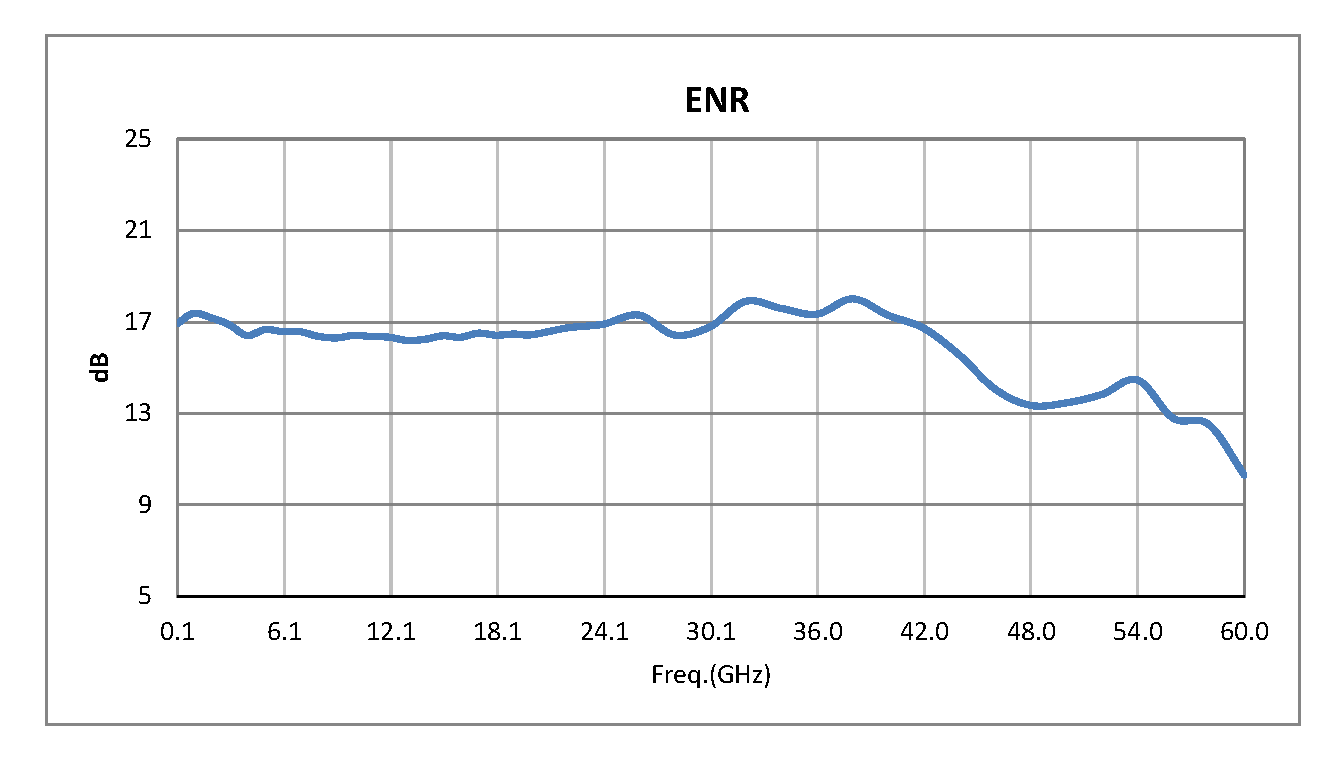

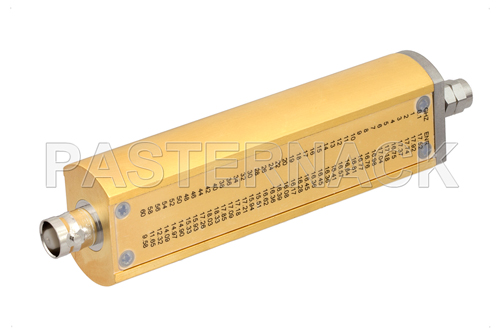

50 Ohm Precision Calibrated Noise Standard 7-21 dB Output ENR V Male Connector   PE85N1009

0.01 - 60

7 - 21

± 3.9

< 0.009 dB/°C
< 0.002 dB/%V

10 MHz
Every 1 GHz

+28V ±2V

BNC Female

2.4 mm Male
  • descr50 Ohm Precision Calibrated Noise Standard 7-21 dB Output ENR V Male Connector
  • descr50 Ohm Precision Calibrated Noise Standard 7-21 dB Output ENR V Male Connector
  • descr50 Ohm Precision Calibrated Noise Standard 7-21 dB Output ENR V Male Connector
