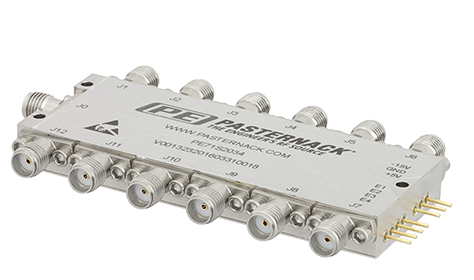

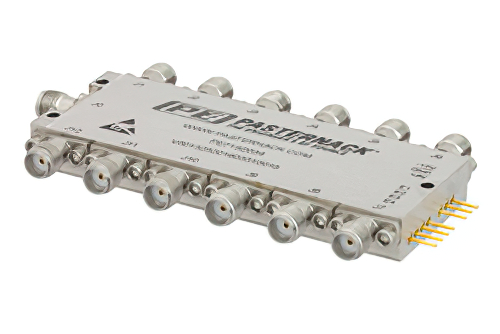

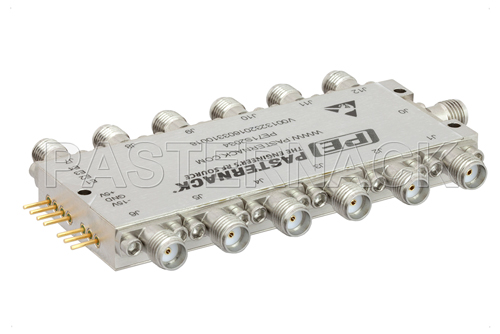

Pasternack single pole twelve throw (SP12T) pin diode switches cover a frequency band from 100 MHz to 20 GHz. The absorptive SP12T pin diode switch design features excellent isolation of 65 dB typical and fast switching speed of 75 nsec typical. The MIL-Grade rugged coaxial pin diode SP12T switch package design is compact and has integrated TTL compatible logic control circuitry.
SP12T PIN Diode Switches
Part No.
& Additional
Views
SP12T Switch
Design
RF Frequency
Range
(MHz)
Typical

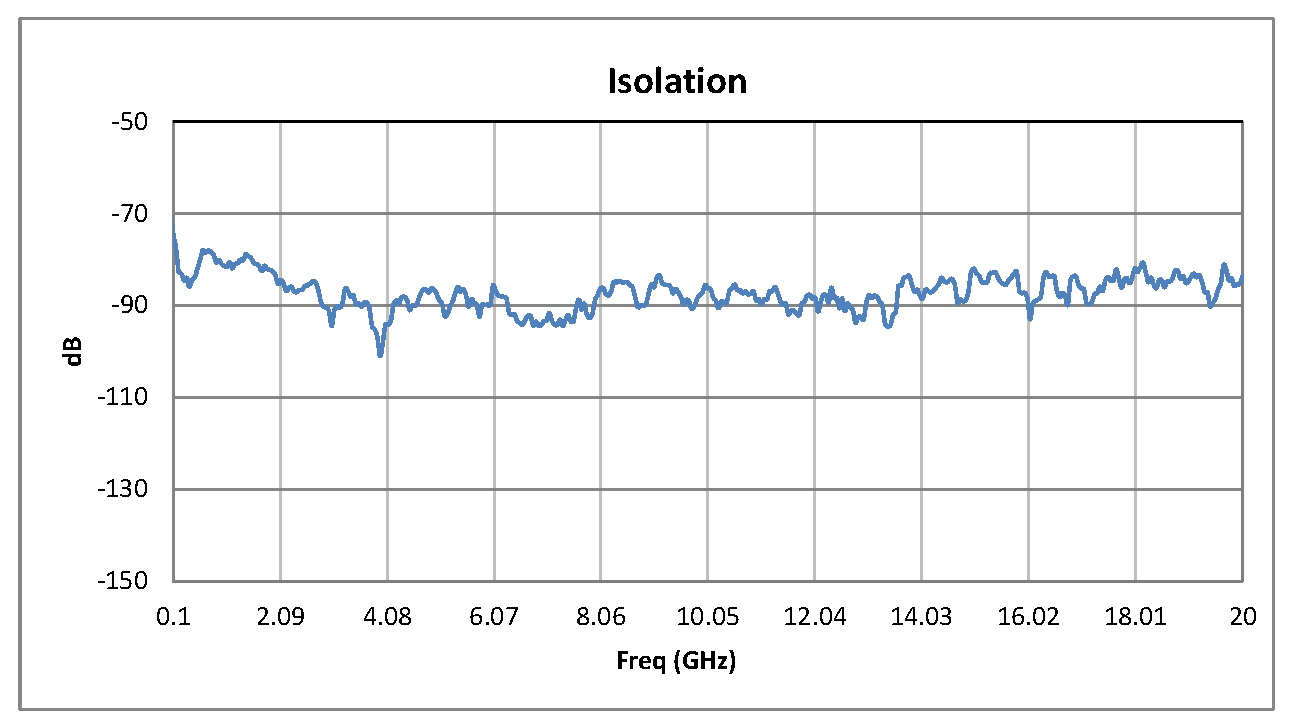

Isolation
(dB)
Typical

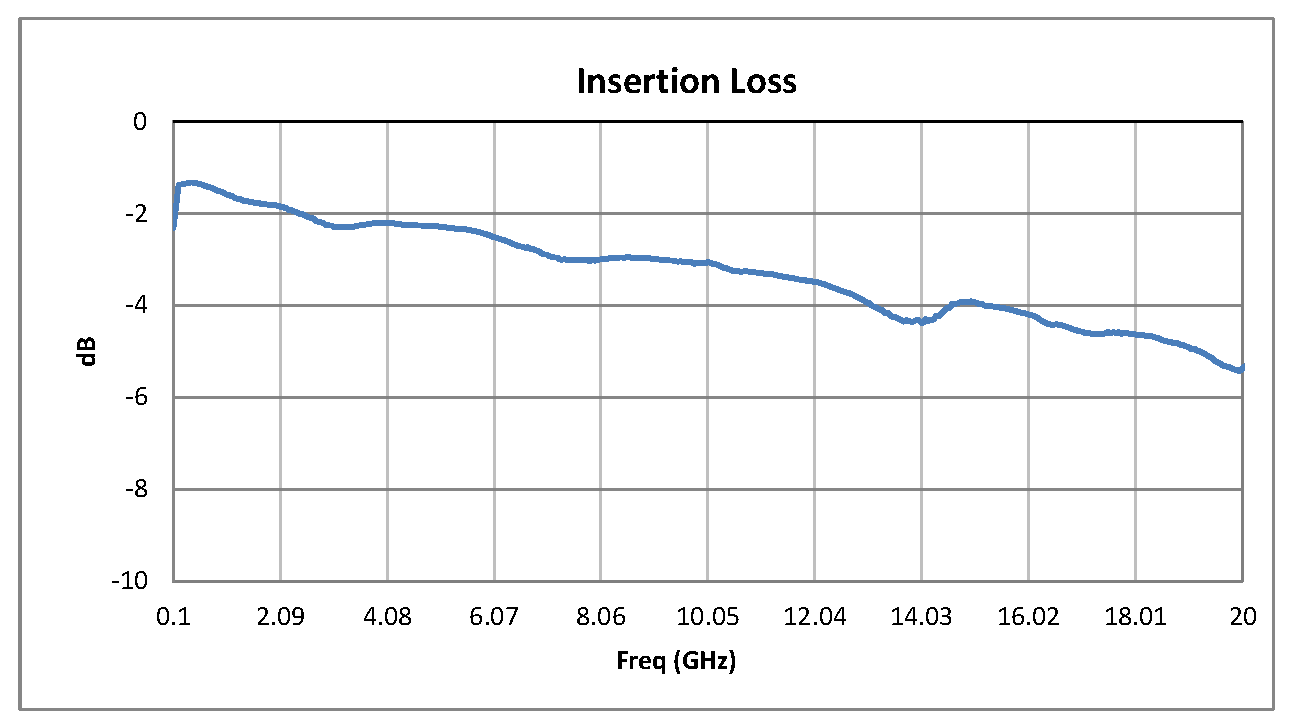

Insertion
Loss (dB)
Typical
Switching
Time (ns)
Max RF Input
Power (CW)
(Watts)
TTL Control
Connector
Type
Field
Replaceable
 |
PE71S2034 | Absorptive |
100-20,000 |
65 |
5.2 |
100 |
0.5 |
Solder Pin |
SMA Female |
No |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
