USA & Canada +1 (866) 727-8376  International  +1 (949) 261-1920

USA & Canada (866) 727-8376  International +1 (949) 261-1920

Embedded GPS Antennas
  • Comprehensive Selection of designs cover wide frequency bands ranging from 230 MHz to 5420 MHz
  • Output Power Ranges from 0 dBm to +9 dBm
  • Exceptional Phase Noise performance as low as -110 dBc/Hz at 10
    KHz offset
  • 50 ohm designs have internal voltage regulation and reverse DC protection
  • Compact and rugged SMA connectorized packages
  • Operational Temperature Range: -40°C to +85°C


Part No.

& Additional

Views

Frequency
(MHz)

Tuning
Voltage
(Vdc)

Output
Power Typ
(dBm)

Supply
Voltage
(Vdc)

Phase Noise
@ 10 KHz Offset
(dBc/Hz) (Typ)

Tuning
Sensitivity
(MHz/V) (Typ)

2nd Harmonic
Suppression
dBc (Typ)

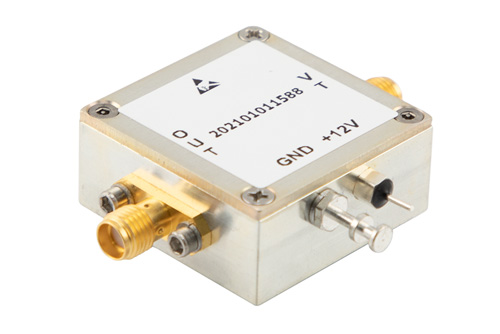

Voltage Controlled Oscillator, 230 MHz to 290 MHz, Pout +2 dBm, Phase Noise of -107 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31015

230 to 290

0.5 to 4.5

+2

12.0

-107

22

-8.5
  • descrVoltage Controlled Oscillator, 230 MHz to 290 MHz, Pout +2 dBm, Phase Noise of -107 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 230 MHz to 290 MHz, Pout +2 dBm, Phase Noise of -107 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 230 MHz to 290 MHz, Pout +2 dBm, Phase Noise of -107 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 230 MHz to 290 MHz, Pout +2 dBm, Phase Noise of -107 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

Voltage Controlled Oscillator, 500 MHz to 600 MHz, Pout -2 dBm, Phase Noise of -105 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31016

500 to 600

0.5 to 4.5

-2

12.0

-105

45

-20
  • descrVoltage Controlled Oscillator, 500 MHz to 600 MHz, Pout -2 dBm, Phase Noise of -105 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 500 MHz to 600 MHz, Pout -2 dBm, Phase Noise of -105 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 500 MHz to 600 MHz, Pout -2 dBm, Phase Noise of -105 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 500 MHz to 600 MHz, Pout -2 dBm, Phase Noise of -105 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

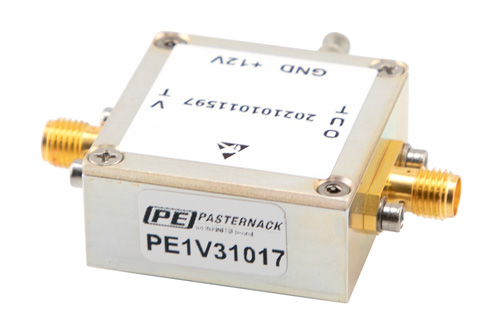

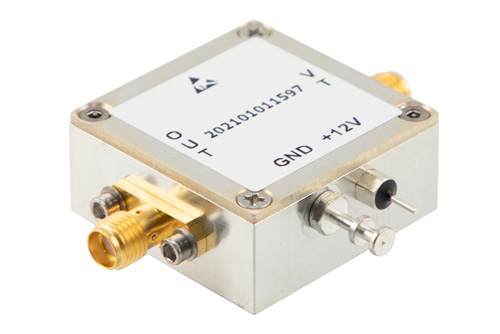

Voltage Controlled Oscillator, 620 MHz to 660 MHz, Pout 0 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31017

620 to 660

0.5 to 4.5

0

12.0

-110

19

-13
  • descrVoltage Controlled Oscillator, 620 MHz to 660 MHz, Pout 0 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 620 MHz to 660 MHz, Pout 0 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 620 MHz to 660 MHz, Pout 0 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 620 MHz to 660 MHz, Pout 0 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

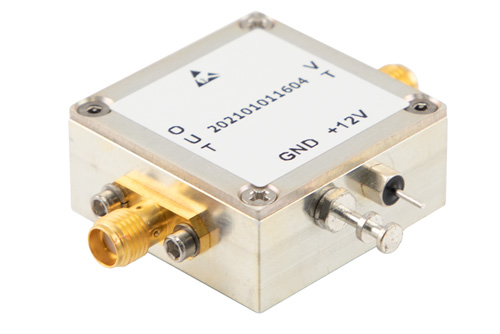

Voltage Controlled Oscillator, 850 MHz to 890 MHz, Pout +8 dBm, Phase Noise of -99 dBc/Hz, 0V to 5V Tuning Range, SMA   PE1V31018

850 to 890

0.0 to 5.0

+8

12.0

-99

40

-5
  • descrVoltage Controlled Oscillator, 850 MHz to 890 MHz, Pout +8 dBm, Phase Noise of -99 dBc/Hz, 0V to 5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 850 MHz to 890 MHz, Pout +8 dBm, Phase Noise of -99 dBc/Hz, 0V to 5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 850 MHz to 890 MHz, Pout +8 dBm, Phase Noise of -99 dBc/Hz, 0V to 5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 850 MHz to 890 MHz, Pout +8 dBm, Phase Noise of -99 dBc/Hz, 0V to 5V Tuning Range, SMA

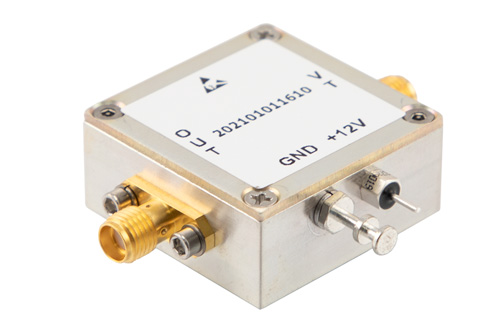

Voltage Controlled Oscillator, 900 MHz to 960 MHz, Pout +5.5 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.0V Tuning Range, SMA   PE1V31019

900 to 960

0.5 to 4.5

+5.5

12.0

-110

37

-15
  • descrVoltage Controlled Oscillator, 900 MHz to 960 MHz, Pout +5.5 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 900 MHz to 960 MHz, Pout +5.5 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 900 MHz to 960 MHz, Pout +5.5 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 900 MHz to 960 MHz, Pout +5.5 dBm, Phase Noise of -110 dBc/Hz, 0.5V to 4.0V Tuning Range, SMA

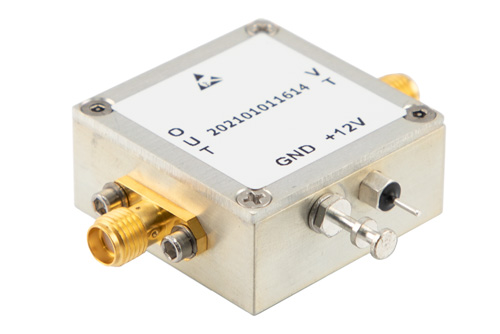

Voltage Controlled Oscillator, 1070 MHz to 1210 MHz, Pout +1.5 dBm, Phase Noise of -109 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31020

1070 to 1210

0.5 to 4.5

+1.5

12.0

-109

37

-16
  • descrVoltage Controlled Oscillator, 1070 MHz to 1210 MHz, Pout +1.5 dBm, Phase Noise of -109 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1070 MHz to 1210 MHz, Pout +1.5 dBm, Phase Noise of -109 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1070 MHz to 1210 MHz, Pout +1.5 dBm, Phase Noise of -109 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1070 MHz to 1210 MHz, Pout +1.5 dBm, Phase Noise of -109 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

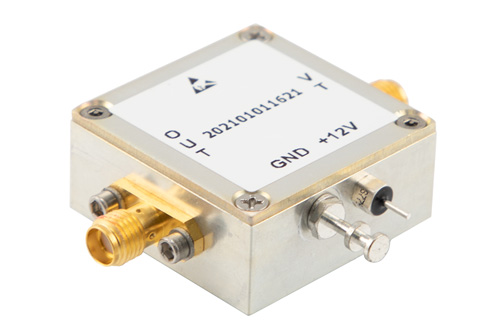

Voltage Controlled Oscillator, 1435 MHz to 1650 MHz, Pout +7 dBm, Phase Noise of -90 dBc/Hz, 0.5V to 5.0V Tuning Range, SMA   PE1V31021

1435 to 1650

0.5 to 5.0

+7

12.0

-90

80

-7
  • descrVoltage Controlled Oscillator, 1435 MHz to 1650 MHz, Pout +7 dBm, Phase Noise of -90 dBc/Hz, 0.5V to 5.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1435 MHz to 1650 MHz, Pout +7 dBm, Phase Noise of -90 dBc/Hz, 0.5V to 5.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1435 MHz to 1650 MHz, Pout +7 dBm, Phase Noise of -90 dBc/Hz, 0.5V to 5.0V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1435 MHz to 1650 MHz, Pout +7 dBm, Phase Noise of -90 dBc/Hz, 0.5V to 5.0V Tuning Range, SMA

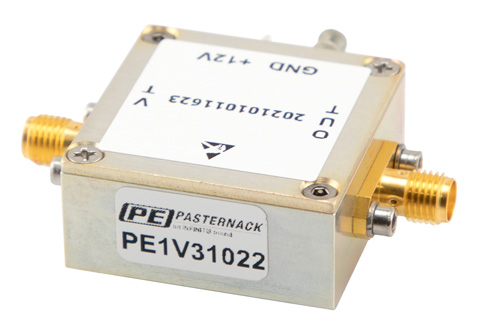

Voltage Controlled Oscillator, 1550 MHz to 1850 MHz, Pout +1.5 dBm, Phase Noise of -99 dBc/Hz, 0.25V to 4.75V Tuning Range, SMA   PE1V31022

1550 to 1850

0.25 to 4.75

+1.5

12.0

-99

85

-20
  • descrVoltage Controlled Oscillator, 1550 MHz to 1850 MHz, Pout +1.5 dBm, Phase Noise of -99 dBc/Hz, 0.25V to 4.75V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1550 MHz to 1850 MHz, Pout +1.5 dBm, Phase Noise of -99 dBc/Hz, 0.25V to 4.75V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1550 MHz to 1850 MHz, Pout +1.5 dBm, Phase Noise of -99 dBc/Hz, 0.25V to 4.75V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1550 MHz to 1850 MHz, Pout +1.5 dBm, Phase Noise of -99 dBc/Hz, 0.25V to 4.75V Tuning Range, SMA

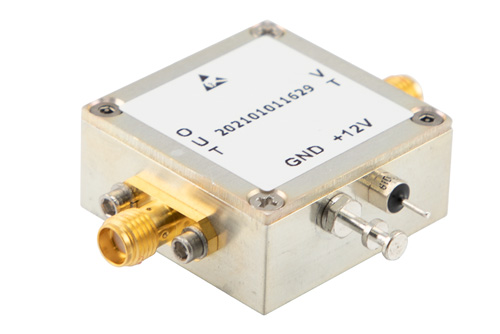

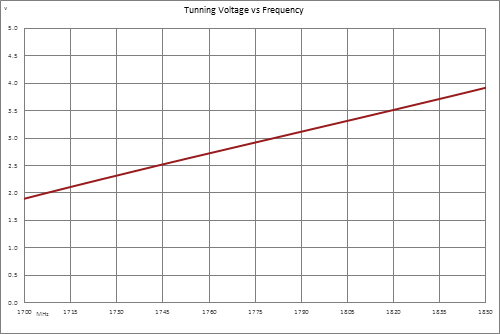

Voltage Controlled Oscillator, 1700 MHz to 1850 MHz, Pout 0 dBm, Phase Noise of -96 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31023

1700 to 1850

0.5 to 4.5

0

12.0

-96

70

-15
  • descrVoltage Controlled Oscillator, 1700 MHz to 1850 MHz, Pout 0 dBm, Phase Noise of -96 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1700 MHz to 1850 MHz, Pout 0 dBm, Phase Noise of -96 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1700 MHz to 1850 MHz, Pout 0 dBm, Phase Noise of -96 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 1700 MHz to 1850 MHz, Pout 0 dBm, Phase Noise of -96 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

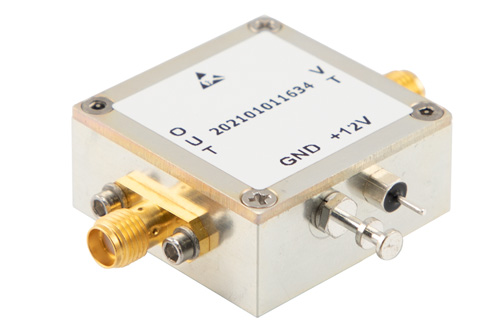

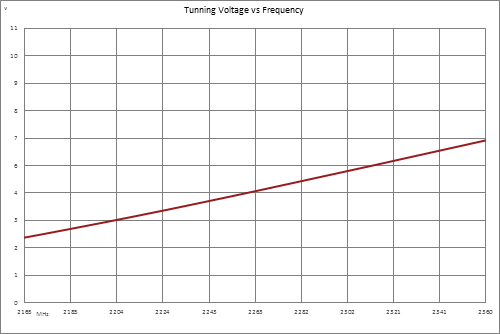

Voltage Controlled Oscillator, 2165 MHz to 2360 MHz, Pout +5 dBm, Phase Noise of -99 dBc/Hz, 0.5V to 10V Tuning Range, SMA   PE1V31024

2165 to 2360

0.5 to 10.0

+5

12.0

-99

56

-10
  • descrVoltage Controlled Oscillator, 2165 MHz to 2360 MHz, Pout +5 dBm, Phase Noise of -99 dBc/Hz, 0.5V to 10V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2165 MHz to 2360 MHz, Pout +5 dBm, Phase Noise of -99 dBc/Hz, 0.5V to 10V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2165 MHz to 2360 MHz, Pout +5 dBm, Phase Noise of -99 dBc/Hz, 0.5V to 10V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2165 MHz to 2360 MHz, Pout +5 dBm, Phase Noise of -99 dBc/Hz, 0.5V to 10V Tuning Range, SMA

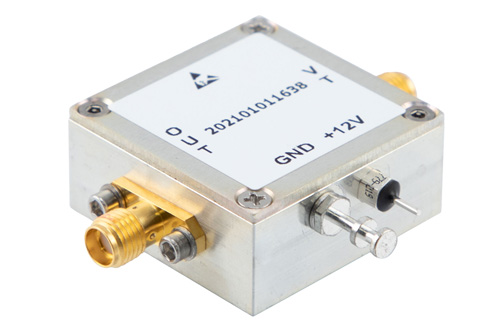

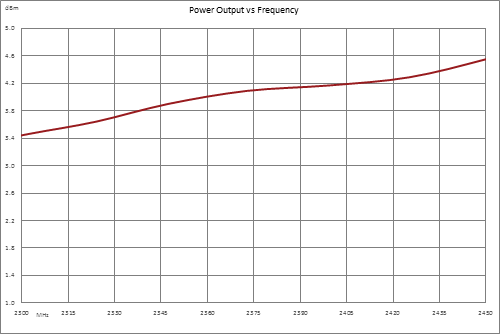

Voltage Controlled Oscillator, 2300 MHz to 2450 MHz, Pout +3 dBm, Phase Noise of -101 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31025

2300 to 2450

0.5 to 4.5

+3

12.0

-101

50

-15
  • descrVoltage Controlled Oscillator, 2300 MHz to 2450 MHz, Pout +3 dBm, Phase Noise of -101 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2300 MHz to 2450 MHz, Pout +3 dBm, Phase Noise of -101 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2300 MHz to 2450 MHz, Pout +3 dBm, Phase Noise of -101 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2300 MHz to 2450 MHz, Pout +3 dBm, Phase Noise of -101 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

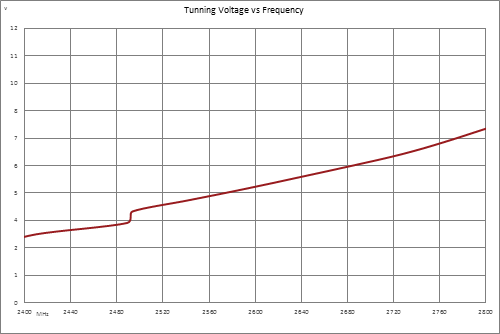

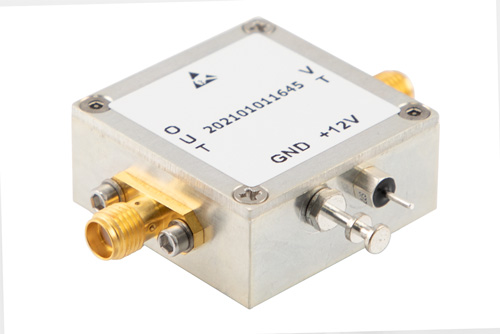

Voltage Controlled Oscillator, 2400 MHz to 2800 MHz, Pout +9 dBm, Phase Noise of -92 dBc/Hz, 1V to 11V Tuning Range, SMA   PE1V31026

2400 to 2800

1.0 to 11.0

+9

12.0

-92

80

-10
  • descrVoltage Controlled Oscillator, 2400 MHz to 2800 MHz, Pout +9 dBm, Phase Noise of -92 dBc/Hz, 1V to 11V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2400 MHz to 2800 MHz, Pout +9 dBm, Phase Noise of -92 dBc/Hz, 1V to 11V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2400 MHz to 2800 MHz, Pout +9 dBm, Phase Noise of -92 dBc/Hz, 1V to 11V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 2400 MHz to 2800 MHz, Pout +9 dBm, Phase Noise of -92 dBc/Hz, 1V to 11V Tuning Range, SMA

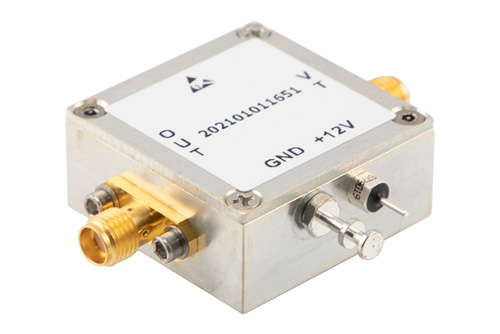

Voltage Controlled Oscillator, 3300 MHz to 3400 MHz, Pout +5 dBm, Phase Noise of -88 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31027

3300 to 3400

0.5 to 20

+5

12.0

-88

98

-15
  • descrVoltage Controlled Oscillator, 3300 MHz to 3400 MHz, Pout +5 dBm, Phase Noise of -88 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 3300 MHz to 3400 MHz, Pout +5 dBm, Phase Noise of -88 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 3300 MHz to 3400 MHz, Pout +5 dBm, Phase Noise of -88 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 3300 MHz to 3400 MHz, Pout +5 dBm, Phase Noise of -88 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

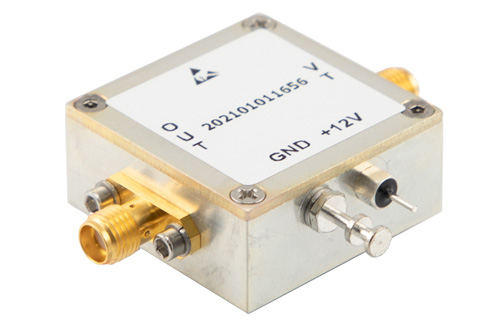

Voltage Controlled Oscillator, 4245 MHz to 4335 MHz, Pout +0.5 dBm, Phase Noise of -87 dBc/Hz, 0.5V to 8V Tuning Range, SMA   PE1V31028

4245 to 4335

1 to 10

+0.5

12.0

-87

70

-13
  • descrVoltage Controlled Oscillator, 4245 MHz to 4335 MHz, Pout +0.5 dBm, Phase Noise of -87 dBc/Hz, 0.5V to 8V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 4245 MHz to 4335 MHz, Pout +0.5 dBm, Phase Noise of -87 dBc/Hz, 0.5V to 8V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 4245 MHz to 4335 MHz, Pout +0.5 dBm, Phase Noise of -87 dBc/Hz, 0.5V to 8V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 4245 MHz to 4335 MHz, Pout +0.5 dBm, Phase Noise of -87 dBc/Hz, 0.5V to 8V Tuning Range, SMA

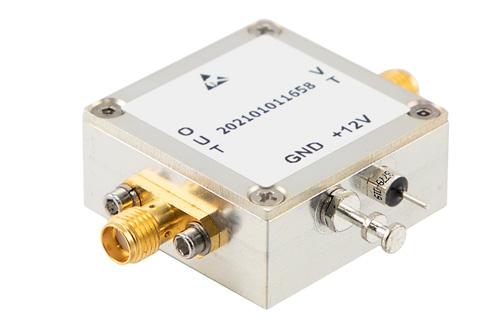

Voltage Controlled Oscillator, 5220 MHz to 5420 MHz, Pout -1 dBm, Phase Noise -83 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA   PE1V31029

5220 to 5420

1 to 10

-1

12.0

-83

108

-25
  • descrVoltage Controlled Oscillator, 5220 MHz to 5420 MHz, Pout -1 dBm, Phase Noise -83 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 5220 MHz to 5420 MHz, Pout -1 dBm, Phase Noise -83 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 5220 MHz to 5420 MHz, Pout -1 dBm, Phase Noise -83 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA
  • descrVoltage Controlled Oscillator, 5220 MHz to 5420 MHz, Pout -1 dBm, Phase Noise -83 dBc/Hz, 0.5V to 4.5V Tuning Range, SMA

Voltage Controlled Oscillator Expansion from Pasternack

The new series of Voltage Controlled Oscillators from Pasternack (also known as VCO) are featured in our extensive in-stock RF Oscillator selection.  Our connectorized voltage controlled oscillators use SMA connectors at 50 Ohm.  The SMA voltage controlled oscillators cover wide frequency bands ranging from 230 MHz to 5420 MHz.  The exceptional Phase Noise of these voltage controlled oscillators are as low as -110 dBc/Hz at 10 KHz, with output power from 0 to +9 dBm.  These VCO's are rated at 15 Volts DC maximum.

Voltage controlled oscillators are rated at 15 Volts DC maximum and have internal voltage regulation. Our radio frequency voltage controlled oscillators are part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. These coaxial radio frequency voltage controlled oscillators can ship worldwide the same day of the purchase as with our other available RF parts.



For a complete list of Pasternack's products please click here
