Waveguide Detectors
  • Frequency Ranges from 26.5 to 110 GHz
  • Popular Waveguide sizes range from WR-28 to WR-10
  • Models exhibit optimum Voltage Sensitivity performance in Ka, Q, U, V, E, & W bands
  • Negative Output Voltage Polarity for a variety of applications
  • All designs are Zero Biased - no external DC bias or mechanical tuning
  • Compact Package design includes integrated Waveguide ports

Part No.

Frequency

 Range

(GHz)

Frequency

 Band

Voltage Output Polarity

Voltage Sensitivity (mV/mW)

Operating
RF Input
Power (dBm)

Waveguide
Input
Connector

Video Output Connector

Operating
Temperature

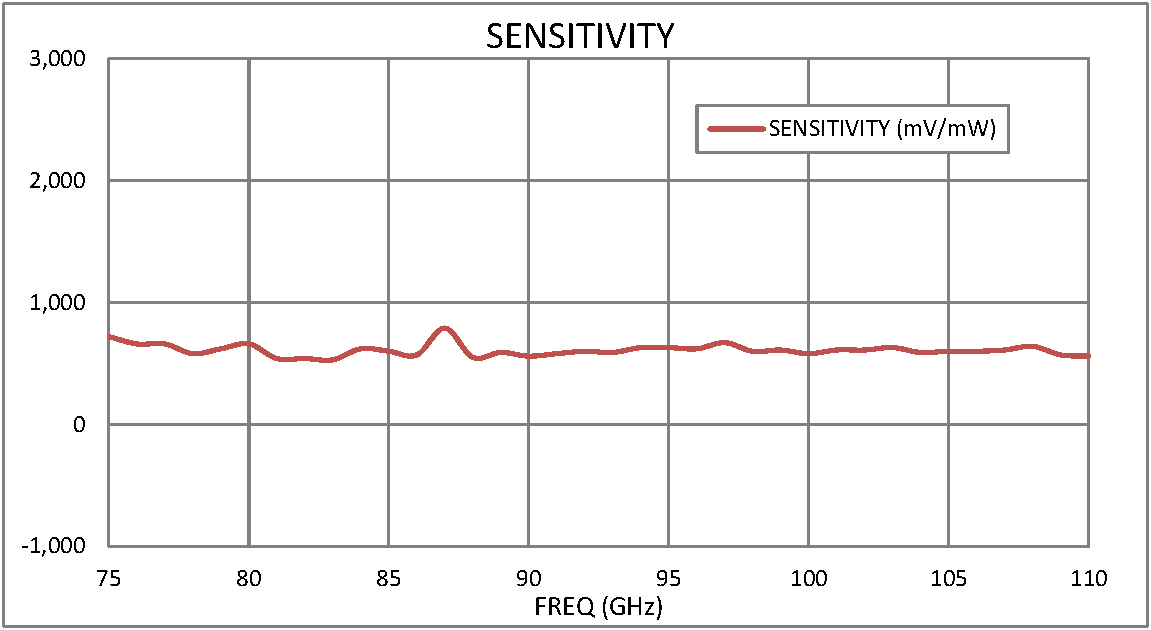

Zero Biased W Band Waveguide Detector, WR-10, Negative Video Out, 75 GHz to 100 GHz, UG-387/U PE80T3000

75 - 110

W Band

Negative

-600

20

WR-10
UG 387/U Flange

SMA Female

0°C to +50°C

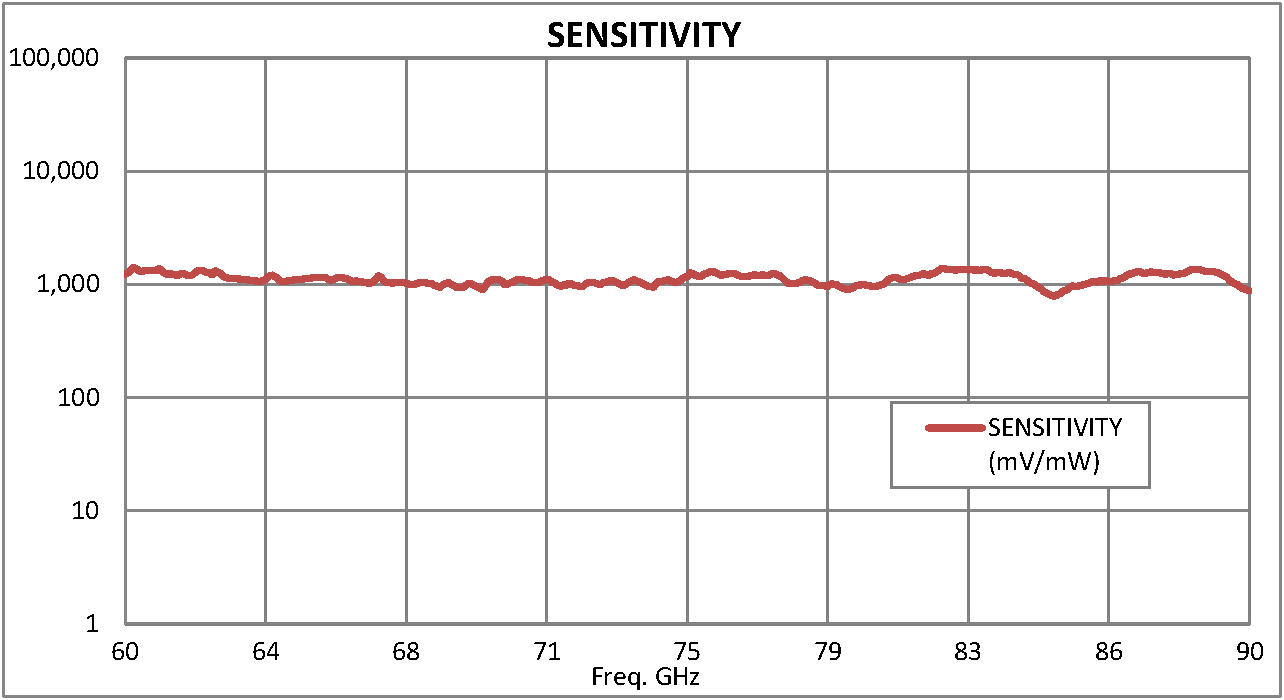

Zero Biased E Band Waveguide Detector, WR-12, Negative Video Out, 60 GHz to 90 GHz, UG-387/U PE80T3001

60 - 90

E Band

Negative

-900

20

WR-12
UG 387/U Flange

SMA Female

0°C to +50°C

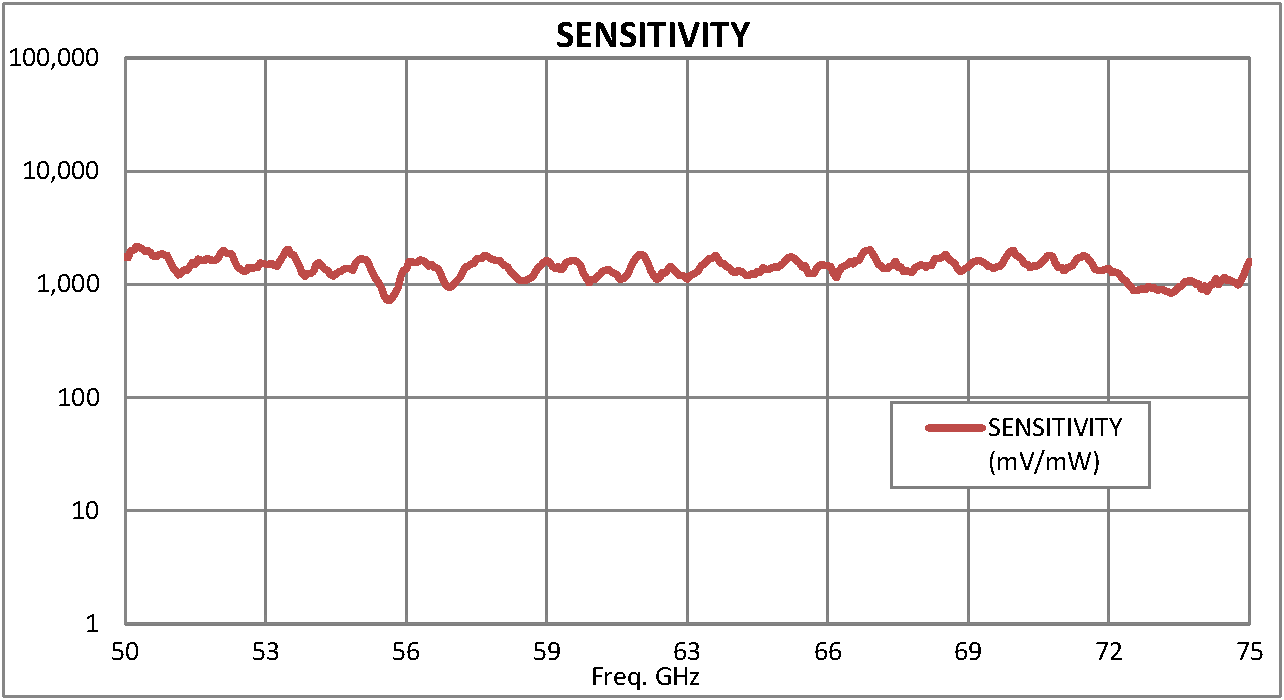

Zero Biased V Band Waveguide Detector, WR-15, Negative Video Out, 50 GHz to 75 GHz, UG-385/U PE80T3002

50 - 75

V Band

Negative

-1000

20

WR-15
UG-385/U Flange

SMA Female

0°C to +50°C



Zero Biased U Band Waveguide Detector, WR-19, Negative Video Out, 40 GHz to 60 GHz, UG-383/U PE80T3003

40 - 60

U Band

Negative

-1000

20

WR-19
UG-383/U Flange

SMA Female

0°C to +50°C

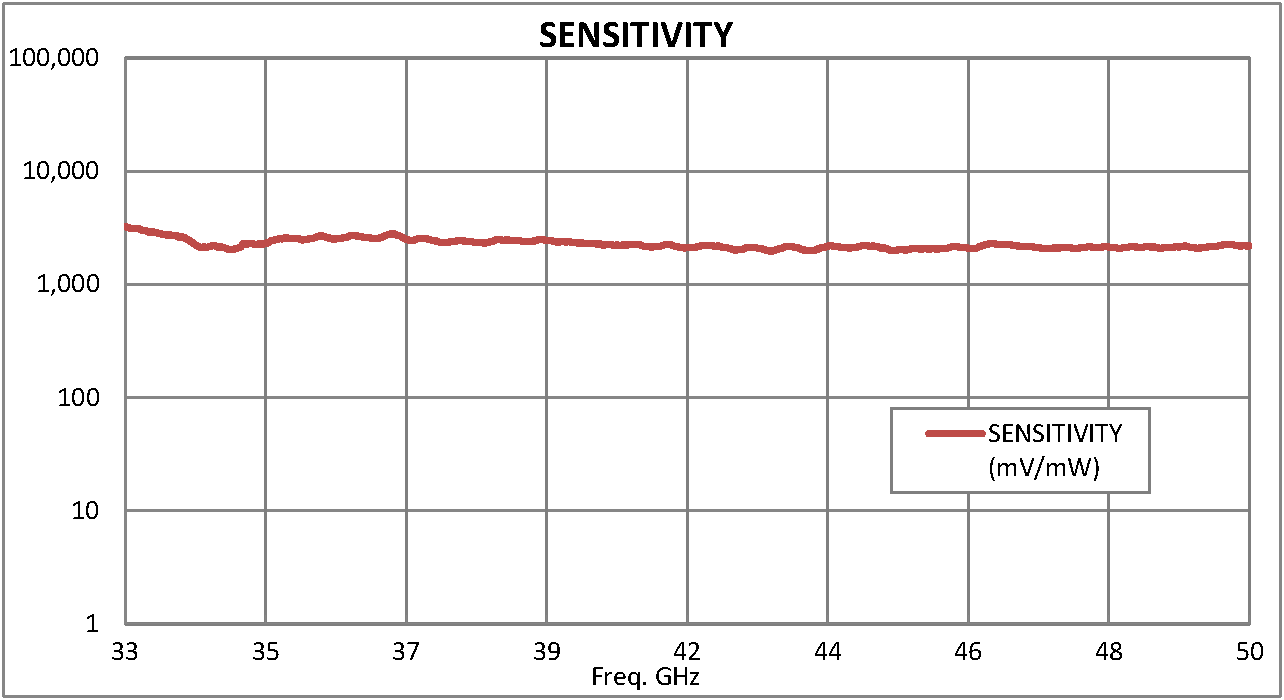

Zero Biased Q Band Waveguide Detector, WR-22, Negative Video Out, 33 GHz to 50 GHz, UG-383/U PE80T3004

33 - 50

Q Band

Negative

-1800

20

WR-22
UG-383/U Flange

SMA Female

0°C to +50°C

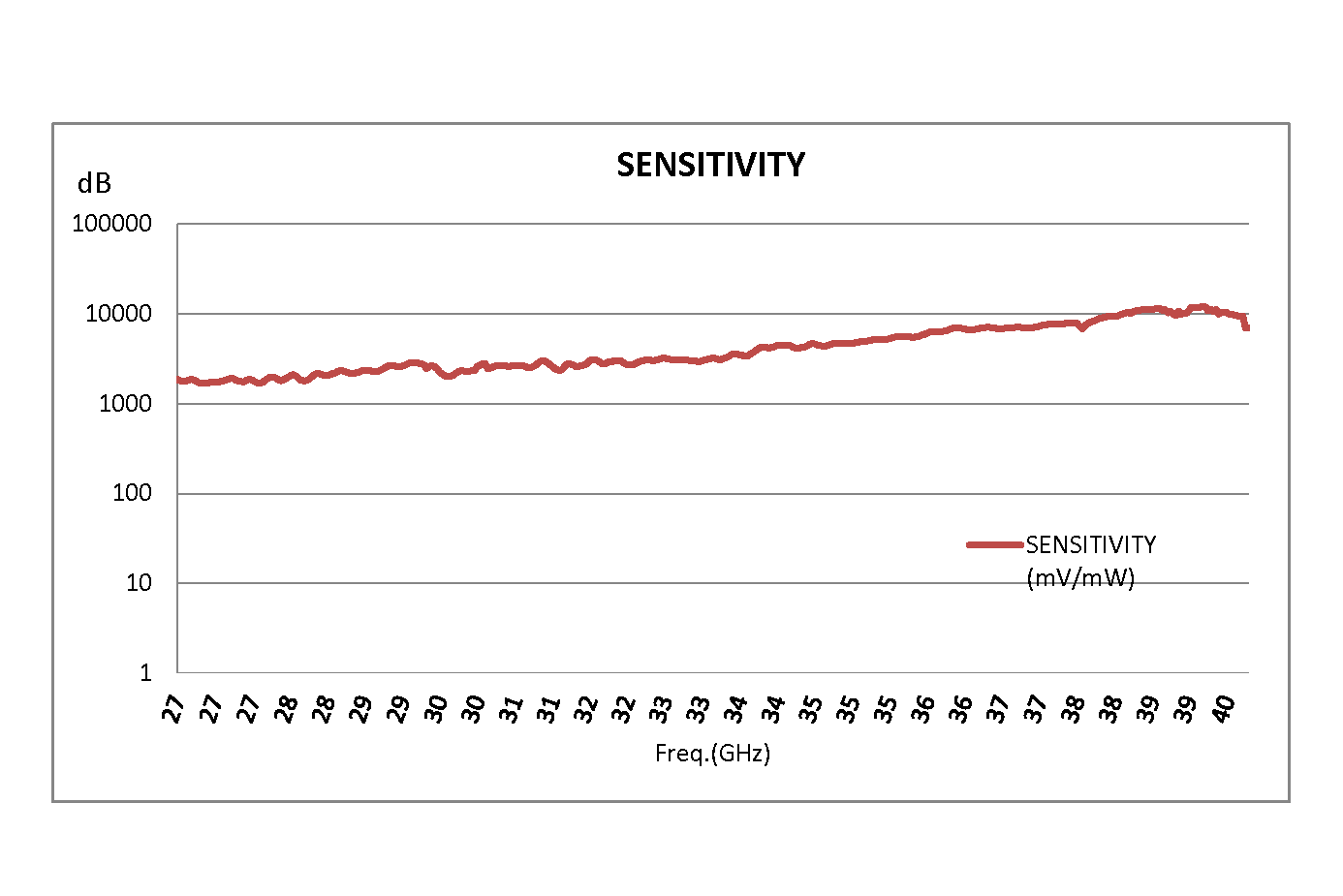

Zero Biased Ka Band Waveguide Detector, WR-28, Negative Video Out, 26.5 GHz to 40 GHz, UG-599/U PE80T3005

26.5 - 40

Ka Band

Negative

-3000

20

WR-28
UG-599/U Flange

SMA Female

0°C to +50°C




Waveguide Detectors
