  • Waveguide direct read attenuator Sizes from WR-42 to WR-10
  • Frequency range of 18 GHz to 110 GHz across seven bands
  • +/-2% typical attenuation accuracy
  • Easy to read waveguide attenuator drum scale
  • Minimum attenuation range from 0 to 50 dB
  • Insertion loss of 0.5 to 1.0 dB depending on the frequency range
  • UG flange style per military standard



Direct read waveguide attenuator series is in stock and ready for same-day shipping!

Click below for more direct read waveguide attenuator details


Part No.

Waveguide
Type

RF Frequency
Range (GHz)

Insertion
Loss (dB)

Maximum
VSWR

Attenuation
Max (dB)

Input Power
Max (Watts)

Flange

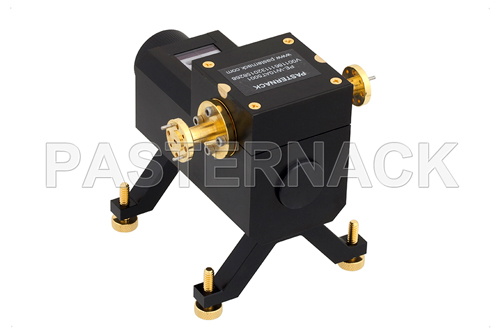

0 to 50 dB Waveguide Direct Read Attenuator, WR-10, From 75 GHz to 110 GHz, UG-387/U-Mod Flange   PE-W10AT5001

WR-10

75-110

1.00

1.20:1

50

0.20

UG-387/U-Mod

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-10, From 75 GHz to 110 GHz, UG-387/U-Mod Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-10, From 75 GHz to 110 GHz, UG-387/U-Mod Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-10, From 75 GHz to 110 GHz, UG-387/U-Mod Flange

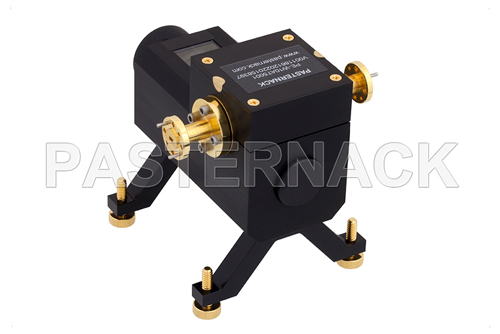

0 to 50 dB Waveguide Direct Read Attenuator, WR-12, From 60 GHz to 90 GHz, UG-387/U Flange   PE-W12AT5001

WR-12

60-90

0.90

1.20:1

50

0.20

UG-387/U

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-12, From 60 GHz to 90 GHz, UG-387/U Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-12, From 60 GHz to 90 GHz, UG-387/U Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-12, From 60 GHz to 90 GHz, UG-387/U Flange

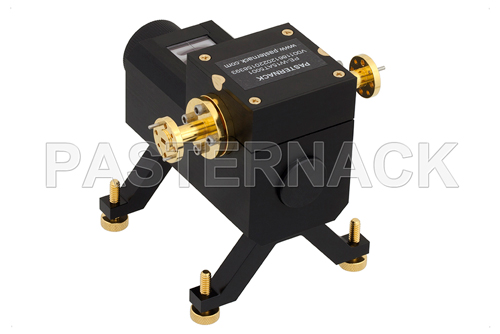

0 to 50 dB Waveguide Direct Read Attenuator, WR-15, From 50 GHz to 75 GHz, UG-385/U Flange   PE-W15AT5001

WR-15

50-75

0.80

1.20:1

50

0.30

UG-385/U

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-15, From 50 GHz to 75 GHz, UG-385/U Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-15, From 50 GHz to 75 GHz, UG-385/U Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-15, From 50 GHz to 75 GHz, UG-385/U Flange

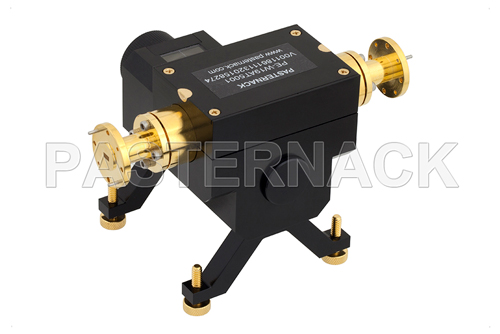

0 to 50 dB Waveguide Direct Read Attenuator, WR-19, From 40 GHz to 60 GHz, UG-383/U-Mod Flange   PE-W19AT5001

WR-19

40-60

0.70

1.15:1

50

0.20

UG-383/U-Mod

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-19, From 40 GHz to 60 GHz, UG-383/U-Mod Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-19, From 40 GHz to 60 GHz, UG-383/U-Mod Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-19, From 40 GHz to 60 GHz, UG-383/U-Mod Flange

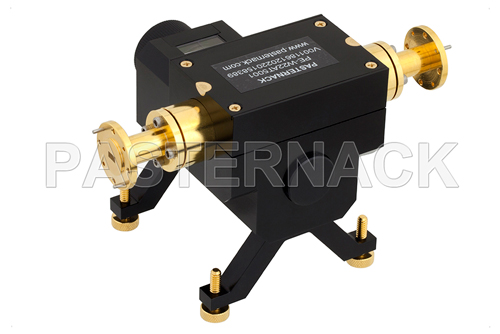

0 to 50 dB Waveguide Direct Read Attenuator, WR-22, From 33 GHz to 50 GHz, UG-383/U Flange   PE-W22AT5001

WR-22

33-50

0.60

1.15:1

50

0.40

UG-383/U

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-22, From 33 GHz to 50 GHz, UG-383/U Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-22, From 33 GHz to 50 GHz, UG-383/U Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-22, From 33 GHz to 50 GHz, UG-383/U Flange



0 to 50 dB Waveguide Direct Read Attenuator, WR-28, From 26.5 GHz to 40 GHz, UG-599/U Flange   PE-W28AT5001

WR-28

26.5-40

0.50

1.15:1

50

0.50

UG-599/U

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-28, From 26.5 GHz to 40 GHz, UG-599/U Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-28, From 26.5 GHz to 40 GHz, UG-599/U Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-28, From 26.5 GHz to 40 GHz, UG-599/U Flange



0 to 50 dB Waveguide Direct Read Attenuator, WR-42, From 18 GHz to 26.5 GHz, UG-595/U Flange   PE-W42AT5001

WR-42

18-26.5

0.50

1.15:1

50

1.00

UG-595/U

  • descr0 to 50 dB Waveguide Direct Read Attenuator, WR-42, From 18 GHz to 26.5 GHz, UG-595/U Flange
  • 0 to 50 dB Waveguide Direct Read Attenuator, WR-42, From 18 GHz to 26.5 GHz, UG-595/U Flange0 to 50 dB Waveguide Direct Read Attenuator, WR-42, From 18 GHz to 26.5 GHz, UG-595/U Flange



Waveguide Direct Read Attenuator Series

Pasternack’s waveguide direct read attenuator series is available in WR-42 to WR-10 standards. Our direct read waveguide attenuator components operate in seven waveguide bands within the 18 GHz to 110 GHz frequency range. They boast +/- 2% typical attenuation accuracy and feature an easy-to-read drum scale and military standard UG-style flanges.

Direct read waveguide attenuator minimum attenuation range is 0 dB to 50 dB. These direct read attenuators have an insertion loss of 0.5 dB to 1 dB depending on the frequency range.


Waveguide direct read attenuators can be used in many industries including aerospace, defense, industrial, telecom, instrumentation and medical. They are built from quality construction materials and ensure consistent performance. As with the other over 40,000 RF, microwave and millimeter wave Pasternack components, these attenuators are in-stock. In addition, this direct read waveguide attenuator product line ships the same day as purchased.
