Embedded GPS Antennas
  • Popular Waveguide Sizes WR-90, WR-42, WR-28 support X, K,
    and Ka bands
  • Package Designs support Mechanical Tuning Screws to Adjust the Center Frequency for Optimum Performance
  • Output Power levels up to +18.5 dBm typical
  • Designs incorporate Indium Phosphide (InP) Gunn Diodes that yield higher output power, higher efficiency, and lower AM noise
  • Highly Reliable Assemblies Designed to meet MIL-STD-202 Environmental Test Conditions
  • EAR99
Waveguide Gunn Diode Oscillators


Part No.

& Additional

Views

Waveguide
Size

Center
Frequency
Band

Frequency
Manual Tuning
Range Typ

Output
Power
(dBm)

Phase Noise
@ 100 KHz
Offset (dBc/Hz)

Harmonics
(dBc)

 Frequency
Stability
(MHz/oC)

Power
Stability
(dB/oC)

DC Power
(Volts/mA)

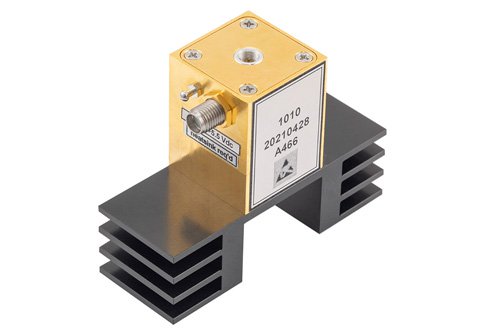

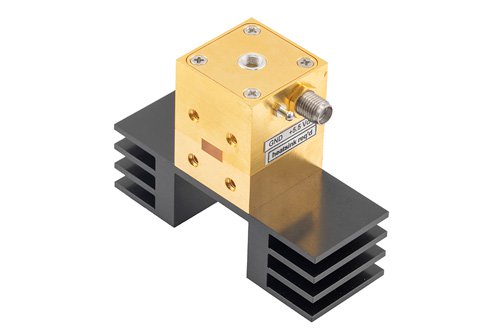

Mechanically Tuned Gunn Diode Oscillator: WR28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U with heatsink   PEWGN1010

WR28

35 GHz

+/- 3 GHz

15

-95

-20

-0.4

-0.03

4.5 / 250
  • descrMechanically Tuned Gunn Diode Oscillator: WR28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U with heatsink
  • descrMechanically Tuned Gunn Diode Oscillator: WR28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U with heatsink
  • descrMechanically Tuned Gunn Diode Oscillator: WR28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U with heatsink

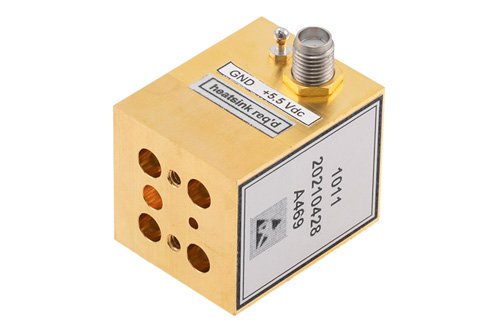

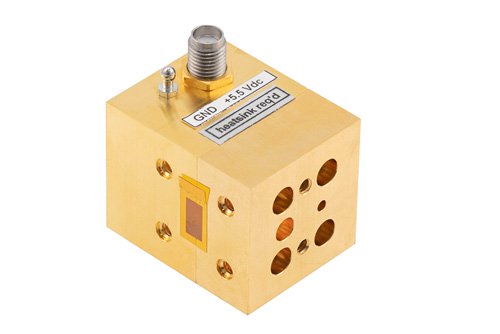

Mechanically Tuned Gunn Diode Oscillator: WR-28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U   PEWGN1011

WR28

35 GHz

+/- 3 GHz

15

-95

-20

-0.4

-0.03

4.5 / 250
  • descrMechanically Tuned Gunn Diode Oscillator: WR-28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR-28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR-28, CF: 35GHz, Output Power: +15dBm, Tuning Range: +/- 3GHz, UG-599/U

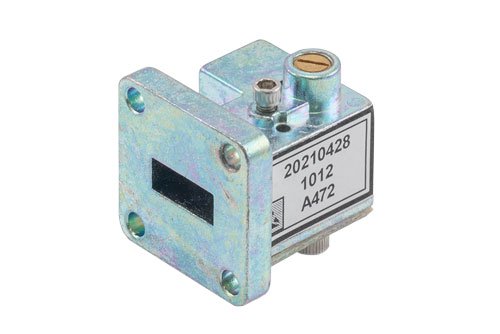

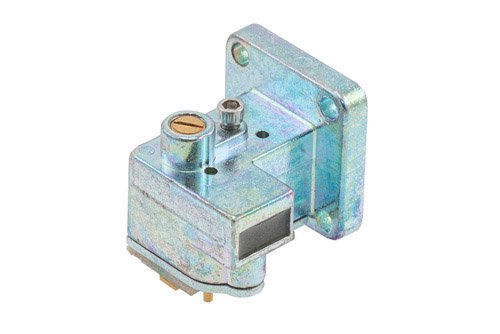

Mechanically Tuned Gunn Diode Oscillator: WR42, CF: 24.125GHz, Output Power: +12.5dBm, Tuning Range: +/- 1GHz, UG-595/U   PEWGN1012

WR42

24.125 GHz

+/- 1 GHz

12.5

-98

-20

-0.8

-0.02

5 / 350
  • descrMechanically Tuned Gunn Diode Oscillator: WR42, CF: 24.125GHz, Output Power: +12.5dBm, Tuning Range: +/- 1GHz, UG-595/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR42, CF: 24.125GHz, Output Power: +12.5dBm, Tuning Range: +/- 1GHz, UG-595/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR42, CF: 24.125GHz, Output Power: +12.5dBm, Tuning Range: +/- 1GHz, UG-595/U

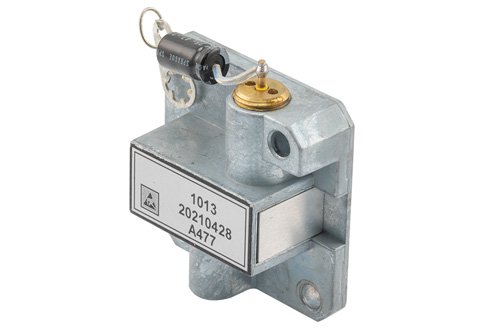

Mechanically Tuned Gunn Diode Oscillator: WR90, CF: 9.375GHzOutput Power: +18.5dBm, Tuning Range: +/- 0.25GHz, UG-39/U   PEWGN1013

WR90

9.375 GHz

+/- 0.25 GHz

18.5

-105

-20

-0.1

-0.01

8.5 / 200
  • descrMechanically Tuned Gunn Diode Oscillator: WR90, CF: 9.375GHzOutput Power: +18.5dBm, Tuning Range: +/- 0.25GHz, UG-39/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR90, CF: 9.375GHzOutput Power: +18.5dBm, Tuning Range: +/- 0.25GHz, UG-39/U
  • descrMechanically Tuned Gunn Diode Oscillator: WR90, CF: 9.375GHzOutput Power: +18.5dBm, Tuning Range: +/- 0.25GHz, UG-39/U

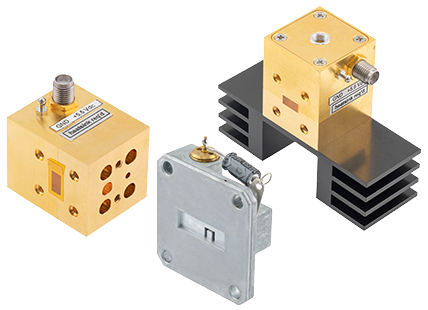

Waveguide Gunn Diode Oscillators from Pasternack

This new series of mechanically tunable Waveguide Gunn Diode Oscillators from Pasternack are available in compact packages that include WR-90, WR-42, WR-28 waveguide ports.  Our Waveguide Gunn Diode Oscillators are designed for 50 Ohms.  The Waveguide Gunn Diode Oscillator models have the following output frequencies 9.375 GHz with +/- 0.25 GHz tuning, 24.125 GHz with +/- 1 GHz tuning, and 35 GHz with +/- 3 GHz Tuning.  Output power levels range from +12.5 dBm to +18.5 dBm, with Phase Noise as low as 105 dBc/Hz @ 100 KHz offset.

Waveguide Gunn Diode Oscillators utilize Indium Phosphide (InP) diodes that yield higher output power, efficiency, and lower AM noise.  Output harmonics are 20 dBc typical.  Waveguide Gunn Diode Oscillators are part of over 40,000 RF, microwave, and millimeter wave components available from Pasternack.  Our Waveguide Gunn Diode Oscillators ship worldwide the same day that it is bought as with our other available RF parts.
