Part No.
Waveguide
Size
Length
(inch)
Frequency
Range
(GHz)
Max Input
Power
(W)
Insertion
Loss Typ.
(dB)
Flange
VSWR
Typical
- Frequency range of 5.85 GHz to 50 GHz in 10 frequency bands (WR-137 to WR-22)
- Available in lengths from 6 to 36 inches
- Available in UG style square/round cover and CPR style flanges
- Can twist in different directions
- VSWR as low as 1.05:1
- Insertion loss as low as 0.15 dB
- Max power as high as 1.5kW
All in stock and ready for same-day shipping!
Twistable Flexible Waveguides
Part No.
Waveguide
Size
Frequency
Range
(GHz)
Length
(inch)
Flange
VSWR
Typical
Max Input
Power
(W)
Insertion
Loss Typ.
(dB)
 |

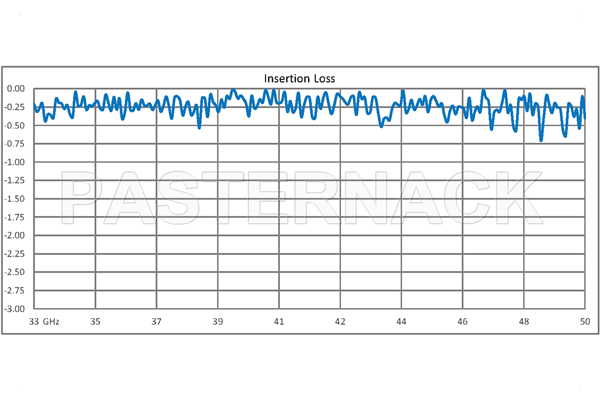

PE-W22TF005-6 | WR-22 |
33 to 50 |
6 |
UG-383/U Round Cover |
1.3:1 |
25 |
0.6 |
||
 |

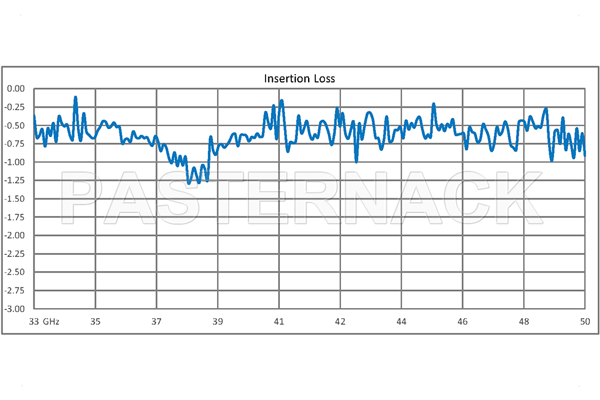

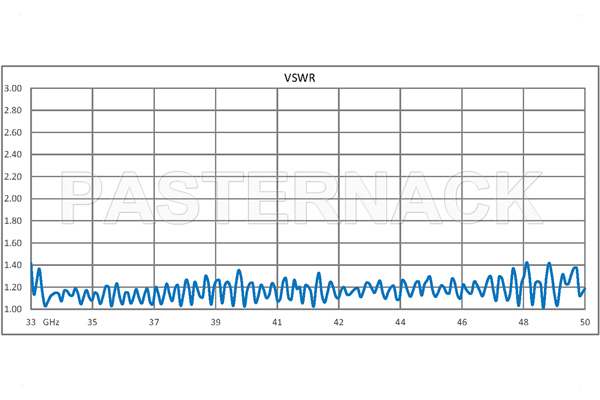

PE-W22TF005-12 | WR-22 |
33 to 50 |
12 |
UG-383/U Round Cover |
1.3:1 |
25 |
0.6 |
||
 |
PE-W22TF005-24 | WR-22 |
33 to 50 |
24 |
UG-383/U Round Cover |
1.3:1 |
25 |
0.6 |
||
 |

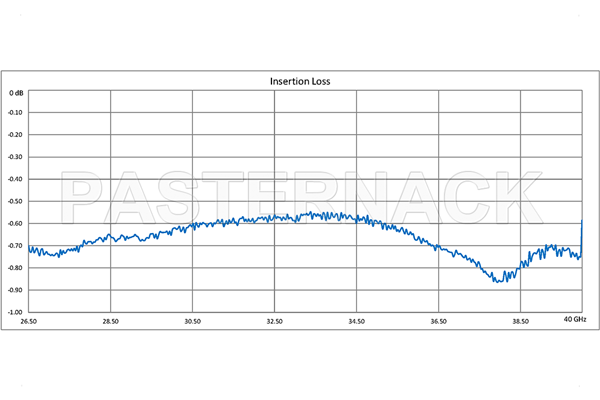

PE-W28TF005-12 | WR-28 |
26.5 to 40 |
12 |
UG-599/U Square Cover |
1.3:1 |
75 |
0.6 |
||
 |

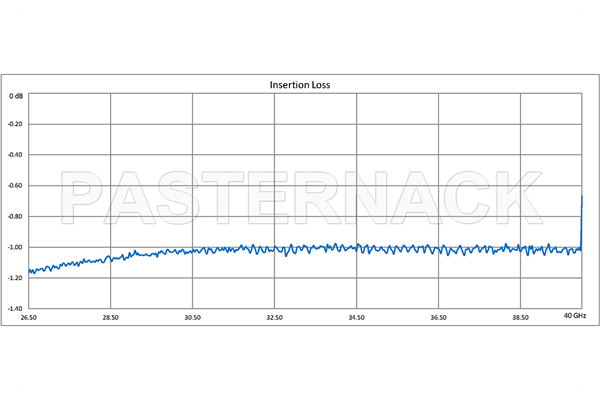

PE-W28TF005-24 | WR-28 |
26.5 to 40 |
24 |
UG-599/U Square Cover |
1.3:1 |
75 |
1.2 |
||
 |

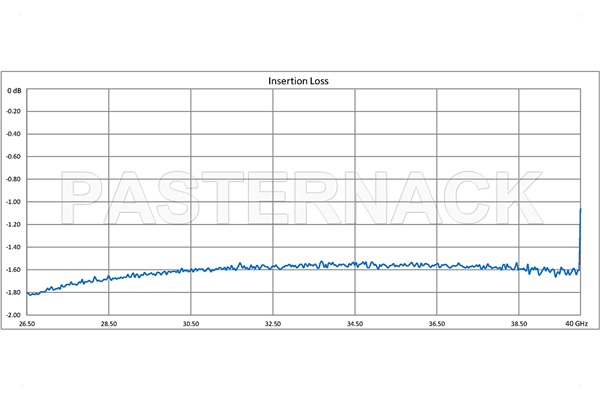

PE-W28TF005-36 | WR-28 |
26.5 to 40 |
36 |
UG-599/U Square Cover |
1.3:1 |
75 |
1.8 |
||
 |

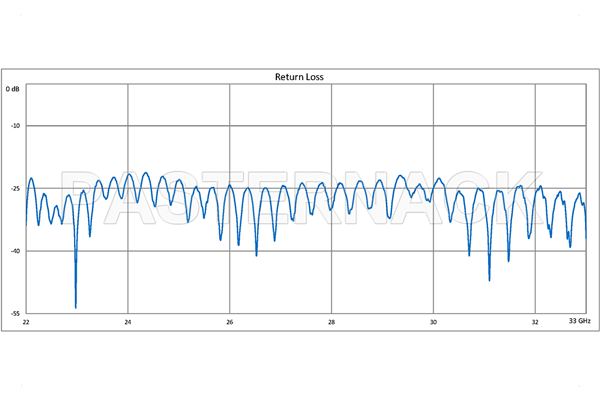

PE-W34TF005-12 | WR-34 |
22 to 33 |
12 |
UG-1530/U Square Cover |
1.22:1 |
100 |
0.5 |
||
 |

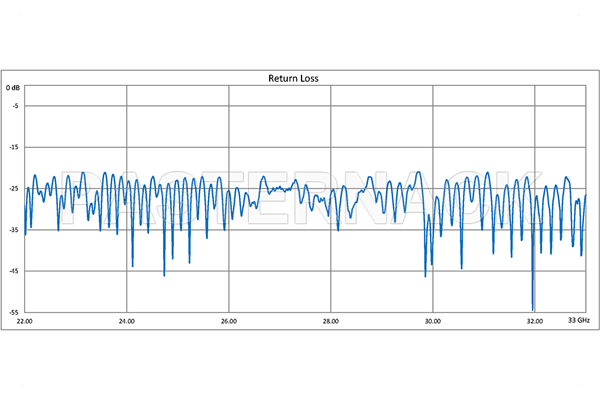

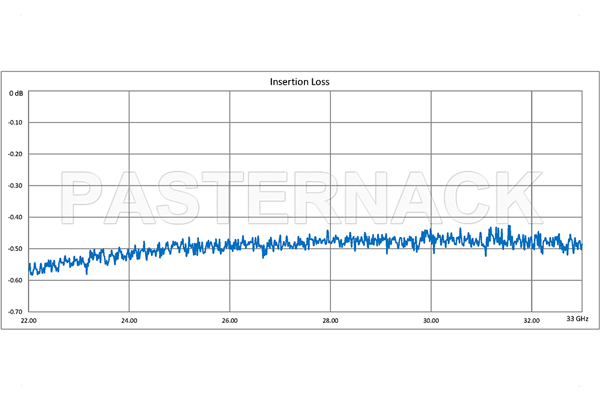

PE-W34TF005-24 | WR-34 |
22 to 33 |
24 |
UG-1530/U Square Cover |
1.22:1 |
100 |
1 |
||
 |

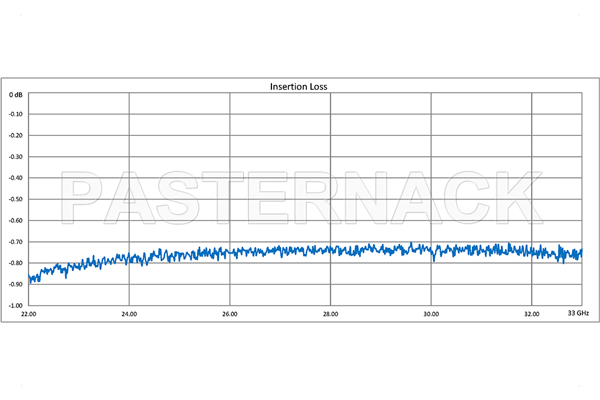

PE-W34TF005-36 | WR-34 |
22 to 33 |
36 |
UG-1530/U Square Cover |
1.22:1 |
100 |
1.5 |
||
 |

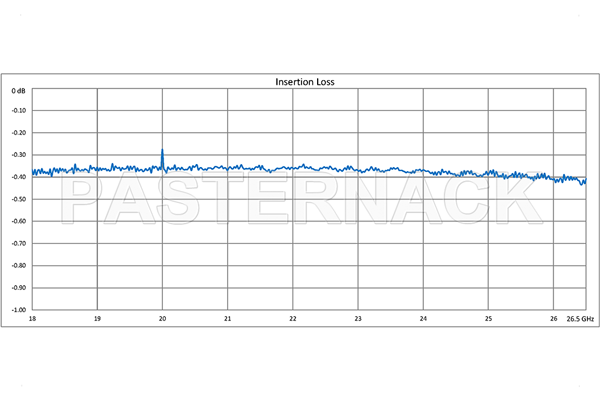

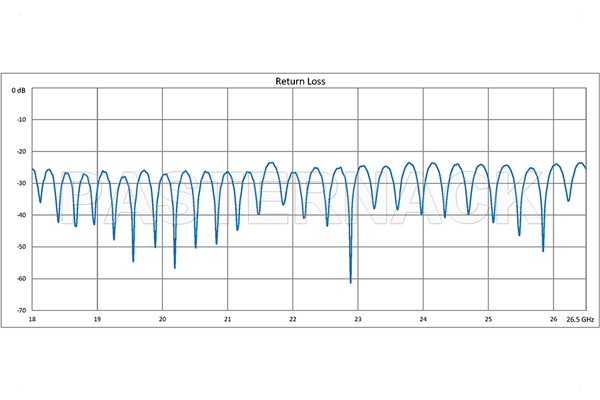

PE-W42TF005-12 | WR-42 |
18 to 26.5 |
12 |
UG-595/U Square Cover |
1.3:1 |
100 |
0.35 |
||
 |

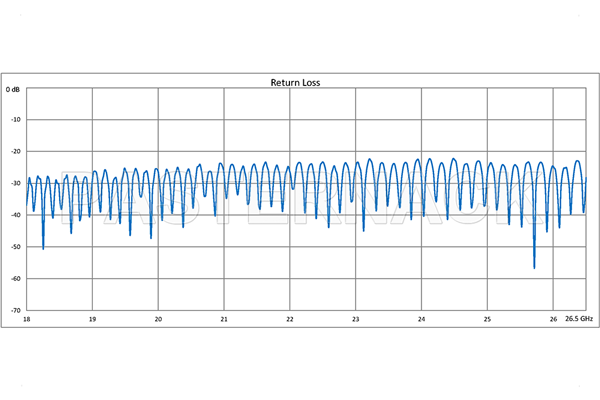

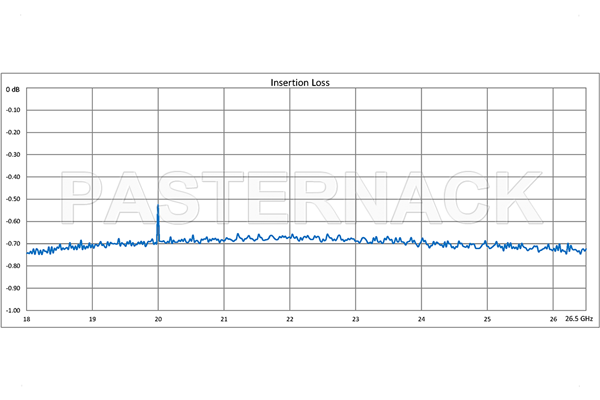

PE-W42TF005-24 | WR-42 |
18 to 26.5 |
24 |
UG-595/U Square Cover |
1.3:1 |
100 |
0.7 |
||
 |

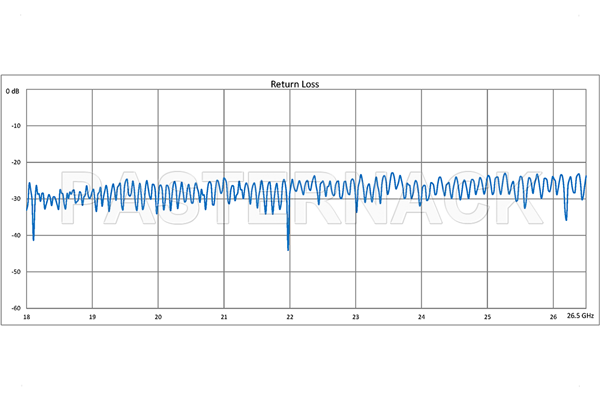

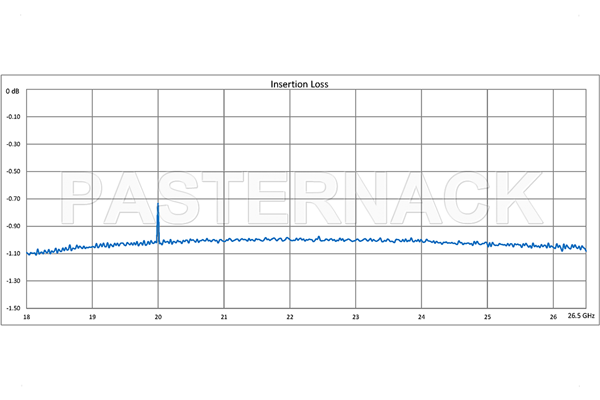

PE-W42TF005-36 | WR-42 |
18 to 26.5 |
36 |
UG-595/U Square Cover |
1.35:1 |
100 |
1.05 |
||
 |

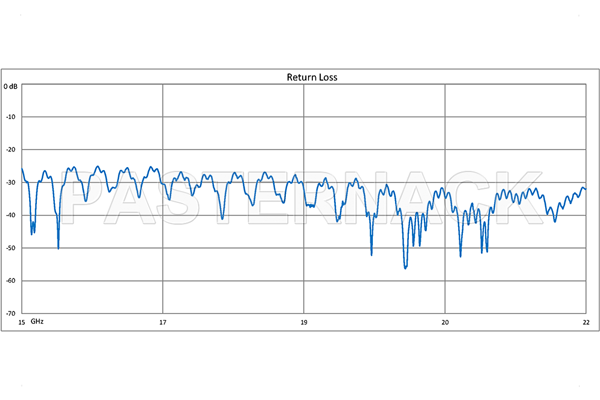

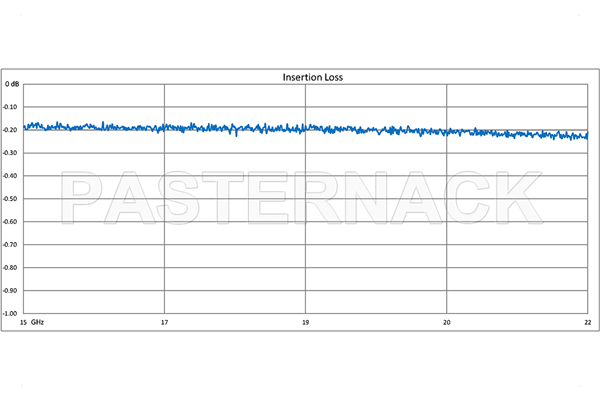

PE-W51TF005-12 | WR-51 |
15 to 22 |
12 |
Square Cover |
1.15:1 |
300 |
0.55 |
||
 |

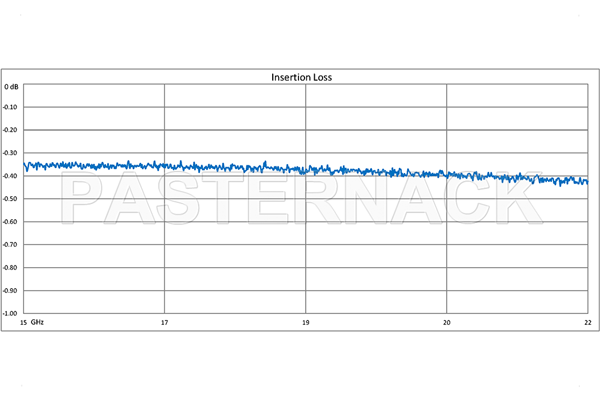

PE-W51TF005-24 | WR-51 |
15 to 22 |
24 |
Square Cover |
1.15:1 |
300 |
1.1 |
||
 |

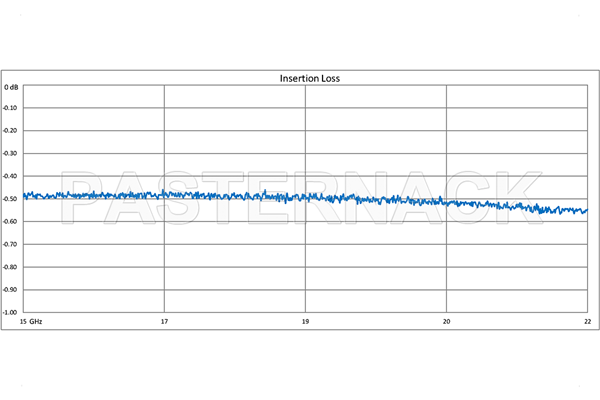

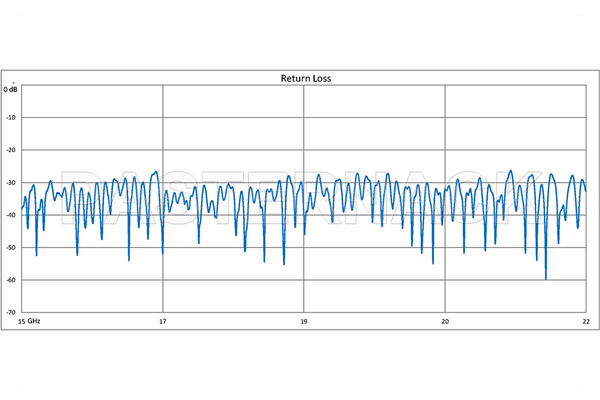

PE-W51TF005-36 | WR-51 |
15 to 22 |
36 |
Square Cover |
1.15:1 |
300 |
1.65 |
||
 |
PE-W62TF005-12 | WR-62 |
12.4 to 18 |
12 |
UG-1665/U Square Cover |
1.1:1 |
400 |
0.28 |
||
 |

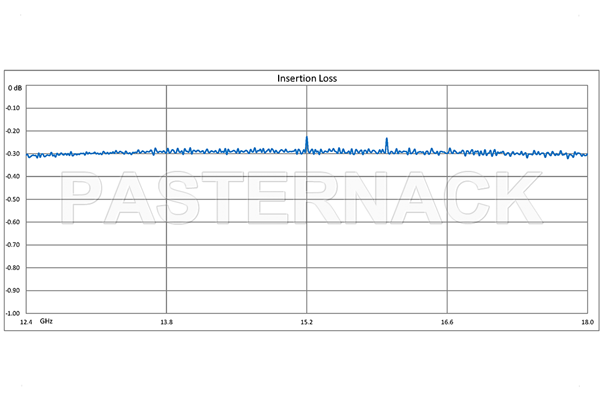

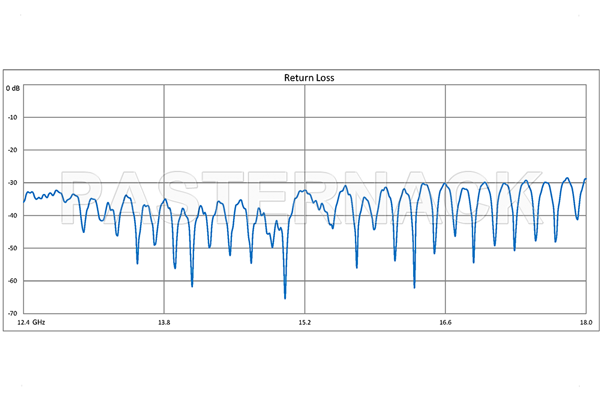

PE-W62TF005-24 | WR-62 |
12.4 to 18 |
24 |
UG-1665/U Square Cover |
1.1:1 |
400 |
0.56 |
||
 |

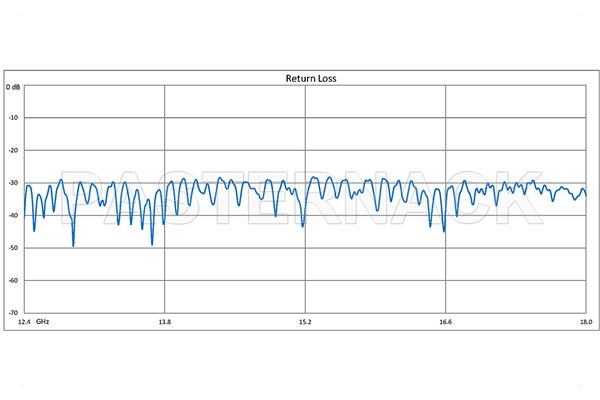

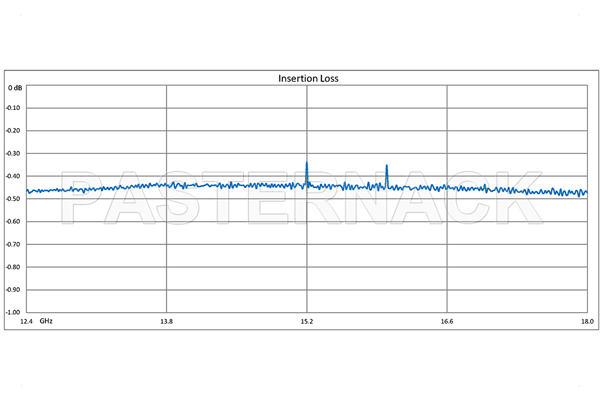

PE-W62TF005-36 | WR-62 |
12.4 to 18 |
36 |
UG-1665/U Square Cover |
1.1:1 |
400 |
0.84 |
||
 |

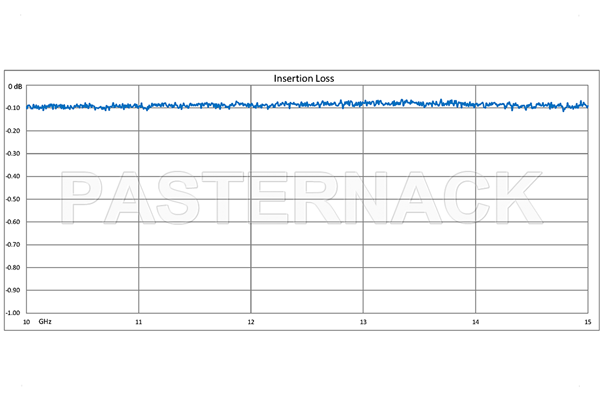

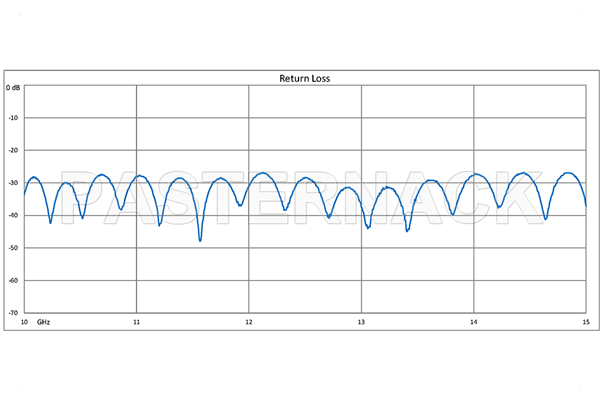

PE-W75TF005-12 | WR-75 |
10 to 15 |
12 |
Square Cover |
1.1:1 |
750 |
0.18 |
||
 |

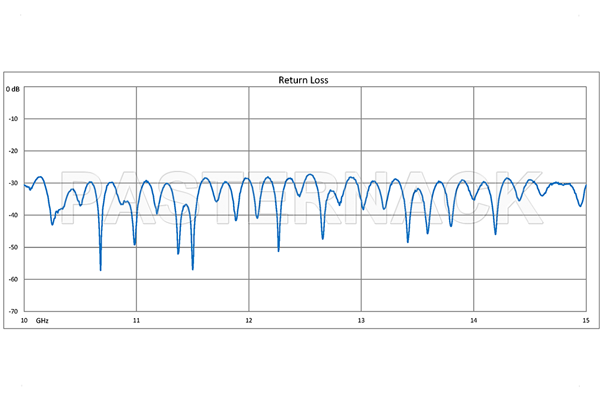

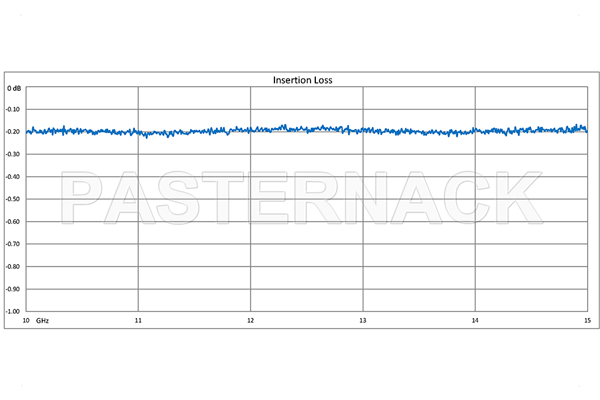

PE-W75TF005-24 | WR-75 |
10 to 15 |
24 |
Square Cover |
1.1:1 |
750 |
0.36 |
||
 |

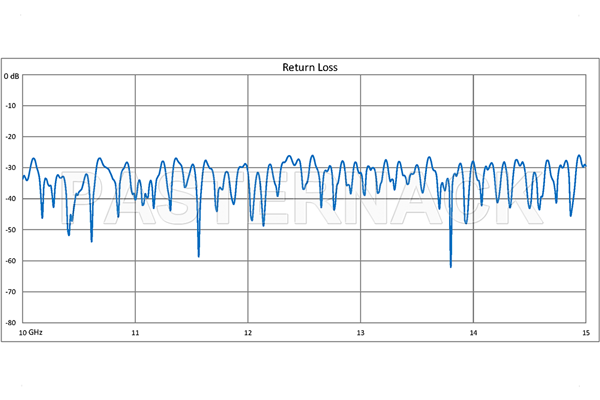

PE-W75TF005-36 | WR-75 |
10 to 15 |
36 |
Square Cover |
1.1:1 |
750 |
0.54 |
||
 |
PE-W90TF005-12 | WR-90 |
8.2 to 12.4 |
12 |
UG-39/U Square Cover |
1.1:1 |
1000 |
0.15 |
||
 |

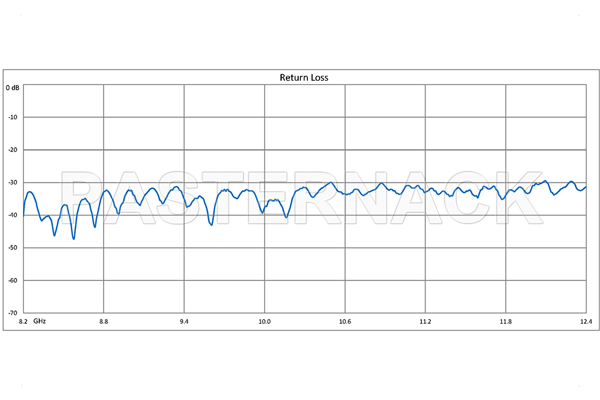

PE-W90TF005-24 | WR-90 |
8.2 to 12.4 |
24 |
UG-39/U Square Cover |
1.1:1 |
1000 |
0.36 |
||
 |

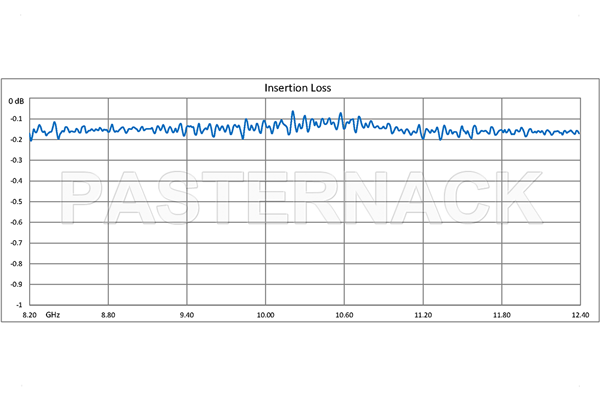

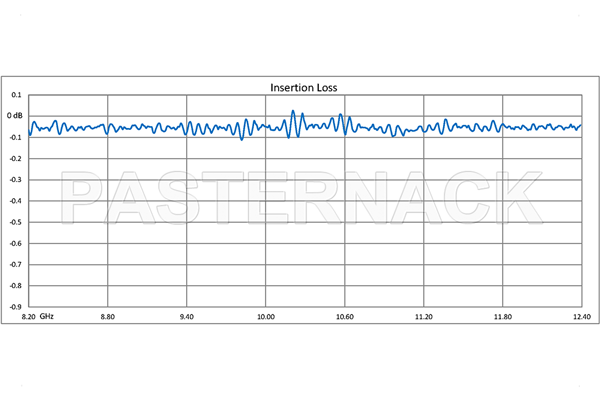

PE-W90TF005-36 | WR-90 |
8.2 to 12.4 |
36 |
UG-39/U Square Cover |
1.1:1 |
1000 |
0.45 |
||
 |

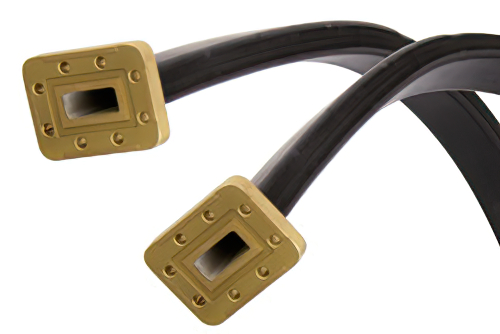

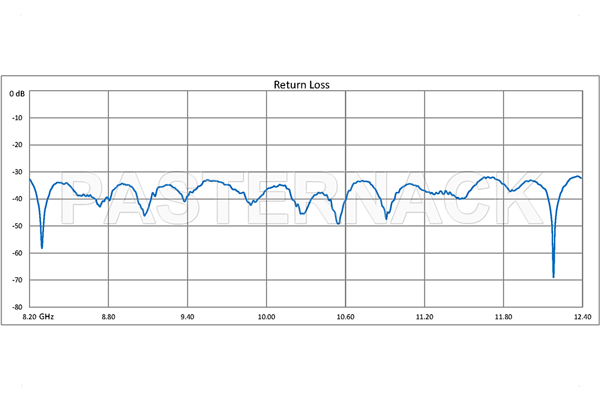

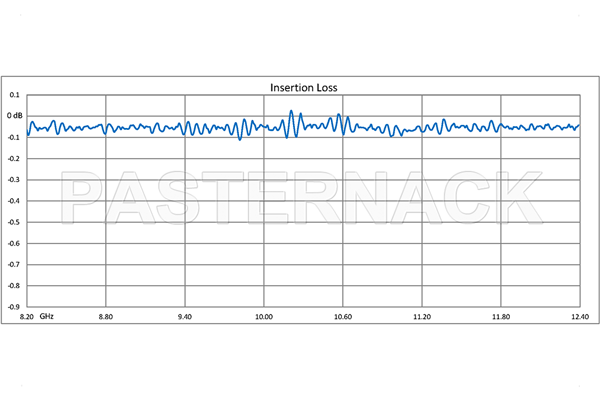

PE-W90TF006-12 | WR-90 |
8.2 to 12.4 |
12 |
CPR-90G |
1.07:1 |
1000 |
0.15 |
||
 |

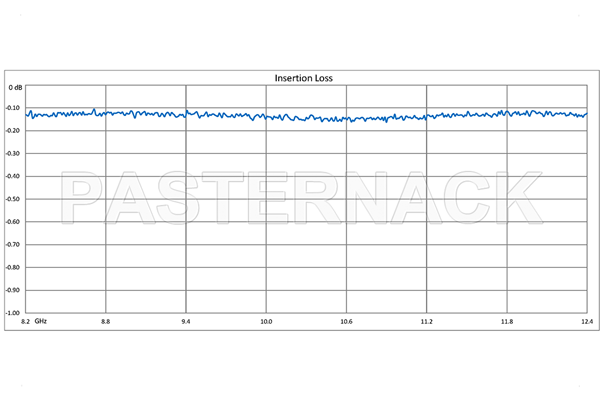

PE-W90TF006-24 | WR-90 |
8.2 to 12.4 |
24 |
CPR-90G |
1.07:1 |
1000 |
0.3 |
||
 |

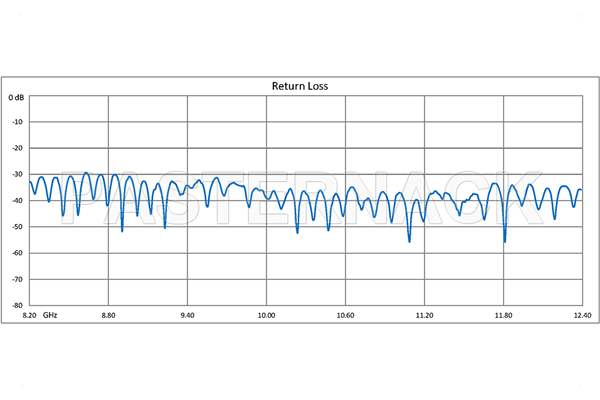

PE-W90TF006-36 | WR-90 |
8.2 to 12.4 |
36 |
CPR-90G |
1.07:1 |
1000 |
0.45 |
||
 |

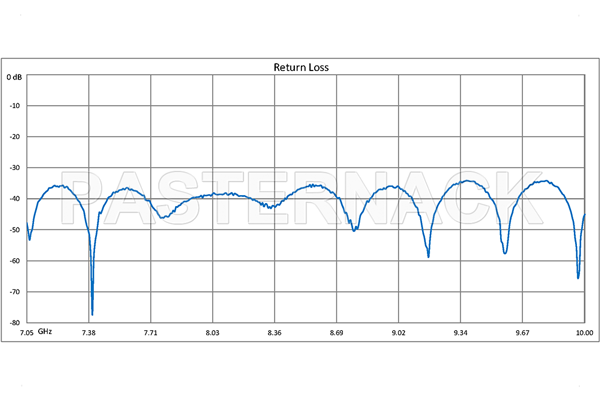

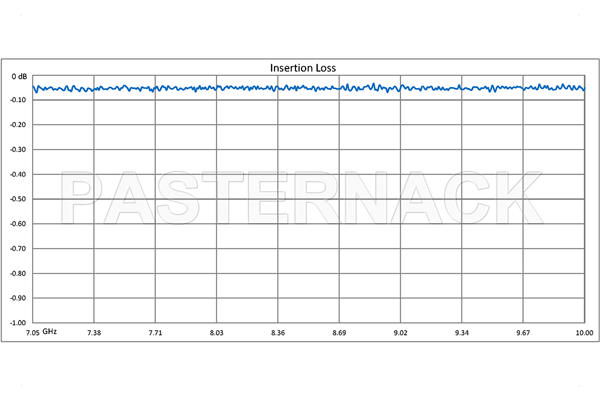

PE-W112TF005-12 | WR-112 |
7.05 to 10 |
12 |
UG-51/U Square Cover |
1.3:1 |
1500 |
0.12 |
||
 |

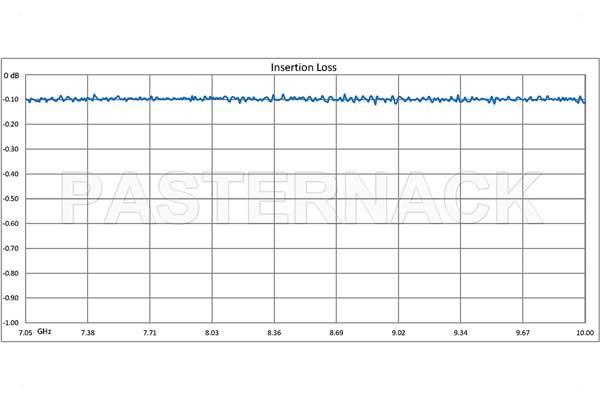

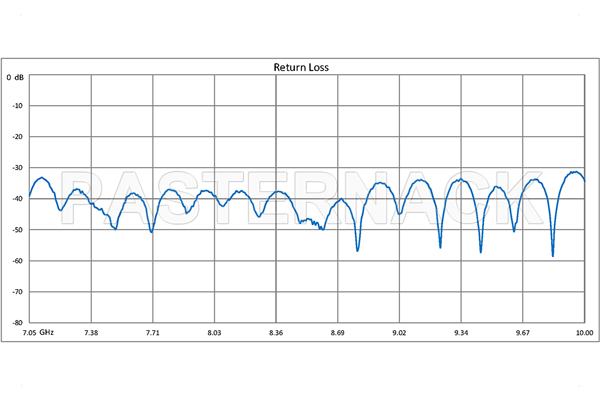

PE-W112TF005-24 | WR-112 |
7.05 to 10 |
24 |
UG-51/U Square Cover |
1.07:1 |
1500 |
0.24 |
||
 |

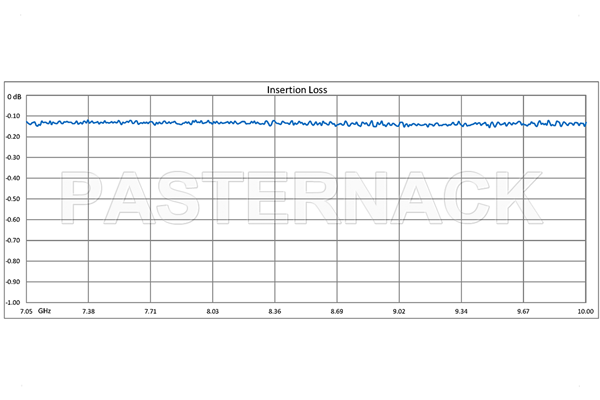

PE-W112TF005-36 | WR-112 |
7.05 to 10 |
36 |
UG-51/U Square Cover |
1.07:1 |
1500 |
0.36 |
||
 |

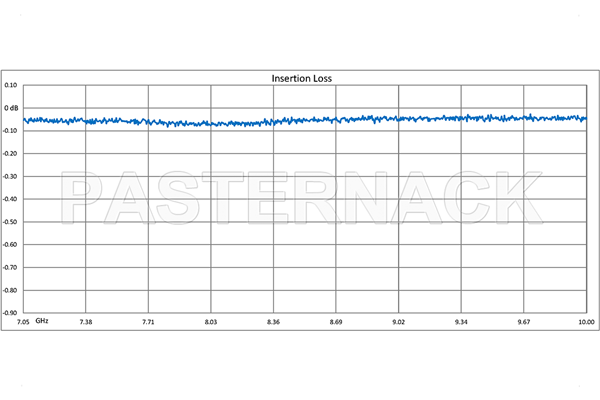

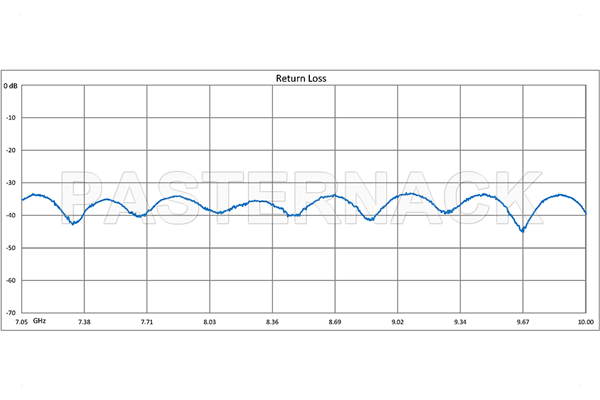

PE-W112TF006-12 | WR-112 |
7.05 to 10 |
12 |
CPR-112G |
1.07:1 |
1500 |
0.12 |
||
 |

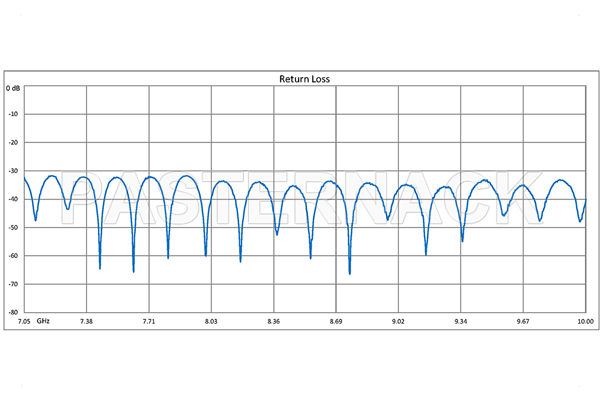

PE-W112TF006-24 | WR-112 |
7.05 to 10 |
24 |
CPR-112G |
1.07:1 |
1500 |
0.24 |
||
 |

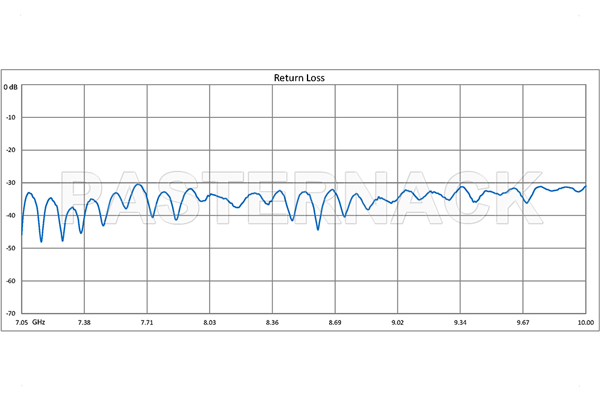

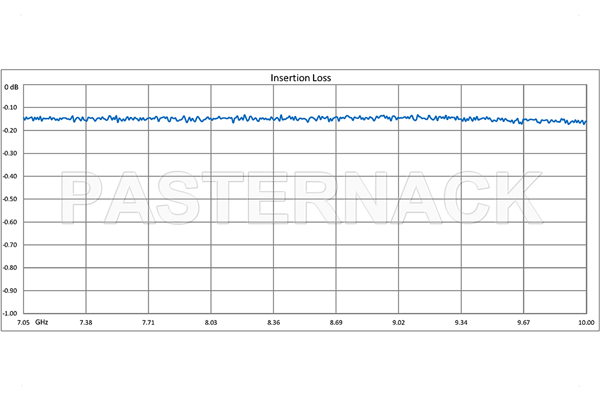

PE-W112TF006-36 | WR-112 |
7.05 to 10 |
36 |
CPR-112G |
1.07:1 |
1500 |
0.36 |
||
 |

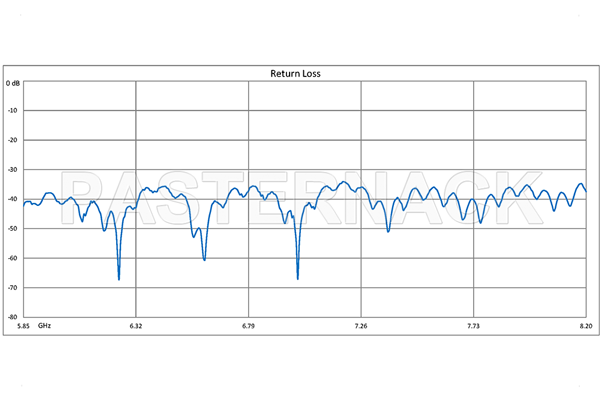

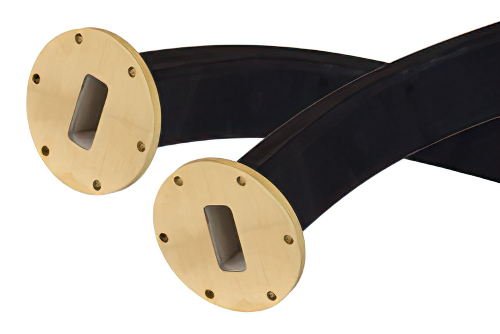

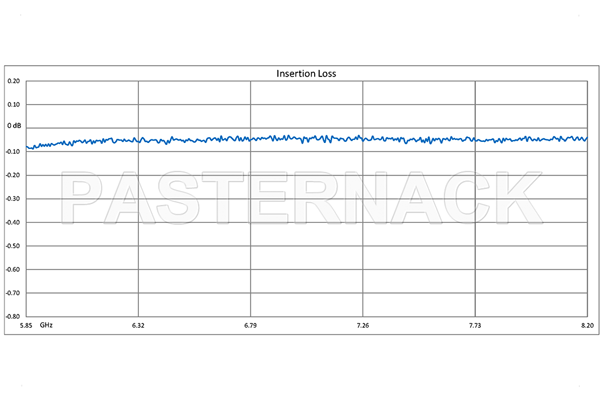

PE-W137TF005-12 | WR-137 |
5.85 to 8.2 |
12 |
UG-344/U Round Cover |
1.05:1 |
2000 |
0.07 |
||
 |

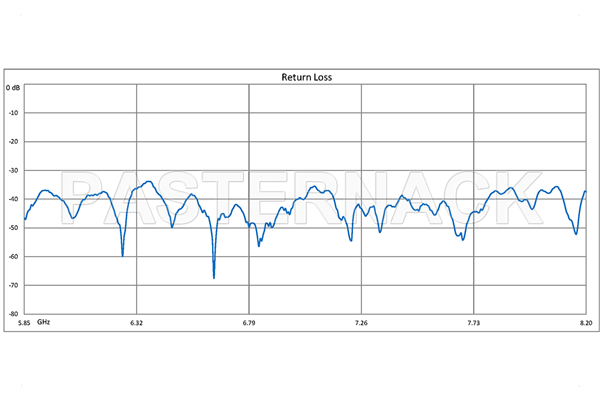

PE-W137TF005-24 | WR-137 |
5.85 to 8.2 |
24 |
UG-344/U Round Cover |
1.05:1 |
2000 |
0.14 |
||
 |

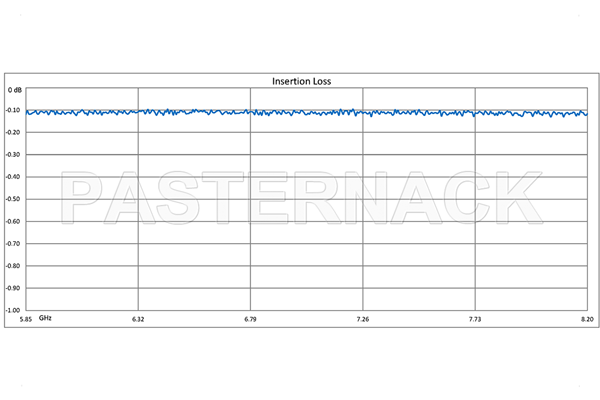

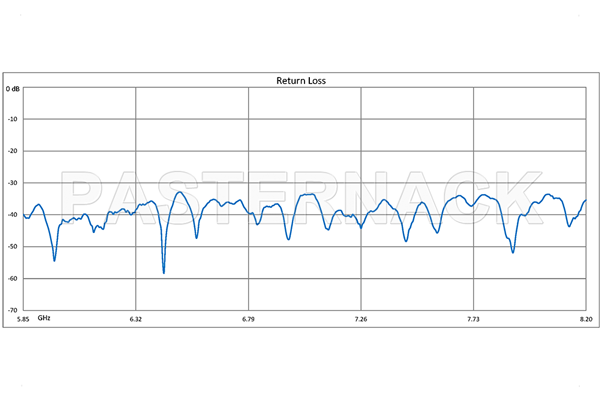

PE-W137TF005-36 | WR-137 |
5.85 to 8.2 |
36 |
UG-344/U Round Cover |
1.05:1 |
2000 |
0.18 |
||
 |

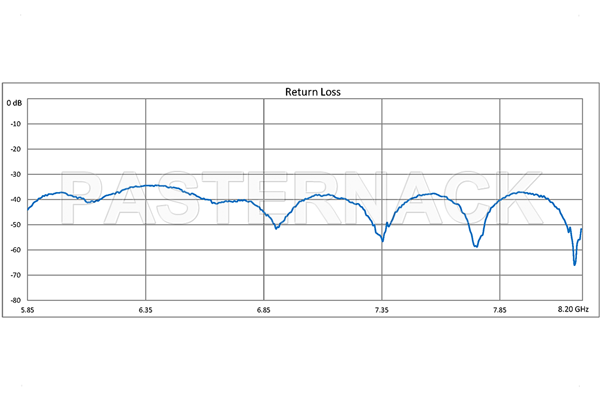

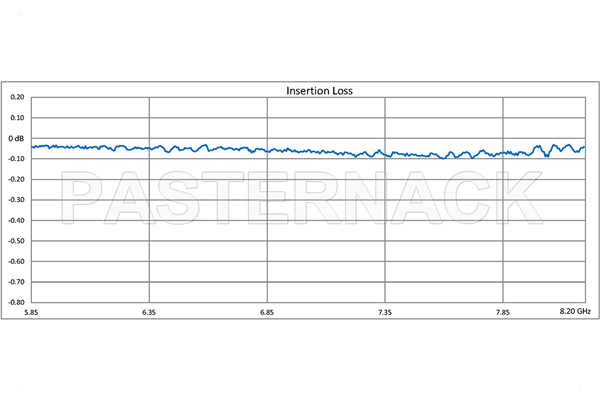

PE-W137TF006-12 | WR-137 |
5.85 to 8.2 |
12 |
CPR-137G |
1.05:1 |
2000 |
0.07 |
||
 |

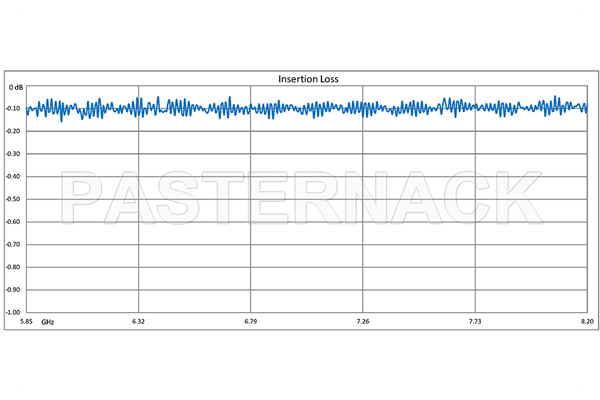

PE-W137TF006-24 | WR-137 |
5.85 to 8.2 |
24 |
CPR-137G |
1.05:1 |
2000 |
0.14 |
||
 |

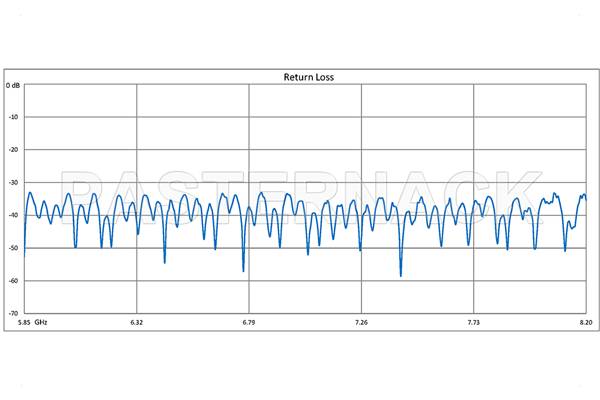

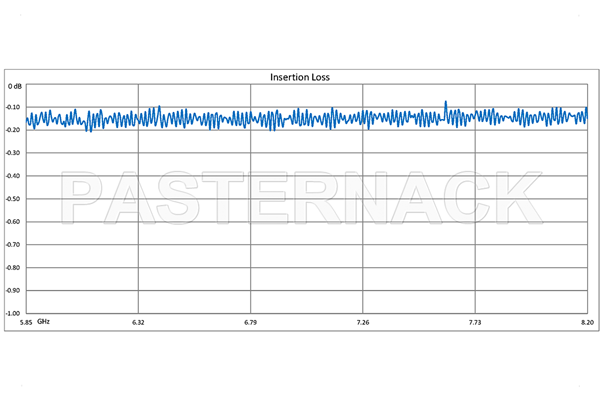

PE-W137TF006-36 | WR-137 |
5.85 to 8.2 |
36 |
CPR-137G |
1.05:1 |
2000 |
0.21 |
||
Twistable Flexible Waveguides from Pasternack
Pasternack’s twistable flexible waveguides act as malleable conduits in waveguide systems where there is not perfect alignment for a traditional rigid waveguide section. Often an ideal solution for telecommunications, defense & aerospace and test industries, these twistable flexible waveguide sections can easily be flexed and twisted to conform to various misalignments in waveguide systems found in DAS network, base station and test instrumentation applications.
Typical VSWR for these twistable flexible waveguides is as low as 1.05:1 and the insertion loss performance exhibits typical levels as low as 0.06 dB. These twistable flexible waveguides support frequency ranges of 5.85 GHz to 50 GHz in 10 frequency bands and are offered in sizes ranging from WR-137 to WR-22. Additionally, these twistable flexible waveguides are available with both UG style square/round covers and CPR style flanges.
Pasternack’s twistable flexible waveguides are in stock and available for immediate shipment.
