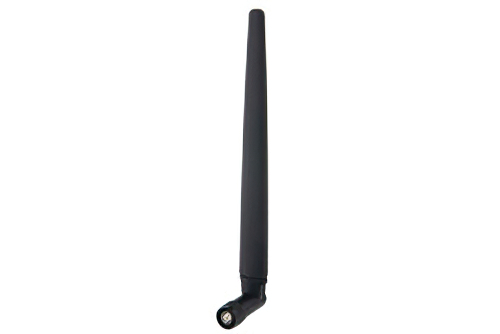

Rubber Duck Antenna Operates From 5.1 GHz to 5.9 GHz with a 5 dBi Minimum Gain Reverse Polarity TNC Male Input Connector Rated
Product ID:
PE51070
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Antenna Type | Portable |
| Polarization | Vertical |
| Minimum Frequency | 5.1 GHz |
| Maximum Frequency | 5.9 GHz |
| Connector Series | TNC |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Nominal Gain | 5 dB |
| Maximum Input VSWR | 2:1 |
Description
Rubber Duck Portable Antenna Operates From 5.1 GHz to 5.9 GHz With a Nominal 5 dBi Gain TNC Male Input Connector
Rubber duck portable antenna PE51070 from Pasternack (also known as a rubber ducky antenna) is part of our extensive in-stock omni-directional radio antenna selection. This single band rubber duck portable antenna has a frequency range of 5.1 GHz to 5.9 GHz and a 5 nominal dBi gain. Our portable rubber duck antenna uses TNC male connector and is rated for 30 Watts input.
PE51070 rubber duck portable radio antenna is one of over 40,000 RF, microwave and millimeter wave components supplied from Pasternack. Our portable rubber duck aerial can be bought and shipped worldwide the same-day as with our other available RF parts.
