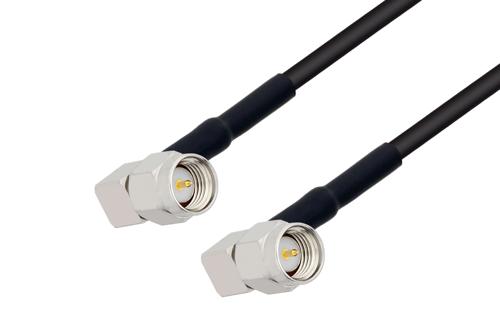

SMA Male Right Angle to SMA Male Right Angle Cable Using LMR-100 Coax, RoHS

Name: SMA Male Right Angle to SMA Male Right Angle Cable Using LMR-100 Coax, RoHS
Brand: Pasternack
SKU: PE3C0823LF/HS

Product ID: PE3C0823LF/HS

Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	SMA
Connector Gender 2	Male
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	LMR-100A-PVC
RF Cable Type	LMR-100A
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE4009	LMR-100A-PVC	PE4009	KitBOM Datasheet

SMA Male Right Angle to SMA Male Right Angle Cable Using LMR-100 Coax with HeatShrink, RoHS

PE3C0823LF/HS is a SMA male right angle to SMA male right angle cable using LMR-100A coax. This Pasternack SMA male right angle to SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA right angle to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C0823LF/HS SMA male right angle to SMA male right angle cable assembly is constructed with LMR-100A coax.

* LMR™ is a trademark of Times Microwave Systems.
