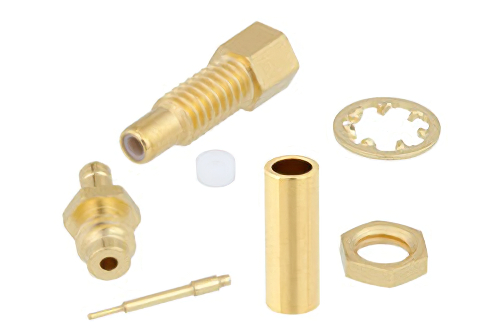

SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG-178, RG-196

Name: SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG-178, RG-196
Brand: Pasternack
SKU: PE45493

Product ID: PE45493

Pricing

Quantity	Price
1-24	$31.89
25-49	$30.30
50-99	$28.70
100-249	$27.43
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Call for Availability

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	SSMC
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	Bulkhead
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	RG-178
Interface Type 2	RG-196

Description

SSMC Jack Bulkhead Mount Connector Crimp/Solder Attachment for RG-178, RG-196

PE45493 SSMC jack bulkhead coaxial connector has an interface type of RG-178, RG-196 and a 50 Ohm impedance. Pasternack SSMC jack bulkhead connector uses shield/contact crimp/solder as an attachment method. Our jack SSMC coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack SSMC jack bulkhead coaxial connector has a teflon dielectric type and a VSWR of 1.44. The Pasternack SSMC coaxial connector has a beryllium copper body with gold plating. Our PE45493 SSMC connector uses beryllium copper contact and a gold plating material. This SSMC jack bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack SSMC bulkhead connector will ship the same day as purchased. Our bulkhead SSMC jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SSMC connector cable assemblies that will ship the same day as well.
