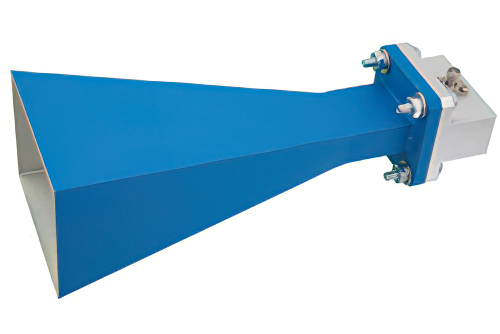

WR-112 Waveguide Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 15 dB Gain SMA Female Input

Product ID: PE9858/SF-15
Product discontinued.
Replaced with PE9858B/SF-15.

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-112
Gain Min15
Beam Width, 3dB V32
Beam Width, 3dB H32.4
Frequency, Min7.05 GHz
Frequency, Max10 GHz

Description

WR-112 Standard Gain Horn Antenna Operating From 7.05 GHz to 10 GHz With a Nominal 15 dB Gain SMA Female Input Connector

PE9858/SF-15 standard gain horn antenna (also known as a waveguide horn antenna) is part of our huge selection of waveguide antennas. Pasternack standard gain horn antenna is manufactured with a WR-112 input and a waveguide to coaxial transition adapter. Our WR-112 standard gain horn antenna has a waveguide to coax adapter transition with a SMA connector input that is female gender.

WR-112 standard gain horn waveguide antenna with SMA input has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz. Pasternack PE9858/SF-15 WR-112 waveguide horn standard gain antenna is rated at a nominal 15 dB gain. Our 15 dB standard gain horn WR-112 waveguide antenna with SMA adapter has a vertical beam width of 32 and horizontal of 32.4 degrees at 3 dB.

Pasternack is where to buy a WR-112 standard waveguide gain horn antenna with WR-112 input. This gain horn antenna is just one part of over 40,000 RF, microwave and millimeter wave guide components available and in-stock at our Irvine, CA United States warehouse. Our WR-112 standard waveguide horn antenna with SMA female interface can ship worldwide the same day that it is purchased as with our other available RF parts.
