TNC Male Right Angle Connectors

Check out our new RF calculators & conversion tools...

RP TNC Male Right Angle Connector Crimp/Solder Attachment for RG316, RG174, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

Product ID: PE4681
RP TNC Male Right Angle Connector Crimp/Solder Attachment for RG316, RG174, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch

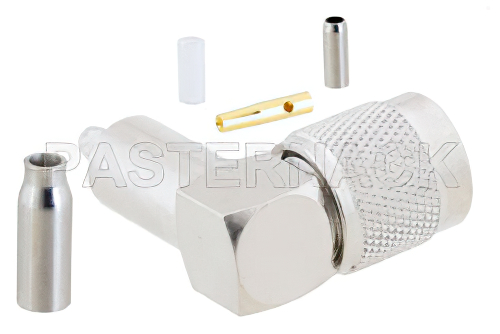

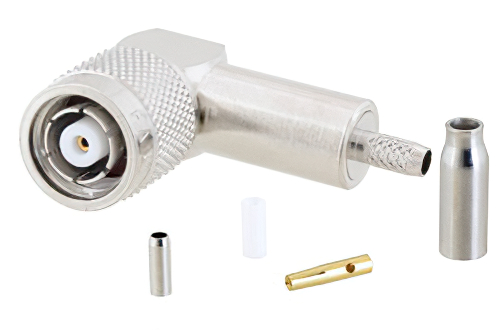

Image Views:  RP TNC Male Right Angle Connector Crimp/Solder Attachment for RG316, RG174, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch high resolution
Zoomalternate image
View 2


Click for:PE4681 Datasheet
Click for:PE4681 RoHS Cert
Click for:PE4681 REACH Cert
Available Quantity: 1,317
Pricing Table
QUANTITYPRICE
1-24$26.81
25-49$24.93
50-99$23.06
100-249$21.45
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityReverse Polarity
Connector SeriesTNC
Connector GenderMale
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone


RP TNC Male Right Angle Connector Crimp/Solder Attachment For RG316, RG174, RG188

PE4681 reverse polarity TNC male right angle coaxial connector has an interface type of RG316, RG174, RG188 and a 50 Ohm impedance. Pasternack reverse polarity TNC male connector uses shield/contact crimp/solder as an attachment method.

The Pasternack reverse polarity right angle TNC male coaxial connector has a teflon dielectric type. The Pasternack TNC coaxial connector has a brass body with nickel plating. Our PE4681 reverse polarity TNCright angle connector uses brass contact. This reverse polarity TNC male right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack reverse polarity right angle male TNC connector will ship the same day as purchased. Our TNC reverse polarity right angle male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom TNC connector cable assemblies that will ship the same day as well.
