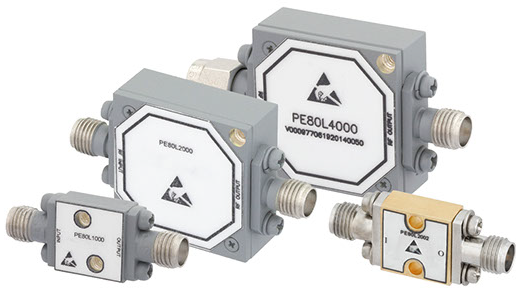

Broadband High Power
Coaxial Limiters
• Broadband coaxial limiter frequencies ranging from 0.5 GHz to 40 GHz
• Fast Recovery Time: 10 nanoseconds typical on these limiters
• Low leakage power circuit protection: 10 to 15 dBm typical
• High power limiter series handling up to 200 watts peak
• 50 Ohm hybrid designs incorporate complete limiting diode circuitry
Coaxial high power limiter series is in-stock and available to ship the same day
 |
0.5-18.0 |
1.5 |
10 |
10 |
1 |
10 |
0.5 x 0.5 x 0.22 |
SMA |
|
 |
2.0-8.0 |
1 |
13 |
3 |
5 |
40 |
1.0 x 1.0 x 0.4 |
SMA |
|
PE P/N
Frequency Band
(GHz)
Insertion
Loss
(db)
Leakage
(dBm)
Limiting
Threshold
(dBm)
Input
Power
(watts)
Recovery
Time
(ns)
Mechanical
Dimensions
L(in) X W(in) X H(in)
Connector
Type
PE80L1000

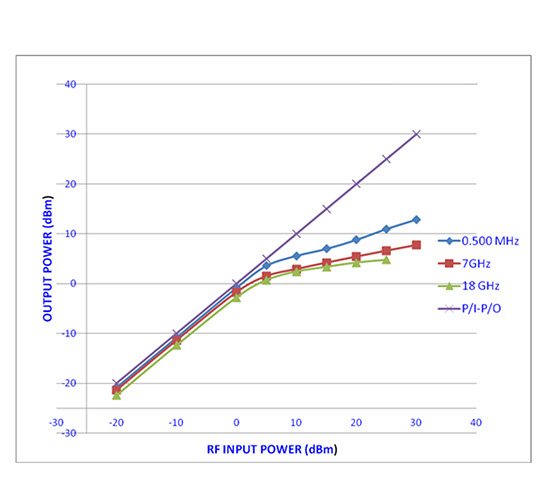

Limiter Response With Frequency
PE80L1001

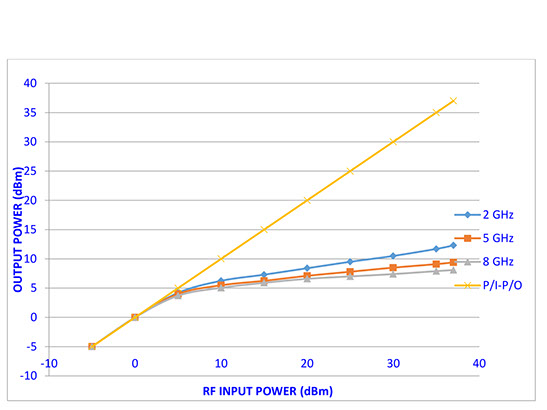

Limiter Response With Frequency

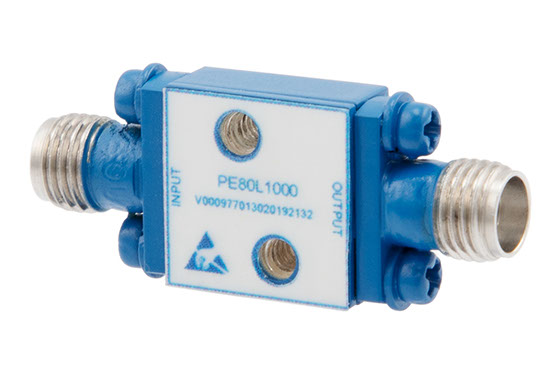

PE80L1000
PE80L1001

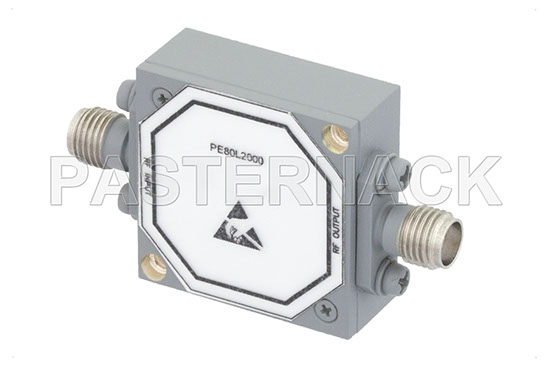

PE80L2000
PE80L2000
Limiter Response With Frequency
 |
6.0-18.0 |
2.5 |
15 |
10 |
10 |
12 |
1.0 x 1.0 x 0.5 |
SMA |
|
PE80L2001
PE80L2001
Limiter Response With Frequency
 |
2.0-18.0 |
1.7 |
10 |
6 |
1 |
20 |
0.75 x 1.0 x 0.3 |
SMA |
|

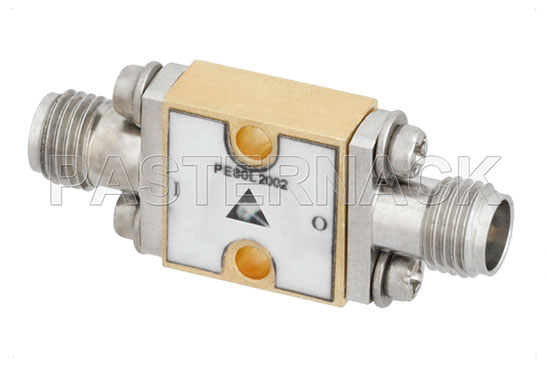

PE80L2002
PE80L2002

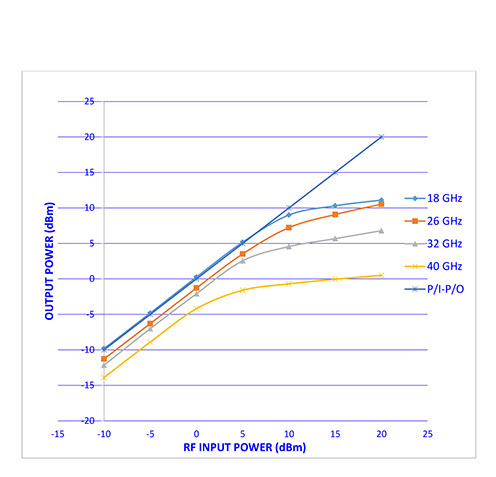

Limiter Response With Frequency
 |
18.0-40.0 |
3.5 |
12 |
5 |
1 |
10 |
0.5 x 0.5 x 0.22 |
2.92mm |
|

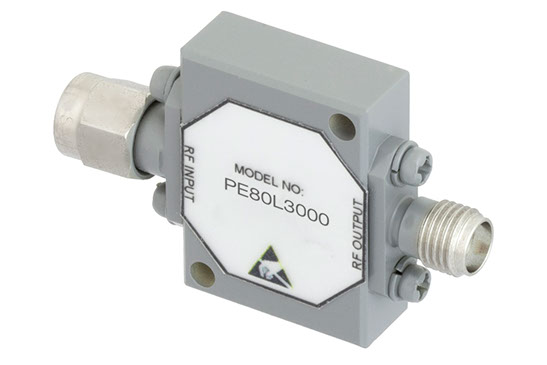

PE80L3000
PE80L3000
Limiter Response With Frequency
 |
2.0-18.0 |
2 |
14 |
6 |
1 |
100 |
0.75 x 1.0 x 0.3 |
SMA |
|
PE80L4000
PE80L4000
Limiter Response With Frequency
 |
12.0-18.0 |
1.5 |
10 |
3 |
1 |
10 |
1.0 x 1.0 x 0.4 |
SMA |
|
Broadband High Power Coaxial Limiter Series from Pasternack
Pasternack coaxial high power limiter series operates over a broad frequency range. These high power coaxial limiter components cover bands from 0.5 to 40 GHz. The broadband limiters provide high power handling up to 200 watts of peak power.
The SMA and 2.92mm high power limiter components maintain fast recovery times from 10 to 100 nanoseconds. These RF limiter products provide low leakage power to sensitive control components in the receiver chain, while offering good suppression of even-order harmonics under hard limiting. All limiter models are classified as EAR99.
As with the other over 40,000 RF, microwave and millimeter wave components from Pasternack, this coaxial broad-band high power limiter series is in-stock. Additionally, these high power RF limiters will ship the same day as they are purchased.
