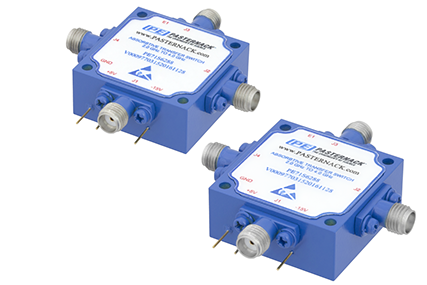

Pasternack transfer pin diode switches covering frequency bands from 1000 MHz to 4000 MHz. Transfer pin diode switch designs feature excellent insertion loss as low as 1 dB, Isolation levels up to 80 dB, and fast switching speed levels of 100 nsec max. Pin diode transfer switch models are available in MIL-Grade rugged coaxial packaging with integrated TTL compatible logic control circuitry.
Transfer PIN Diode Switches
Part No.
& Additional
Views
Transfer Switch
Design
RF Frequency
Range
(MHz)
Typical
Isolation
(dB)
Typical
Insertion
Loss (dB)
Typical
Switching
Time (ns)
Max RF Input
Power (CW)
(Watts)
TTL Control
Connector
Type
Field
Replaceable
 |

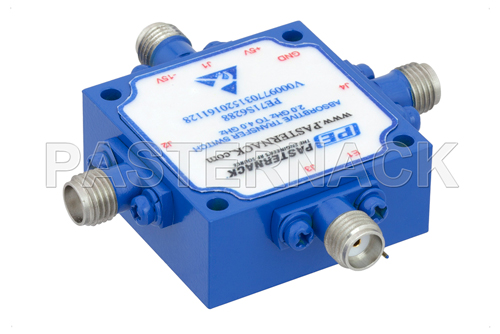

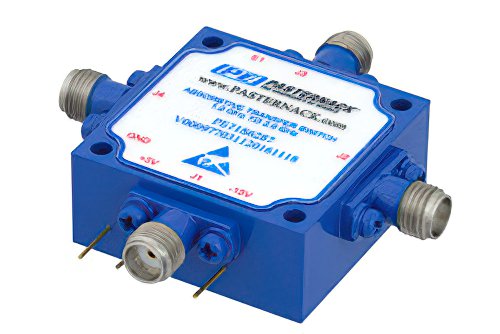

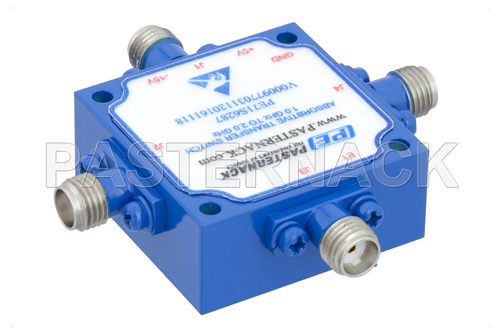

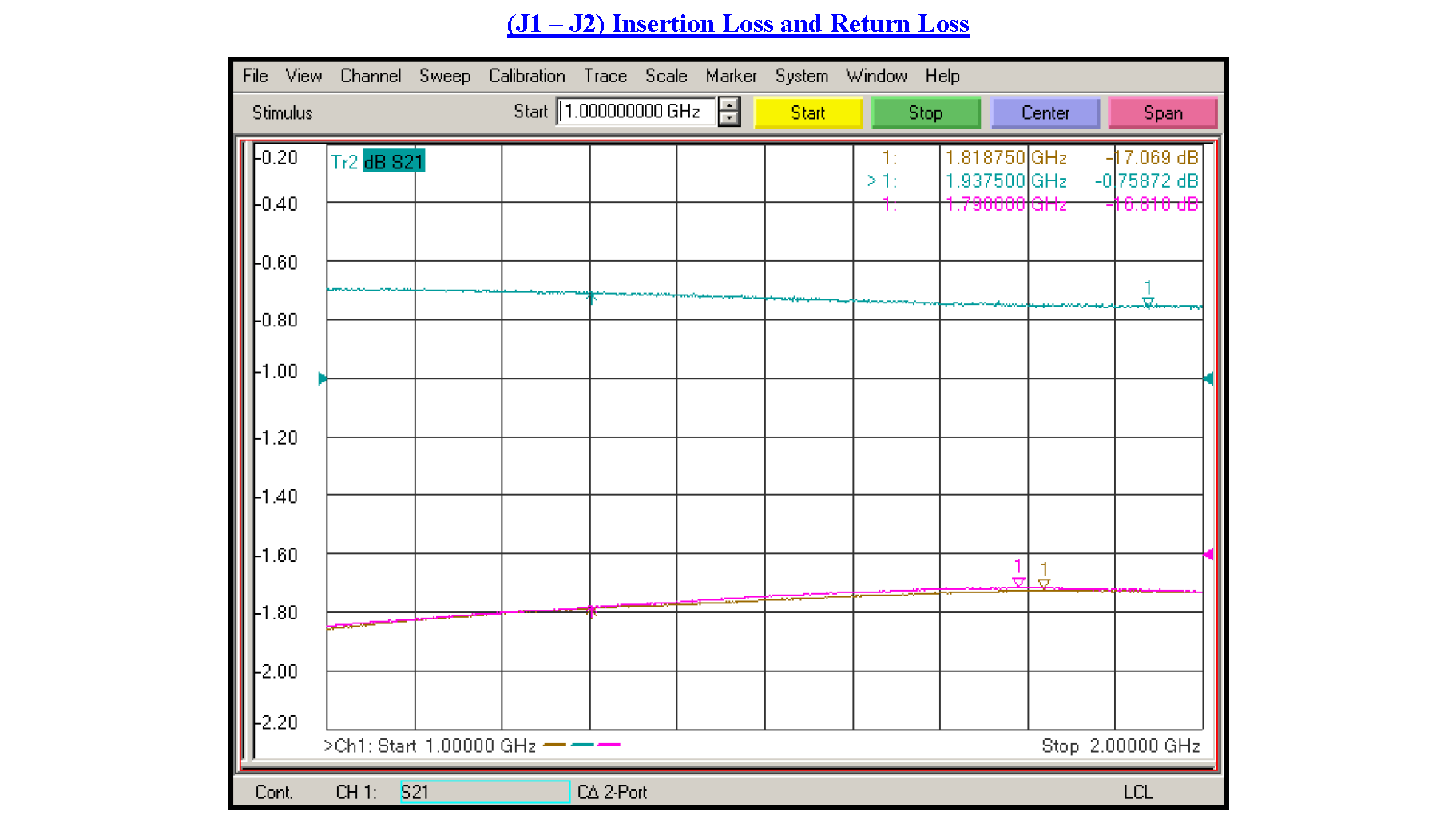

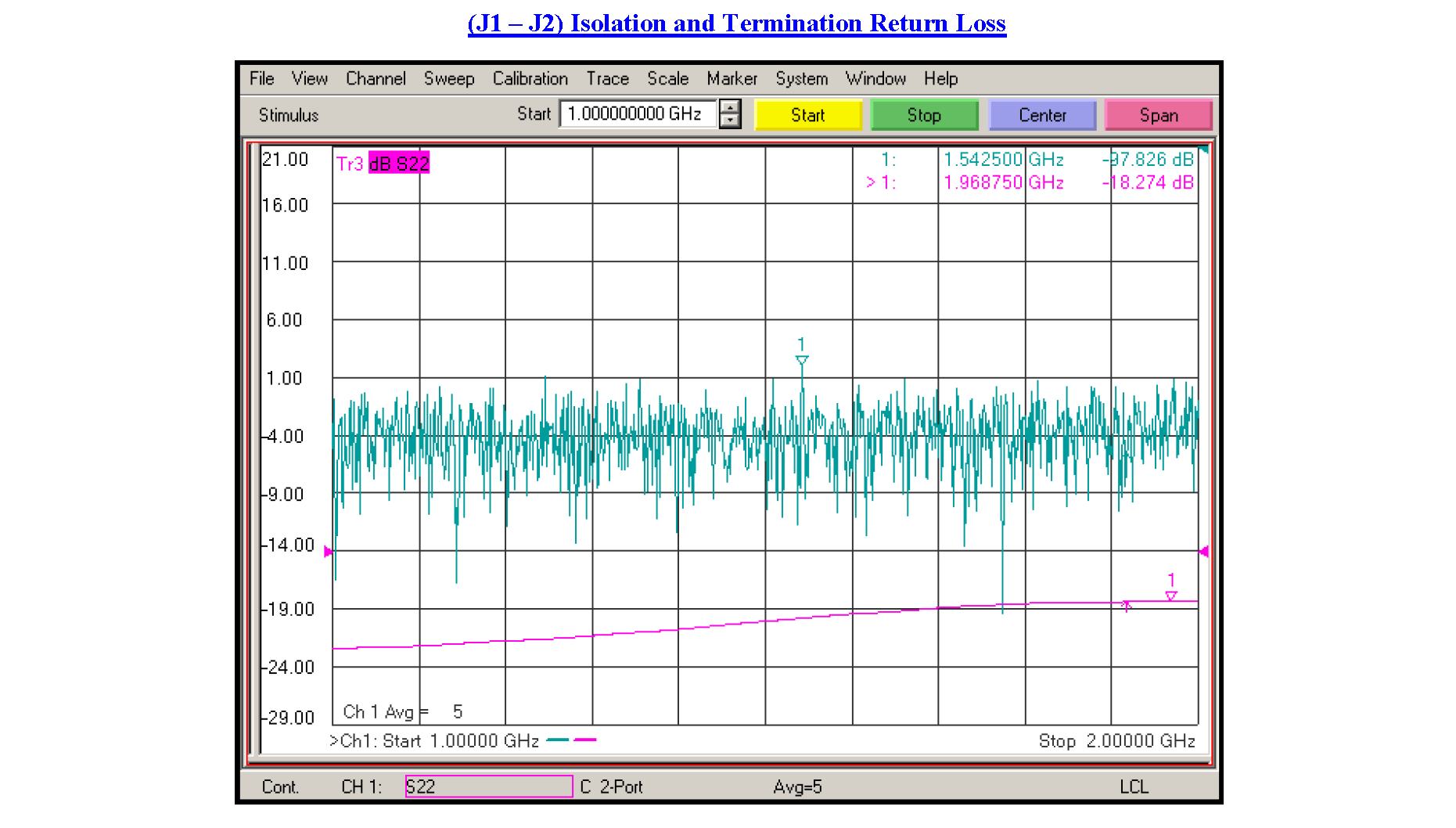

PE71S6287 | Absorptive |
1,000-2,000 |
80 |
1 |
100 |
1 |
Solder Pin |
SMA Female |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |

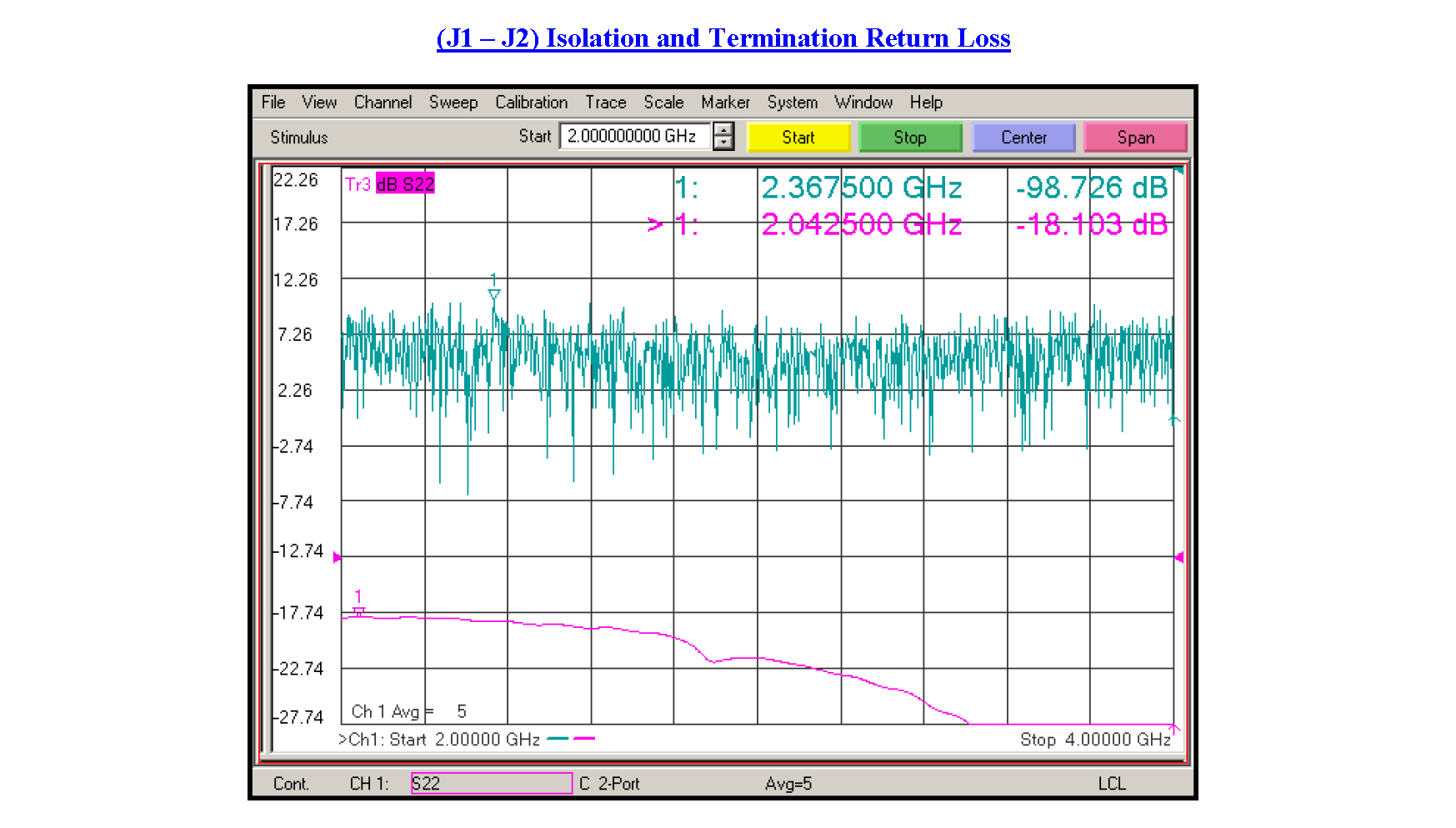

PE71S6288 | Absorptive |
2,000-4,000 |
75 |
1.2 |
100 |
1 |
Solder Pin |
SMA Female |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
