Pasternack Introduces New Line of

Broadband Limiting Amplifiers

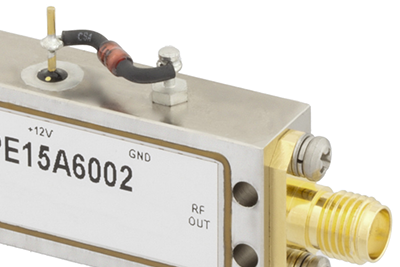

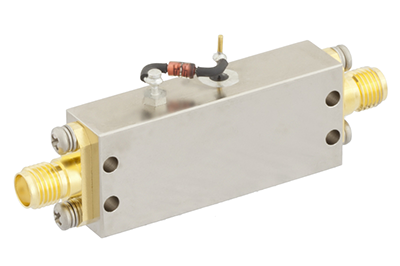

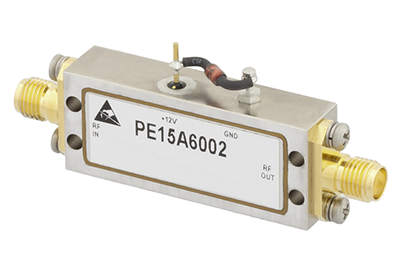

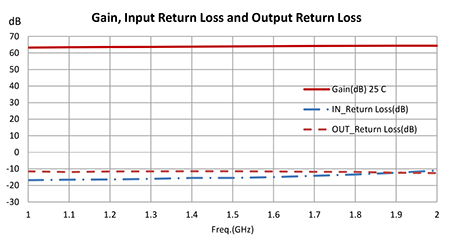

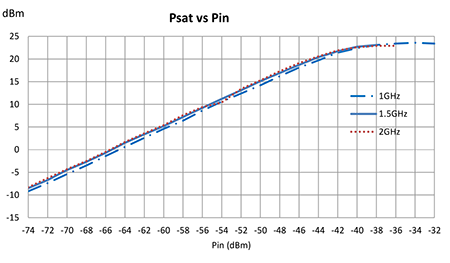

60 dB Gain, 80 mW, 1 GHz to 2 GHz, Limiting Amplifier, -40 to 10 dBm Pin, SMA

Click to buy: PE15A6002

In-stock and available

to ship today!

SMA Connectors, 50 ohm Input/Output

Operating Up to 18 GHz

Hermetically-Sealed Modules

GaAs pHEMT Technology

EAR99 (No Export License Required)

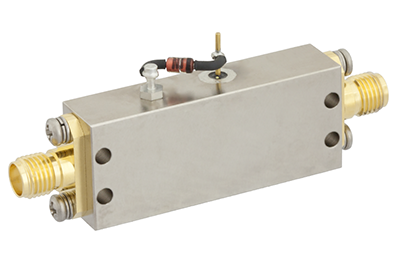

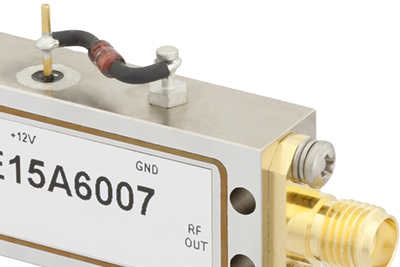

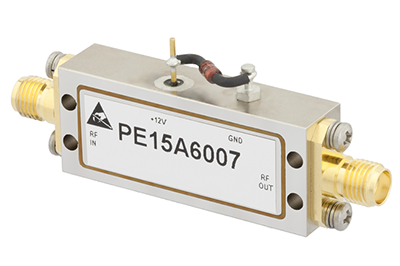

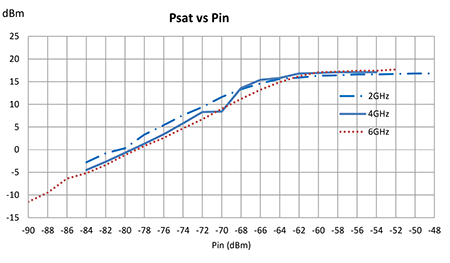

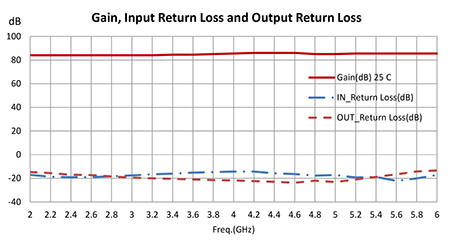

80 dB Gain, 30 mW, 2 GHz to 6 GHz, Limiting Amplifier, -61 to 10 dBm Pin, SMA

Click to buy: PE15A6007

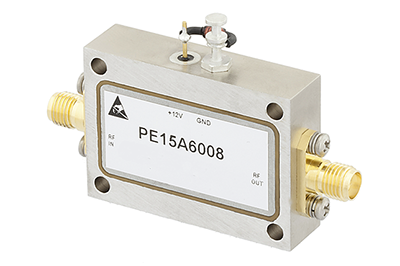

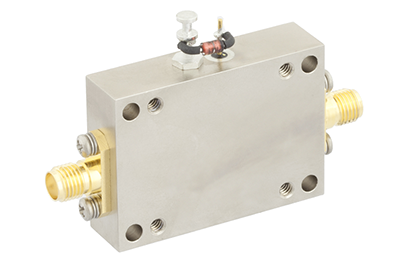

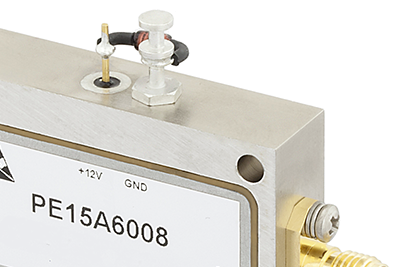

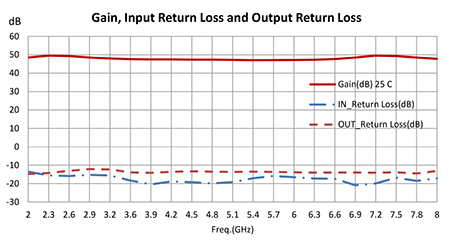

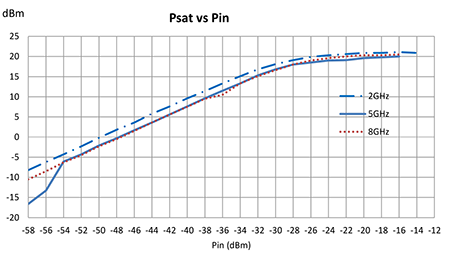

40 dB Gain, 80 mW, 2 GHz to 8 GHz, Limiting Amplifier, -20 to 20 dBm Pin, SMA

Click to buy: PE15A6008

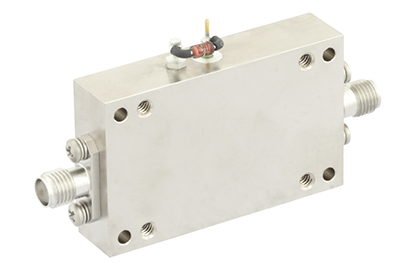

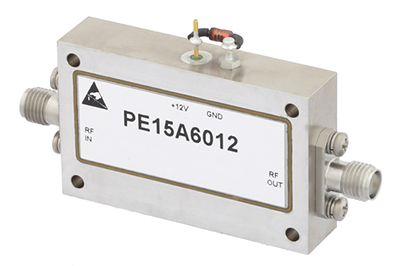

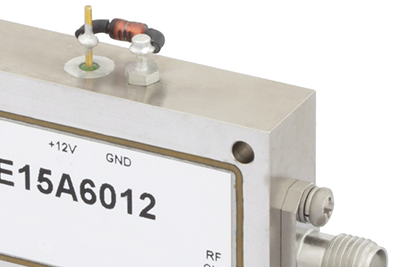

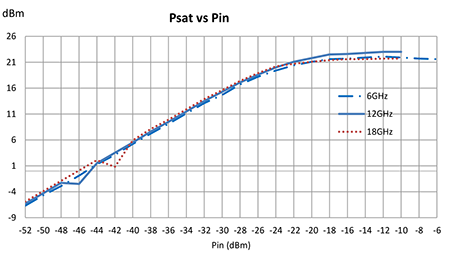

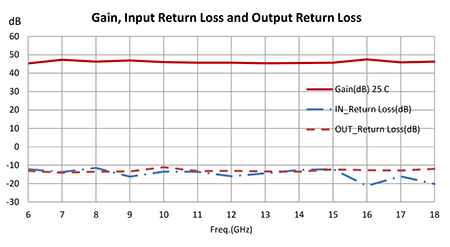

40 dB Gain, 80 mW, 6 GHz to 18 GHz, Limiting Amplifier, -20 to 20 dBm Pin, SMA

Click to buy: PE15A6012

Broadband Limiting Amplifiers



Pasternack’s new coaxial limiting amplifiers cover a wide frequency range between 1 to 18 GHz. These broadband limiting amplifiers are used to protect sensitive microwave receivers by “limiting” excessive input power which could potentially create unwanted distortion or even damage the receiver. This new portfolio of limiting amplifiers accept a wide range of input power levels, while responding with a limited range of output powers between 15 and 19 dBm with a saturated power output deviation of ±0.5 dB over the frequency range, independent of the input. These RF amplifiers demonstrate a wide input dynamic range between -61 dBm to +20 dBm, high gain levels of 40 to 80 dB typical gain while exhibiting excellent gain flatness performance of ±1 dB depending on the specific model.

Our new wideband limiting amplifiers are housed in hermetically-sealed packages and are designed to withstand harsh environments with operating temperatures ranging from -30 to +70 degrees C. The connectorized SMA limiting amplifiers are unconditionally stable and include built-in voltage regulation, bias sequencing, and reverse bias protection for added reliability. Over-voltage protection is installed externally for easy repair and the amplifiers are fully matched internally for 50 Ohm input and output, which eliminates the customers need for any additional sensitive external RF tuning components.


Pasternack RF Amplifier Part #

Parameter (Typical)

Units

PE15A6002

PE15A6007

PE15A6008

PE15A6012

Amplifier Frequency Range

GHz

1.0 -2.0

2.0 -6.0

2.0 -8.0
6.0 - 18.0

Small Signal Gain

dB

60
80
40
40

Gain Flatness

dB

+/-2.5
+/-3
+/-2
+/-2

Input Power

dBm

-40 to +10
-61 to +10
-20 to +20
-20 to +20

Psat

dBm

+19
+15
+19
+19

NF

dB

2.5
4
5
4

Input VSWR



2:1
2:1
2:1
2:1

Output VSWR



2:1
2:1
2:1
2:1

DC Supply Voltage

Volts

12
12
12
12

Current Supply

mA

250
550
300
300
