Limiting Amplifiers

Check out our new RF calculators & conversion tools...

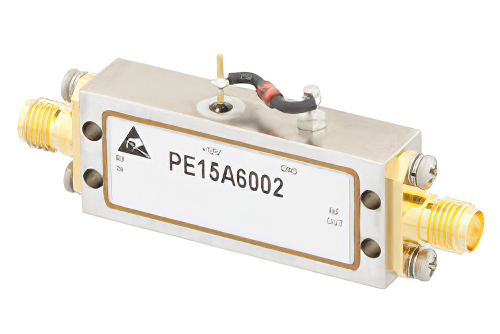

60 dB Gain, 19 dBm Psat, 1 GHz to 2 GHz, Limiting Amplifier, -40 to 10 dBm Pin, SMA

Product ID: PE15A6002
60 dB Gain, 19 dBm Psat, 1 GHz to 2 GHz, Limiting Amplifier, -40 to 10 dBm Pin, SMA


Image Views:  60 dB Gain, 19 dBm Psat, 1 GHz to 2 GHz, Limiting Amplifier, -40 to 10 dBm Pin, SMA high resolution
Zoomalternate image
View 2


Click for:PE15A6002 Datasheet
Click for:PE15A6002 RoHS Cert
Click for:PE15A6002 REACH Cert
Available Quantity: 19
Pricing Table
QUANTITYPRICE
1-1$2,228.97
2-4$2,095.23
5-9$1,983.78
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Gain60 dB
Power Output19 dBm Psat
Power Input Min-40 dBm
Power Input Max10 dBm
Frequency, Min1,000 MHz
Frequency, Max2 GHz
Noise Figure, Max2.5 dB
RF Output VSWR Max2:1
Connector SeriesSMA


60 dB Gain, 19 dBm Psat, 1 GHz to 2 GHz, Limiting Amplifier, -40 to 10 dBm Pin, SMA

PE15A6002 limiting amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized limiting amplifier uses SMA connectors. This SMA limiting amplifier has a minimum frequency of 1,000 MHz and maximum frequency of 2 GHz. The minimum gain of this limiting radio frequency amplifier is 60 dB with a minimum saturated output power of 19 dBm Psat.

RF limiting amplifier PE15A6002 is rated at -40 dBm minimum power input and 10 maximum power input. Our limiting radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial limiting amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
