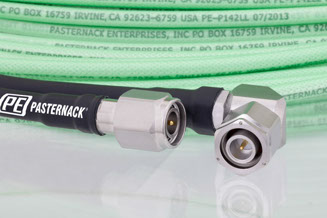

TNC Male to TNC Male Right Angle 18 GHz Low Loss

Expanded Dielectric PE-P142LL Flexible Test Cables

■ 83% Velocity of Propagation

■ Shielding effectiveness > 95 dB

■ Maximum VSWR is < 1.35:1 to 18 GHz

■ Minimum Bend Radius of 1.5 inches

■ Operating Temperature range of -55 to +125 °C

■ ROHS and REACH Compliant

■ Standard, metric and custom lengths ship same day

■ 100% Continuity, Hi-Pot, and RF tested

TNC Male to TNC Male Right Angle Low Loss Test Cable 12 Inch Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-12

TNC Male to TNC Male Right Angle Low Loss Test Cable 24 Inch Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-24

TNC Male to TNC Male Right Angle Low Loss Test Cable 36 Inch Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-36

TNC Male to TNC Male Right Angle Low Loss Test Cable 48 Inch Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-48

TNC Male to TNC Male Right Angle Low Loss Test Cable 60 Inch Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-60

TNC Male to TNC Male Right Angle Low Loss Test Cable 50 CM Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-50CM

TNC Male to TNC Male Right Angle Low Loss Test Cable 100 CM Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-100CM

TNC Male to TNC Male Right Angle Low Loss Test Cable 150 CM Length Using PE-P142LL Coax, RoHS

Product ID:
PE346-150CM

Browse our entire selection of new 18 GHz Low Loss Test Cables by clicking on a link below:

SMA Male to SMA Female 18 GHz

Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

SMA Male to SMA Male 18 GHz

Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

SMA Male to SMA Male Right Angle 18 GHz Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

N Male to N Male 18 GHz

Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

N Male to N Female Bulkhead 18 GHz

Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

N Male to N Male Right Angle

18 GHz Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

TNC Male to TNC Male Right Angle 18 GHz Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

TNC Male to TNC Male 18 GHz

Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

TNC Male to TNC Female Bulkhead 18 GHz Low Loss Expanded Dielectric

PE-P142LL Flexible Test Cables

Low Loss Expanded Dielectric PE-P142LL Flexible Test Cables

Pasternack Enterprises’ new low loss test cables utilize a 0.195 inch diameter coax with an expanded dielectric which results in 83% Velocity of Propagation (VoP) performance up to 18 GHz. These coaxial cable assemblies from Pasternack are made with PE-P142LL coax, which operates at higher power with improved phase stability. The double shielded flexible coax provides excellent shielding effectiveness greater than 95 dB and VSWR of less than 1.35:1. A heavy duty boot and FEP jacket improve strain relief and allow for a minimum bend radius of 1 inch which adds to the durability of these cable assemblies.

Pasternack’s new line of PE-P142LL test cables can be ordered with male-straight and right angle versions of Type N, SMA, and TNC connectors as well as female bulkhead versions for each connector series. The new LL test cables from Pasternack can be ordered in custom lengths and are also available in standard lengths from 12 to 60 inches. Metric lengths can be ordered in 50, 100, 150 and 200 centimeter (cm) lengths. Each assembly is 100% continuity, Hi-Pot and RF tested prior to shipment.
