HN Male to GR874 Sexless Adapter

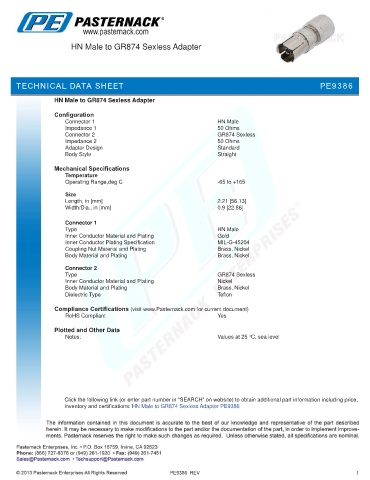

TECHNICAL DATA SHEET PE9386

HN Male to GR874 Sexless Adapter

Configuration
Connector 1 HN Male
Impedance 1 50 Ohms
Connector 2 GR874 Sexless
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 2.21 [56.13]
Width/Dia., in [mm] 0.9 [22.86]
.
Connector 1
Type HN Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Connector 2
Type GR874 Sexless
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Male to GR874 Sexless Adapter PE9386

PE9386 REV 1
