Mini UHF Male to FME Jack Adapter

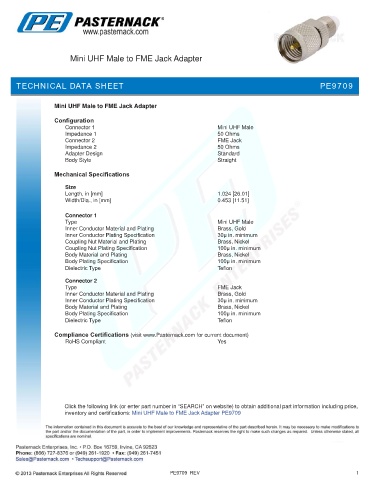

TECHNICAL DATA SHEET PE9709

Mini UHF Male to FME Jack Adapter

Configuration
Connector 1 Mini UHF Male
Impedance 1 50 Ohms
Connector 2 FME Jack
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.024 [26.01]
Width/Dia., in [mm] 0.453 [11.51]
.
Connector 1
Type Mini UHF Male
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type FME Jack
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male to FME Jack Adapter PE9709

PE9709 REV 1
