N Female to UHF Male Adapter

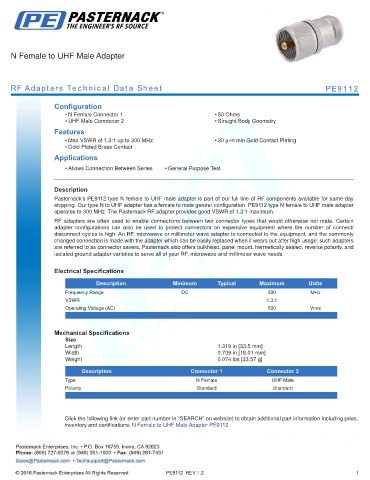

RF Adapters Technical Data Sheet PE9112

Configuration
• N Female Connector 1 • 50 Ohms
• UHF Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 300 MHz • 30 µ-in min Gold Contact Plating
• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9112 type N female to UHF male adapter is part of our full line of RF components available for same-day
shipping. Our type N to UHF adapter has a female to male gender configuration. PE9112 type N female to UHF male adapter
operates to 300 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.319 in [33.5 mm]
Width 0.709 in [18.01 mm]
Weight 0.074 lbs [33.57 g]
.
Description Connector 1 Connector 2
Type N Female UHF Male
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female to UHF Male Adapter PE9112
