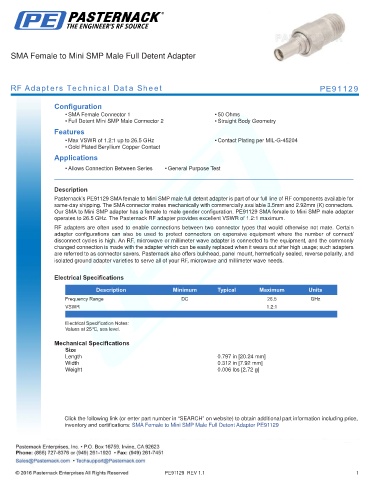

SMA Female to Mini SMP Male Full Detent Adapter

RF Adapters Technical Data Sheet PE91129

Configuration
• SMA Female Connector 1 • 50 Ohms
• Full Detent Mini SMP Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.2:1 up to 26.5 GHz • Contact Plating per MIL-G-45204
• Gold Plated Beryllium Copper Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91129 SMA female to Mini SMP male full detent adapter is part of our full line of RF components available for
same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm and 2.92mm (K) connectors.
Our SMA to Mini SMP adapter has a female to male gender configuration. PE91129 SMA female to Mini SMP male adapter
operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of 1.2:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.797 in [20.24 mm]
Width 0.312 in [7.92 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Female to Mini SMP Male Full Detent Adapter PE91129

PE91129 REV 1.1 1
