Precision SMA Female to SMP Male 2
Hole Flange Adapter Full Detent

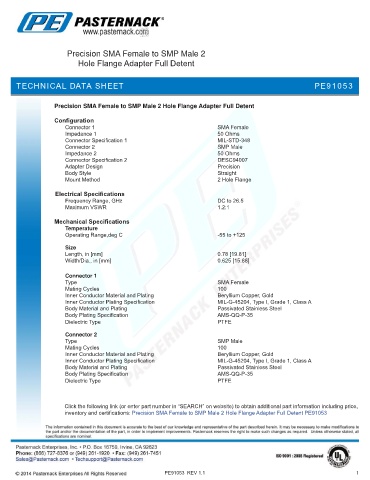

TECHNICAL DATA SHEET PE91053

Precision SMA Female to SMP Male 2 Hole Flange Adapter Full Detent

Configuration
Connector 1 SMA Female
Impedance 1 50 Ohms
Connector Specification 1 MIL-STD-348
Connector 2 SMP Male
Impedance 2 50 Ohms
Connector Specification 2 DESC94007
Adapter Design Precision
Body Style Straight
Mount Method 2 Hole Flange

Electrical Specifications
Frequency Range, GHz DC to 26.5
Maximum VSWR 1.2:1

Mechanical Specifications
Temperature
Operating Range,deg C -55 to +125
Size
Length, in [mm] 0.78 [19.81]
Width/Dia., in [mm] 0.625 [15.88]
.
Connector 1
Type SMA Female
Mating Cycles 100
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type I, Grade 1, Class A
Body Material and Plating Passivated Stainless Steel
Body Plating Specification AMS-QQ-P-35
Dielectric Type PTFE
Connector 2
Type SMP Male
Mating Cycles 100
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification MIL-G-45204, Type I, Grade 1, Class A
Body Material and Plating Passivated Stainless Steel
Body Plating Specification AMS-QQ-P-35
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMP Male 2 Hole Flange Adapter Full Detent PE91053
