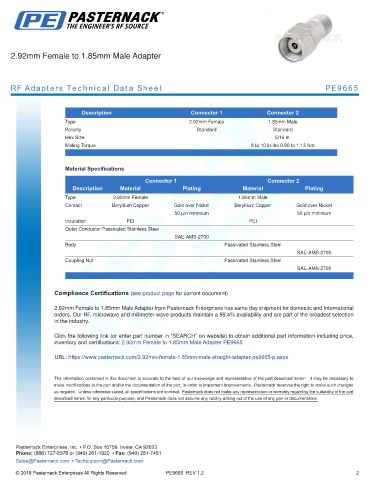

2.92mm Female to 1.85mm Male Adapter

RF Adapters Technical Data Sheet PE9665

.
Description Connector 1 Connector 2
Type 2.92mm Female 1.85mm Male
Polarity Standard Standard
Hex Size 5/16 in.
Mating Torque 8 to 10 in-lbs 0.90 to 1.13 Nm
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 2.92mm Female 1.85mm Male
Contact Beryllium Copper Gold over Nickel Beryllium Copper Gold over Nickel
50 µin minimum 50 µin minimum
Insulation PEI PEI
Outer Conductor Passivated Stainless Steel
SAE-AMS-2700
Body Passivated Stainless Steel
SAE-AMS-2700
Coupling Nut Passivated Stainless Steel
SAE-AMS-2700
. .

Compliance Certifications (see product page for current document)

2.92mm Female to 1.85mm Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part of the broadest selection
in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 2.92mm Female to 1.85mm Male Adapter PE9665

URL: https://www.pasternack.com/2.92mm-female-1.85mm-male-straight-adapter-pe9665-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9665 REV 1.2 2
