3.5mm Female to 2.92mm Male Adapter
RF Adapters Technical Data Sheet PE9659

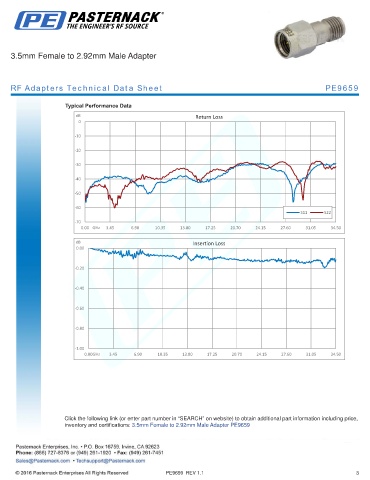

Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0.00 GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0.00GHz 3.45 6.90 10.35 13.80 17.25 20.70 24.15 27.60 31.05 34.50
