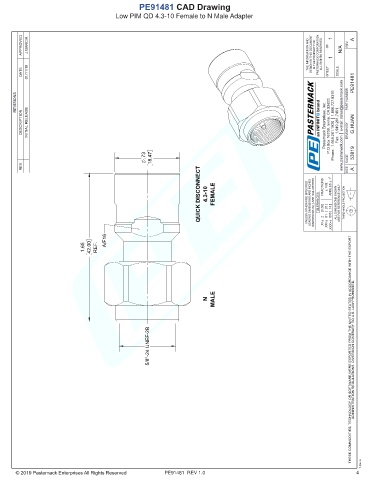

PE91481 CAD Drawing
Low PIM QD 4.3-10 Female to N Male Adapter
1
APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A
DATE 01/11/19 SHEET OF SCALE PE91481
REVISIONS PART NUMBER
DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY G.HUAN
.73 18.47 CAGE 53919
REV. SIZE A
QUICK DISCONNECT 4.3-10 FEMALE UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
A/F16 .X=± .XX=± .XXX=±
1.65 42.00 REF.
N MALE
5/8''-24 UNEF-2B THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
-
