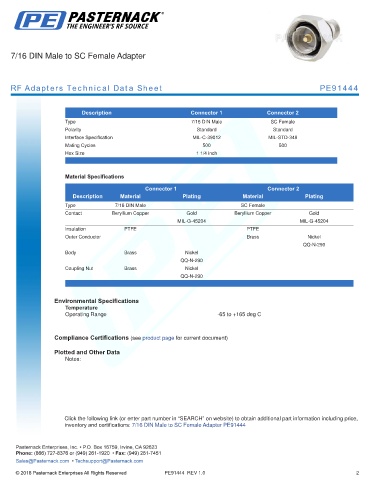

7/16 DIN Male to SC Female Adapter

RF Adapters Technical Data Sheet PE91444

.
Description Connector 1 Connector 2
Type 7/16 DIN Male SC Female
Polarity Standard Standard
Interface Specification MIL-C-39012 MIL-STD-348
Mating Cycles 500 500
Hex Size 1 1/4 inch
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Male SC Female
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to SC Female Adapter PE91444
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91444 REV 1.0 2
