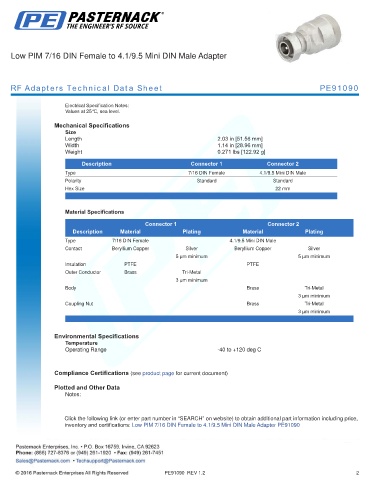

Low PIM 7/16 DIN Female to 4.1/9.5 Mini DIN Male Adapter

RF Adapters Technical Data Sheet PE91090

Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 2.03 in [51.56 mm]
Width 1.14 in [28.96 mm]
Weight 0.271 lbs [122.92 g]
.
Description Connector 1 Connector 2
Type 7/16 DIN Female 4.1/9.5 Mini DIN Male
Polarity Standard Standard
Hex Size 22 mm
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type 7/16 DIN Female 4.1/9.5 Mini DIN Male
Contact Beryllium Copper Silver Beryllium Copper Silver
5 µm minimum 5 µm minimum
Insulation PTFE PTFE
Outer Conductor Brass Tri-Metal
3 µm minimum
Body Brass Tri-Metal
3 µm minimum
Coupling Nut Brass Tri-Metal
3 µm minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +120 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Low PIM 7/16 DIN Female to 4.1/9.5 Mini DIN Male Adapter PE91090
