30 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN
Female Directional Rated To 50 Watts Up To 7.5 GHz

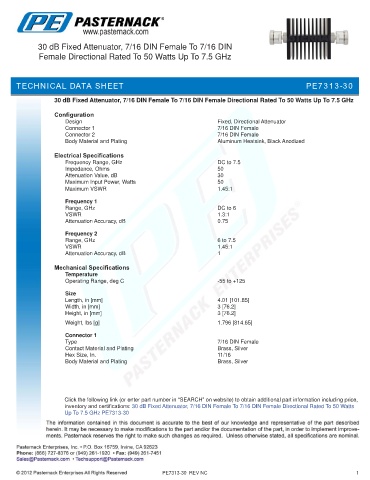

TECHNICAL DATA SHEET PE7313-30

30 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN Female Directional Rated To 50 Watts Up To 7.5 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 7/16 DIN Female
Connector 2 7/16 DIN Female
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 7.5
Impedance, Ohms 50
Attenuation Value, dB 30
Maximum Input Power, Watts 50
Maximum VSWR 1.45:1

Frequency 1
Range, GHz DC to 6
VSWR 1.3:1
Attenuation Accuracy, dB 0.75
Frequency 2
Range, GHz 6 to 7.5
VSWR 1.45:1
Attenuation Accuracy, dB 1
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 4.01 [101.85]
Width, in [mm] 3 [76.2]
Height, in [mm] 3 [76.2]
.
Weight, lbs [g] 1.796 [814.65]
Connector 1
Type 7/16 DIN Female
Contact Material and Plating Brass, Silver
Hex Size, In. 11/16
Body Material and Plating Brass, Silver

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Fixed Attenuator, 7/16 DIN Female To 7/16 DIN Female Directional Rated To 50 Watts
Up To 7.5 GHz PE7313-30

PE7313-30 REV NC 1
